COMMISSIONING, OPERATING AND MAINTENANCE MANUAL
MODEL: MAXLOGIC SERIES
ML-501XX
SUB MODEL: FIREFIGHTER'S TELEPHONE
CONTROL UNIT 08-32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the maxlogic ML-501 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for mavili maxlogic ML-501 Series

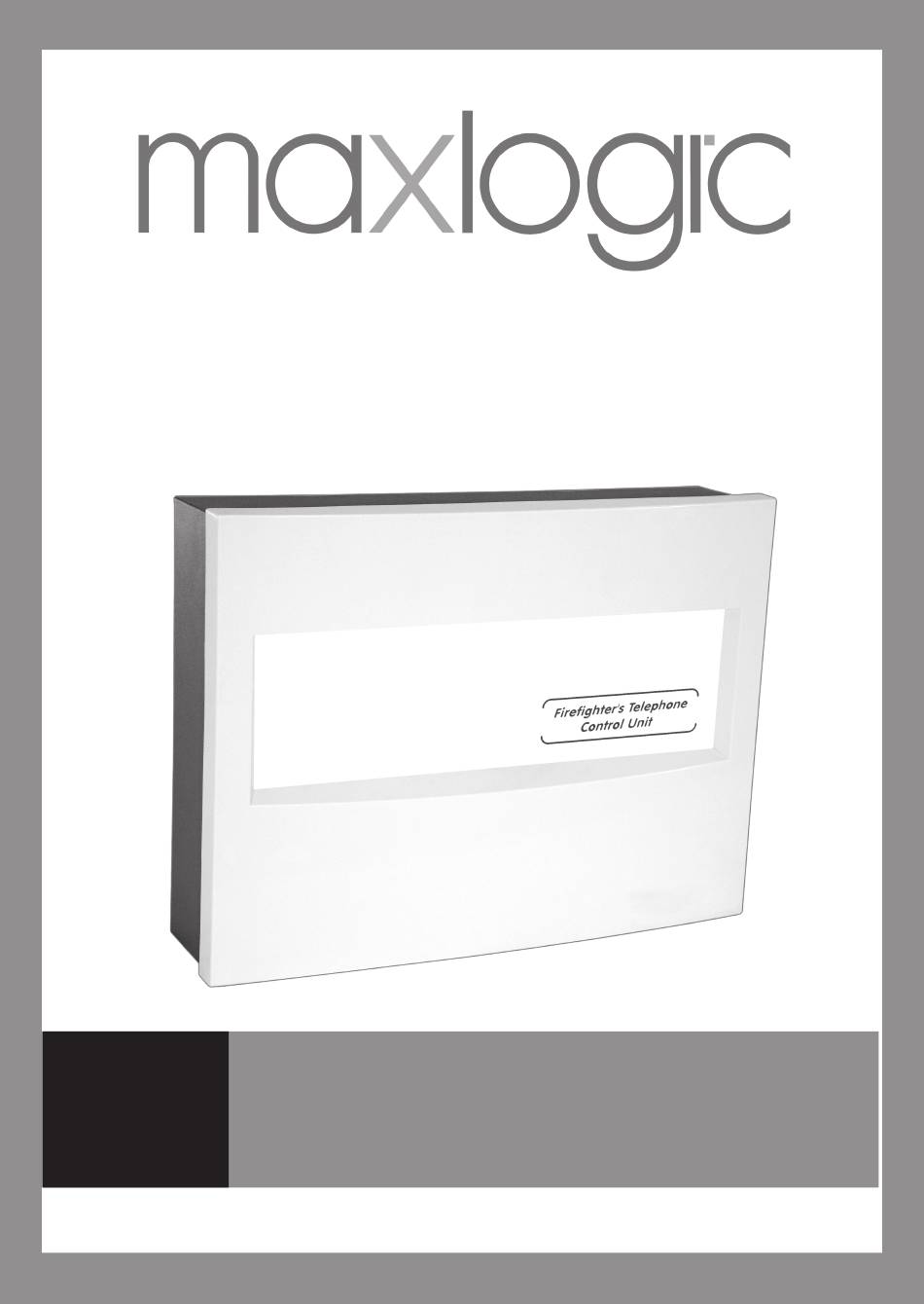

  • Page 1 COMMISSIONING, OPERATING AND MAINTENANCE MANUAL MODEL: MAXLOGIC SERIES ML-501XX SUB MODEL: FIREFIGHTER’S TELEPHONE CONTROL UNIT 08-32...

  • Page 2: Table Of Contents

    CONTENTS Section Page Introduction Warnings Mounting Inputs, Button and Indicators Programming ML-501XX Firefighter’s Telephone Control Unit Connection to Telephone Control Unit Programming Supervisor Screen Technical Specifications Order Explanations ANNEX ANNEX-A Fire Alarm System And Telephone System Scheme ANNEX-B Dimensions of Telephone Control Unit ANNEX-C Mounting Points of Telephone Control Unit KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 2/19...

  • Page 3: Introduction

    Manufacturer Firm: MAVILI ELEKTRONIK TICARET VE SANAYI A.S. Address: SERIFALI MAHALLESI, KUTUP SOKAK NO: 27/1-2-4 UMRANIYE / ISTANBUL / TURKEY TEL: +90 216 466 45 05 FAX: +90 216 466 45 10 Web: www.mavili.com.tr Authorized Service Title, Address Details Authorized Service: TEKSIS TEKNIK ELEKTRONIK SIS. TIC. VE SAN. A.S.

  • Page 4: Mounting

    3. MOUNTING The chosen mounting site of the panel must be clean, dry, not subject to shock or vibration and easily accessible. The temperature must be in between the temperature range of –5°C with +50°C. The relative humidity must not be more than 95%. The control unit should be mounted on a flat surface in such a way that, the indicators should be at the eye-level and must not be mounted near the sources of excessive heat or cold and inside of any cabinet.

  • Page 5: Programming Ml-501Xx Firefighter's Telephone Control Unit

    5. PROGRAMMING ML-501XX FIREFIGHTER’S TELEPHONE CONTROL UNIT 5.1 Connection to Telephone Control Unit Te settings for PC’s ethernet and local network connections must be done to program Telephone Control Unit. The following figure shows the cable features that use between ethernet input on Telephone Control Unit and PC’s ethernet input and connection type: NOTE: RJ-45 structure should be referenced on following cable placements.
  • Page 6 - Network Connections Display Network Connections Local Network Connection Properties - Properties Internet Communication Rule (TCP/IP) Properties KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 6/19...

  • Page 7: Menu Screen

    - The following setting should be done. - On Internet address field 10.0.0.12 IP address of control unit should be written to connect control unit. Menu Screen KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 7/19...

  • Page 8: Programming

    5.2 PROGRAMMING 5.2.1 Number specifications of analogue subscriber The telephone which used on the system is connected to analogue subscriber input on Telephone Control Unit described on Figure 1. The telephone numbers on this input must be identified. To do that, following steps must be done: - Analogue Subscriber 12 is selected from Users field on 3rd row of the menu screen and the following screen opens.
  • Page 9 - Analogue subscriber 12 has been selected from Users field on 3rd row of the menu screen and the user opens. The user number which user wants to use selected as. - This screen is User’s Properties screen. 82701234567890 prefix number of conference room’s rule must be written on Emergency Line field at Users.
  • Page 10 - Hide and Restart must be selected on Menu screen to record the adjustment of the telephone control unit. When user select Hide; the changed parameters on the other screens which selected by “Ok” button, directly activated and provides to save at temporary storage RAM. The following screen opened when Restart selected.
  • Page 11 5.2.3 Programming the IP telephone on Supervisor software IP telephone field is one of the fields on Supervisor graphically monitoring and control software. If there are firefighter’s telephones or telephone modules on addressable fire alarm panel, these telephones dialed from IP telephone field on Supervisor application. Also telephones on site can directly dials IP telephone without need to push any number.

  • Page 12: Supervisor Screen

    6. SUPERVISOR SCREEN The IP telephone must be identified on Supervisor software. Hence, External Programs field selected at Settings menu on Supervisor. At this field the integration of the IP telephone with Supervisor software can be done. Then, Xphone IP telephone program is installed to PC, and this program’s shortcut identified at this field to make integration.
  • Page 13 - xSip 1 at Users field on the 3rd row of the Menu screen must be selected to made IP telephone communication adjustments. DuzenGn is selected on 308. KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 13/19...
  • Page 14 - The IP telephone operated on the PC that the Supervisor application installed. Settings field opened by clicking 3 dots on right hand side. - The adjustments on IP telephone arranged on programming field at Accound, password, and authentication ID. These information are required for connection to IP telephone.
  • Page 15 - Firefighter’s telephone’s numbers are listed at fast dial field on pop-up window. The location data of the firefighter’s telephones are described at fast dial buttons on IP telephone. Desired shortcuts selected on arrange label field and location data described on pop-up window. KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 15/19...

  • Page 16: Technical Specifications

    IP telephone is connecting to control unit via local network permanently. If there is no problem on the settings, connection starts directly. The following screen appears when connection starts. 7 - TECHNICAL SPECIFICATIONS Main Supply: 230V AC 50 Hz Operating Voltage: 48V DC Relative Humidity: %0-85 (non-condensing)

  • Page 17: Annex Annex-A Fire Alarm System And Telephone System Scheme

    ANNEX-A FIRE ALARM SYSTEM AND TELEPHONE SYSTEM SCHEME KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 17/19...

  • Page 18: Annex-B Dimensions Of Telephone Control Unit

    KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 18/19...

  • Page 19: Annex-C Mounting Points Of Telephone Control Unit

    KK-642.077 Rev.No:0 02.03.17 ML-501XX User Manual Page 19/19...
