VESA 75 to 100 Bracket
Convert Bracket
Quick Installation Guide
VESA 75 to 100 Bracket for RT Series Model
For RT series, make sure your RT POS terminal is Q version, which means
the VESA mount bracket of the RT POS terminal can be opened through two
thumbscrews, and without base stand. To get more detail information, please
refer to the relevant user manual on Posiflex global website. Or contact
directly the Posiflex' technical service team.
1.

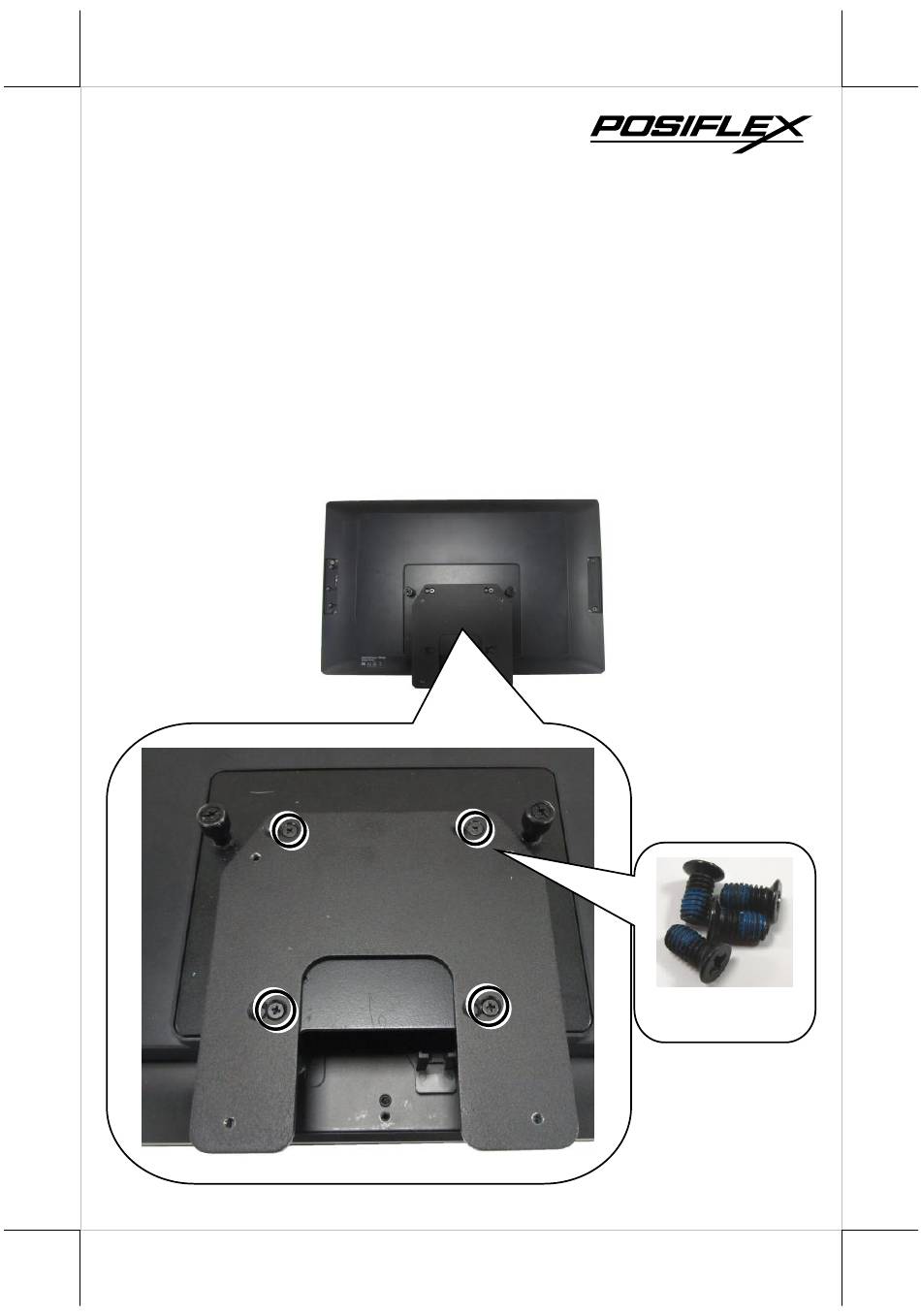

Turn the RT POS terminal to the rear side. Find the VESA 75x75 screw
holes on the RT rear cover, and fix the VESA convert bracket with four
countersunk head screws. Please note that the screw holes on the right
side is for RT series model; and the screw holes on the left side is for
ZT series model.
1
Countersunk Head
Screws
Advertisement
Related Manuals for POSIFLEX VESA 75
Summary of Contents for POSIFLEX VESA 75
- Page 1 VESA mount bracket of the RT POS terminal can be opened through two thumbscrews, and without base stand. To get more detail information, please refer to the relevant user manual on Posiflex global website. Or contact directly the Posiflex’ technical service team.
- Page 2 M4 screws. M4 Screws VESA 75 to 100 Bracket for ZT Series Model For ZT series, make sure the base stand of your ZT POS terminal is removed. Or please follow the step.1 to step.9 to remove the base stand first before installing the VESA convert bracket.
- Page 3 Push the latch (toward left side) through the direction of the arrow like below pictures, and then you can release the base cover. Take off the base cover. Rotate the screen to the upright position like below pictures.
- Page 4 There is a latch inside cable exit on the rear side of the POS terminal. Push the latch with the thumb of the left hand, and then the touch monitor will release automatically. Open the touch monitor with two hands, and then you can do the maintenance work.
- Page 5 Disconnect the power cable from the main board. Disconnect. To remove the base stand, please remove the four screws shown as below picture.
- Page 6 10. Turn the ZT POS terminal to the rear side. Find the VESA 75x75 screw holes on the ZT rear cover, and fix the VESA convert bracket with four countersunk head screws. Please note that the screw holes on the right side is for RT series model;...
- Page 7 11. After fixing the VESA convert bracket to the ZT POS terminal, you can fix the pole stand which is VESA 100x100 to the VESA convert bracket with four M4 screws. M4 Screws ※ The product information and specifications are subject to change without prior notice.
