Summary of Contents for TBB power DTU-BLE

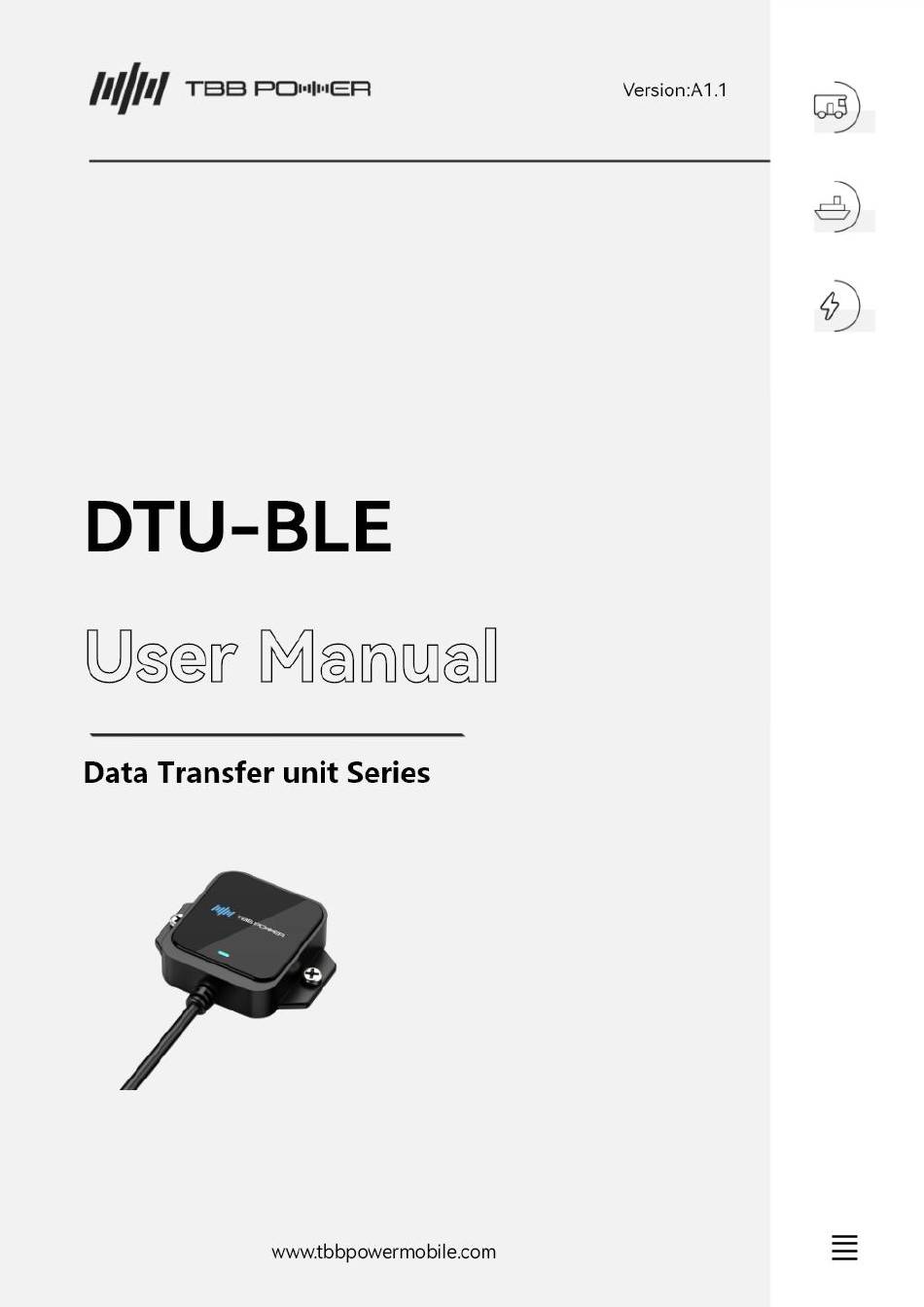

- Page 1 User Manual of DTU-BLE V1.1 User Manual DTU-BLEV1.0...
-
Page 2: Installation And Connection
User Manual of DTU-BLE V1.1 1. Introduction DTU-BLE is a TBB’s standard Bluetooth module for external installation purpose. It’s designed as slim and compact whilst easy to be installed. It’s able to connect directly with communication port which with power supply. It’s compatible with TBB’s M series lithium battery to allow to use M Lithium battery mobile APP. - Page 3 TBB battery switch is not selected. Here is the steps of connection when via dry contacts (1) Connect DTU-BLE module with Display port on battery via an Ethernet cable (2) Use an external switch to connect with dry contacts of “Dry Contact” which next...
-
Page 4: Led Indicators
User Manual of DTU-BLE V1.1 Fig.2-2-2 Connection diagram when via dry contacts on M battery 3. LED indicators Description LED indicator Status No Bluetooth device connected Blue Cycling as ON 200ms and OFF 200ms Bluetooth device connected Blue Cycling as ON 1000ms and OFF 1000ms... - Page 5 5000m 5. Mobile APP access DTU-BLE Bluetooth module is compatible with TBB’s M lithium battery and other devices. Below please find access of M lithium battery mobile APP. For access of other TBB’s product, please consult TBB sales or TBB’s dealer.
