Summary of Contents for Fortress Technologies 1060ELE

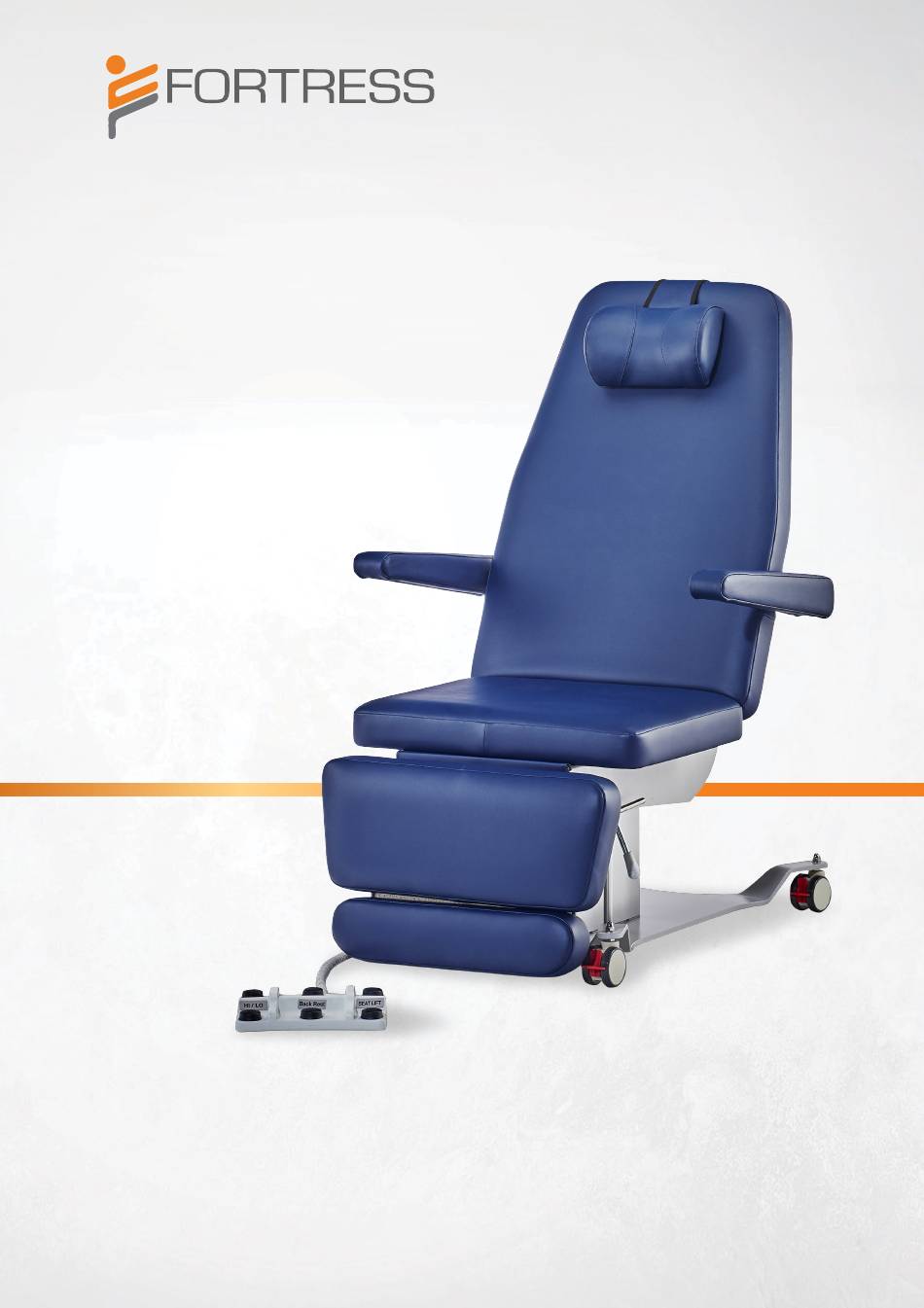

- Page 1 User Manual Elevate Podiatry Chair 1060ELE www.fortressequipment.com...
-
Page 2: Table Of Contents
Contents 1. CONTENTS a. Forward b. Disclaimer 2. PRODUCT SPECIFICATIONS 3. UNBOXING AND INSTALLATION 4. OPERATING INSTRUCTIONS 5. VINLY CARE 6. AUDIBLE ERROR INDICATIONS 7. TROUBLE SHOOTING GUIDE 8. THE FORTRESS WARRANTY Forward Congratulations on receiving your quality Fortress™ equipment, proudly designed and manufactured in Australia. -
Page 3: Product Specifications
1. Dimensions in millimeters (mm) 2. Range movement in millimeters (mm) and degrees (”) 3. Lifting Capacity is 350KG 4. Safe Working Load (SWL) is 400 KG Fortress Elevate Podiatry Chair (1060ELE) Fortress Elevate Podiatry Chair & Electric Footrest 1840 1300 (working heel height) 70º... -
Page 4: Unboxing And Installation
Unboxing and Installation The table will arrive packaged in two box sections held in place with packing strips. To unbox follow the following steps. 1. Cut the two plastic strips where shown. 2. Lift the box cover to reveal the table. 3. -
Page 5: Operating Instructions
Operating Instructions WARNING Do not operate electrical components of the table in the presence of flammable anesthetics due to the risk of explosive ignition. LEGREST Footswitch One: BACKREST HILO 1. Depress the tab which corresponds to the direction you wish the bed to go 2. -
Page 6: Memory Functions
Memory Functions TO STORE - Press and release the STORE button then press one of the MEMORY BUTTONS for approx 2 seconds to store the position required. TO ACCESS - Pressing and holding any of the MEMORY BUTTONS will then move all actuators to the current stored positions for the memory. -
Page 7: Audible Error Indications
Audible Error Indications POSITION LOST on an actuator is indicated via an intermittent beep 200msec ON/200msec OFF Solution: Try the RESET/INITIALISATION procedure below and then in turn run all function, If problem persists, locate faulty actuator or cable. FATAL ERROR is indicated via an intermittent beep 500msec ON/500msec OFF Solution: Try the RESET/INITIALISATION procedure below and then in turn run all function, If problem persists, locate faulty actuator / cable and replace as required. -
Page 8: Trouble Shooting Guide
Trouble Shooting Guide Problem: Electric actuator does not operate. Possible Solutions: 1. Make sure that actuator is getting power. Check power plug to see if it is securely plugged into electric outlet and the cord is not severed. 2. Check circuit breaker of fuse to make sure outlet is receiving power. 3. -
Page 9: The Fortress Warranty
The Fortress Warranty 1. Fortress warrants that the product is free of defects in material and manufacture when it leaves the factory and will address any defects in material or workmanship without charge as defined below. 2. Warranty is transferrable to any subsequent owner of the product during the warranty period. 3. -
Page 10: Warranty Claim Process
Warranty Claim Process To obtain service from Fortress or an authorised agent under this warranty the owner must abide by the following process: STEP 1 — REPORT A written report of the problem encountered must be made by the customer within seven (7) days of first becoming aware of the problem;...
