Thunder RPS-5B Quick Start Manual

Thunder Germany RPS is a compact, wall-mounted loudspeaker, characterized by high-quality sound and aesthetic appearance.
Made of solid, durable materials, ensuring a long service life. The product is lightweight and compact in size for easy installation.
It features a modern, elegant design that fits well into any indoor environment. It is important to highlight the optimal sound
distribution of the product, making it ideal for both music and speech sounds. Its area of application is also very wide, from home
entertainment systems to commercial premises such as shops and restaurants, conference rooms and presentation venues, or
even educational institutions, schools and universities.
– 4.5" (12cm) two-way suspended speaker
– Suitable for indoor and outdoor installation – 4.5" woofer
with coaxial 1" tweeter – Mains voltage: 70V-100V – Rated
power: 5W/10W/15W/20W/30W/8ohm – Power: 60W –
Sensitivity: 90dB – Frequency range: 70Hz-20Khz
INSTALLATION
Always turn off the power when installing and connecting cables and devices! Before installation:
• Choose the right amplifier according to impedance, power and number of speakers
• Plan the best connection method in terms of number, impedance and power of speakers
• Test the location where the speakers will be used and lay the cables from the amplifier to the speakers in an electrically
and mechanically secure manner.
Installation:
• First, turn off the amplifier you want to connect the speaker to!

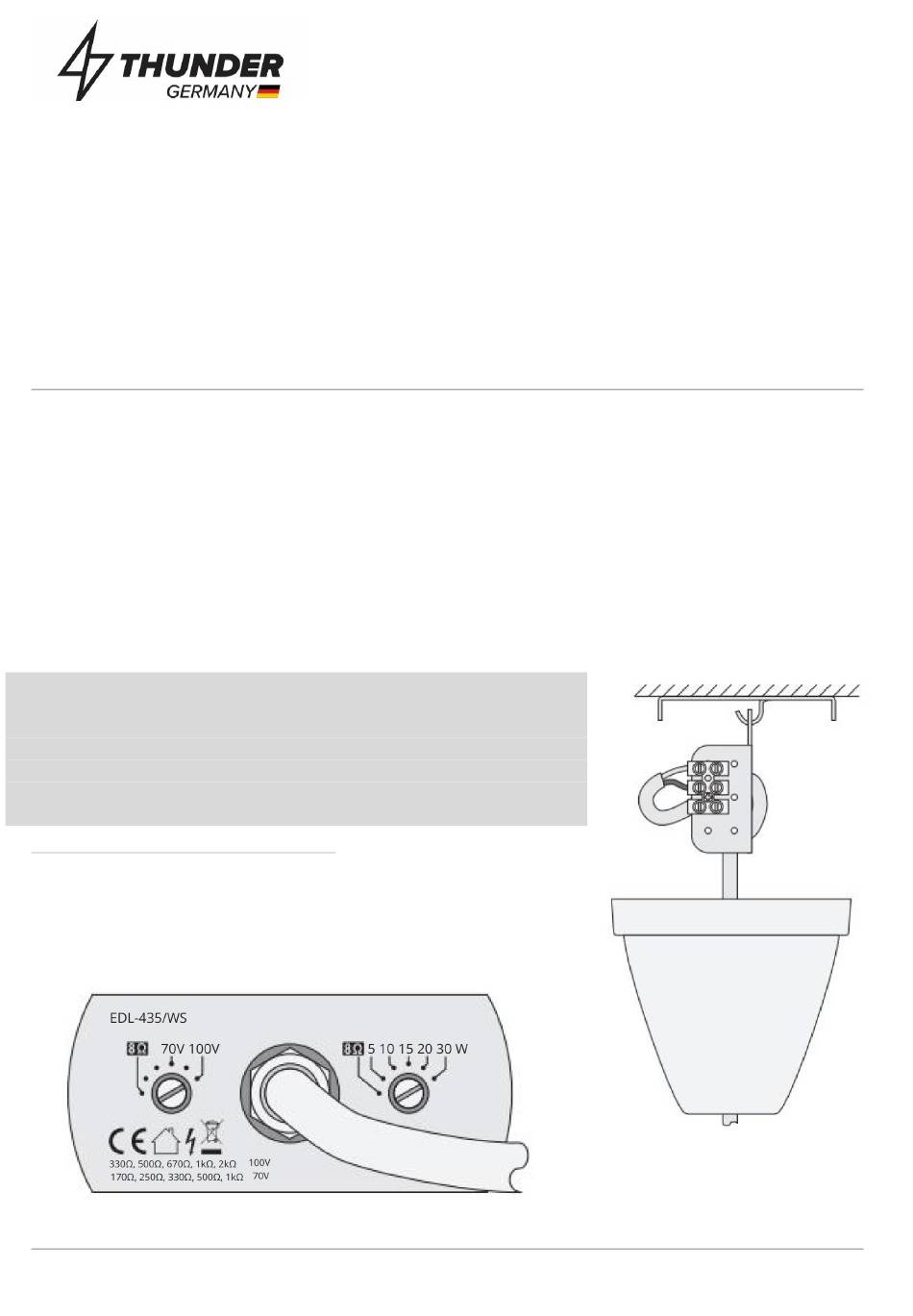

• Hang the speaker from a suitable location on the ceiling (see the illustration below).
• Connect the speaker and amplifier according to the polarity with the cables securely attached.
• For 100V mode, set the left switch to "100V" and then set the desired nominal power (volume) with the right switch. For
8Ω mode, set both switches to "8Ω".
• Once you have installed all the speakers and checked the connections, perform a sound test and finalize it.
CAUTION! Never use the speaker in a 100 V system when the "8Ω" position is
selected. The speaker and possibly the amplifier will be damaged. The total load
must not exceed the amplifier's rated power. Overloading can damage the
amplifier! The total power of all connected speakers must not exceed the
amplifier's power. Before starting the installation, clarify how many speakers
and what power(s) you intend to install in the room, as overloading will damage
the amplifier and the speaker.
CONNECTING AND MOUNTING SPEAKERS
When connecting multiple speakers, make sure that all speakers have the same
polarity and that the amplifier is not overloaded. Always make sure that the output
signal is not distorted and that the speakers are not damaged. If distortion is heard,
either the amplifier or the speakers are overloaded. To avoid damage, immediately
reduce the volume if distortion is heard. If the speakers are damaged due to
overloading, the warranty will be void.
TECHNICAL CHARACTERISTICS
Thunder RPS-5B (4.5 " ) HANGING
SPEAKER , 8ohm / 70V / 100V
– Wide opening angle with 360° horizontal coverage
– Robust ABS construction – Water resistance: IP54 – 3 m
suspension cable with steel core – Color: white – Weight:
2.2 kg
– Dimensions: 185 x 230 mm
