NTN-SNR PUMP700b-0,3L Instruction Sheet

Instruction Sheet

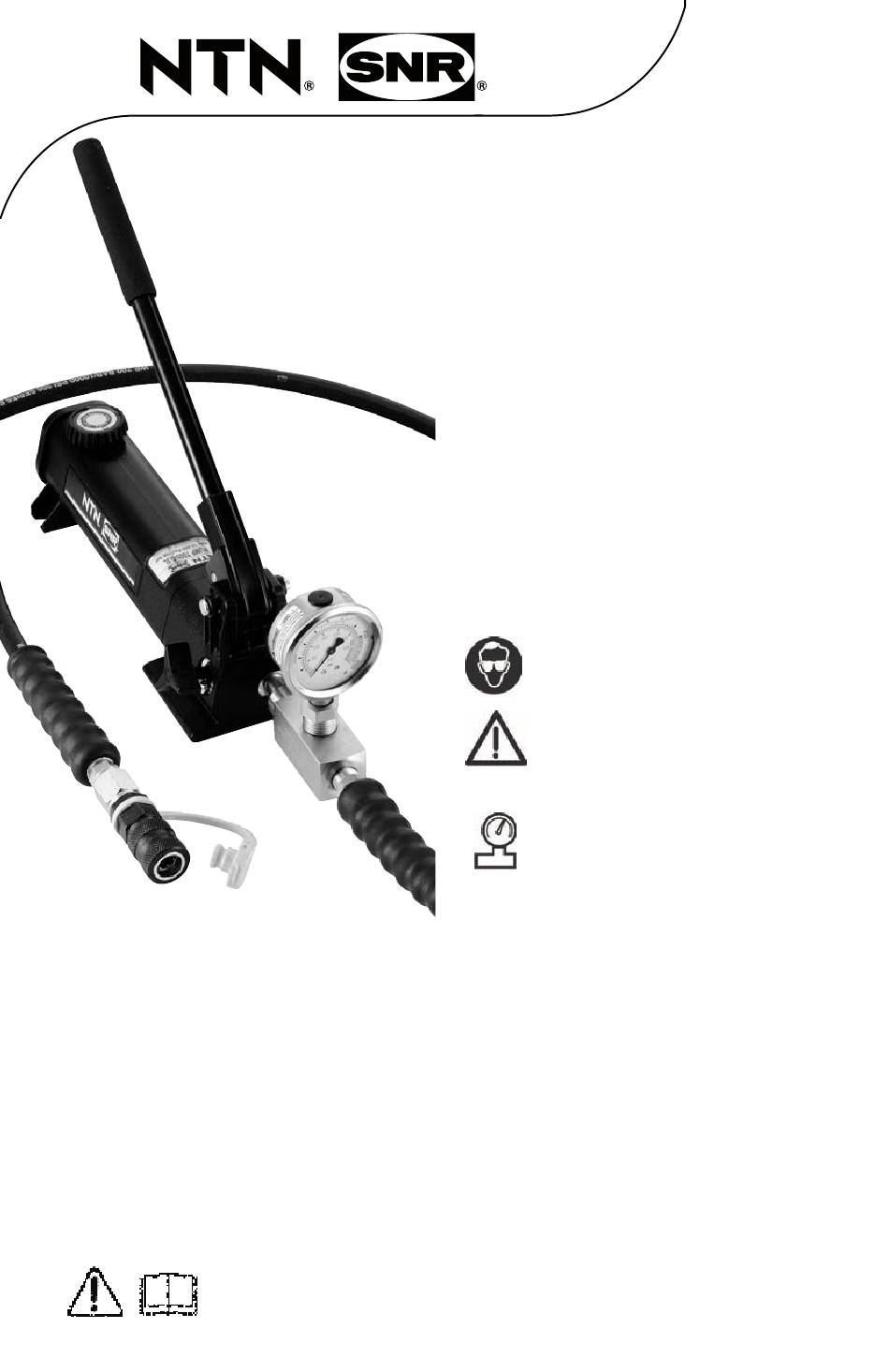

Hydraulic Hand Pump Set
700 bar
Product information are also available on the
NTN-SNR web site at www.ntn-snr.com.
1.0 IMPORTANT RECEIVING
INSTRUCTIONS
Visually inspect all components for shipping damage.
Shipping damage is not covered by warranty. If
shipping damage is found, notify carrier at once. The
carrier is responsible for all repair and replacement
costs resulting from damage in shipment.
2.0 SAFETY RECOMMENDATIONS
Read
warnings
carefully. Follow all safety
precautions to avoid personal injury or property
damage during system operation. NTN-SNR cannot
be responsible for damage or injury resulting from
unsafe product use, lack of maintenance or incorrect
product and/or system operation. Contact NTN-SNR
when in doubt as to the safety precautions and
operations. Failure to comply with the following
cautions and warnings could cause equipment
damage and personal injury.
A CAUTION is used to indicate correct operating or
maintenance procedures and practices to prevent
damage to, or destruction of equipment or other
property.
A WARNING indicates a potential danger that
requires correct procedures or practices to avoid
personal injury.
A DANGER is only used when your action or lack of
action may cause serious injury or even death.
personal injury. Do not remove relief valve.
monitor operating pressure.
CAUTION: Avoid damaging hydraulic hose. Avoid
sharp bends and kinks when routing hydraulic hoses.
Using a bent or kinked hose will cause severe back-
pressure.
- Sharp bends and kinks will internally damage the
hose leading to premature hose failure.
CAUTION: Do not drop heavy objects on hose.
A sharp impact may cause internal damage to hose
wire strands. Applying pressure to a damaged hose
may cause it to rupture.
CAUTION: Keep hydraulic equipment away from
flames and heat. Excessive heat will soften
packings and seals, resulting in fluid leaks. Heat also
weakens hose materials and packings. For optimum
performance
temperatures of 65 °C [150 °F] or higher.
all instructions,
and cautions
WARNING: Wear proper
protective gear when operating hydraulic
equipment.
DANGER: Never set the relief valve to a
higher pressure than the maximum rated
pressure of the pump. Higher settings
may result in equipment damage and/or
WARNING: Never use the pump together
with accessories which are rated below
the maximum pressure of the pump.
Install pressure gauges in the system to
do not expose
personal
equipment to
