Shinano SI-3104 Instruction Manual

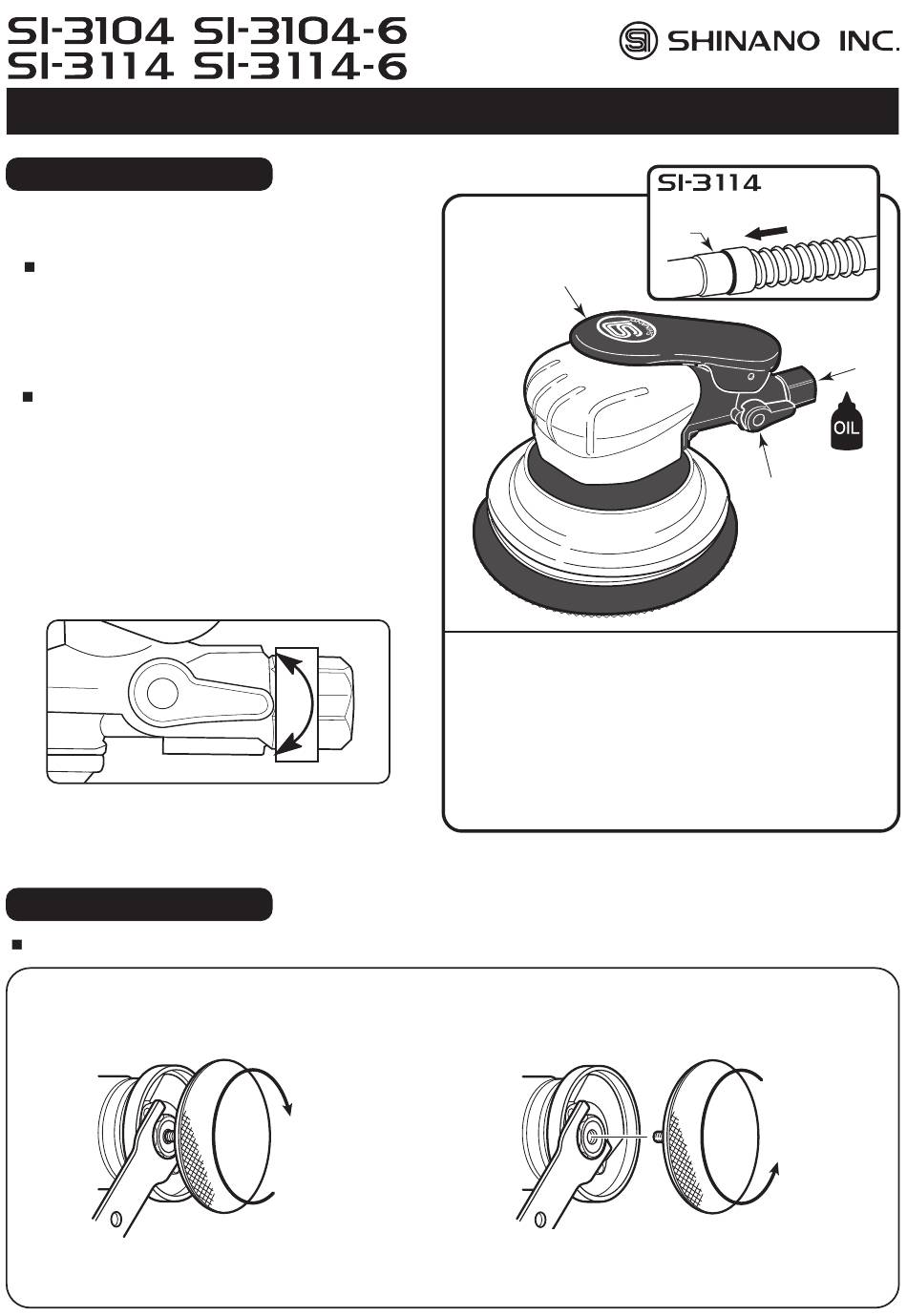

INSTRUCTION MANUAL FOR DOUBLE ACTION SANDERS
Operation Procedures
1.Connect the coupler to the air inlet ❶ on the
rear side of the tool.
In case of SI-3114 (dust free type), the dust
hose equipped with the dust pack should be
securely covered over the exhaust port ❷.
2.Make sure the pad should be securely
mounted, and attach the paper thereto.
In case of SI-3114 (dust free type), the paper
hole should be fit to the pad dust vacuum
hole, and securely patched thereto.
3.Pour approx. 0.5cc (2 to 3 drops) of the oil
through the coupler. Connect it to the air hose,
and run for 3 to 5 seconds to circulate the oil.
4.Adjust revolutions per minute with the air
regulator ❸. The maximum speed should be
10,000 revolutions per minute (0.63MPa).
5.Press the throttle lever ❹ for operation, and
release it for stop.
Replacement of Pad
The nut should be nipped and fixed with the service wrench.
Pad mounted：
clockwise (right direction)
Our original pad should be surely employed.
■
/
/
Fast
Slow
Mount
(Dust Free Type)
❹Throttle lever
Accessories :
SI-3104
Spanner wrench (1), Safety instructions (1)
5" Pad or 6" Pad (1)
SI-3114 (Dust free type)
Spanner wrench (1), Safety instructions (1)
Dust hose (1), Dust pack (1)
5" Pad or 6" Pad (1)
Pad dismounted：
counterclockwise (left direction)
(Dust Free Type)
Insert
❷
❶Air inlet
❸Air regulator
Dismount
