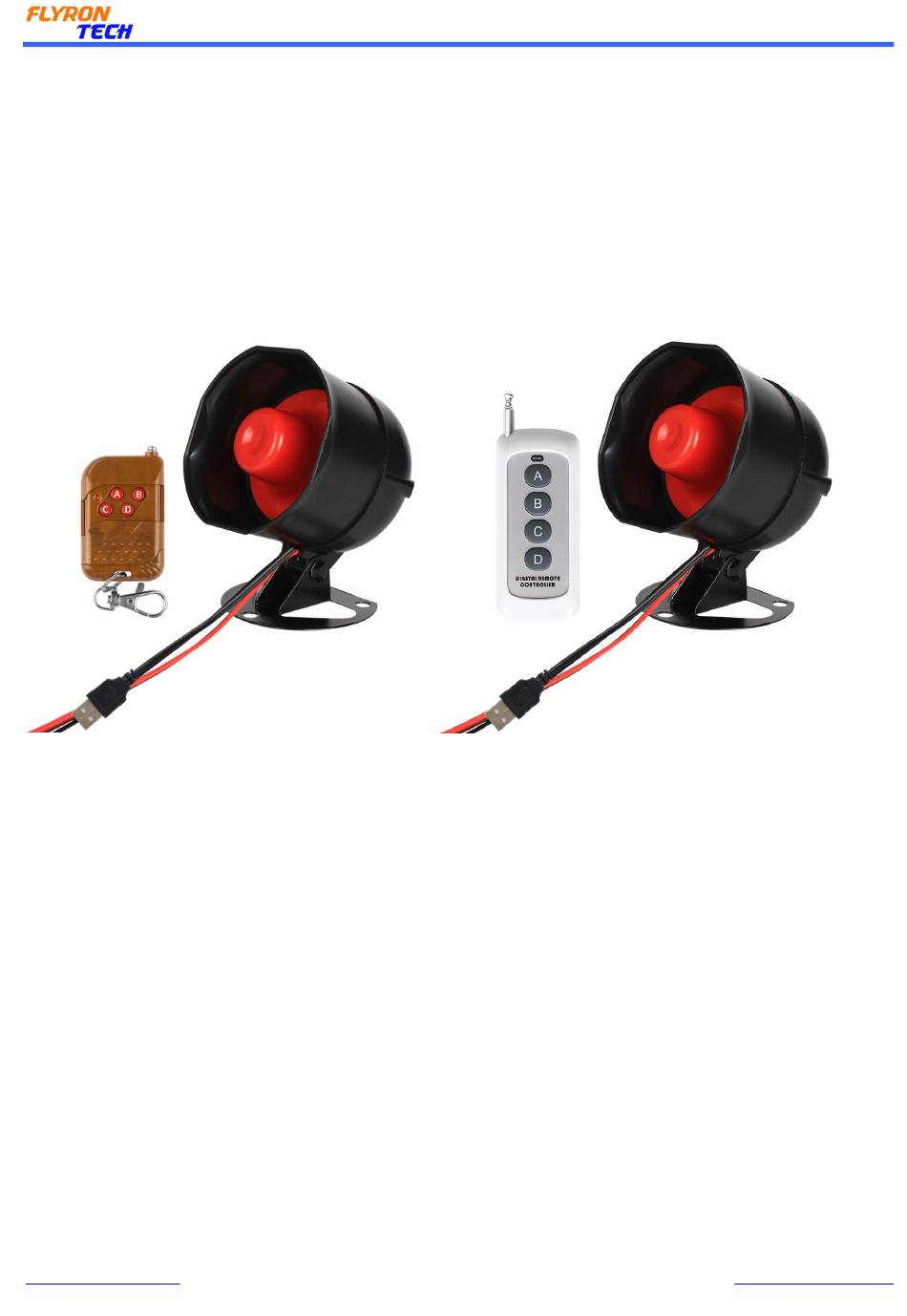

FN-A501R 4 Key Remote Control MP3 Siren for Cars
1. Features
Adopts solid magnet to make sure loud volume and great sound quality.
Equipped with a 433MHz 4 key remote control (two types optional).
Each key (A, B, C, D) from the remote control triggers an associated sound file (001.mp3-004.mp3) respectively.
Uses a high quality siren horn. Small size but loud volume.
Built-in a 4MB SPI flash memory, which can store up to 4 minutes long of MP3 files (128Kbps).
Supports using max. 32GB micro SD card on the internal sound board.
Replace sound files easily by connecting the device to computer with the USB male plug that is wired with the
device.
-No need any software/program. It's detected as a USB pen drive on computer.
Equipped with a class D 30 watts amplifier.
Adjustable sound volume through the blue potentiometer on the internal sound board (back cover needs to be
opened).
www.flyrontech.com
FN-A501R 4 Key Remote Control MP3 Siren
User's Manual
Version: V1.0
1
E-mail: info@flyrontech.com
Advertisement
Related Manuals for Flyron Technology FN-A501R
Summary of Contents for Flyron Technology FN-A501R
- Page 1 FN-A501R 4 Key Remote Control MP3 Siren FN-A501R 4 Key Remote Control MP3 Siren for Cars User’s Manual Version: V1.0 1. Features Adopts solid magnet to make sure loud volume and great sound quality. Equipped with a 433MHz 4 key remote control (two types optional).
- Page 2 FN-A501R 4 Key Remote Control MP3 Siren 2. Technical Parameters Working voltage: DC 12V-24V Working current: ≤2000mA Standby current: ≤10mA Power consumption: ≤30W Flash memory size: 4MB Audio format: MP3 format 32Kbps-192Kbps Sound pressure level: ≤110dB ...
- Page 3 FN-A501R 4 Key Remote Control MP3 Siren 4. How to Adjust Sound Volume By default, we set the volume up to 80% approximately at the factory. If you need to adjust the volume, please refer to the following steps. 1). Use a cross screwdriver to unscrew on the back cover and take it apart as pictures shown below.
- Page 4 FN-A501R 4 Key Remote Control MP3 Siren 5. Notes 1). When the device is powered on, there is about 5 seconds delay time, which was designed for paring a remote control during such a duration. After these 5 seconds, the device will be into standby. Users can just ignore this, because the remote control has been already paired with the device at our factory.
