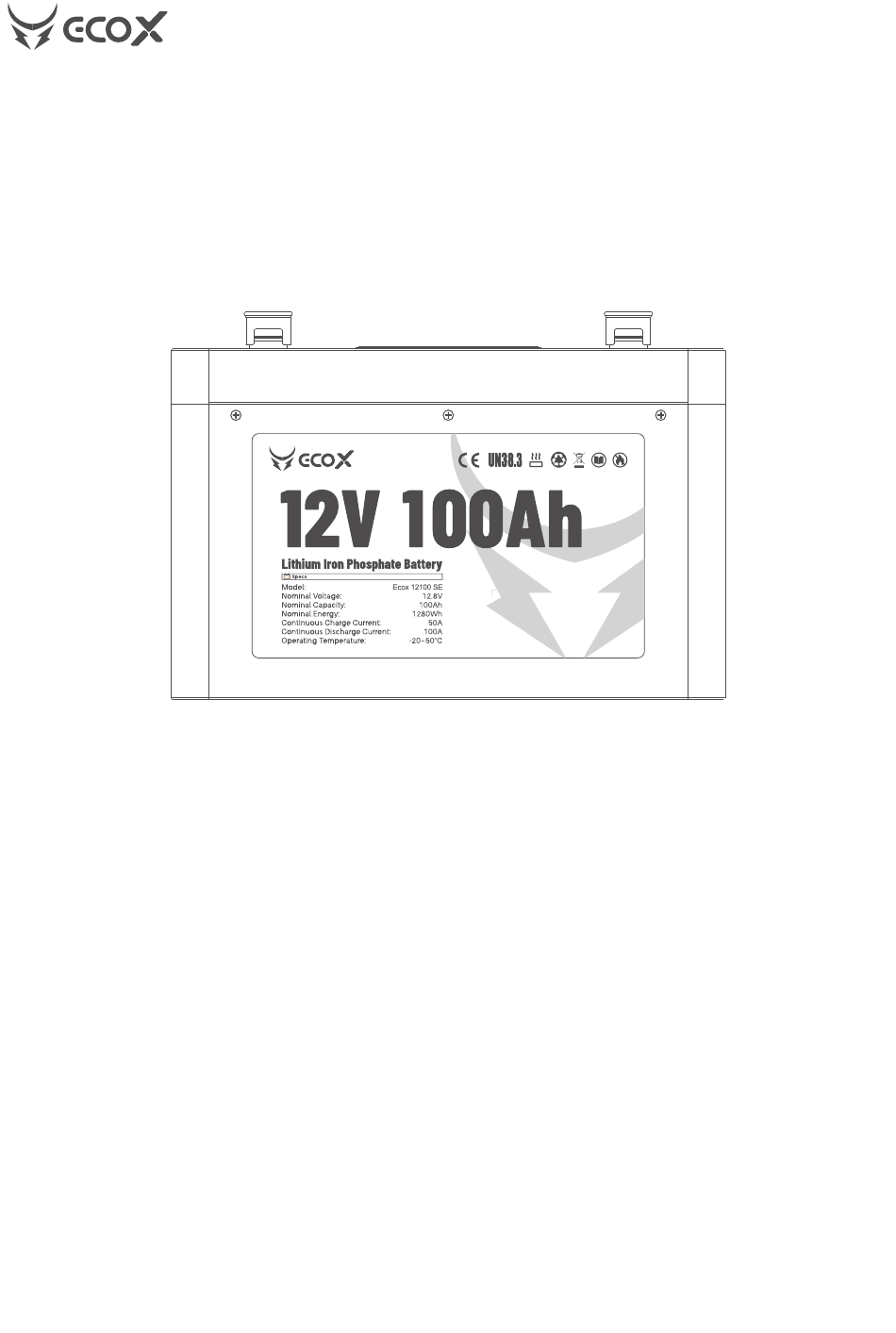

- Page 1 Lithium Iron Phosphate Battery Ecox 12100 SE User Manual Information Version: 1.0...
-
Page 3: Legal Information
Legal Information Copyright©2024 All rights reserved. Any reproduction or distribution of this manual or any part of this manual, or any uploading of this manual to a third party website, in any form by any means is prohibited. Disclaimer The Manual contains instructions for the use of the product. All the pictures and charts in this manual are for description and explanation only. -
Page 4: Safety Instructions
Safety Instructions Warning · The device should be used in strict compliance with local laws, electrical safety regula- tions, and fire prevention regulations of the nation or the region. · Do not place the device near open fire, heat sources and flammable materials. ·... - Page 5 Safety Instructions Maintenance · Charge the device regularly. If you need to store the device for a long time, please charge it to 40% ~ 70% every time before storing it. · Recharge the device in time after it has been fully discharged. ·...
-
Page 6: Table Of Contents
Contents 1 Introduction............................1 2 Packing List............................1 3 Optional Accessory..........................2 4 Interface & Indicator........................2 5 Battery Installation...........................3 5.1 Tools Preparation........................3 5.2 Pre-installation Check......................3 5.3 Battery Connection........................3 5.4 Post-installation Check......................4 6 Battery Use............................5 7 Battery Storage..........................5 8 Battery Management System......................6 9 Specifications............................7 10 Troubleshooting..........................9 11 FAQ..............................11... -
Page 7: Introduction
Introduction Ecox 12100 SE is a lithium iron phosphate battery module. It is designed to replace deep-cycle lead-acid batteries. The battery is perfect for recreational vehicles (RV), caravans, marine (boats), trucks, cabins, and other off-grid deep-cycle applications. The product has the following advantages. -
Page 8: Optional Accessory
Optional Accessory Battery Adapter Cables Interface & Indicator Running Indicator Positive Pole Power Button Negative Pole Alarm Indicator SoC Indicators Running Indicator *Quick flashing: Light up every 2 s. *Slow flashing: Light up every 4 s. Alarm Indicator *When the alarm indicator is on, refer to 10 Troubleshooting to solve problems. Each indicator represents 25% SoC. -
Page 9: Battery Installation
Battery Installation Tools Preparation Safety Goggles Insulating Gloves Voltmeter Screwdriver Torque Wrench Wire Cutter Pre-installation Check • Ensure that the battery is away from open flames, heat sources and flammable materials. • Cut off the power before wiring, installing or removing the battery. -
Page 10: Multiple Batteries
Battery Installation Multiple Batteries Caution • Do not mix batteries of different brands, types, models or life spans. • In order to prolong the life span of the batteries, please make sure the length, diameter and internal resistance of the power cables are the same when using multiple batteries. Connecting the Batteries in Parallel Steps 1. -
Page 11: Battery Use
Battery Use · Turn on the battery: short press the button for about 1 s. Note • When the battery is turned on for the first time, it performs a power-up self-test. After that, all indicators light up for about 2 s and then resume displaying the device status. -
Page 12: Battery Management System
Battery Management System Protection and Warnings Management and Monitoring Under-voltage Cell Balancing Over-voltage Smart Charging Mode Over-current Heater Control Over-temperature/Under-tempera- SoC Calculation ture SoC Display Short Circuit Operation Log System Error... -
Page 13: Specifications
Specifications Electrical Specification Nominal Voltage 12.8 VDC Nominal Capacity 100 Ah Resistance <10 mΩ ≤ 3% per month Self Discharge Max. Batteries in Parallel Design Life ≥ 10 years Short Circuit Current Duration < 1 kA/100 us Discharge Specification Max. Continuous Discharging Current 100 A Peak Discharging Current 200 A @10 s... - Page 14 Specifications Enclosure Protection IP20 Cell Type-chemistry LiFePO Cooling Natural Cooling Other UN38.3, IEC 62619, CE Certifications Max. Altitude 13123 ft (4000 m) *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors. Dimension 11.81 in (300mm) Unit: inch (mm)
-
Page 17: Faq
1. Why won't my battery turn on sometimes when it is just turned off? Please wait at least 3 s if you need to turn on a battery after it has just been turned off. 2. Why won't my batteries turn off when they are connected in parallel? •... - Page 20 ess_support@pytesgroup.com...
