Spider RFID Reader Technical Manual
© 2024 inepro B.V. All rights reserved.
Congratulations on your selection of the Spider RFID Reader. We are certain you will
be pleased with your purchase of one of the flexibele solutions of the market.
We want to help you get the best result from your Spider RFID Reader. This manual
contains information on how to do that; please read it carefully. Due to continuous
product improvements this manual is subject to changes without notice.
We strongly recommend you read the license agreement to fully understand its
coverage and your responsibilities of ownership.
Your dealer is dedicated to your satisfaction and will be pleased to answer your
questions and your concerns.
Best wishes,
inepro B.V.
EN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Inepro Spider
Summary of Contents for Inepro Spider
- Page 1 We want to help you get the best result from your Spider RFID Reader. This manual contains information on how to do that; please read it carefully. Due to continuous product improvements this manual is subject to changes without notice.
- Page 2 Spider RFID Reader Technical Manual - Technical Manual | EN All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.
-
Page 3: Table Of Contents
Spider RFID Reader Technical Manual Table of Contents Introduction Requirements Components Test Software ..........................................8 Hardware ..........................................10 User Interface LED's ..........................................11 Technical Specifications Troubleshooting... -
Page 4: Introduction
Function The purpose of the Spider RFID Reader is to read the unique ID contained in the card that is presented to the reader and transfer this ID to a server. In most cases this data will be the card serial number. -
Page 5: Requirements
The Spider RFID Reader has no known requirements other than a USB host that can read a keyboard-like Human Interface Device. Optionally you could use our free Spider RFID Tool to have a lot more options, but this is not a requirement... -
Page 6: Components

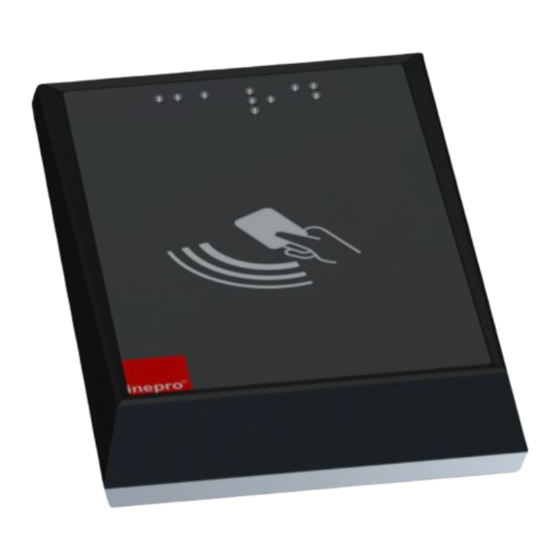

Spider RFID Reader Core Housing Bottom § P120647 - External Spider RFID Reader Braille RFID Foil § P551364 - Spider RFID Reader Serial Stickers | Desktop sticker | EDP § Sticker | 2x QR Serial sticker Check Components Please check if all the components are in the set before you continue with the installation and set-... - Page 7 Components Some parts may already have been pre-assembled Page 7 of 14 Spider RFID Reader Technical Manual | EN...
-
Page 8: Test
For the Spider RFID Reader there is are tools available each with its specific features. Connect the Spider RFID Reader to a computer or laptop and present a card to the reader. Please note that the reader needs to have the HID RAW Configuration. (See Spider RFID Reader Tool for more details). - Page 9 The card has entered the reader field, is of card type 2 (Mifare Classic) and has the CSN 1D02244E (486.548.558 as decimal). The Pretty Card ID field was needed by inepro in the past but is no longer in use.
-
Page 10: Hardware
Hardware Physical test Inepro Spider RFID Reader 1. Connect the Inepro Spider RFID Reader to the USB port of a computer. 2. Check the indicator LED's to see if the board is operating as it should. Put a card on the... -
Page 11: User Interface
Standby / Image Function Triggered / Not OK Normal Card is not recognized Off Card in detection field Off Card Recognized Reader is on and Flashes connected (no connection) Page 11 of 14 Spider RFID Reader Technical Manual | EN... -
Page 12: Technical Specifications
64 Kb Outputs Pico Blade RS232 PID (Product ID) 0110 VID (Vendor ID) 1DA6 User Interface LED's Red, Yellow/Orange, Green and Blue Audio Piezo Buzzer 4kHz, Max. 65 dB Page 12 of 14 Spider RFID Reader Technical Manual | EN... -
Page 13: Environmental Conditions
Technical Specifications Environmental conditions EMI / Safety CE, FCC Class A Operating Temperature (Metric) 0-40 degrees Celsius Operating Temperature (Non-Metric) 32-104 degrees Fahrenheit Relative Humidity (Non Condensing) 10%-90% Page 13 of 14 Spider RFID Reader Technical Manual | EN... -
Page 14: Troubleshooting
The section is set up in a Symptom - Prognosis - Resolution format, that is first the symptom is given, then the possible causes and then the resolution for those causes. Symptom(s): Card not recognized Prognosis: The Spider RFID Reader is not connected Scope: All Devices Resolution: A - Check if the blue light is flashing, if it is the reader is not connected to the server.
