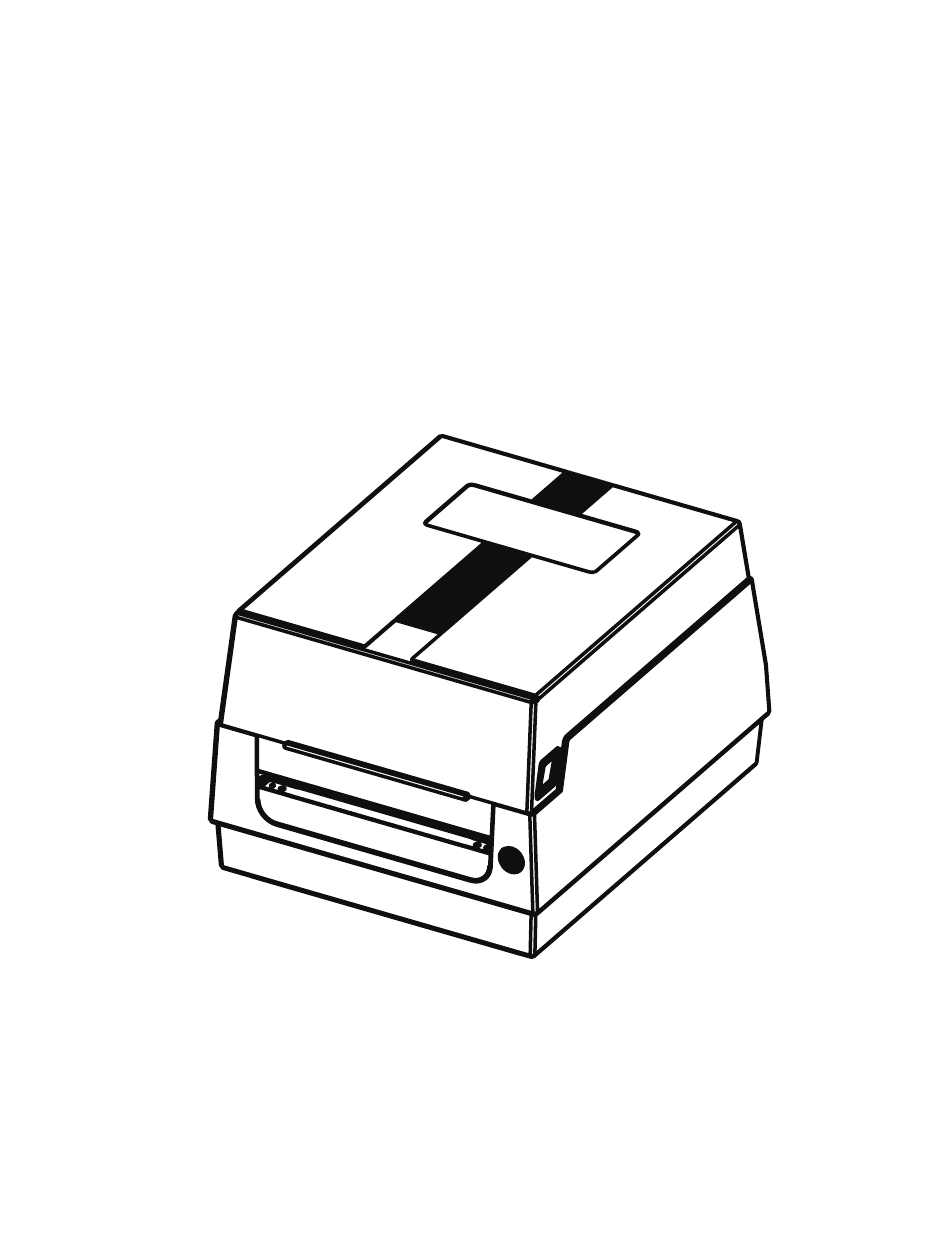

USER MANUAL
BARCODE PRINTER
Apply to barcode printers including AT240、AT240-U、AT240-P、AT240-BT、AT240-C、AT240-W、CN2405、
JT452、JAR-2、CP42、D2401、QR888、TC240、QR-2、E126、S226、N326、W426、PC2、CA62、JT-42、
JT-25、AT340、AT340-U、AT340-P、AT340-BT、AT340-C、AT340-W、CN3404、JT453、JAR-3、CP43、
D3401、TC340、QR-3、E135、S225、N325、W425、PC3、CA53、JT-43、JT-35、AT640、AT640-U、
AT640-P、AT640-BT、AT640-C、AT640-W、CN6404、JT456、JAR-6、CP46、D6401

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z400 and is the answer not in the manual?

Questions and answers

Summary of Contents for iData Z400

  • Page 1 USER MANUAL BARCODE PRINTER Apply to barcode printers including AT240、AT240-U、AT240-P、AT240-BT、AT240-C、AT240-W、CN2405、 JT452、JAR-2、CP42、D2401、QR888、TC240、QR-2、E126、S226、N326、W426、PC2、CA62、JT-42、 JT-25、AT340、AT340-U、AT340-P、AT340-BT、AT340-C、AT340-W、CN3404、JT453、JAR-3、CP43、 D3401、TC340、QR-3、E135、S225、N325、W425、PC3、CA53、JT-43、JT-35、AT640、AT640-U、 AT640-P、AT640-BT、AT640-C、AT640-W、CN6404、JT456、JAR-6、CP46、D6401...

  • Page 2: Table Of Contents

    Contents 1.Packing List 2.Appearance and Components 3.Loading Roll Media 4.Loading Transfer Ribbon 5.Printer Operation 6.Bluetooth Connecting and Usage 7.How to Choose Transfer Ribbon 8.Product Warranty Card AT240、AT240-U、AT240-P、AT240-BT、AT240-C、AT240-W、CN2405、JT452、JAR-2、CP42、 D2401、QR888、TC240、QR-2、E126、S226、N326、W426、PC2、CA62、JT-42、JT-25、AT340、 AT340-U、AT340-P、AT340-BT、AT340-C、AT340-W、CN3404、JT453、JAR-3、CP43、D3401、 TC340、QR-3、E135、S225、N325、W425、PC3、CA53、JT-43、JT-35、AT640、AT640-U、 AT640-P、AT640-BT、AT640-C、AT640-W、CN6404、JT456、JAR-6、CP46、D6401...
  • Page 3 Preface About This Manual This manual provides you with product usage and installation information etc. Please read the manual carefully and follow the instruction before you start to use this printer. International Conventions The following conventions are used throughout this manual to help you better understand the information. Warning：...

  • Page 4: Packing List

    1 Packing List After unpacking, check the appearance of printer, make sure you have all parts. Contact the seller if you found any defective or missing. Power Adapter Printer User Manual (Image shown is for illustration purposes only. Actual product may vary.) USB Cable Paper Core of Transfer Ribbon...

  • Page 5: Appearance And Components

    2 Appearance and Components Top Cover Media Cutting Blade Media carriage Ribbon Recycle Roll Media Position Printhead Module Release Latch Feed Button Media Cutting Blade (with Indicator Light) Base Serial Interface Power Switch （Optional） Ethernet Interface Power Receptacle （Optional） USB Interface ⸺...

  • Page 6: Loading Roll Media

    3 Loading Roll Media 1.Open the top cover; Thread the media 2.Put the ready roll media into the through the media carriage, then interior media position. stabilized the roll media by two media locks. 3.Push the module release latch lever 4.Unlock the media guides to adjust toward the rear of the printer to open their position.

  • Page 7: Loading Transfer Ribbon

    3 Loading Roll Media 5.Lock the printer module, and close 6.Press feed button, feed the media out the top cover until you hear a clear of the printer. “Clip” sound, which means the printer is being closed properly. Feed Button 4 Loading Transfer Ribbon The following steps are only for thermal transfer mode (Thermal mode doesn’...
  • Page 8 4 Loading Transfer Ribbon 3.Load a new transfer ribbon. Rotate 4.Place an empty ribbon core on the ribbon to align with adaptable roll printer’ s take-up spindles. Rotate the release, then align the left side of the ribbon core until the notches align and ribbon core to the left supply hub, then lock into the left side of the take-up the right hub.

  • Page 9: Printer Operation

    5 Printer Operation 1. Steps of media calibration and setting 1) Make sure the media is loaded properly, close the top cover and then turn off the printer. “ ” release the button. The printer is switching into Smart Learning Mode. “...

  • Page 10: Bluetooth Connecting And Usage

    6 Bluetooth Connecting and Usage 1.For mobile phones of Android Step 1: Turn on the printer Step 2: Search device in Bluetooth interface, select the printer and connect. The original password is 0000 or 1234. When the Bluetooth pairing done. Step 3: Open the APP, link the printer and print.
