Summary of Contents for Solenis CCH-2SD

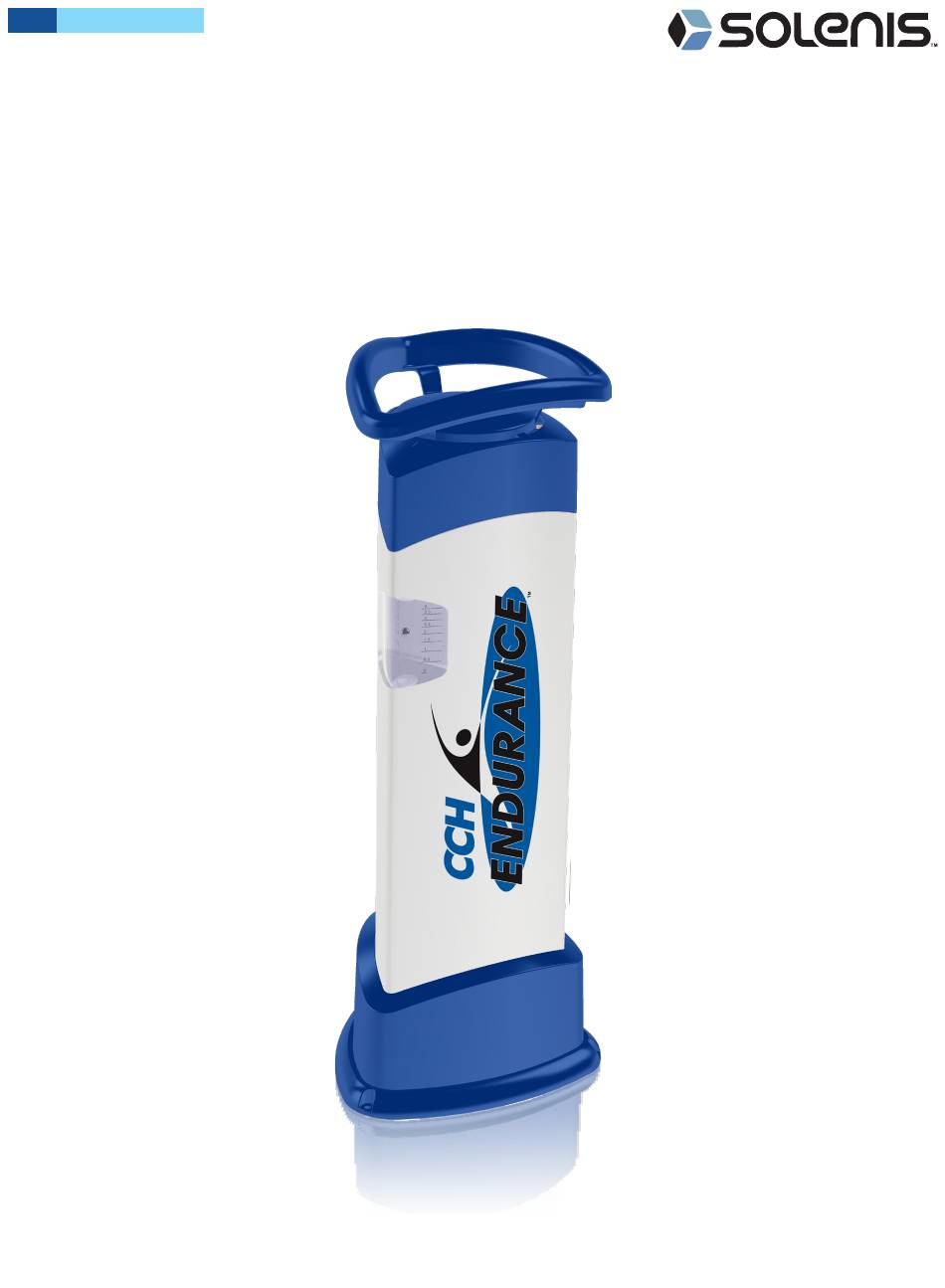

- Page 1 Water Treatment CCH® Endurance Installation and Operation Manual Model #CCH-2SD Rev. November 2023...
-
Page 2: Product Stewardship
Product Stewardship MAKING THE WORLD A BETTER PLACE Innovative Water Care is committed to maintaining and improving our leadership in the stewardship of our products. One of our initiatives is to make health, safety, and environmental protection an integral part of a product’s life cycle - from manufacture, marketing, and distribution to use, recycling, and disposal. - Page 3 This CCH® Endurance Feeder is subject to To register your feeder please visit www.cchpoolcare.com one or more patents owned by Solenis, and all rights in any modifications or improvements, including but not limited to Service any patents, copyrights, trademarks or trade secrets, belong exclusively to Solenis.
-
Page 4: Table Of Contents
Table of Contents 1 Introduction 8 Appendix Technical Bulletin: Pitot Tubes for 2 ½” and 3” Pool piping 1.1 CCH® Endurance Tablets Tools & Equipment Required for Installation 1.2 CCH® Endurance Feeder Pressure Cap Installation 2 Overview 2.1 Theory of Operation 2.2 Major Components 7 - 9 2.3 Specifications... -
Page 5: Introduction
1 Introduction 1.1 CCH® Endurance Tablets The patent-pending, slow dissolving CCH® Endurance Tablets are a 3-in-1 product that chlorinates consistently, increases calcium to protect plaster, and increases alkalinity to stabilize pH. The benefits of the CCH® Endurance Tablets include but is not limited to: •... -
Page 6: Overview
2 Overview 2.1 Theory of Operation The patent-pending CCH® Endurance System is a pressurized feeder system designed for pools and spas ranging from 500 to 60,000 gal- lons [1,892.7 to 227,124.7 liters]. A pre-filter to post-filter loop will be added to the main pool recirculation system as part of the CCH® Endurance System. -
Page 7: Major Components
2.2 Major Components Pressure Cap creates pressure tight seal with minimal operator e ort Integrated Flow Meter CCH® Endurance Operation and Installation ManualNovember 2023 – Water Treatment... - Page 8 2.2 Major Components (continued) Cartridge Assembly Stacks tablets for extended use Spiked Grid allows for even tablet dissolution Spray Nozzle recirculates flow and concentrates the cal-hypo solution Nozzle Protection Basket Protects nozzle from being clogged by tablet particles Water Treatment – CCH® Endurance Operation and Installation Manual : rev. November 2023...
- Page 9 2.2 Major Components (continued) Locking mechanism allows for an easier controlled reload Adjustable grid height and ow rate to control output rate CCH® Endurance Operation and Installation ManualNovember 2023 – Water Treatment...
-
Page 10: Specifications
2.3 Specifications Operational Characteristics Operating Pressure range 5 to 20 psig [0.35 to 1.38 bar] Nominal Pressure 15 psig [1.03 bar] Operating Temperature range 40º to 130º F [4.4º to 54.4º C] Flow Rate range 0.5 to 4.5 gpm [1.9 to 17.03 lpm] Dimensions Tubing 5/8”... -
Page 11: Installation
3 Installation Choose a location in the pump room that will allow easy access for replenishing the feeder cartridge with CCH® Endurance Tablets. The CCH® Endur- ance Feeder will be positioned in a location such that the pre to post filter recirculation loop is feasible. 3.1 CCH®... -
Page 12: Tools & Equipment Required For Feeder Installation
3.2 Tools & Equipment Required for Feeder Installation • Drill – Cordless Recommended • 7/8” [22.2 mm] Drill Bit • Plumbers Tape or Pipe Sealant • Tube Cutters or Utility Knife • Gas Pliers (Channel Locks) • 7/16” (11 mm) Nut Driver, Socket or Box wrench 3.3 Installation Parts and Assemblies Part Description... - Page 13 3.3 Installation Parts and Assemblies (cont’d) Part Description Part Number D - (3) 1/2” [12.7 mm] FNPT x 1/2” [12.7 mm] FNPT PVC Ball Valves 74061 E - (4) 1/2” [12.7 mm] MNPT x 5/8” [15.9 mm] O.D. Tubing Connector 71918 - W10MC8 F - 12’...
-
Page 14: Installation Procedure
3.4 Installation Procedure Background: The next steps involve installing a loop around the pool filter where the CCH® Endurance Feeder will be located. The pool filter Figure 1 will create a pressure differential to provide flow through the CCH® Endurance Feeder. This loop is created using the saddle clamps, pitot tubes, ball valves, tube fittings, and tubing provided with your sys- tem. -
Page 15: Making The Chlorine Injection Connection From The Feeder To The Pool (Post-Filter And Heater)
3.4.2 Making the chlorine injection connection from the feeder to the pool (post-filter and heater) Choose a location on the main pool recirculation piping downstream of the pool filter(s), and heater (if available), but before the acid or injection point. To make the outlet connection from the feeder to the pool, re- peat all steps from section 3.4.1 except for step #3. -
Page 16: Feeder Start Up
4 Feeder Start Up 4.1 Pre-Startup Procedure Following the steps outlined below will ensure a smooth start-up of the CCH® Endurance Feeder. For seasonal operation, perform this pro- cedure each Spring. IMPORTANT!! Do NOT put CCH® Endurance Tablets in the feeder during the start-up operation. -
Page 17: Loading The Cartridge Assembly With Cch® Endurance Tablets
4.1 Pre-Startup Procedure (continued) 4.1.3 Loading the cartridge assembly with CCH® Endurance Tablets Drain WARNING - Use ONLY CCH® Endurance Tablets in the feeder. The use of any other treatment chemicals will void the warranty and NSF listing. DANGER: Under no circumstances should you mix calcium hypochlorite with other forms of concentrated chlorine or other chemicals. - Page 18 4.1 Pre-Startup Procedure (continued) 4.1.3 Loading the cartridge assembly with CCH® Endurance Tablets (continued) Figure 16a Figure 16b Figure 17 Figure 18 Water Treatment – CCH® Endurance Operation and Installation Manual : rev. November 2023...
-
Page 19: Startup Procedures
4.1 Pre-Startup Procedure 4.2 Startup Procedures (continued) 4.1.3 Loading the cartridge assembly with CCH® Endurance Warning - Higher than normal levels of chlorine may develop in- Tablets (continued) side the feeder during extended periods of no flow through the feeder. This may result in a higher than normal level of chlorine injected into the pool when flow through the feeder is re-estab- lished. -
Page 20: Feed Rate Table
4.2.2 Feed Rate Tables Pool & Spa Inlet Flow Rate - gpm Cartridge Output Rate (lbs. Av. Cl/Day) Setting Use Higher Flow Rates Water Treatment – CCH® Endurance Operation and Installation Manual : rev. November 2023... -
Page 21: Feeder Inspection And Maintenance
5 Feeder Maintenance 5.1 Feeder Maintenance Due to the combination of low chlorine concentration and relatively high flow rate, maintenance of the CCH® Endurance Feeder should be minimal. To reduce the maintenance frequency even further, maintain pool water chemistry as follows: Total Alkalinity 60-80ppm Calcium Hardness... -
Page 22: Troubleshooting Guide
Clogged inlet piping, flow meter or feeder Install an optional 1/2” [12.7 mm]NPT nozzle inline strainer if inlet water is contaminated (Solenis Part # 71605) Insufficient chlorine in pool Feed rate/output too low Check feed rate table on page 21 and in-... -
Page 23: Feeder Views
7 Feeder Views 7.1 Feeder Assembly View Note: Quantities listed below represent the number of parts shipped with the feeder. Part numbers are for procurement of 1 individual spare part unless otherwise stated. Part Description Part Number CCH® Endurance Feeder Complete Feeder assembly 73100 Pressure Cap... -
Page 24: Installation Kit View
7.2 Installation Kit View Note: Quantities listed below represent the number of parts shipped with the feeder. Part numbers are for procurement of 1 individual spare part unless otherwise stated. Note: Refer to Appendix A for Pitot Tubes for 2 ½” and 3” pool piping Part Description Part Number... - Page 25 7.2 Installation Kit View (continued) 74061 71611 1/2” [12.7 mm] Closed Nipple Ball Valve 71918 5/8” [15.9 mm] O.D. Tubing Connector 74061 1/2” [12.7 mm] Ball Valve 71918 5/8” [15.9 mm] O.D. Tubing Connector CCH® Endurance Operation and Installation ManualNovember 2023 – Water Treatment...
- Page 26 8 Appendix Appendix A – Technical Bulletin: Pitot Tubes for 2 ½” and 3” Pool piping Pitot Tubes for 2 ½” and 3” Pool piping - Part Numbers Part Description Part Number Pitot Tube – 1 7/8” ¾” (19 mm) sch 40 pipe, for 2 ½” Pool Piping, 45° angle cut, 1 7/8” 73141 length from bottom of threads, (2 pack) Pitot Tube –...
- Page 27 Tools & Equipment Required for Installation • Drill – Cordless Recommended • 1 ½” hole saw • 1 ¼” pipe tap • Gas Pliers (Channel Locks) • Plumbers Tape or Pipe Sealant Installation Procedure Go to section 3.4 of the manual and refer to the notes prior to starting the installation.
- Page 28 Problems have been occurring in the field during attempted installation of the Pressure Cap on the feeder. If not oriented properly, the pressure cap can Notch be forced on incorrectly causing an improper seal of Short side of Cap Appendix B – Pressure Cap Installation the feeder during pressurized use.
- Page 29 NOTES CCH® Endurance Operation and Installation ManualNovember 2023 – Water Treatment...
- Page 30 NOTES Water Treatment – CCH® Endurance Operation and Installation Manual : rev. November 2023...
- Page 32 1400 Bluegrass Lakes Pkwy Alpharetta, GA 30004 800.478.5727 All trademarks belong to Solenis or its affiliates or to their respective third party owners. The information contained herein is believed to be correct and corresponds to the latest state of scientific and tech- nical knowledge.
