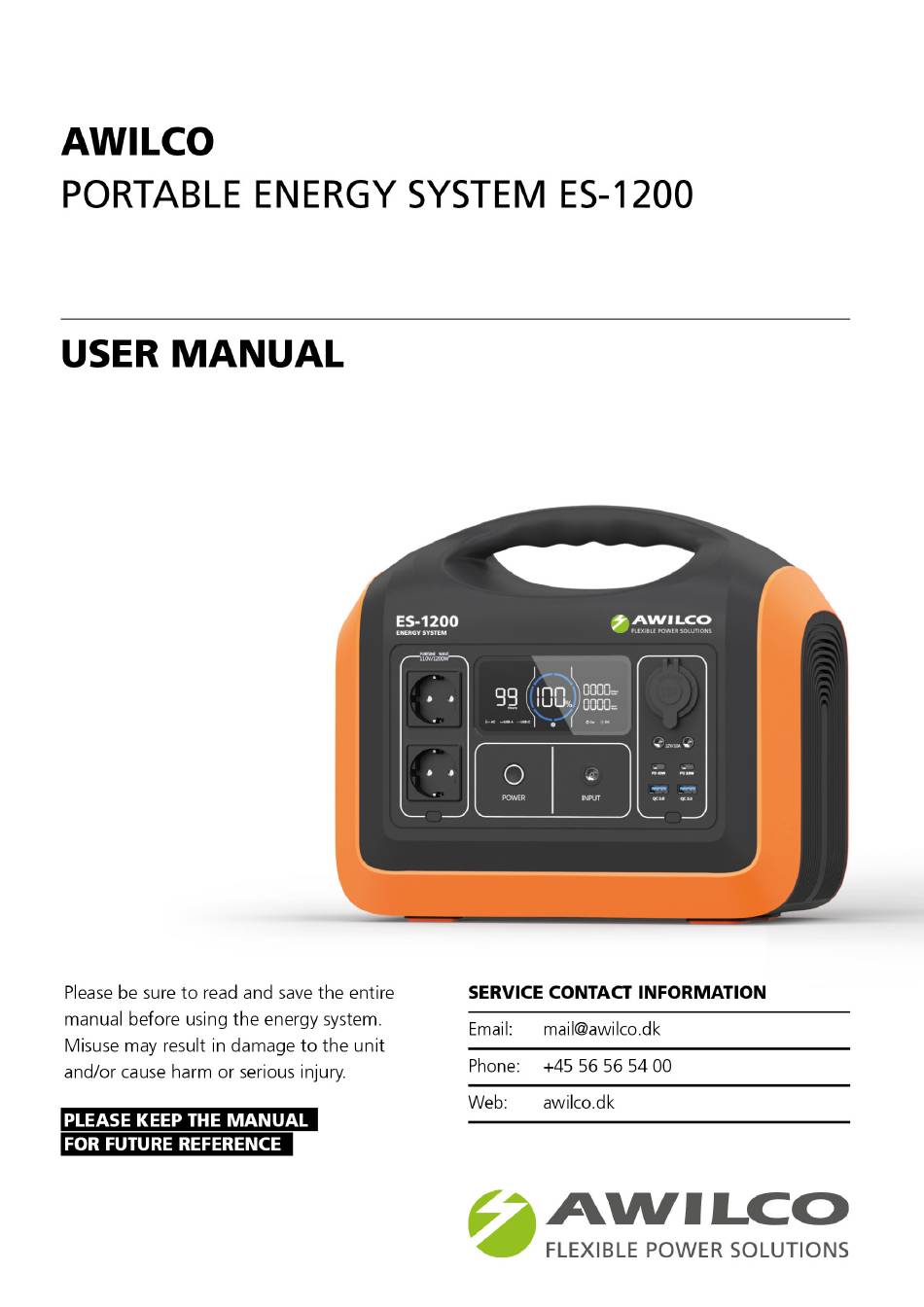

Summary of Contents for AWILCO ES-1200
-
Page 2: Table Of Contents
Content 1. Disclaimer 2. Product List 3. Function Instructions------------------------------------- 3.1 Function Description LCD Screen Description----------------------------------------------- 4. Direction of Use 5-11 4.1 Three Different Recharge ways---------------------------------- 4.1.1. Wall Socket with Standard Adapter------------------------------- 4.1.2. Car Charger Solar Panel Charger 4.2 Discharge Output Instructions--------------------------------- 9-10 Main Power Switch Instructions--------------------------------------------- AC Output Instructions... - Page 3 LED Light Instructions-------------------------------------------- 10-11 5. Appliances Run Time Instructions------------------- 6. Frequency switching operation--------------------- 7. Storage & Maintenance----------------------------------- 8. Main Technical Specification--------------------------- 15-16 9. Fault Code and Trouble Shooting---------------------...
-
Page 4: Disclaimer
1. Disclaimer 1. The Company is not responsible for any damage caused by force majeure (e.g. fire, typhoon, flood, earthquake or customer's negligence, abuse or use in other unusual circumstances). 2.The Company is not responsible for the loss caused by the use of non-standard connectors. -
Page 5: Function Instructions
༃ User Manual № 3. Function Instructions 3.1 Function Description... - Page 7 1.AC Output Port 2.AC Output Power On/Off Switch 3.Main Power On/Off Switch 4.12V Car Charger Output Port 5.12V DC5521 Output Port 6.USB-A Output Port*2 7.USB-A Output Port*2 8.DC Output Power On/Off Switch 9.7909 Recharging Input Port 10.LCD Screen 11.LED Light Power On/Off Switch 12.
-
Page 8: Lcd Screen Description
3.2 LCD Screen Description Battery capacity percentage Battery capacity circle Fault warning Discharging power Charging power display Charge&discharge DC5521 time display port status Car charge port status Low temperature protection AC port status USB-A Cooling fan High temperature protection USB-C 4. -
Page 9: Three Different Recharge Ways
flashed clockwise along the trajectory, and the digital number will show you the real-time input charging power. After full charge, the whole blue ring will light up and remain stable. After charging, please unplug the adapter. CAUTION There will be efficiency loss of the input power which displays on the LCD screen. -
Page 10: Car Charger
hours to full charge. 4.1.2 Car Charger Please connect the input 7909 charging port and the vehicle’s 12V cigarette output port with our standard 7909 transfer cables. It will take at least 8 hours to full charge. -
Page 12: Discharge Output Instructions
4.2 AC Output Instructions Main Power Switch POWER ON: Long press the main power button for 3 seconds, the background light around the button will lit up , and the LCD screen will light up too, the blue battery ring and battery percentage will display. -
Page 13: Ac Output Instructions
4.2.1 AC Output Instructions When the main power button is turned on, gently press the AC Output button A,the icon in the LCD screen will lit up. It means the function of this area can be used normally. Press this button again, the icon will disappear, and the function of this area will stop working. -
Page 14: Led Light Instructions
4.3 LED Light Instructions LED light is under the control of main power button. The power on/off button is on the other side. Press once, 50% brightness, press again, 100% brightness, then press again, it will change to SOS flashing mode, and press once more to power off. -
Page 15: Appliances Run Time Instructions
5. Appliances Run Time Instructions Icons Appliances Run time 65 times 3110mAh phone 35 times 30Wh Tablet PC 7 times 60Wh Laptop 87 hours 10W Light 62 times 16Wh Camera 17 times 60Wh Drone 17.5 hours 50W Mini Cooler 29 hours 30W Fanner 2.5 hours 30Wh Electric Tool... -
Page 16: Frequency Switching Operation
6. Frequency switching operation 1. In the power-on state, turn off the AC output, and press the main power button & the DC button(USB output) at the same time to enter the switching frequency menu; 2. Press the AC outuput button to switch the frequency, the setting the frequency will be flashing;... -
Page 17: Storage & Maintenance
7. Storage and Maintenance When the device is not in use, please turn off all switches to reduce product power consumption and prolong the product battery lifetime; Please keep the surface of the product clean, ensure that the product does not contact gasoline, volatile oil, thinner, kerosene, etc.,to avoid corrosion of the product shell;... -
Page 18: Main Technical Specification
8.Main Technical Specification Output Technical Parameters Rated Voltage 220~240Vac Rated Power 1200W AC Output Peak Power 3600W Frequency 50Hz Rated Voltage DC 12V & Car lighter Output Rated Power USB-A Output 5V/3A; 9V/2A; 12V/1.5A (18W Max) 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3A USB-C Output [PD60W(left)/PD18W(right)] Press once, 50% brightness, press again,... - Page 19 992 Wh Rated Capacity 32 Vac Rated Voltage Battery Type LiFePO Common Information IP21 IP Grade Working 0~40℃ Temperature 12.99 x 8.66 x 11.37in (330*220*289mm) Dimensions 24.2lb (11.0kg) Net Weight...
-
Page 20: Fault Code And Trouble Shooting
9.Fault Code and Trouble Shooting Code Description Performance Trouble Shooting AC Short Circuit Pr Press the AC Output Power on/off button for recovery. otection flashing, no output Fl as hi ng icons indi cates Over Load which circuit overload. Press corresponding button for Protection flashing, no output...
