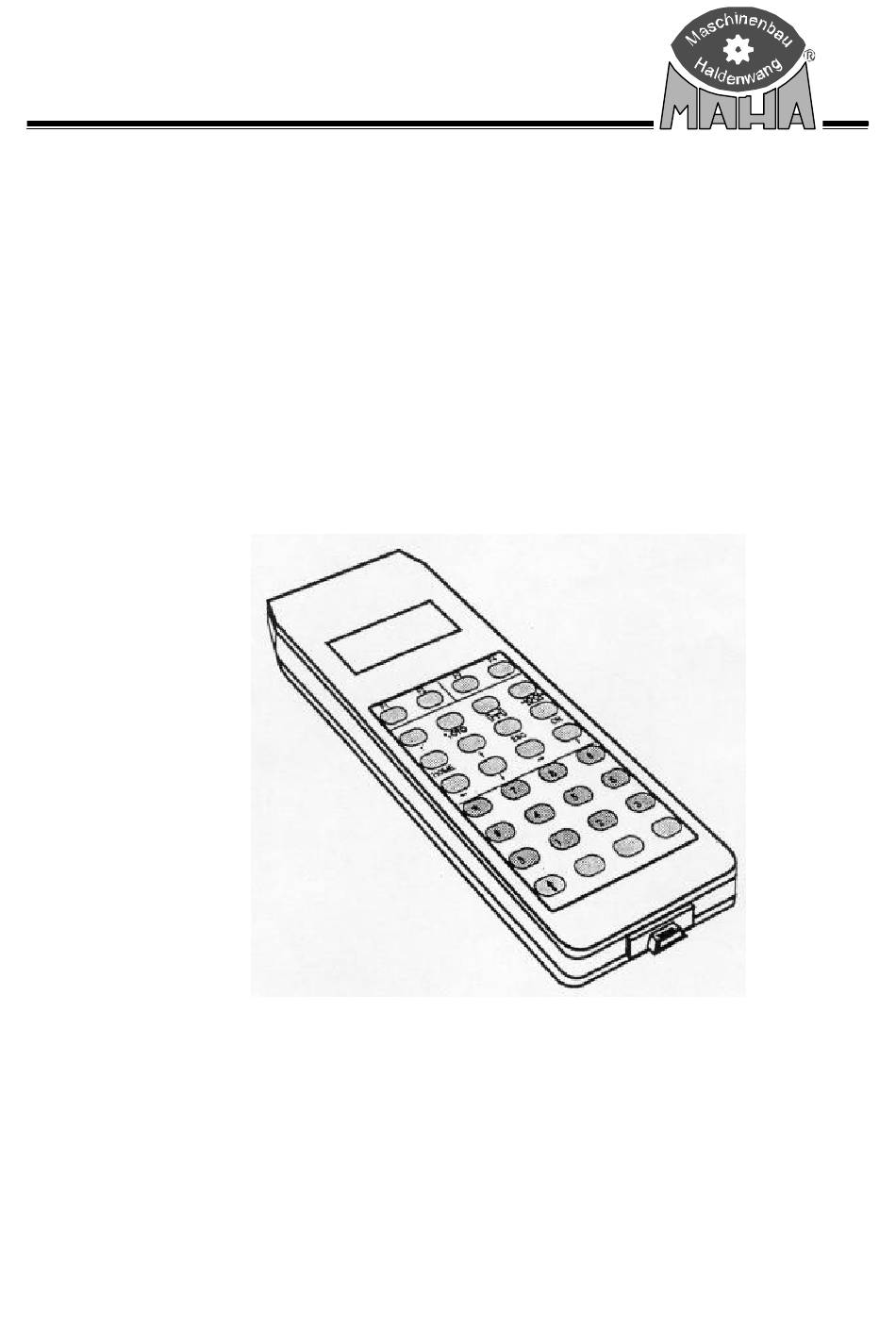

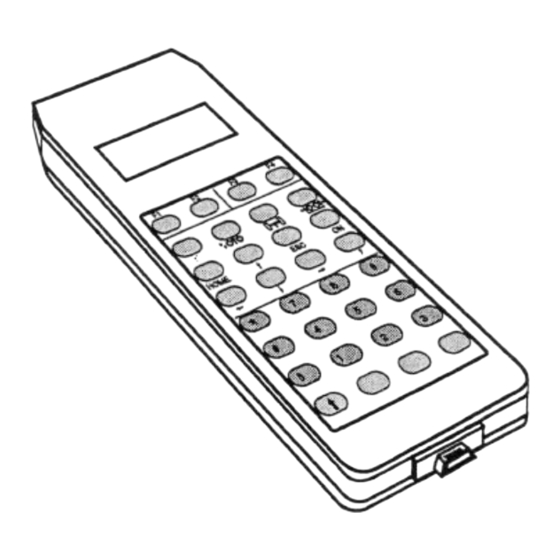

- Page 1 Remote Control Telecom Betriebsanleitung Englisch/English D1 Z203BA0-GB01...
- Page 2 All rights reserved in cases of patent granting or registration of design. The contents of this version have been checked with great care. However, errors cannot be fully excluded. Please contact MAHA should you find errors of any kind. Subject to technical change without notice.
- Page 3 Telecom D1 Z203BA0-GB01...
-
Page 6: Table Of Contents
C h a p t e r 1 General Information 1.1. Introduction ..................1 1.2. Summarized Specification ..............1 1.2.1. 'Telecom' Remote Control ..............1 1.2.2. Battery Charger ................. 1 1.3. General..................... 2 1.3.1. Display of the Remote Control............. 3 1.3.2. - Page 7 Battery ..................... 9 3.3. Display Readings................10 3.4. Test Program ..................11 3.4.1. Battery Test ..................11 3.4.2. Keyboard Test..................11 3.4.3. Versions Test...................12 3.5. Warranty..................12 3.6. Service ....................12 A p p e n d i x Spare Parts Lists Keyboard Codes for 'Telecom' Remote Control........15...
-
Page 8: General Information
In addition to standard functions, a pedal force sensor may be connected to the 'Telecom' remote control to display the applied pedal force on the remote control and for transmission to the test rig. -
Page 9: General
Remote Control 'Telecom' 1.3. General Press any key to turn on the remote control. (display showing ON or pedal force). Connect or disconnect pedal force meter depending on whether the keyboard data are to be transmitted only or simultaneosly with the pedal force data. -
Page 10: Display Of The Remote Control
Chapter1 General Information 1.3.1. Display of the Remote Control The remote control display shows pedal force readings which are received via a connected pedal force meter. In the same manner the status of the keyboard is displayed: If a appears on the lower left-hand corner of the display this means that a key has been pressed. If the text `SHIF` appears on the lowest display line , the shift function has been enabled, i.e. - Page 11 Remote Control 'Telecom'...
-
Page 12: Programming And Calibration
Programming and Calibration C h a p t e r 2 Programming and Calibration 2.1. Programming the Remote Control Various functions of the remote control can be individually adapted. For this purpose 10 variables are available which can be set using a special programming mode. Variable Application Basic Setting... -
Page 13: Programming Example
Remote Control 'Telecom' Use the following procedure to enter the programming mode: a) Press the '9' key and place the remote control in the recharging box. Important: Keep key ' 9' depressed. The following will appear on the remote control display: oooo b) Continue pressing key 9 and remove the remote control from the recharging box. -
Page 14: Calibrating The Remote Control
Programming and Calibration Example 3 Changing the correction f a ctor because a different pedal force meter has been attached. The determined correction factor is 2%. (see Calibration of the Remote Control) Press the '*' key until Variable 3 appears: prog The Variablen value 30 corresponds with a correction factor of -2% (see Table 2-2) Input digits '3' and '0' :... -
Page 15: Setting Of The Switch-Off Time
Remote Control 'Telecom' It is possible to set various transmission channels to facilitate interference-free operation of several remote controls at one time in a garage. The setting of the transmission channel being used is stored in variable 1. If the test rig is equipped with a IRE-PCB (see circuit board) , the quadruple dip switch on the PBS must have the following settings with certain channel settings. -
Page 16: Defect Analysis, Battery, Service, Etc
3.2. Battery A 6V Accu serves as power supply for the Telecom remote control. The remote control accu can be recharged with the supplied recharging box. The remote control must be placed in the recharging holder. A red LED will blink on the lower left side of the recharging box indicating that it is being recharged properly. -
Page 17: Display Readings
Remote Control 'Telecom' 3.3. Display Readings The following is a list of the various functions of the remote control and the message which appears on the display. Reading Function 'On' The remote control is switched on , but no pedal force meter is connected. -
Page 18: Test Program
Defect Analysis, Battery, Service, etc. 3.4. Test Program 3.4.1. Battery Test Using a special test routine the current battery voltage can be displayed thereby allowing inferences to be made about the charging state of the accu. Unter normal conditions the battery voltage should be somewhere between ca. -
Page 19: Versions Test
Remote Control 'Telecom' 3.4.3. Versions Test To check the compatibility for special programs the remote control software which is being used can be called up. Start the test routine using the following procedure: a) Press '1' (V) key and place the remote control in the recharging box. -
Page 20: Appendix
Appendix A Spare Parts List A p p e n d i x Spare Parts List Artikle-No. Description 52 0174 Telecom I Remote Control 52 0175 Recharging box... - Page 21 Remote Control 'Telecom'...
-
Page 22: B) Keyboard Codes For 'Telecom' Remote Control
Appendix B Keyboard Codes Keyboard Codes for 'Telecom' Remote Control Telecom - Lower Line Telecom - Lower line Code Code Keys Display Keys display SHIF SHIF SHIF SHIF SHIF SHIF SHIF SHIF SHIF SHIF SHIF ∗ SHIF ← SHIF ↓... - Page 23 Remote Control 'Telecom'...
