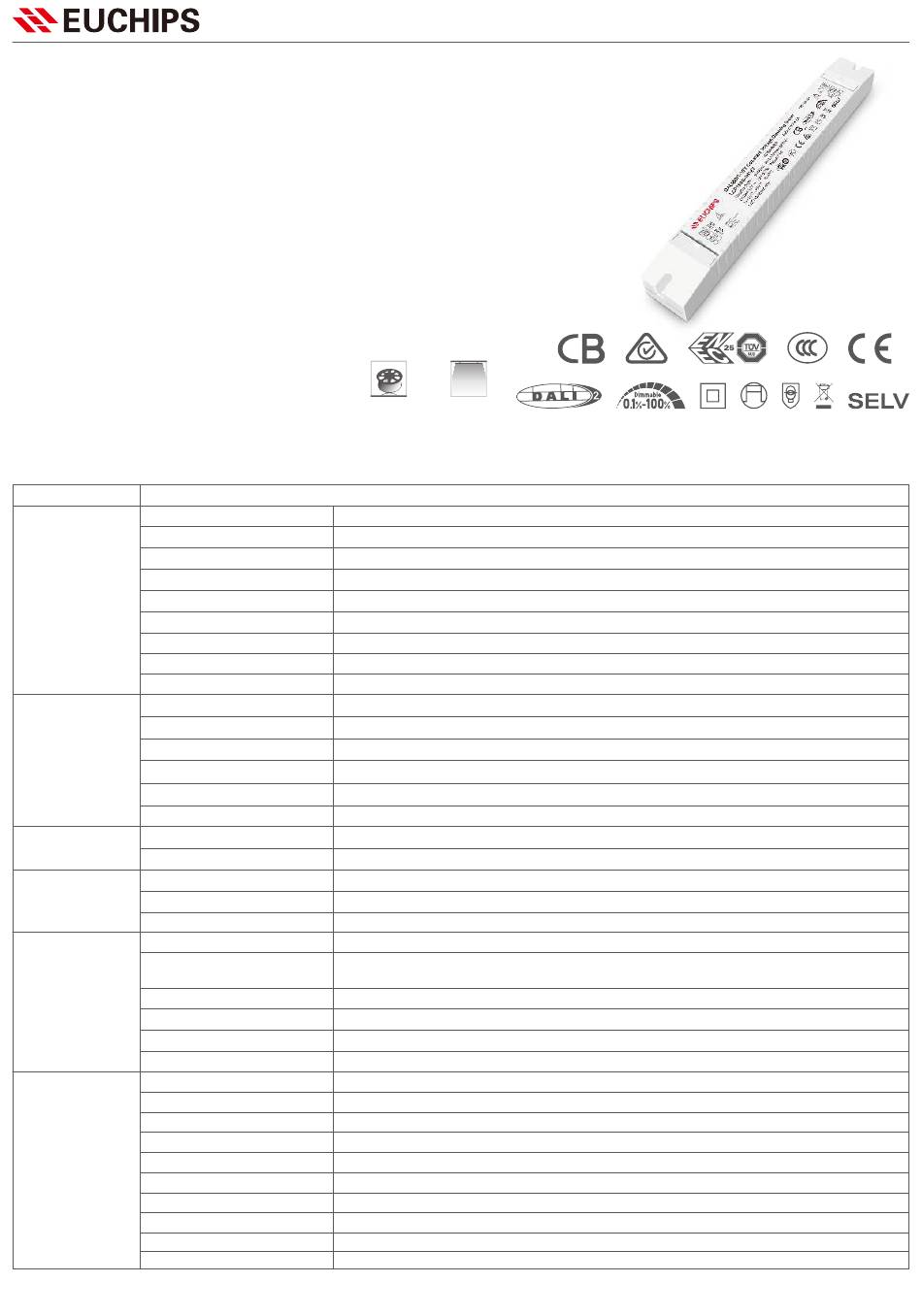

EUCHIPS LCP75AD-1H12V Manual

LCP75AD-1H12V
Summary
LCP75AD-1H12V is a constant voltage mode output LED driver. This driver complies with DALI standard
protocol IEC 62386,and provides multiple dimming function (DALI,0/1-10V active signal ,PWM, adjustable resistance,
and PUSH DIM) to achieve a smooth dimming effect.
Product Features
· Single channel constant voltage output,6.25A Max
· Meet DALI protocol IEC 62386
· High input voltage of 220VAC ~ 240VAC
· Dimming effect smooth, no flicker
· Over load protection; over voltage protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Paramaters
Model LCP75AD-1H12V
Efficiency
Voltage
Frequency Range(Hz)
Power Factor
Input
THD(full load)
AC Current(max)
Standby power
No-load power
Inrush Current(max)
Current(mA)/Voltage (VDC) Power(W)
Channel
Output Voitage
Output
Ripple Voitage
No load output voltage
Turn on delay Time
Dimming Type
Function
Dimming Range
Over load
Protection Short circuit
Over Current
Surge
Withstand Voltage
DALI Standard
Safety&
Safety Standards
EMC
EMC Emission
EMC Immunity
Working Temp.
Storage Temp., Humidity
tc
Material
IP Rating
Others
Lifetime
Warranty Condition
Switch Cycle
Packing(weight)
Dimension
User's manual: 2024.06
Application
For LED constant voltage strip light only
LED Strip Light
LED Tube
88%@230VAC,Full load
220VAC-240VAC
50/60Hz
0.95@230VAC,Full load
<10%@230VAC, Full load
0.47Amax@230VAC
<0.5W
<0.5W
Cold start,29.5A@230VAC 500us
6.25A/12VDC/75W
1
±5%
±3%
12.6V max
<0.75s, at230Vac (When the light begins to shine)
DALI / 0/1-10V / PWM / adjustable resistance / PUSH DIM
0.1%-100%
Reduce current burp protection, troubleshoot normal output
Short circuit No output, troubleshooting output normal
Reduce current burp protection, troubleshoot normal output
L-N:2KV
I/P-O/P: 3750Vac/1min/<5mA I/P-DIM( Signal port DALI):3750Vac/1min/<5mA
I/P-DIM( Signal port 0-10V):1500Vac/1min/<5mA O/P-DIM( Signal port DALI , 0-10V):1500Vac/1min/<5mA
IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0
EN61347, GB19510
EN55015, EN61000-3-2
EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
-20℃~50℃
-40℃~85℃, 20-90%RH
85℃
PC
IP20
50,000h@tc:85℃
5 years
25,000 times
Net weight: 285g±5%/PCS; 50PCS/Carton;14.75kg±5%/Carton; Carton Size: 464*305*189mm(L*W*H)
295*40*32mm（L*W*H）
1/3
DALI & 0/1-10V Constant Voltage Dimming Driver
