Summary of Contents for Scynce echo

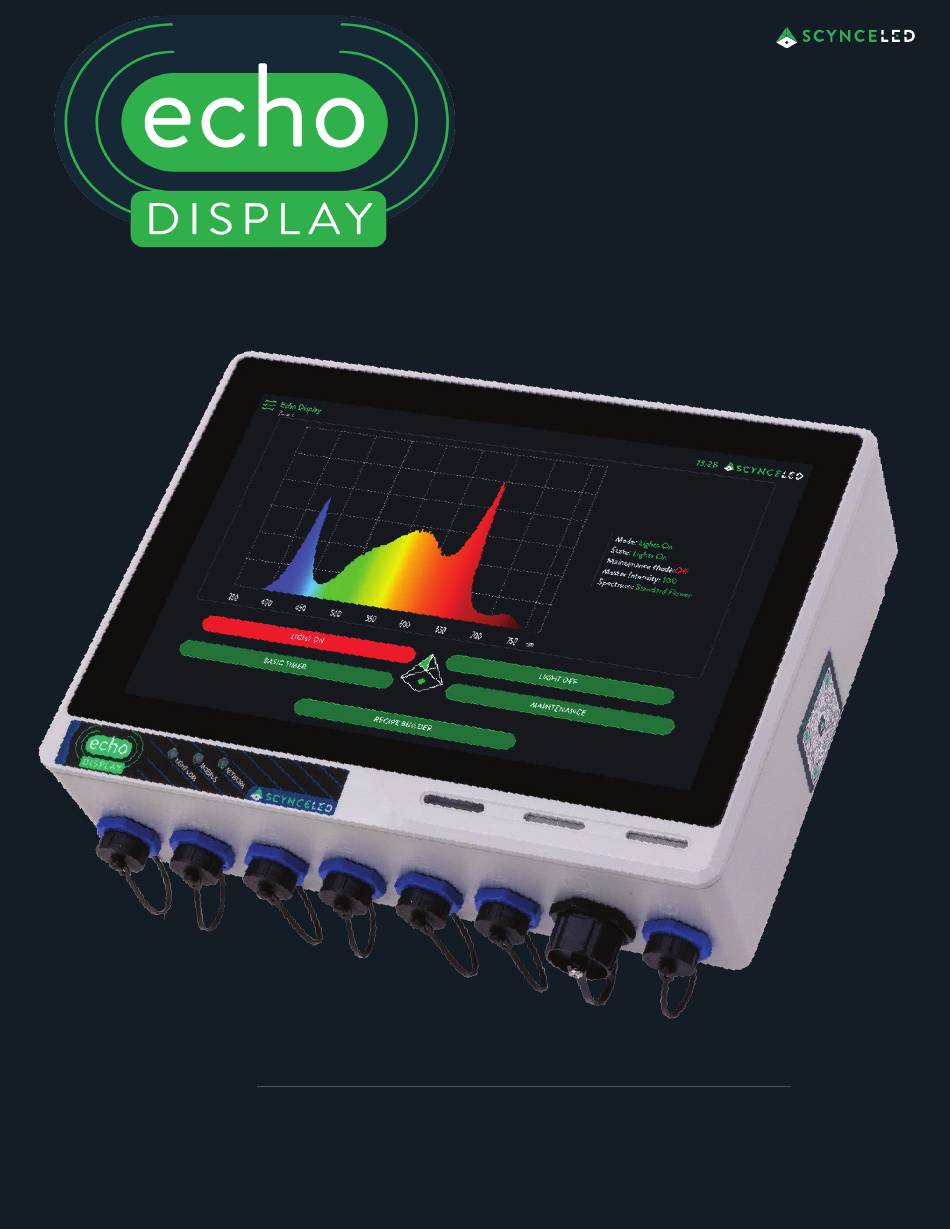

- Page 1 USER MANUAL & INSTALLATION GUIDE For all our User Manuals please visit www.scynceled.com/support...
-
Page 2: Table Of Contents
MANUAL FOR END USER AND INSTALLER Thank you for purchasing the Echo Display. The Echo Display represents a significant leap forward in the control and management of your Scynce LED grow lights. This manual contains all the information needed to quickly familiarize yourself with the product. -
Page 3: Included In The Box
INCLUDED IN THE BOX Several components are included in the Echo Display box, each of which is critical for your successful setup. If any parts are missing please reach out to us for assistance. PARTS INCLUDED... -
Page 4: Product Description
12 Watts 24VDC -40C ~ 30C 5GHZ (50/60HZ) (with no sensors) 9600 Analog 0-10 FCC Identification Source Speed Numbers FCC ID: X8WBT840F IC: 4100A-X8WBT840 FCC ID: 2ABCB-RPIRMO 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com... -
Page 5: Mounting Options
MOUNTING OPTIONS The Echo Display comes with two mounting options: surface mounting, and vesa mount. SURFACE MOUNTING OPTION If you elect to using the surface mounting option, start by locating the provided surface mounting feet (4x) and accompanying hardware. -
Page 6: Installation
INSTALLATION Several connectors are located on the bottom side of the Echo Display. Depending on how you set up the Echo Display in your environment will determine which of these connections are used. Each connection type has a unique connector to prevent an incorrect connection from being made. -
Page 7: Connecting Ethernet
The last fixture in the chain MUST be terminated with using the provided COM Termination Plug. Each of the four COM Ports on the Echo Display will allow up to 75 fixtures to be attached, allowing a total of 300 fixtures controlled by one Echo Display. -
Page 8: Connecting Modbus
OPERATION ATTENTION POWERING ON After power is provided to the Echo display it may take a few Prior to powering the Echo Display on for the first time, minutes for the system to boot and load the operating system. remove the protective film from the face of the touch screen. -
Page 9: Echo Display / Settings
Enabling the security changes the encryption key for the mesh network. Enabling or disabling security requires the Echo Display to have Internet access and access to the scynce.cloud servers. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com... - Page 10 CAN NOT be installed. ATTENTION The Echo Display does not require an Internet connection. However an Internet connection is required for system updates and remote access. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com...
- Page 11 Display and all fixtures on the network will be rebooted. Reboot Device: By selection Reboot Device the Echo Display will be rebooted. The fixtures on the network will NOT be rebooted. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com...
-
Page 12: Echo Display / Light List
Dot” at the upper right corner of each sensor tile. Settings: Display the sensor configuration page. History: Displays a graph of the last 24 hours of data. Remove: Remove the sensor from the list. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com... - Page 13 Sensor Model: Select a Sensor Model from the drop-down list. Press Add Sensor to complete the process and add the sensor to the list of sensors displayed. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com...
-
Page 14: Zone / Basic Mode
Recipe Builder: Create or edit custom light recipes with up to 6 phases (duration, intensity, spectrum). Light Off: Turns the lights in the zone off. Maintenance: Temporarily Override the current light mode. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com... - Page 15 When you have made your desired selection select Apply. The fixtures in the selected zone will be updated to the new spectrum and intensity selections. SCYNCE LED PRESET SPECTRUMS 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com...
- Page 16 To activate the recipe press PUSH TO ACTIVE RECIPE in the middle of the circle on the page. Note: In order for a Recipe to function the Recipe toggle must be activated. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com...
-
Page 17: Zone / Advanced Mode
- FLOWER: Sets the sliders to the flower spectrum and locks Spectrum, Schedule, and Recipe the color sliders. In this setting you only have Master Intensity control. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com... - Page 18 By toggling the Recipe selection an Advanced Recipe list will appear. The first time you access the Advanced Recipe list you either have to create a new Recipe, or you have the option of downloading any of the pre-configured Recipes from Scynce.cloud. After Recipes have been created or downloaded, they will be listed here.
- Page 19 Now that you have a list of Recipes, either downloaded or created, you can create a Schedule for the entire time duration of your grow cycle. The Echo Displays allows one Schedule per Zone. The Scheduling feature can be activated from the Advanced Recipe screen or the Advanced Zone screen, by toggling the Schedule option.
- Page 20 1 day of each phase of the schedule. And each day is compressed into 1 minute. Press the cancel button to exit the Schedule Simulator. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com...
-
Page 21: Remote Access
The Echo Display can be accessed from anywhere in the world using the Remote Access feature. This features grants you full access to the Echo Display just as if you were standing in front of it. Internet access is required, and you need to register the Echo Display on scynce.cloud servers. -
Page 22: Maintenance
Window Cleaner: Windex, 409… o Alkaline Cleaners • Never use abrasive cleaners, abrasive pads, or gritty cloths to clean, the Echo Display display will scratch. • Never scrape the Echo Display display to remove build-up. Only use a vinegar and water solution (1:100 ratio) to remove build-up of limescale on the display. -
Page 23: Troubleshooting
Scynce Customer Support (www.scynceled.com) for assistance. WHAT CAN YOU SEE? WHAT SHOULD I DO? Coming in the next release 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com... -
Page 24: Echo Display Dimensions
75.0 10.60 2.77 2.95 201.2 75.0 190.5 7.92 2.95 7.50 258.5 10.18 217.6 161.6 8.57 6.36 285.6 229.6 11.24 9.04 MOUNT OPTION #2 MOUNT OPTION #1 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com... -
Page 25: Quick Start Guides
SETTING THE MESH GROUP AND SCANNING FOR LIGHTS To connect with and control your Scynce lights, you’ll need to ensure the Echo Display and the lights are on the same mesh group. Then, you can scan for the lights to add them to the Echo Display’s control. - Page 26 Remember: Recipes allow you to customize light settings (spectrum, intensity, duration) throughout a 24-hour cycle. Up to 6 phases can be created within a single recipe using the Recipe Builder. 4641 East Ivy Street, Mesa, AZ 85205 | (480) 256-0017 | info@scynce.ag | scynceled.com...
