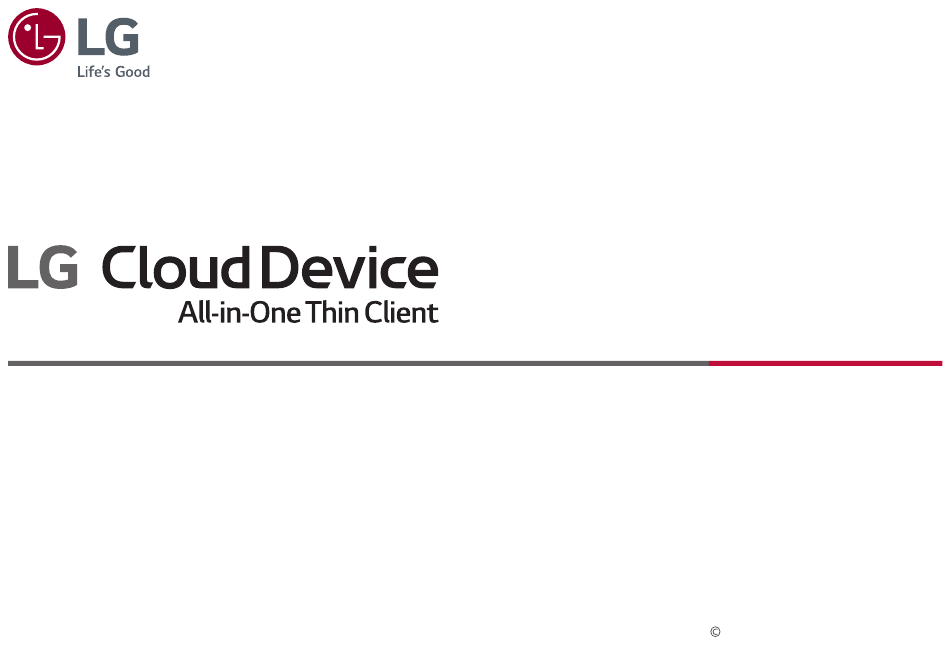

- Page 1 Owner’s Manual Please read this manual carefully before operating your set and retain it for future reference. 34CR65* www.lg.com Copyright 2023 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS LICENSE ..........3 IMPORTANT PRECAUTIONS ....3 OPEN SOURCE SOFTWARE NOTICE INFORMATION ........9 BEFORE READING THE OWNER’S MANUAL ..........9 ASSEMBLING AND PREPARING ...10 USING THE MONITOR ......17 USER SETTINGS .........20 TROUBLESHOOTING ......26 PRODUCT SPECIFICATION ....28... -
Page 3: License
The warranty does not cover any damage resulting from reckless use or use in undesirable environments. • LG Electronics Inc. does not provide warranty for data loss. In order to minimise damage from data loss, please make backup copies of important data. - Page 4 On Safety Do not Open the Display: • There are no user serviceable components inside. • Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is • There are Dangerous High Voltages inside, even when the power is OFF. certified by the applicable national standards if not being provided by the supplier.
- Page 5 On Installation To Prevent Fire or Hazards: • Always turn the display OFF if you leave the room for more than a short period of time. Never leave the • Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power display ON when leaving the house.
- Page 6 - This may damage the product and cause it to fall. • Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc. • For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.
- Page 7 Precautions in Using • Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects. • Do not store or use the product near a magnetic object (i.e. a bag with a magnetic object, a diary, a wallet, a - Damaged power cords may cause a fire or electric shock.
- Page 8 - There is a risk of electric shock or fire and the product may be damaged. • • Please use parts certified by LG Electronics, Inc. Do not disassemble or modify the product arbitrarily. - Otherwise, a fire or product damage may occur.
-
Page 9: Open Source Software Notice
Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing much moisture may cause staining. -
Page 10: Assembling And Preparing
• It is recommended that use the supplied components. • If you use generic cables not certified by LG, the screen may not display or there may be image noises. BIOS • Illustrations in this document represent typical procedures, so they may look different from the actual product. -
Page 11: Power Indicator
Product and Button Description Webcam activity status indicator Webcam Power Indicator JoyStick Button (Power Button) Webcam activity status indicator Mode Webcam enabled Webcam disabled Power Indicator Mode PC On PC Sleep Blinking PC Off... - Page 12 How to Use the Joystick Button Connectors You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ down with your finger. Basic Functions A (Power on): Press the joystick button once with your finger to turn on the monitor. B (Power off): Press and hold the joystick button once more than 5 seconds with your finger to turn off the monitor.
-
Page 13: Moving And Lifting The Monitor
Moving and Lifting the Monitor Installing on a Table • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or the wall to ensure sufficient ventilation. -
Page 14: Adjusting The Angle
Adjusting the Stand Height Adjusting the Angle The angle of the screen can be adjusted forward or backward from -5 ° to 20 ° for a comfortable viewing Place the monitor mounted on the stand base in an upright position. experience. Handle the monitor with both hands for safety. Place the monitor mounted on the stand base in an upright position. -
Page 15: Using The Kensington Lock
Using the Kensington Lock Installing on the Wall For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the at http://www.kensington.com. -
Page 16: Installing The Wall Mount Plate
Back of the Monitor NOTE • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. • The wall mount kit includes the installation guide and all necessary parts. -
Page 17: Using The Monitor
USING THE MONITOR Connecting to a PC • This monitor supports the * feature. • Illustrations in this manual may differ from the actual product. : A feature that allows you to add a device to your computer without having to reconfigure Press the joystick button, go to [Settings] >... -
Page 18: Connecting Monitor
Connecting monitor Connecting LAN DisplayPort Connection LAN connection Transmits the PC's digital video and audio signals to the monitor. Connect your monitor which is supported DP Connect the router or switch to the monitor. using the DisplayPort cable. NOTE NOTE •... -
Page 19: Connecting Av Devices
Connecting AV Devices NOTE • It is recommended you install all OS Updates to keep your OS up-to-date before connecting to the product for use. HDMI Connection • Peripheral devices are sold separately. HDMI transmits digital video and audio signals from your AV device to the monitor. •... -
Page 20: User Settings
USER SETTINGS Main Menu Features NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. Activating the Main Menu Press the joystick button located at the back of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu. -
Page 21: Menu Settings
Menu Settings To view the OSD menu, press the joystick button at the back of the monitor and then enter the [Settings]. Move the joystick up/down and left/right to set the options. To return to the upper menu or set other menu items, move the joystick to or by pressing ( ). - Page 22 [Quick Settings] [Picture] [Settings] > [Quick Settings] [Settings] > [Picture] > [Picture Mode] • [Brightness]: Adjusts the brightness of the screen. • [Contrast]: Adjusts the contrast of the screen. [Picture Mode] on SDR (Non HDR) signal • [Volume]: Adjusts the volume level. •...
- Page 23 [Settings] > [Picture] > [Picture Adjust] [Picture Mode] on HDR signal • [Brightness]: Adjusts the brightness of the screen. • [Custom]: Allows the user to adjust each element. • [Contrast]: Adjusts the contrast of the screen. • [Vivid]: Optimises the screen for HDR vivid colors. •...
- Page 24 [Settings] > [Picture] > [Game Adjust] [Settings] > [Picture] > [Color Adjust] • • [Response Time]: Sets a response time for displayed pictures based on the speed of the screen. For a normal [Gamma] environment, it is recommended that you use [Fast]. For a fast-moving picture, it is recommended that you - [Mode 1], [Mode 2], [Mode 3]: The higher the gamma value, the darker the image becomes.
- Page 25 [Sound] [Settings] > [General] > [Reset to Initial Settings] • [Do you want to reset your settings?] [Settings] > [Sound] - [No]: Cancel the reset. • [Waves MaxxAudio ® - [Yes]: Returns to the default settings. - On: MaxxAudio ® by Waves, recipient of a Technical GRAMMY Award ®...
-
Page 26: Troubleshooting
TROUBLESHOOTING Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails. • Did you select the appropriate resolution? - If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution. - Page 27 • Have you installed the display driver? - Be sure to install the display driver from our web site: http://www.lg.com. - Make sure to check if the graphics card supports Plug and Play function. No sound from the headphone port.
-
Page 28: Product Specification
PRODUCT SPECIFICATION Dimensions (without packaging): Monitor Size (Width x Depth x Height) • With Stand - 809.0 x 260.0 x 568.3 (mm) Specifications are subject to change without notice. • Without Stand The symbol ~ means alternating current, and the symbol means direct current. - Page 29 Wireless module (AX201NGW) Specifications (Wi-Fi/Bluetooth supported models only.) Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 20.0 dBm 5150 to 5350 MHz 22 dBm 5470 to 5725 MHz 22 dBm 5725 to 5850 MHz 13 dBm Bluetooth Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 14 dBm •...
- Page 30 Factory Support Mode (Preset Mode, HDMI) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 60.0 800 x 600 37.879 60.0 1024 x 768 48.363 60.0 1920 x 1080 67.50 60.0 3440 x 1440 43.76 29.95 3440 x 1440 73.63...
-
Page 31: Power Management Options
Power Management Options 34CR65*I The power management options for this PC are set as follows: 34CR65*W NOTE • The settings of the power management options may change according to OS updates. • Turn off the display: Turn off the screen when the PC is not used for a set period of time. •... - Page 32 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model WARNING: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may Serial No.
