Worldwide T17B-TB User Manual

Smart lock
Hide thumbs

Advertisement

Table of Contents

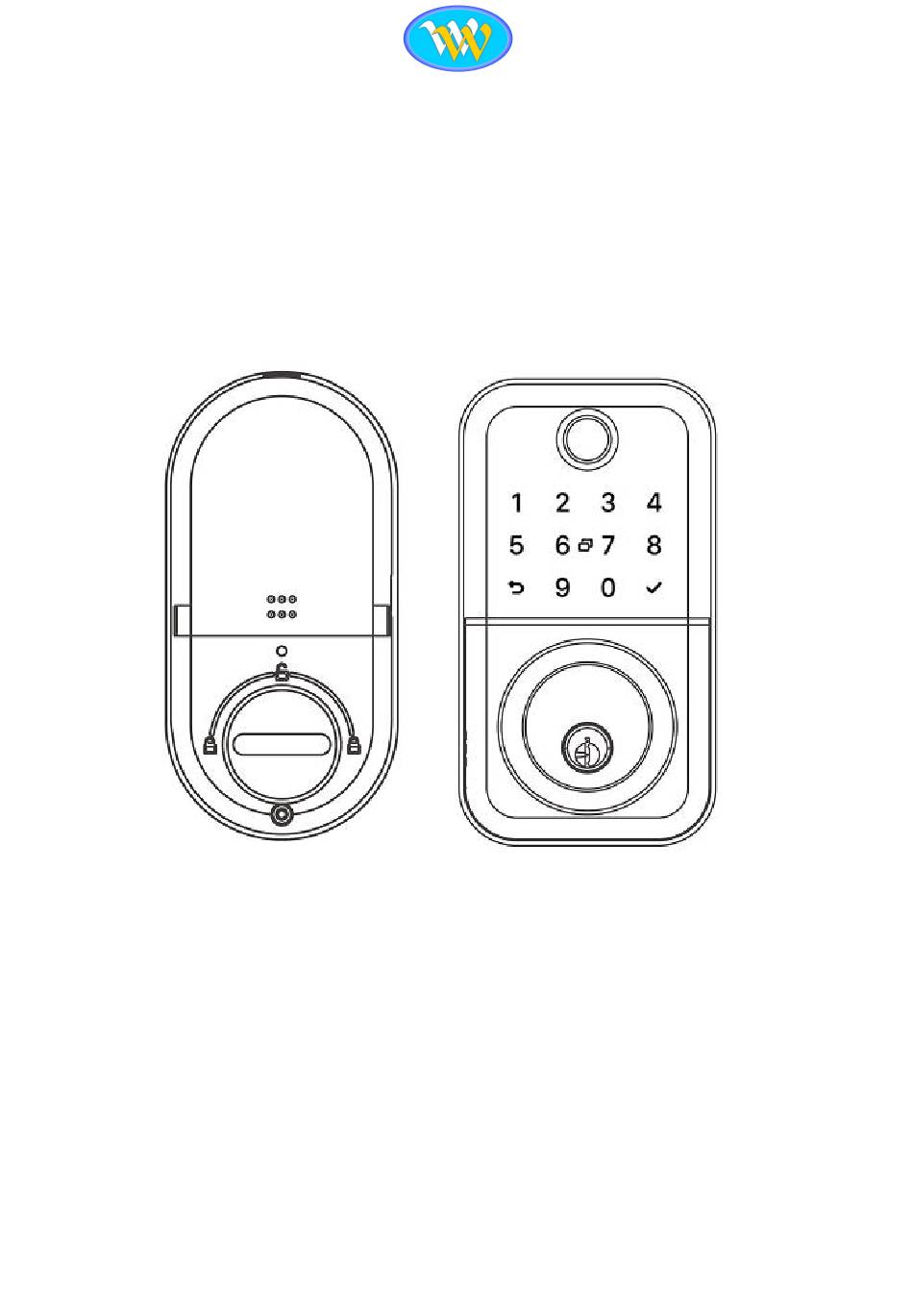

Smart Lock
T17B-TB User Manual
IMPORTANT NOTES
1.Please keeps the keys outside the door in case of emergency.
2.Please replace the battery when low battery alarm.
3.Reading this manual carefully before installation.
4.The door will automatically lock when the door sensor has been setup.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T17B-TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Worldwide T17B-TB

  • Page 1 Smart Lock T17B-TB User Manual IMPORTANT NOTES 1.Please keeps the keys outside the door in case of emergency. 2.Please replace the battery when low battery alarm. 3.Reading this manual carefully before installation. 4.The door will automatically lock when the door sensor has been setup.
  • Page 2 1. Introduction 1.1.Lock Structure 1.2. Packing List Check the following list which contains all the parts. Name Name Front Panel PM2*3 Round-headed screws Latch Screws:M5*10mm Back Panel (For Aluminum Door) Latch Screws:M4*20mm Latch (For Wooden Door) IC Card Connecting Posts: M5*30mm Keys Connecting Posts: M5*40mm Waterproof Rubber Seal...

  • Page 3: Specifications

    1.3. Specifications Aluminum door Suitable for T17B-TB Doors Applicable Wooden door Models Materials Aluminum alloy 6V/4x AA Batteries Working Voltage 1.3KG 35-45mm Lock Weight Door Thickness to Fit Bluetooth Fingerprint Fingerprint ： 200 Unlocking Passcode Passcode ： 150 Data Capacity IC Card IC Card ：...

  • Page 4: Installation Instructions

    2. Installation Instructions Step 1 Install Bolt (Latch) 1. Install the bolt upright and secure it with two wood screws. 2. keep the bolt in retracted position. Step 2 Install Exterior Panel 1.Install the sliding screw stubs into the slot of the front panel and tighten to the desired position.
  • Page 5 Step 3 Install Interior Panel 1.Install the waterproof rubber seal to fixing plate. 2. Fix the fixing plate to the exterior panel with screws. 3.Connect the wire, then install the interior panel onto the fixing plate with screws. 4.Insert the battery and close the battery case lid to complete the installation.

  • Page 6: App Operation

    3.Adjust Opening Direction After adding the APP successfully, please set the desired opening direction first. 4. APP Operation 4.1. Registration Download and install “TTLock” from your App Store or Google Play. Scan the appropriate QR Code to get started. Open TTLock and tap the Register button to create a new TTLock account using either your phone number or email address.
  • Page 7 4.2. Connect lock to the phone 1) Be sure that Bluetooth is enabled on your phone and that you are within a few feet of your smart lock. 2) Touch the key pad to light up the lock screen, select "+ Add Lock” in TTLock. then select “All Lock”...

  • Page 8: Setting Passcode

    4.4. APP Management 4.4.1. Bluetooth connection Make sure there is no problem with your Bluetooth communication and that are within 5 meters of your lock. Simply touch " " icon to unlock and long press the same icon to lock. 4.4.2.
  • Page 9 4.4.3.Send e-Key Click on the " " as shown in figure 2, you can send the eKey to other users of TTlock to authorize the unlocking (the receiver must download the APP and set up an account)→ Select e-key format (Timed, permanent, One-time, Recurring) → Enter recipient's account of TTlock, set the name and effective time of the eKey, can also choose to allow remote unlocking or disallowing, authorized administrator or non authorized, as shown in figure →Send→The recipient's...

  • Page 10: Add Fingerprint

    4.4.5. Add fingerprint Before entering fingerprints, please ensure that the fingerprint is clear and free of abrasion, and that the fingerprint recognition area and the surface of the finger are clean and free of abstructions (water, oil, sweat, dust etc.) The maximum number of fingerprints that can be entered for this products is 200, It is recommended that users enter two fingerprints (to reduce the risk of unrecognizable fingerprints due to wear and tear after entry).
  • Page 11 4.4.6.e-Key management Send an ekey to any user of TTLock so that they can unlock using their smartphone. There is no limit to the number of ekeys that you can send. The administrator can manager all the keys issued by him, including clearing the keys, resetting the keys, sending the keys, adjusting the validity period of the keys, and viewing the unlock records of the keys.
  • Page 12 Recurring A recurring passcode is for occasions where someone needs recurring access, such as a maid service that needs access to your home for a few hours each week. This type of passcode only works during the specified time period each week. It must be used at least once within 24 hours from the time of creation or it will be expired.

  • Page 13: Add Gateway

    4.5. Add Gateway (Optional) Without a gateway, your smart door lock is completely isolated from the internet. Adding a gateway creates a bridge between your Bluetooth lock and your WIFI and allows you to control your smart lock from anywhere through the internet. As a separate device that is power by AC, it does not quickly drain your lock batteries like locks with built-in WIFI.
  • Page 14 Pair the gateway with TTLock 1. In the TTLock app, press the ” “ icon and select “Gateway”. 2. Tap the “+” to add a new gateway. 3. Select G2. 4. You will then be prompted to connect the power to your gateway. Once you do, the light will flash alternately red and blue.
  • Page 15 5.FAQ 1) How to read history In the Records of the main menu page in the App. records? 2) Why can’t I unlock it after You need to perform an unlock verification in any opening the passage method, then the passage mode will take effect. mode 3) What is the purpose of Lock will automatically lock every time according to...

  • Page 16: Factory Warranty

    Factory Warranty Card Cu s t o m e r Na m e ： Customer Phone Number ： P u r c h a s e Da t e ： P r o d u c t N a m e ： P r o d u c t M o d e l ：...
