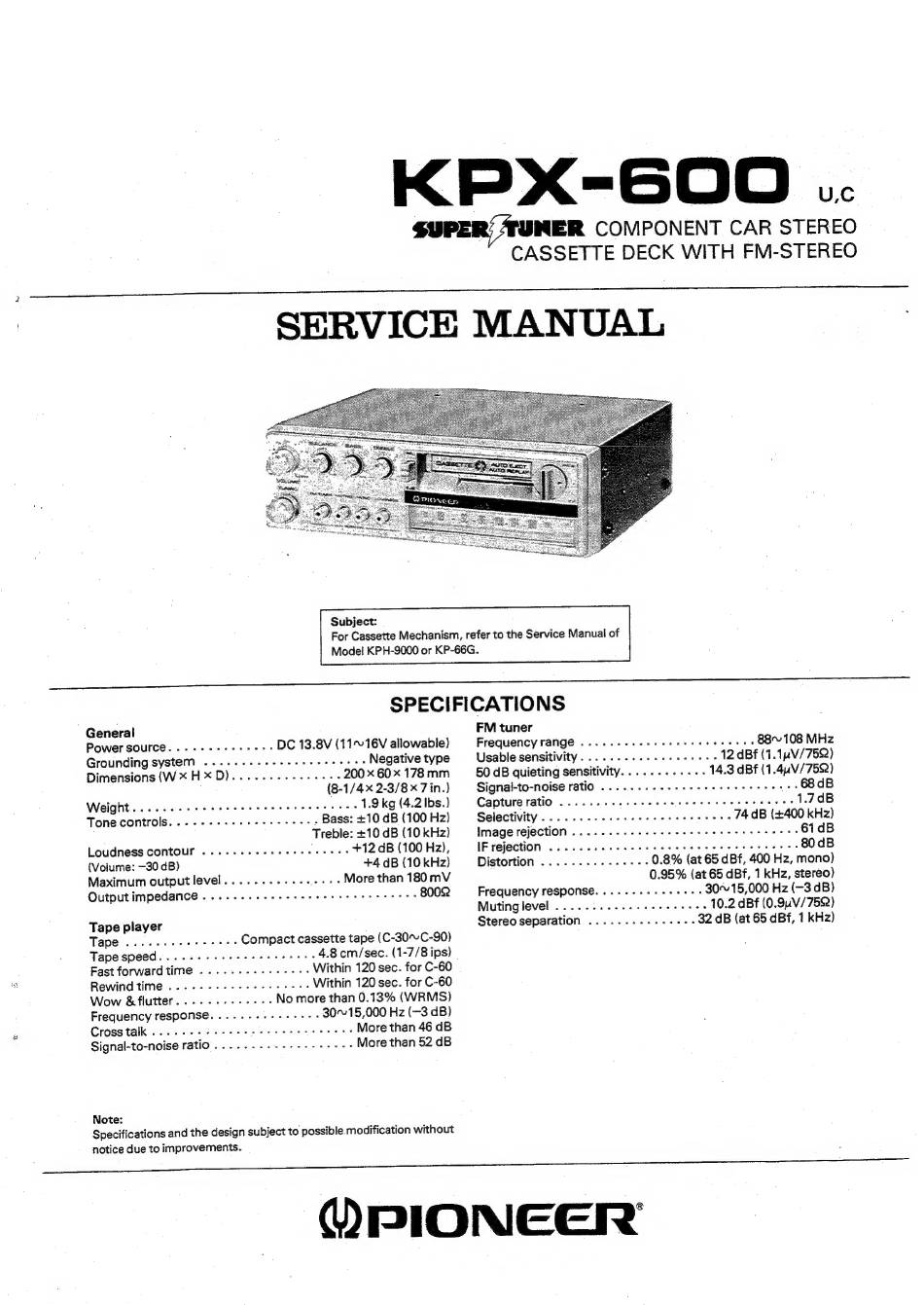

Pioneer SUPER TUNER KPX-600 Service Manual

NER COMPONENT CAR STEREO
CASSETTE DECK WITH FM-STEREO
Subject:
For Cassette Mechanism, refer to the Service Manual of
Mode! KPH-9000 or KP-66G.
SPECIFICATIONS
General
FM tuner
Power source... .-.----eeee-
DC 13.8V (11~16V allowable)
Frequency range .....-.
eee e eee cece e eens 88~ 108 MHz
Grounding systeM
.......-e
eee ee ee eee ee Negative type
Usable sensitivity... .........0
eee eee 12 dBF (1.1p4.V/7522)
Dimensions (WX HX D)........-..60-- 200 x 60 x 178 mm
50 dB quieting sensitivity...........- 14.3 dBf (1.4uV/7522)
(8-1/4X2-3/8x7in.)
Signal-to-noise ratio...
6.0... eee eee ee ee eee
ees 68 dB
Weight ...... 20sec cece rect eee e eens
1.9 kg (4.2 Ibs.)
Capture ratio 26... e eens 1.7dB
Tonecontrols........-0eee
eee eeee Bass: +10 dB (100 Hz) Selectivity...
0... cece
eee eee eens 74 dB (+400 kHz)
Treble: +10 dB (10 kHz)
Image rejection .. 2... eee cee
eee
eee eens 61dB
Loudness contour
........
eee eee eee es +12 dB (100 Hz),
IFrejection
2.00...
cece
cece tee eee
teens
80 dB
(Volume: —30 dB)
+4 dB (10 kHz)
Distortion ............6-- 0.8% (at 65 dBf, 400 Hz, mono)
Maximum output level..........-- ..... More than 180 mV
0.95% (at 65 dBf, 1 kHz, stereo)
Output impedance .......
6. ee eee
eee ee eee
eens 80082
Frequency response. ....-..--+++-+ 30~ 15,000 Hz (-3 dB)
Mutinglevel ........-...0eee
cree 10.2 dBf (0.9nV/7522)
Tape player
Stereo separation ...........---- 32 dB (at 65 dBf, 1 kHz)
Tape ......ee
eee eee Compact cassette tape (C-30~C-90)
Tape speed...
2. --- ee eee eee eee 4.8 cm/sec. (1-7/8 ips)
Fast forward time ........-.---6: Within 120 sec. for C-60
Rewind time .....-----+ee-
sree Within 120 sec. for C-60
Wow &flutter..--..------- No more than 0.13% (WRMS)
Frequency response. .....-....+--- 30-15,000 Hz (-3 dB)
Crosstalk...
00 ee cece ee
eee ee eee
eeee More than 46 dB
Signal-to-noise ratio...
... 66-2
eee eee ee More than 52 dB
Note:
Specifications and the design subject to possible.modification
without
notice due to improvements.
