Summary of Contents for Intertec Data Systems CP FLATTHERM DEPA

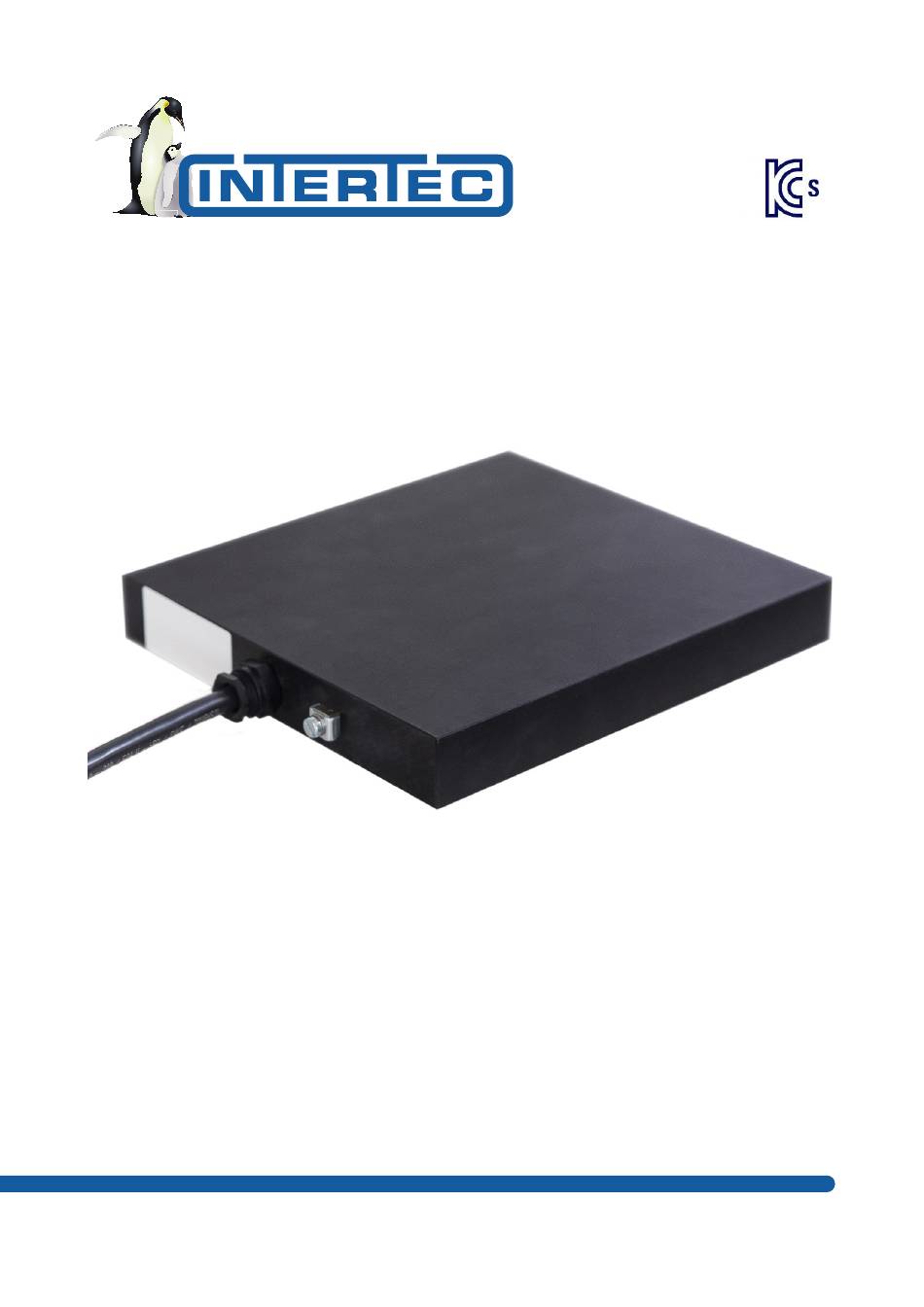

- Page 1 Operating Instructions CP FLATTHERM DEPA HOM180421259en-4 • 13/06/2024...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information.............................. 3 5 Technical Data ................................ 4 6 Installation ................................ 4 7 Connection................................ 5 8 Commissioning .............................. 6 9 Maintenance................................ -
Page 3: General
Operating Instructions CP FLATTHERM DEPA General Explanation of symbols for warnings and signal words These operating instructions describe the safe and proper way to work with the device. The safety The safety information warns the user about risks and information and instructions given as well as the local provide information on how risks can be avoided. -
Page 4: Technical Data
Operating Instructions CP FLATTHERM DEPA Special voltages with corresponding power adjustment CAUTION and component selection are possible. Profile type "P" Height x 220 x 200 x 30 Risk of burns from a hot surface Width x Depth Attainable highest temperatures: INFO - Max. -
Page 5: Connection
Operating Instructions CP FLATTHERM DEPA Where operating voltage = measured voltage (rated voltage), then the heater is at its rated output. Mains voltage fluctuations up to 10 % are then permissible. Each heater with integrated TS thermostat must be... -
Page 6: Commissioning
Operating Instructions CP FLATTHERM DEPA Junction box Terminal box Heater Heating bn=brown bl=blue ye/gn=yellow/green br=brown bl=blue ye/gn=yellow/green Illustration 3: CP ..THERM with TAE Illustration 4: CP ..THERM with TS Check heater and all mounting parts for tight fit. Check heater, supply lines, any thermostats and junction boxes for safety-relevant damage. -
Page 7: Maintenance
Operating Instructions CP FLATTHERM DEPA If the heater fails, check the installation. Carry out a CAUTION continuity test on the heating circuit. Pay attention to the connection diagram switching point Sufficient heat dissipation must be ensured. thermostat! Unauthorized covers must be removed as otherwise In the case of overheating, the thermal indicator (see there is the risk of the heater overheating. -
Page 8: Declaration Of Conformity
Operating Instructions CP FLATTHERM DEPA Further information and service NOTICE If the information contained in this instruction manual Environmental damage may be caused if should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further disposed of incorrectly! information and service.
