Summary of Contents for S-Track OSTRICH XDI22

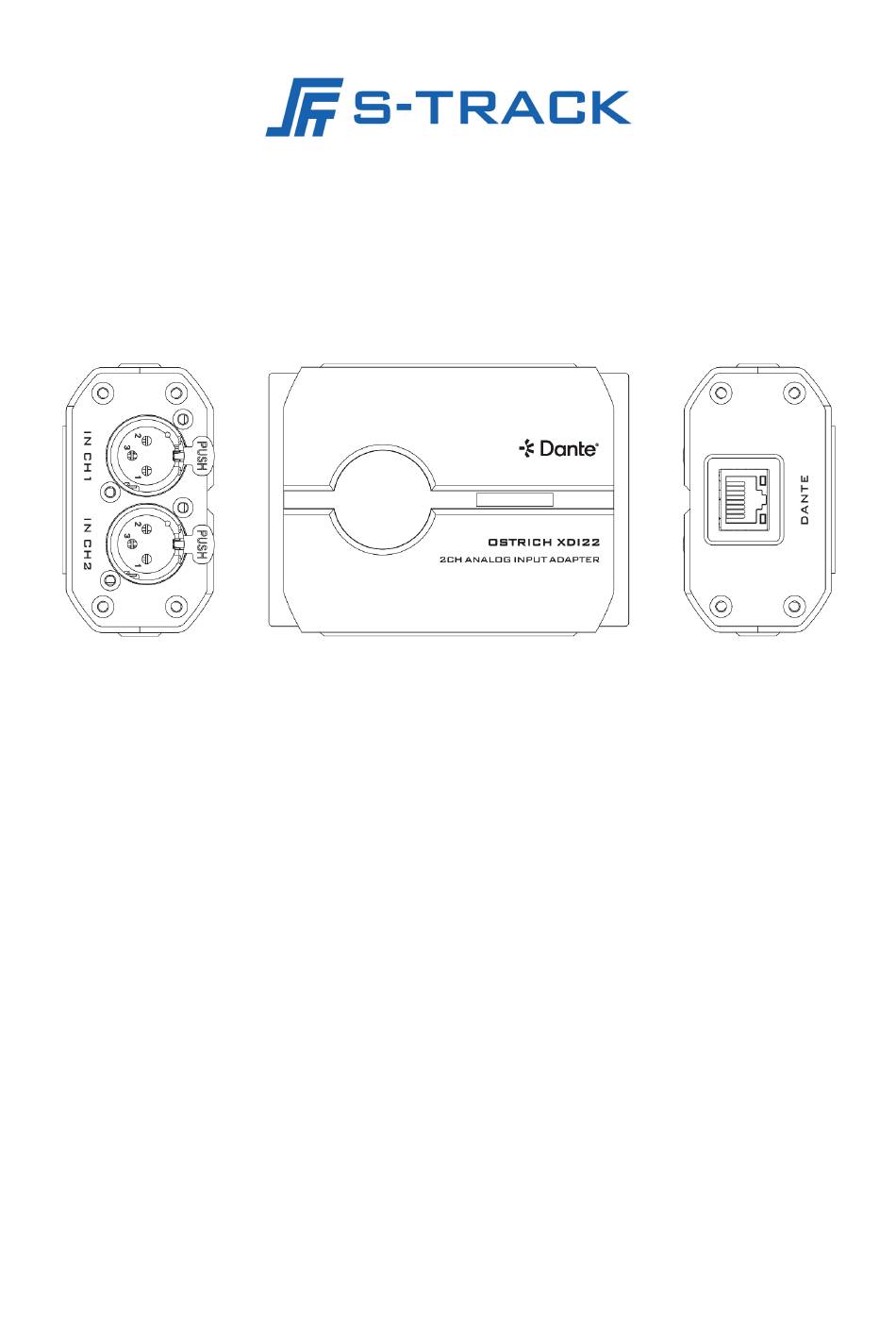

  • Page 1 OSTRICH XDI22 2CH Analog Input Adapter User Manual...
  • Page 2 OSTRICH XDI22 2CH Analog Input Adapter Preface Thank you for choosing our product. This product provides the interfacing between analog inputs and Dante channels, requiring power over Ethernet (POE) switch for power supply. Caution To ensure the reliable use of the equipment and the safety of personnel, please observe the following matters during installation, use and maintenance: 1.
  • Page 3 OSTRICH XDI22 2CH Analog Input Adapter TABLE OF CONTENTS Chapter 1 Overview ..........................1 Chapter 2 Specification ........................1 Chapter 3 Interface Description ......................2 Chapter 4 Dante Network Audio Routing .................... 3...

  • Page 4: Chapter 1 Overview

    OSTRICH XDI22 2CH Analog Input Adapter Chapter 1 Overview This product is an audio interface device based on the internationally recognized Dante protocol, capable of converting analog audio signals into digital ones and routing them through the Dante protocol to any Dante audio transmission network device. It offers high-quality, long-distance transmission, low latency, strong anti-interference ability, and convenient networking capabilities.

  • Page 5: Chapter 3 Interface Description

    OSTRICH XDI22 2CH Analog Input Adapter Bit Depth 24bit Dante device 1、2 or 5ms（Dante Controller Configuration） Network Transmission Dante IP/AES67/RTP Audio Background Noise -90dBu Size(LxWxH) 98x72x40mm Weight 0.3kg Chapter 3 Interface Description Dante network interface with POE supply; Analog Input CH1;...

  • Page 6: Chapter 4 Dante Network Audio Routing

    OSTRICH XDI22 2CH Analog Input Adapter Chapter 4 Dante Network Audio Routing In a Dante audio network, the Dante Controller software is required to set up the routing of the various signals accessing the processor. It can realize 1-to-1, 1-to-N mapping operation from input to output within Dante network.

  • Page 7: Warranty Regulations

    Warranty Regulations The warranty period of this product is 1 year. In the warranty period of non-man-made damage caused by the product performance failure can enjoy three packages of service. Warranty card by the sales unit stamped after the effective. The alteration is invalid! The following conditions (including, but not limited to, this) are not covered by the three-package service: 1.
  • Page 8 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
