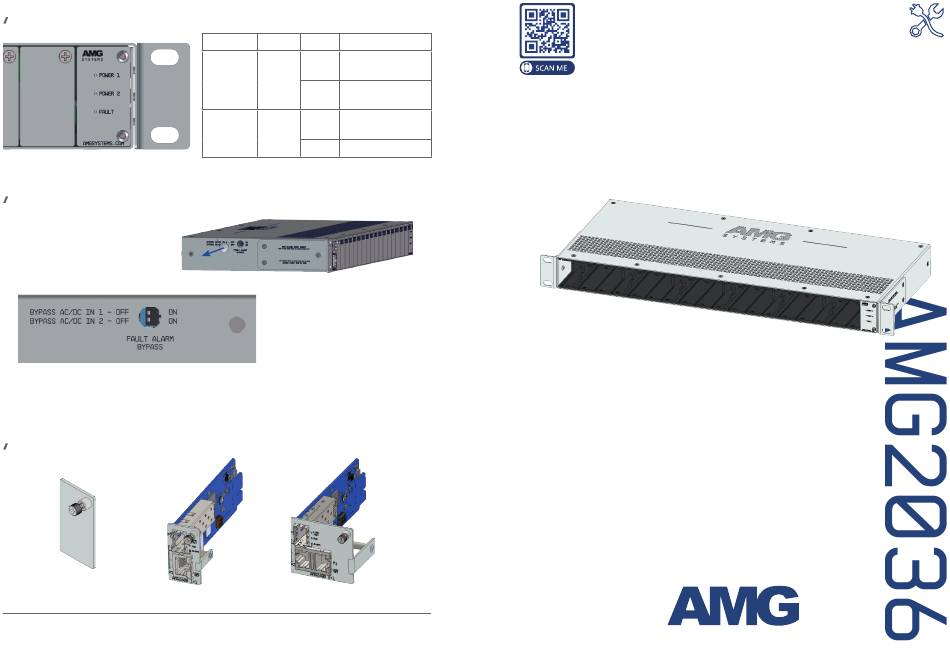

AMG AMG2036 Series Installation Manual - Hardware

LED INDICATORS
FAULT BYPASS SWITCHES
Remove the white DIP switch
protection cap to access the
two DIP switches.
When the DIP switch is in the ON position that power input will be ignored
for the purposes of alarm condition monitoring. When that power input is
not present then the Fault LED and Fault Relay output will not trigger.
BLADE CARDS & BLANK PANELS
AMG260B-BP1 AMG260B-1G-1S
AMG Systems Ltd. 4 Pioneer Way, Castleford, WF10 5QU, UK T: +44 (0) 1767 600 777 E: technical@amgsystems.com
AMG Systems Inc. 62 Spring Hill Road, Trumbull, CT 06611, USA T: +1-855-AMGPOE1 (855-264-7631)
D33810-00
LED Colour Status Description
Power Input 1 / 2
Off
Not Present
POWER
Blue
1 / 2
Power Input 1 / 2
On
Present
Selected Power
Off
Input(s) Good
FAULT Red
On Power Input Fault
Turn the DIP switch to the ON
position for any power input
that is not connected.
(SOLD SEPARATELY - EXAMPLE MODELS ONLY)
AMG260B-2G-1S
www.amgsystems.com
AMG2036 Series AMG2036 Series
Industrial Blade Chassis Industrial Blade Chassis
Installation Manual - Hardware Installation Manual - Hardware
