Summary of Contents for Verkada CF83-E

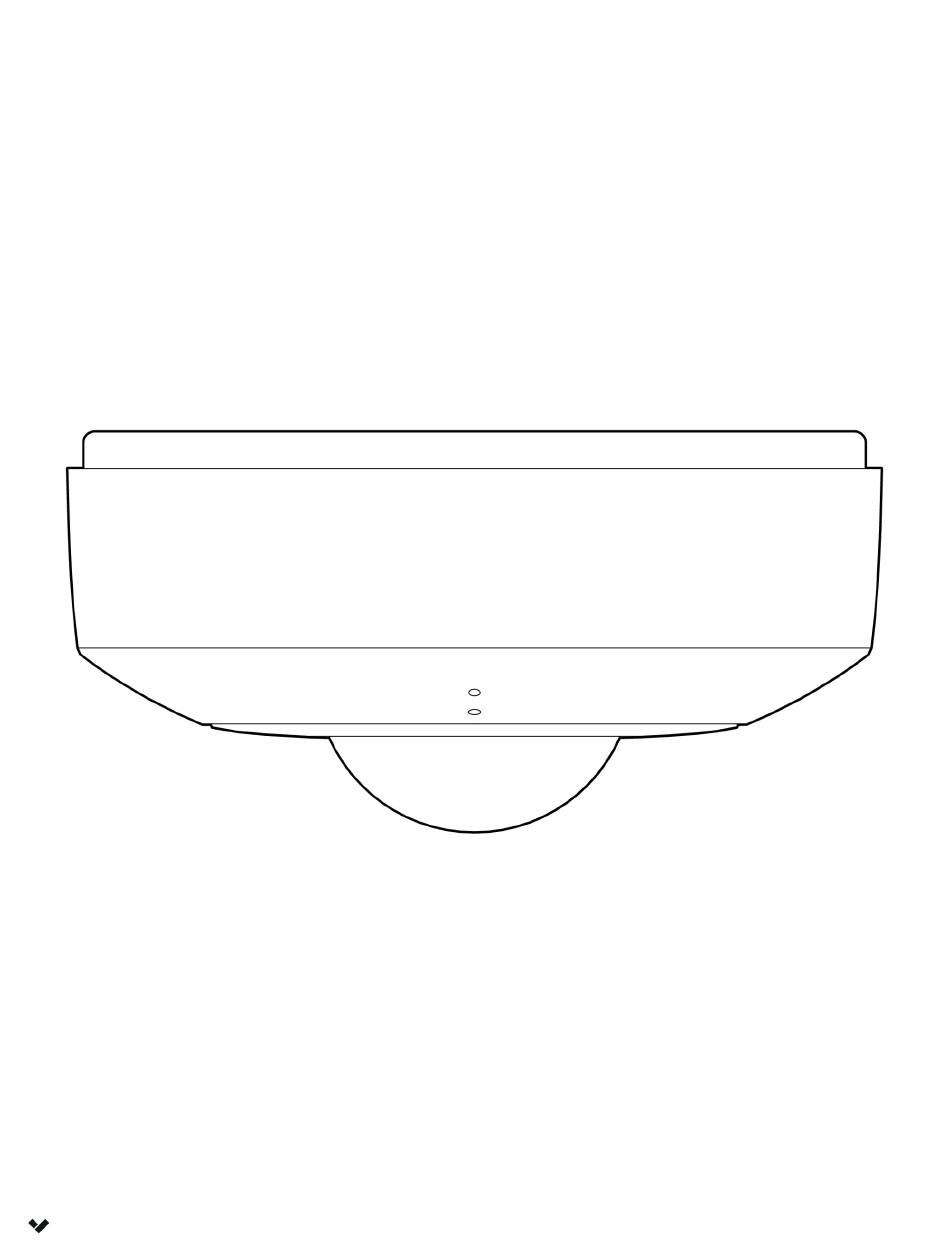

- Page 1 Install Guide CF83-E Outdoor Fisheye Camera...
-
Page 2: Product Models
Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada. -
Page 3: Introduction What's In The Box
If you prefer to manually register your -20° C, use 802.3at PoE. product, please proceed to: ● A smartphone or laptop verkada.com/start ● A Phillips screwdriver or power drill with a Phillips driver bit ● ¼ inch (6.5mm) drill bit for wall anchors ●... -
Page 4: Mount Plate
Introduction Overview Camera Sensor Registration Code Scan after connecting to power to register camera in Command. PoE In Ethernet (RJ45) Microphone Switch Disable or enable Cable Latch Plug the camera microphone Cable Gland Cable Latch Level Mount Plate Wall Mount 4”... - Page 5 Introduction Microphone Switch The microphone switch allows you to physically disconnect the microphone in the camera unit, guaranteeing that no audio will be recorded. Audio recording is enabled by default. To disable audio recording, move the switch into the left position. Alternatively, audio recording can be disabled in your Command account.
- Page 6 1 Red - No IP Address 5 Red - DNS error Camera has not received an IP address. Camera is not able to resolve Verkada hostnames. 2 Red - Duplicate IP 6 Red - NTP Error Camera has detected duplicate IP addresses on the LAN.
- Page 7 WAN errors 1 Red - No IP Address 1 Red - DNS error Camera has not received an IP address. Camera is not able to resolve Verkada hostnames. 2 Red - Duplicate IP 2 Red - NTP Error Camera has detected duplicate IP addresses on the LAN.
- Page 8 Installation Preparation 1/2 Use the provided T10 Torx security screwdriver to loosen the screws and lift the top cover of the camera. Lift the top cover off of the camera. Remove and discard the desiccant on the camera. To remove the mount plate, loosen the mount plate screws with the provided T10 Torx Security Screwdriver and twist the camera counter clockwise.
- Page 9 Installation Preparation 2/2 Use the T10 Security Screwdriver to unscrew the latch screw. Open the latch. Remove the cable gland and set it aside.
- Page 10 Installation Mounting 1/5 Use the provided mounting plate to mark wall mount holes. For a junction box mount, use the mounting plate to determine the correct hole pattern. For a solid material like wood or metal, drill ⅛ inch pilot holes. Drive mounting screws directly into the pilot holes.
- Page 11 Installation Mounting 2/5 Align the blue holes to the thumbscrews and rotate the camera clockwise. Tighten the thumbscrews using the T10 Security Screwdriver to secure.
- Page 12 Press the cable gland into cable gland hole. Make sure that there are no gaps or openings. Scan QR code to register on Verkada Command. In case of cable slack, press the excess Ethernet cable into the cable gland.
- Page 13 Installation Mounting 4/5 Ensure the cable gland is firmly in place with no gaps or unevenness. Ensure the latch is fully down and closed before tightening the security screw. Close the latch and use the provided T10 Security Screwdriver to secure and seal the Ethernet cable.
- Page 14 Installation Mounting 5/5 Press the top cover onto the camera and hold it in place. Secure the top cover using the provided T10 Torx Security Screwdriver.
- Page 15 Installation Grounding In order to attach the ground cable to the camera, perform the following: Align a 20AWG or larger grounding cable with a ring terminal and drive an ¼”-20 x 0.25” screw (not included) through the terminal and into the threaded grounding point on the back of the device as shown on the right.
- Page 16 Appendix Compliance Caution 1. Maintenance and repair work must always be carried out by qualified technical personnel. Disconnect power from the unit when performing a maintenance task. 2. Wiring methods used for the connection of the equipment to earth shall be in accordance with the National Electrical Code, ANSI/NFPA 70, and the Canadian Electrical Code, Part 1, CSA C22.1.
- Page 17 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support...
