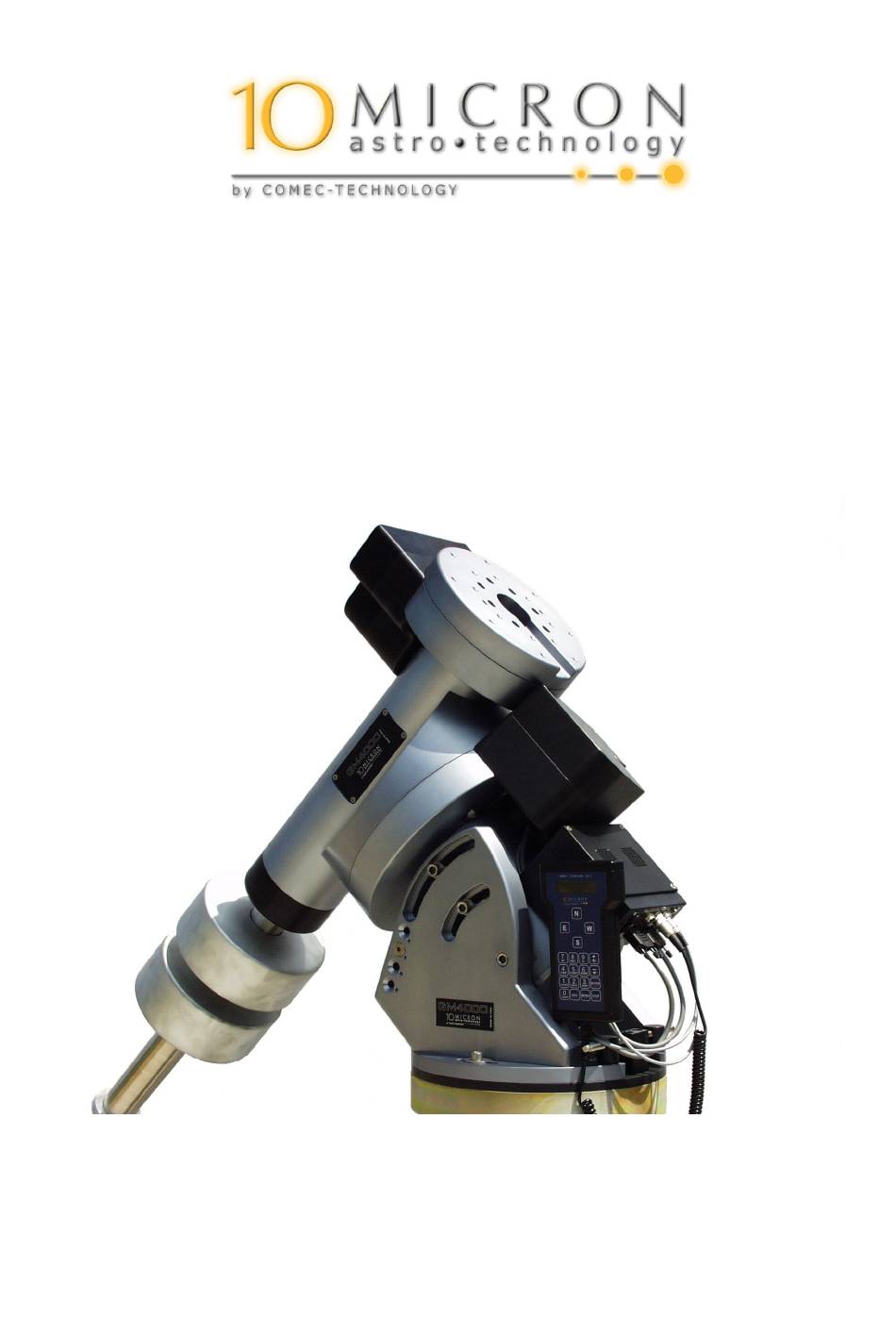

10Micron by COMEC technology – GM4000QCI Mount
GM4000QCI
EQUATORIAL GERMAN MOUNT
Instruction and Maintenance User' s Manual
REV. 4.0 – July, 2009
Firmware version 1.7
1
