Summary of Contents for Antunes CCC-20

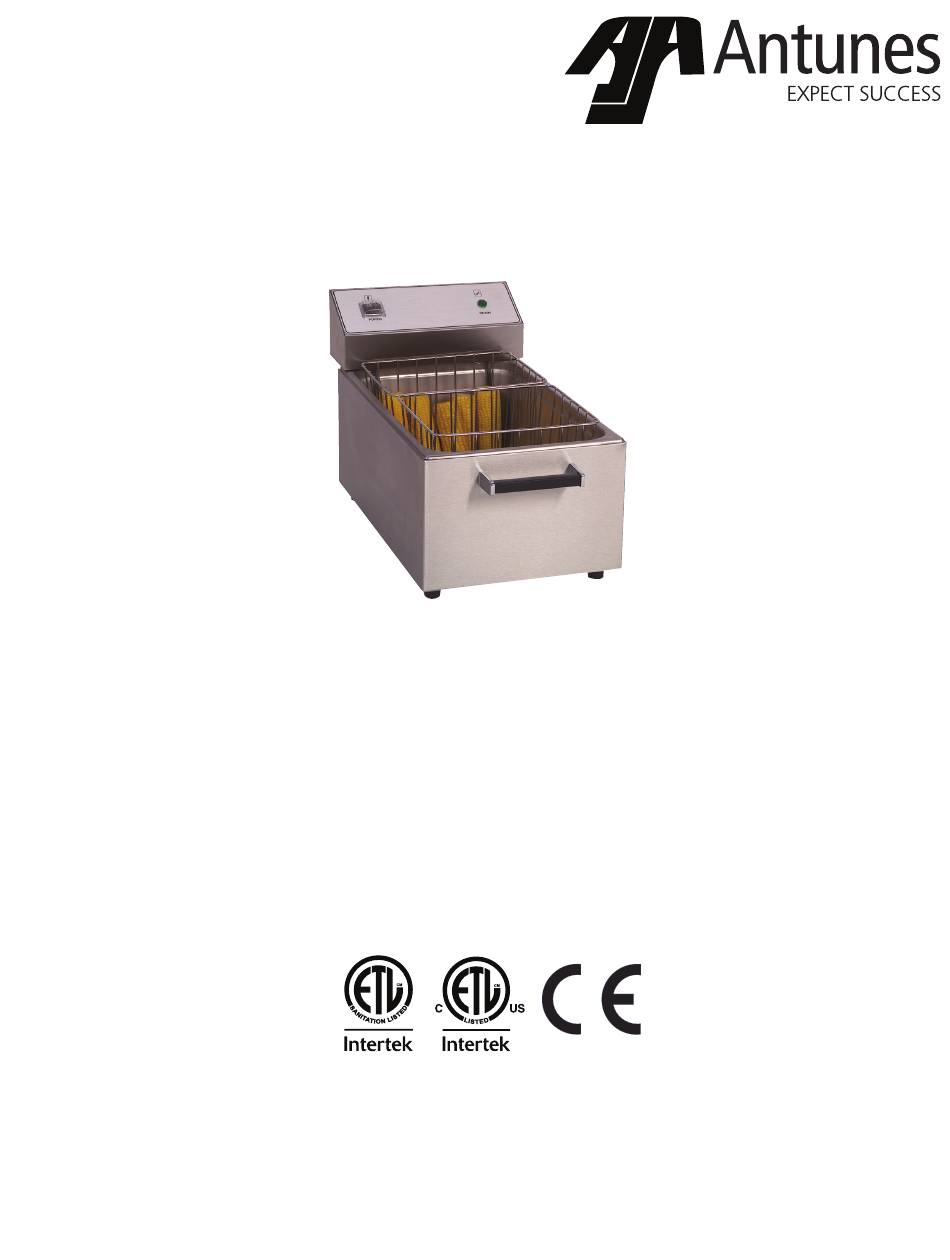

- Page 1 ® Corn Cooker Model CCC-20 Owner’s Manual Manufacturing Numbers: 9600200, 9600202, 9600210,9600212 9600214, 9600215,9600217, 9600218, 9600221 Original Instructions P/N 1010634 Rev. L 02/20 www.antunes.com CAUTION: Read all instructions before using the unit.
-
Page 2: Table Of Contents
• Malfunction resulting from improper maintenance. Your Corn Cooker is manufactured from the finest materials available and is assembled to Antunes’ strict • Damage caused by abuse or careless handling. quality standards. This unit has been tested at the fac- tory to ensure dependable trouble-free operation. -
Page 3: General
Service/Technical Assistance Refer to the service agency directory included with your unit. If you experience any problems with the installation or operation of your unit, contact your local Antunes Authorized Service Agency Authorized Service Agency. Name: Fill in the information below and have it handy when Phone No.:... - Page 4 • This equipment should be serviced by qualified • WARNING ELECTRICAL SHOCK HAZARD. personnel only. Contact the nearest Antunes FAILURE TO FOLLOW THESE INSTRUCTIONS authorized service facility for adjustment or repair. COULD RESULT IN SERIOUS INJURY OR DEATH.
-
Page 5: Dimensions
Electrical Cord & Plug Configurations Model & Voltage Watts Amps Hertz Mfg. No. Description Configuration Mfg. No. 9600202 CEE 7/7, 16 Amp., 9600212 CCC-20 250 VAC 50/60 9600200 9600214 (Assembly Only). 1750 15.0 9600210 9600215 9600217 (China) 5-15P, 15 Amp., 9600200 CCC-20 120 VAC.,... -
Page 6: Installation
5. Plug the power cord into an appropriate outlet. method helps to keep track of which corn has been cooking the longest. NOTE: If any parts are missing or damaged, con- tact Antunes Technical Service IMMEDIATELY at 1-877-392-7854. Built in Power Light... -
Page 7: Unsold Corn
CORN COOKER OPERATION Unsold Corn 2. Cover corn with shaved ice or ice cubes and place in freezer. Carefully plan and schedule the loading of corn so that only a small amount is left at the end of the day. Any 3. -
Page 8: Troubleshooting
CORN COOKER TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. Use extreme care during electrical circuit tests. Live circuits will be exposed. - Page 9 CORN COOKER REPLACEMENT PARTS (continued) INSET 22,24 P/N 1010634 Rev. L 02/20 ®...
-
Page 10: Replacement Parts
CORN COOKER REPLACEMENT PARTS Item Item Part # Description Qty. Part # Description Qty. Basket, Corn (Mfg No. 9600200, Power Cord, CEE 7/7 (Mfg No. 0800103 0700453 202, 210, 214) 9600202, 212, 214, 215, Basket, Corn (Mfg No. 9600215, Power Cord, NEMA 5-15P (Mfg 0800380 0700463 217, 218) -
Page 11: Wiring Diagram
CORN COOKER WIRING DIAGRAM POWER CORD NOTES: ALL WIRES TO BE 12 GA. TEW-105°C UNLESS OTHERWISE SPECIFIED. *18 GA. AWM-105°C #14 GA. AWM-105°C INDICATOR LIGHT TERMINAL BLOCK THERMOSTAT # GRN/YEL HEATER INTERLOCK SWITCH POWER SWITCH P/N 1010634 Rev. L 02/20 ®... -
Page 12: Limited Warranty
Authorized Service Agency to reach the equipment location. 2. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regula- tions.
