Summary of Contents for Haier HWR10XC5

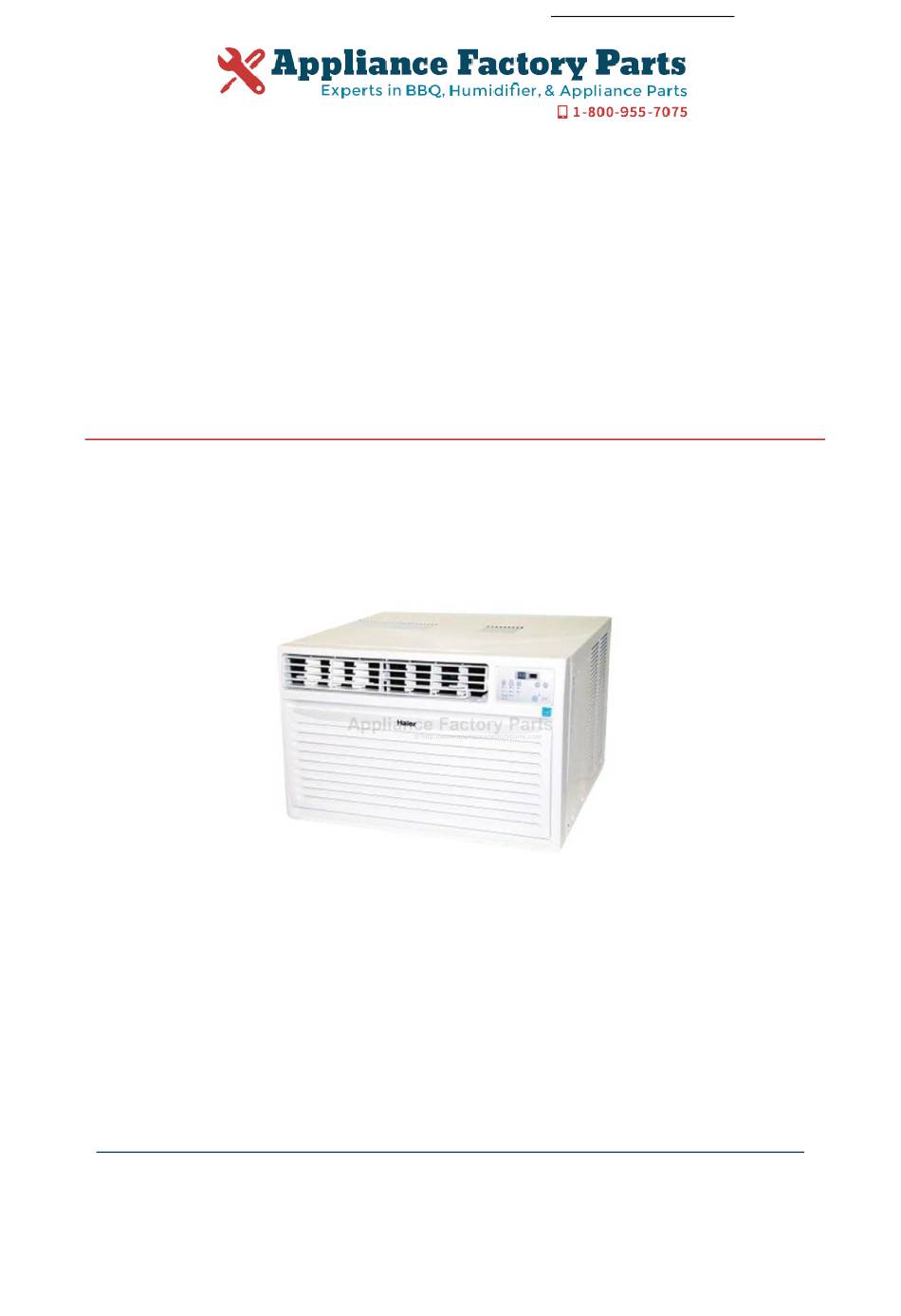

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Haier ESA3105 Owner's Manual Shop genuine replacement parts for Haier ESA3105 Find Your Haier Air Conditioner Parts - Select From 735 Models -------- Manual continues below --------...
- Page 2 Domestic Air Conditioner SERVICE MANUAL Models HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 l Features l Top-Discharge Air Flow l Ultra Quiet Operation l Safty Power Cord l EnvicoClean Coil l Easy-Access Washable Filter l Digital Display&Timer Serial Number: Version:00.00 Edition: 2004-11-17...
- Page 3 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Content 1、 Product Code Illumination And Series introduction ---------------------------- 2 2、 Specifications -------------------------------------------------------------------------------- 3 3、 Safety and Precaution ----------------------------------------------------------------------5 4、Warning and Cautions ----------------------------------------------------------------------6 5、Net Dimention ---------------------------------------------------------------------------------7 6、Installation and Accessory Parts -------------------------------------------------------8 7、Parts and Functions...
-
Page 4: Product Code Illumination And Series Introduction
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Product Code Illumination And Series Introduction 1.Model identification: E F G A: Abbreviation of Haier B: Abbreviation of Window C: R-Remote Control F-Mechanical Control D: Nominal cooling capacity(BTU/h) with the first two numbers based on one... -
Page 5: Specifications
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Specifications: Item UNIT HWR10XC5,HWR10XC5-T HWR12XC5 Cooling capacity BTU/h 10000 12000 Heating capacity BTU/h Power supply 1PH/115V/60Hz 1PH/115V/60Hz Power input 1020 1220 Cooling Running current 10.6 BTU/(hW) Power input Heating Running current... - Page 6 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Specifications: Item UNIT ESA3105 ESA3125 Cooling capacity BTU/h 12000 10000 Heating capacity BTU/h Power supply 1PH/115V/60Hz 1PH/115V/60Hz Power input 1220 1020 Cooling Running current 10.6 BTU/(hW) Power input Heating Running current...
-
Page 7: Safety And Precaution
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Safety and Precaution... -
Page 8: Warning And Cautions
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Warning and Cautions Important: Test power plug before each use: 1. Press “reset “button. 2 . Press “test “button, unit should trip. 3. Press “reset” button again for use . Do not use if above test fail. - Page 9 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Net Demention...
-
Page 10: Installation And Accessory Parts
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Installation and Accessory Parts... - Page 11 O N/ O FF Left and right “CR2025“ battery M ODE SPEED TI M ER Drain tube side curtains Remote Top rail TEM P/ T I M E control Curtain attachment screws 13/32" M odel: HWR10XC5, HWR12XC5, HWR14XC 5, ESA3105, ESA3125...
-
Page 12: Installing Unit Into A Window
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Installation and Accessory Parts Installing Unit into A Window Window Opening Requirements The air conditioner is designed to fit into double or single hung sash type windows. Each of the units comes with an installation kit that provides adjustable mounting louvers, to fill the gaps between the sides of the unit, and the window frame. - Page 13 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Ｍｏｄｅｌｓ ＨＷＲ１０ＸＣ５， ＨＷＲ１０ＸＣ５－Ｔ，ＨＷＲ１２ＸＣ５， ＥＳＡ３１０５， ＥＳＡ３１２５ １ ＰＲＥＰＡＲＥ ＵＮＩＴ ＦＯＲ ＩＮＳＴＡＬＬＡＴＩＯＮ－１ Ｕｎｐａｃｋ ｕｎｉｔ ｏｎ ｆｌｏｏｒ ｎｅｘｔ ｔｏ ｉｎｓｔａｌｌａｔｉｏｎ ｌｏｃａｔｉｏｎ． １． Ｏｐｅｎ ｔｈｅ ｉｎｌｅｔ ｇｒｉｌｌｅ ｂｙ ｐｕｌｌｉｎｇ ｔｈｅ ｅｘｐｏｓｅｄ ｄｏｏｒ ｏｎ ｔｈｅ ｔｏｐ ｏｆ ｔｈｅ ｕｎｉｔ ａｎｄ ｒｅｍｏｖｅ ｔｈｅ ｓｃｒｅｗ ｗｈｉｃｈ ｆａｓｔｅｎ ｔｈｅ ｆｒｏｎｔ ｐａｎｅｌ． （Ｆｉｇ． Ａ） ２． Ｒｅｍｏｖｅ ｔｈｅ ｆｒｏｎｔ ｐａｎｅｌ ａｎｄ ｒｏｔａｔｅ ｉｔ ｔｏ Ｂ ｐｏｓｉｔｉｏｎ． Ｓｅｐａｒａｔｅ ｏｐｅｒａｔｉｏｎ ｐａｎｅｌ ｆｒｏｍ ｔｈｅ ｆｒｏｎｔ Ｆｉｇ． ｐａｎｅｌ ｂｙ ｐｕｓｈｉｎｇ ｔｈｅ ｔａｂｓ． （Ｆｉｇ． Ｂ） Ａ Ｔａｂｓ Ｆｉｇ． Ｂ...
- Page 14 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Installation and Accessory Parts PREPARE UNIT Shipping INSTALLATION-2 Screws 1. Remove the screws which fasten the cabinet at both sides and at the back. 2. Slide the unit from the cabinet...
- Page 15 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Installation and Accessory Parts INSTALL OUTER CASE IN WINDOW Place outer case in window. Lower sash until it rests behind front flange of top rail. Bottom rail must rest behind window sill.
- Page 16 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Installation and Accessory Parts INSTALL SASH BRACKET & SEAL GASKET Install sash bracket on top of indoor window sash with one wood screw 31/32" to prevent raising of wind ow from the outside. Screw anchor directly into side of window frame.
-
Page 17: Parts And Functions
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Parts and Functions You can run the fan only on not so hot days. The fan can be set to run at 3 speeds (HIGH fan, MED fan, LOW fan)as desired by you. - Page 18 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Parts and Functions The Fresh Air Vent allows the air conditioner to recirculate inside air, draw fresh air into the room and exhaust stale air to the outside . 12. Electrostatic Filter (not all models)
-
Page 19: Abnormity Diagnose
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Abnormity Diagnose 1. Sensor diagnose: 2 seconds after the sensors open circuit or short circuit, the unit will turn off automatically and the LED will show E0 until the sensors resume. -
Page 20: System Flow Chart
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 System Flow Chart Indoor Outdoor heat exchanger heat exchanger Compressor Capacillary tube Cooling... -
Page 21: Circuit Diagram
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Circuit Diagram... -
Page 22: Maintenance Service And Trouble Shooting
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Maintenance Service and Trouble Shooting Always unplug your air conditioner before cleaning. The air filter behind the inlet grille should be checked and cleaned at least once every 2 weeks (or as necessary) to maintain optimal performance of the air conditioner. - Page 23 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Maintenance Service and Trouble Shooting To store your air conditioner, after the season, remove the unit from the window as per the installation guide. Repack the unit in its original box and store away.
-
Page 24: Wiring Diagram
Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Wiring Diagram 0010552090 WIRING DIAGRAM BR: BROWN BL: BLUE G: GREEN COMPRESSOR R: RED B: BLACK MOTOR W: WHITE Y: YELLOW CAPACITOR HEAT L M H Y/G: YELLOW PROTECTOR GREEN CAPACITOR... - Page 25 Domestic Air Conditioner Model: HWR10XC5 HWR10XC5-T HWR12XC5 ESA3105 ESA3125 Sincere Forever Haier Group Haier Industrial Park, No.1, Haier Road 266101, Qingdao, China http://www.haier.com...
