DTC-100 USER GUIDE V 1.0.3
17 Feb 2025
DTC-100
Introduction
The DTC-100 is a programmable controller for antenna rotators. It can interface with a variety of Yaesu,
HyGain, and other brand rotators that use 24Vdc or 24Vac motors. The user interface is a full color 5" touch
screen display. Antenna rotation can be controlled with a single touch of the LCD, or via standard protocol
RS232 (TTL) from various computer programs.

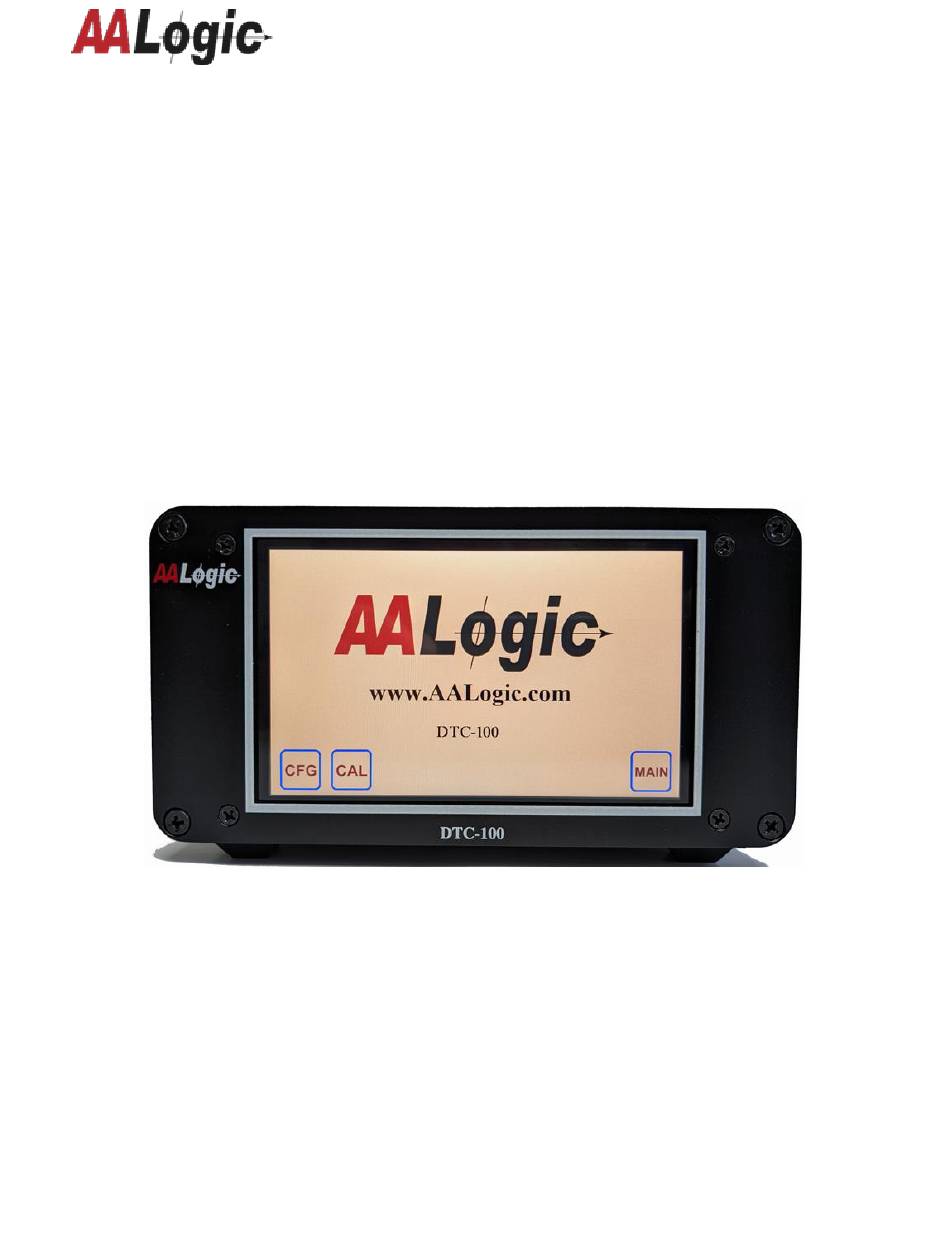

Power-up Screen
Upon initially applying power a "Sign-On" screen will appear. The user has the option to calibrate "CAL",
configure "CFG", or jump to the main user screen.
