S-Track TIGER XD88N User Manual

Digital
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TIGER XD88N
Digital Signal Processor
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIGER XD88N and is the answer not in the manual?

Questions and answers

Related Manuals for S-Track TIGER XD88N

Summary of Contents for S-Track TIGER XD88N

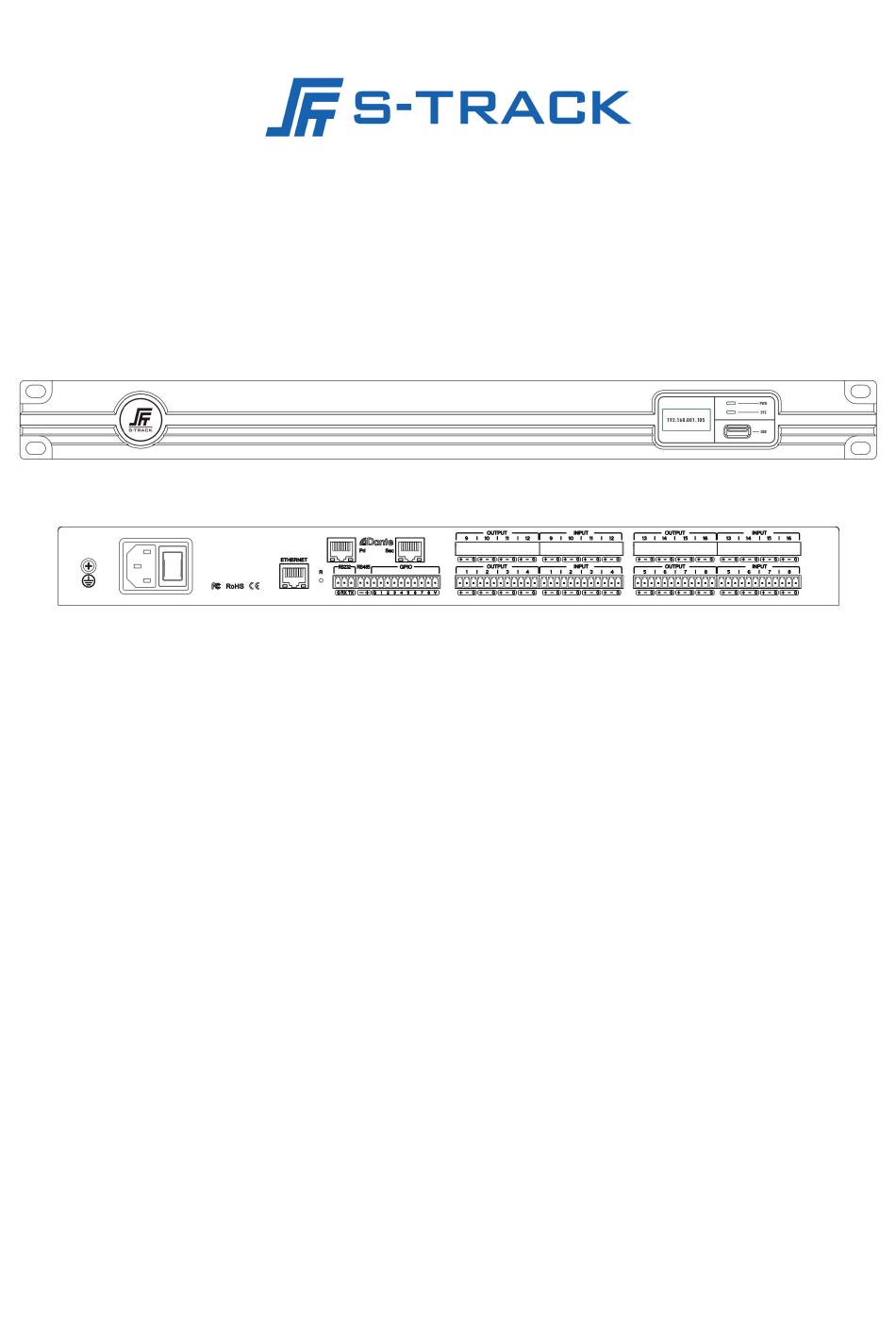

  • Page 1 TIGER XD88N Digital Signal Processor User Manual...

  • Page 2: Symbol Conventions

    TIGER XD88N Digital Signal Processor Preface The purpose of this section is to ensure that the user is able to use the product correctly through this manual in order to avoid danger in operation or property damage. Before using this product, please read the product manual carefully and keep it for future reference.
  • Page 3 TIGER XD88N Digital Signal Processor  Always unplug the unit's power adapter from the AC power outlet before: A. Removing or reinstalling any part of the equipment; B. Disconnecting or reconnecting any electrical plug or connection of the equipment. Do not operate with electricity.
  • Page 4 TIGER XD88N Digital Signal Processor − Basic knowledge and skills in low voltage cabling and wiring of low voltage electronics. − Basic audio and networking knowledge and skills and the ability to read and understand the contents of this manual.

  • Page 5: Table Of Contents

    TIGER XD88N Digital Signal Processor TABLE OF CONTENTS Chapter 1 Product Introduction ......................1 1.1 Introduction ........................1 1.2 Product Features ........................ 1 1.3 Functions ..........................1 Chapter 2 Specification ........................3 Chapter 3 Interface Description ......................5 3.1 Front Panel ......................... 5 3.2 Rear Panel...
  • Page 6 TIGER XD88N Digital Signal Processor 4.5.3 ANS ..........................31 4.6 Matrix Mixer ........................34 4.7 Post-processing ........................ 35 4.7.1 Delay ........................35 4.7.2 XOVER ........................36 4.7.3 Graphic Equalizer ....................37 4.7.4 Limiter ........................37 4.7.5 Output Setting ......................38 4.8 Other Functions ....................... 39 4.8.1 Channel Control...

  • Page 7: Chapter 1 Product Introduction

    TIGER XD88N Digital Signal Processor Chapter 1 Product Introduction 1.1 Introduction The digital audio processor equipped with a high-performance 32-bit floating-point DSP processor and A/D ~ D/A converter, support for 24bit/48KHz sampling frequency, high-quality 21-stage preamplifier circuit, DSP processing bus structure built-in Acoustic Feedback Canceler, Acoustic...
  • Page 8 TIGER XD88N Digital Signal Processor  DSP audio processing, built-in automatic mixing console, including mixing and automatic mixing functions, but also has a mixing component control function; at the same time with AFC, AEC, ANS module;  Inputs per channel: Preamplifier, Signal Generator, Expander, Compressor, AGC, AM, 5-band Parametric Equalizer;...

  • Page 9: Chapter 2 Specification

    TIGER XD88N Digital Signal Processor  The device does not need a disc, comes with installation software, a device for a software version, to solve the troubles caused by the loss of the installation disc and the confusion of multiple software versions;...
  • Page 10 TIGER XD88N Digital Signal Processor Delay, Crossover, Graphic Equalizer, Limiter. Output Channel Physical interface: Balanced Phoenix terminals. Phantom Power DC 48V Input Impedance Balanced: 20KΩ Output Impedance Balanced: 100Ω Common Mode ＞60dB@50Hz Rejection Ratio Input Dynamic Range 108dB Frequency Response 20Hz～20KHz,±0.2dB...

  • Page 11: Chapter 3 Interface Description

    TIGER XD88N Digital Signal Processor Range Digital/Analog Dynamic 120dB Range Equivalent Input Noise ≤ -125dBu Working Voltage 100V-240V AC,50Hz/60Hz Maximum Power Operating Temperature 0℃～40℃,10%～90%RH and Humidity Chassis General specification Product Dimension 482.4mm×260.5mm×44mm (L×W×H) Net weight Package Dimension 590mm×430mm×110mm (L×W×H) Gross Weight 3.5kg...

  • Page 12: Rear Panel

    TIGER XD88N Digital Signal Processor 3.2 Rear Panel POWER: Power supply interface, connect AC 100V-240V power supply, warp switch control processor power; ETHERNET: Network control interface, through the connection of this network port, the client computer can debug and monitor the device;...
  • Page 13 TIGER XD88N Digital Signal Processor Web page controls as well as downloads: Web CONTROL:...
  • Page 14 TIGER XD88N Digital Signal Processor SCENE: Software DOWNLOAD:...

  • Page 15: Pc Software Login Connection

    TIGER XD88N Digital Signal Processor 4.2 PC Software Login Connection 4.2.1 Login Click the [Search] button, when the device list is refreshed, the online device [Model Name] will be displayed in the list column, double-click the corresponding device [Model Name] in the list...

  • Page 16: Main Interface

    TIGER XD88N Digital Signal Processor 4.3 Main Interface 4.3.1 Button Function Area Button:Device Search Button: Click to search for connectable devices and display device IP; Button:Device Connection Button: The IP of the device is known, and you can connect directly by entering the IP address, user name and password in the pop-up box;...

  • Page 17: File

    TIGER XD88N Digital Signal Processor 4.3.2 File New: Create a new scene, the parameters are factory configured and only available offline. Open: Open the locally saved scene. Save as: Save the current configuration (i.e. scene) as a file locally. Exit: Close the software.
  • Page 18 TIGER XD88N Digital Signal Processor II. Device Management View and modify the name of the device, enter the name of the device in the corresponding location, click the [Apply] button to complete the modification, [Reboot] can be in the window to control the device restart.
  • Page 19 TIGER XD88N Digital Signal Processor IV. Serial Serial window can view or modify the RS232/RS485 serial port number baud rate, check bit, data bit, stop bit settings are complete, click on the [Apply] button to modify the current device's serial port information, such as the need to restore to the initial default value, click on the [Reset] button, you can restore the settings of the parameter can not be empty.
  • Page 20 TIGER XD88N Digital Signal Processor Upload: Upload the scene from PC and overwrite the selected scene; Rename: Modify the name of the selected scene; New: Create a new scene file, you can customize the new scene, support up to 100 groups of scenes;...
  • Page 21 TIGER XD88N Digital Signal Processor VII. USB Users can customize to enable or disable the automatic playback/recording function according to the use of the scene, configure the playback channel or recording channel matrix routing in the matrix mixing interface and save the current scene, the device will automatically playback and record after powering on the device again, no need to manually configure separately.
  • Page 22 TIGER XD88N Digital Signal Processor Default: When there is no input from all microphones, rotate the camera to the position set by the default Mic or send the associated command defined by the default Mic. The one with # sign indicates the virtual number, which can only be used to set the default microphone.
  • Page 23 TIGER XD88N Digital Signal Processor Preset points, serial port numbers, camera addresses, protocols and camera-related, must correspond to the actual connection of the camera. Custom Command means that when the microphone of the matrix checks the input signal (usually when someone speaks), it will automatically send the corresponding command to the defined serial port, and secondly, you can also pre-set the command, but do not check "Enable Custom Command", the device will not send it automatically, but you can still click...
  • Page 24 TIGER XD88N Digital Signal Processor IX. GPIO Output Connection 1: Firstly, connect a 10K/0.25W resistor between a GPIO pin (e.g. port 2) and "V" on the device (as shown in the figure), the pin will output a low level 0 or a high level 1 according to the change of matrix state, and the level can be used to trigger another GPIO or other devices.
  • Page 25 TIGER XD88N Digital Signal Processor Outputs: Scene, Level, Channel Mute, System Mute display. GPIO Input Example 1 Scene Setting The PC enters the GPIO-1 control window, selects the [Input] direction, the control type [Scene Setting], the trigger type [Rising Edge], the...

  • Page 26: Viewing

    TIGER XD88N Digital Signal Processor X. Center Control The Central Command Generator is able to convert frequently used operations into a 16-character command code for easy invocation by external devices. Control command types: Scene, Input, Output, Mixer, Parametric Equalizer, Graphic Equalizer, Expander, Compressor, Automixer, Delay, Crossover, Limiter, AEC, ANS.

  • Page 27: Pre-Processing

    TIGER XD88N Digital Signal Processor 4.4 Pre-processing 4.4.1 Input Setting The Analog Input provides line-level input for devices with line-level outputs, and inputs for microphones. The Analog Input converts the analog input signal to a processed digital and provides software controls before and after the convertor. Connections are made using one three-terminal 3.5mm Euro style connectors.

  • Page 28: Parametric Equalizer

    TIGER XD88N Digital Signal Processor Threshold (-60~20): Sets the point from which the attenuation is calculated based on the Ratio setting. This is where the Expander starts working. Assuming only one Input, a level below the Threshold Level is attenuated, anything above the Threshold Level is not attenuated;...

  • Page 29: Compressor

    TIGER XD88N Digital Signal Processor The Parametric Equalizer is mainly used to modify over-emphasised or missing frequency ranges. Whether the frequency range is narrowed or widened, the Parametric Equalizer can help to repair the narrowed frequencies or widen the frequency range to achieve the ideal signal tone.
  • Page 30 TIGER XD88N Digital Signal Processor Threshold (-48~0): Sets the level where compression begins. This is the point from which the amount of attenuation is calculated based on the Ratio setting. Assuming only one Input, a level below the Threshold Level is not compressed, anything above the Threshold Level attenuation is applied;...

  • Page 31: Automatic Gain Control

    TIGER XD88N Digital Signal Processor 4.4.5 Automatic Gain Control The purpose of the Automatic Gain Control is to control the overall dynamic range of the Output when the Input level changes. The AGC can be adjusted from unity (1:1) with the Input, to an almost flat (20:1 - very little amplitude variation) Output.

  • Page 32: Automixer

    TIGER XD88N Digital Signal Processor  {[10 dB - (-15 dB)] / 2.5} + (-15 dB) = -5 dB. Ratio (1~20): The ratio between the Input and the Output as measured from the Target Level. The closer the Ratio is to 20, the closer the Output will be to the Target Level, which also means smaller dynamic changes in the Output level.
  • Page 33 TIGER XD88N Digital Signal Processor Priority Gain (-72~12): Adjusts the gain or attenuation applied to a particular Input channel. For example, you can boost the gain of a mic being used by a soft spoken person and attenuate the gain of a louder person so they can be heard equally in the room;...

  • Page 34: Ducker (Optional)

    TIGER XD88N Digital Signal Processor Bypass/Active: Bypass or Active the Automixer. When the Automixer is bypassed, audio is passed through without any change; Reset: Resets the parameters to the default. 4.4.7 Ducker (Optional) The Ducker is used to attenuate one or more channels of Background Input when the Paging Input channel reaches a specified Threshold.

  • Page 35: Afc, Aec, Ans

    TIGER XD88N Digital Signal Processor Threshold (-60~0dB): The Threshold Level is the RMS level of the Priority channel at which the Ducker activates; Depth (0~96dB): The Depth sets the amount of attenuation applied to the Background input channels when the Ducker is activated. The Paging Input channel is mixed with the main outputs, so the Depth setting controls how much of the main channels are heard in the output;...

  • Page 36: Aec

    TIGER XD88N Digital Signal Processor Feedback: Selects the signal that needs to be processed by the Acoustic Feedback Canceler, and the processed signal selects the output channel in the mixer; Local Input: The channel for local Mic output, i.e. the signal that needs to be processed by the Acoustic Feedback Canceler;...

  • Page 37: Ans

    TIGER XD88N Digital Signal Processor Acoustic Echo Canceler: Set the signal that needs to be processed by the Acoustic Echo Canceler, and the processed signal selects the output channel in the Mixer; Local Input: local Mic output channel, i.e. the signal that needs to be processed by the Acoustic Echo Canceler;...
  • Page 38 TIGER XD88N Digital Signal Processor Adaptive Noise Suppression: Select the signal that needs Adaptive Noise Suppression processing, and the processed signal is output in the mixer by selecting the corresponding channel; Local Input: Local Mic output channel, i.e. the signal that needs Adaptive Noise Suppression processing;...
  • Page 39 TIGER XD88N Digital Signal Processor The [Local Input] list selects the point corresponding to the output channel OUT1, indicating that the input signal is routed to the OUT1 channel for output after being processed by the AFC. After the AFC is enabled, the corresponding channel of the Matrix Mixer Window list is displayed in cyan.

  • Page 40: Matrix Mixer

    TIGER XD88N Digital Signal Processor Input IN1 and IN2 channels are selected in the ANS window, indicating that the input signals of input IN1 and IN2 channels are sent to the ANS for processing; Check OUT1 and OUT2 in the local output list, which means that the result of the ANS processing will be sent to the output OUT1 and OUT2 channels for output.

  • Page 41: Post-Processing

    TIGER XD88N Digital Signal Processor The OUT channel of the mixer is equipped with a gain fader, which allows you to individually control the gain of any output channel with a gain range of (12~-72dB). 4.7 Post-processing 4.7.1 Delay The time interval between the input of a signal to this processor and the output of this processor is generally used to produce other effects such as reverberation or echo, and can equally be used to act as a treatment for auxiliary loudspeakers in larger rendition situations.

  • Page 42: Xover

    TIGER XD88N Digital Signal Processor Delay distance: Delay distance range (0~680m); Bypass/Active: Bypass or Active the Delay for the current channel. When the Delay is bypassed, audio is passed through without any change; Reset: Rests the parameters to the default.

  • Page 43: Graphic Equalizer

    TIGER XD88N Digital Signal Processor 4.7.3 Graphic Equalizer The Graphic Equalizer Component provides from 31 bands with 1/3th octave per band. Each band can be adjusted from -18dB to +18 dB. Narrow: Narrowband equalization filter; Normal: Normal equalization filter; Wide: Wideband equalization filter;...

  • Page 44: Output Setting

    TIGER XD88N Digital Signal Processor Bypass/Active: Bypass or Active the Limiter for the current channel. When the Limiter is bypassed, audio is passed through without any change; Threshold (-48~0): Sets the level at which the Limiter has an effect, and the level at which the output is held;...

  • Page 45: Other Functions

    TIGER XD88N Digital Signal Processor Mute: Mutes the output signal; Invert: Inverts the polarity of the output signal. 4.8 Other Functions 4.8.1 Channel Control Input Channel Control and Shortcut...

  • Page 46: Usb Playback And Recording

    TIGER XD88N Digital Signal Processor Output Channel Control and Shortcut 4.8.2 USB Playback and Recording USB Playback The USB Player component provides playback of audio files from a USB flash drive inserted into the USB A port of the device, supporting USB flash drive format FAT32 and audio file formats MP3 and WAV.
  • Page 47 TIGER XD88N Digital Signal Processor Play/Pause: The Play button starts playing the selected audio file from either the beginning, or from where it was paused; The Pause button temporarily stops playing the selected file. You can resume playing the file by clicking either the Play or Pause buttons;...

  • Page 48: Chapter 5 Dante Network Audio Routing

    TIGER XD88N Digital Signal Processor Recording indicator: Grey (not connected to the USB flash drive) Red (ready to record) blinking is considered to be recording; Controls the Gain of the input signal. USB Playback Recording Matrix Mixer Example III. Playback Recording Example...

  • Page 49: Chapter 6 Faq

    TIGER XD88N Digital Signal Processor The software "Dante Controller" is free to download from the company of Audinate (the owner of Dante technology).To install the software on the computer,please visit the link: https://www.getdante.com/products/software-essentials/dante-controller. And the "User Guide" of "Dante Controller" is available on the Audinate websit: https://dev.audinate.com/GA/dante-controller/userguide/webhelp/content/front_page.htm.
  • Page 50 TIGER XD88N Digital Signal Processor Does not light up, often light up, or blinks rapidly: First, system error, contact the after-sales service to upgrade the software version; Second, long press the reset button (R hole on the rear panel of the device) for more than 6 seconds, the device will restore the factory settings and restart automatically.

  • Page 51: Chapter 7 Packing List

    TIGER XD88N Digital Signal Processor output wiring, mute the corresponding output channel, there is noise, if unbalanced connection, try to shorten the connecting line, to avoid the introduction of interference, if balanced connection, try to disconnect the ground wire; Third, cancel the corresponding channel mute, unplug the...

  • Page 52: Warranty Regulations

    Warranty Regulations The warranty period of this product is 1 year. In the warranty period of non-man-made damage caused by the product performance failure can enjoy three packages of service. Warranty card by the sales unit stamped after the effective. The alteration is invalid! The following conditions (including, but not limited to, this) are not covered by the three-package service: 1.
  • Page 53 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
