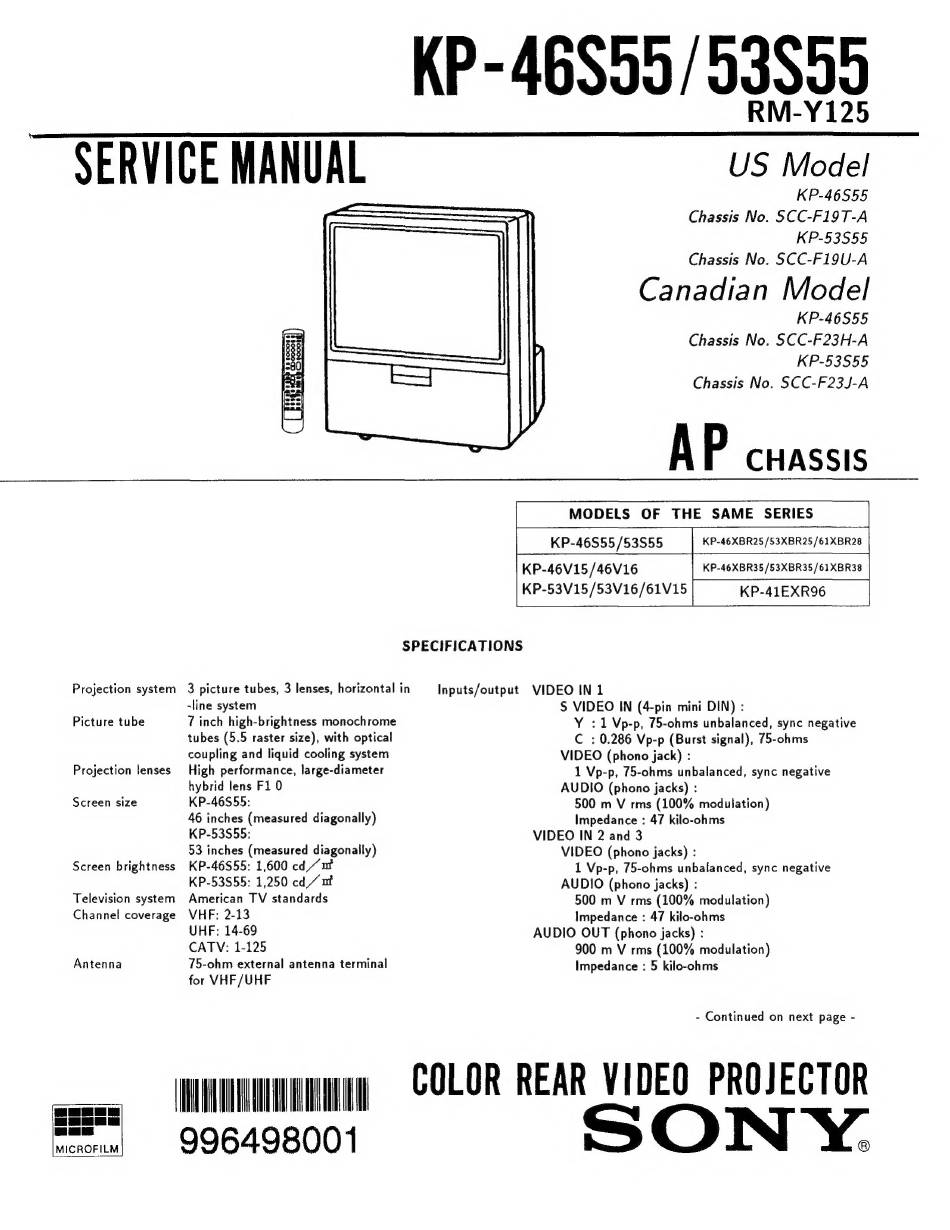

Sony KP-46S55 Service Manual

SERVICE MANUAL
KP-46$99/93S99
RM-Y125
US Model
KP-46S55
Chassis No. SCC-F19T-A
KP-53555
Chassis No. SCC-F19U-A
Canadian Model
KP-46S$55
Chassis No. SCC-F23H-A
KP-53S55
Chassis No. SCC-F23J-A
A P CHASSIS
| MODELS OF THE SAME SERIES
KP-46S55/53S55 KP-46XBR25 /53XBR25/61XBR28
KP-46V15/46V16
KP-53V15/53V16/61V15
KP-46XBR35/53XBR35/61XBR38
KP-41EXR96
SPECIFICATIONS
Projection system 3 picture tubes, 3 lenses, horizontal in
-line system
7 inch high-brightness monochrome
tubes (5.5 raster size), with optical
coupling and liquid cooling system
High performance, large-diameter
hybrid lens F1 0
KP-46S55:
46 inches (measured diagonally)
KP-53S55:
53 inches (measured diagonally)
KP-46S55: 1,600 cd nt
KP-53S55: 1,250 cd// at
American TV standards
Picture tube
Projection lenses
Screen size
Screen brightness
Television system
Channel coverage VHF: 2-13
UHF: 14-69
CATV: 1-125
Antenna 75-ohm external antenna terminal
for VHF/UHF
cece,
—_MIDIINNIUIUUTNIUICI
BES=
MICROFILM 996498001
VIDEO IN 1
Inputs/output
S VIDEO IN (4-pin mini DIN) :
Y : 1 Vp-p, 75-ohms unbalanced, sync negative
C : 0.286 Vp-p (Burst signal), 75-ohms
VIDEO (phono jack) :
1 Vp-p, 75-ohms unbalanced, sync negative
AUDIO (phono jacks) :
500 m V rms (100% modulation)
Impedance : 47 kilo-ohms
VIDEO IN 2 and 3
VIDEO (phono jacks) :
1 Vp-p, 75-ohms unbalanced, sync negative
AUDIO (phono jacks) :
500 m V rms (100% modulation)
Impedance : 47 kilo-ohms
AUDIO OUT (phono jacks) :
900 m V rms (100% modulation)
Impedance : 5 kilo-ohms
- Continued on next page -
COLOR REAR VIDEO PROJECTOR
SONY.
