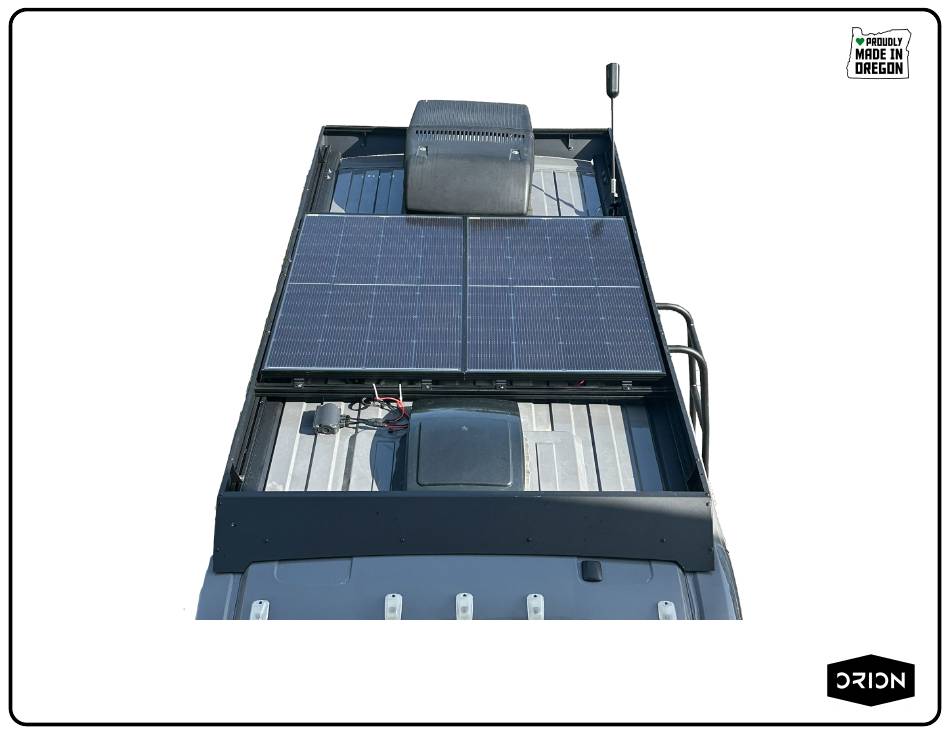

- Page 1 ORION VAN GEAR Solis Pocket 400 Watt Solar Upgrade Kit INSTALLATION GUIDE support@orionvangear.com - (971) 267-2552...
- Page 2 INSTRUCTIONS AND WARNINGS BEFORE BEGINNING THE INSTALLATION. THE RESPONSIBILITY TO CORRECTLY INSTALL ORION VAN GEAR PRODUCTS IS YOURS AND MUST BE TAKEN SERIOUSLY. ORION VAN GEAR LLC WILL NOT BE HELD LIABLE OR RESPONSIBLE FOR DAMAGES OR PERSONAL INJURIES RESULTING FROM THE USE OF OUR PRODUCTS.
-
Page 3: Materials Required
MATERIALS REQUIRED REQUIRED ● 1x 7/16" Socket or 7/16" Wrench ● 1x 5/32” Ball End Allen Key (For 1/4-20 Hardware) ● 1x Blue Threadlock (Medium Strength) [RECOMMENDED ON T-NUT HARDWARE] ● 1x 1 oz Anti-seize Lubricant [RECOMMENDED ON ALL NYLON LOCKNUT JOINTS] ●... -
Page 4: Included Components
INCLUDED COMPONENTS 1/4-20 Hardware 2x 200w Solar Panels 8x Promaster Solar Brackets Solar 8020 BUTTON HEAD SCREWS BUTTON HEAD SCREWS NYLON LOCKNUT T-NUT 2x MC4 > SAE Adapters 5/16” FLAT WASHER FLAT WASHER... - Page 5 Step 1 1A - Attach (4) Solar Brackets to each solar panel using (4) 3/4" SCREWs, (4) 1/4” WASHERs, and (4) 1/4” NYLON NUTs. (apply anti-seize) Hint: A builders square helps 3/4" SCREW, BRACKET, to keep brackets square SOLAR PANEL, WASHER, &...
- Page 6 Step 2 2A - Loosely position & square up forward crossbar, leaving enough space back from connection box to allow plugs to seat squarely. 2B - Measure distance between solar bracket holes, and loosely position rear crossbar accordingly (will make final adjustments after panels are installed). 2C - Roll (4) 1/4-20 15T-NUTs into each crossbar (8 total) where appropriate to line up with solar bracket mounting holes...
- Page 7 Step 3 3A - Test fit solar panels to verify crossbar placement so T-NUTS line up with Solar Brackets. Make any necessary adjustments. 3B - Remove Panel. Tighten all crossbars brackets (4). 3C - Insert 1x 1/2" BL SCREW through each Solar Bracket into the 1/4-20 15T-NUTs that you placed in the last step (apply threadlock)(8 total).
- Page 8 Step 4 4A - Unplug stock solar panel from roof box. 4B - Plug solar panel leads into roof input box one at a time, checking ZAMP controller to ensure connectivity/input, and for polarity errors. *Note: If you have a New Zamp Roof Box, first attach (2) Zamp ATP to SAE adapters to each solar lead (from step 1).
- Page 9 Not only do you get to show off your slick new gear, but your insights also help fellow adventurers make informed decisions. Plus, every photo review enters you to win exclusive gear and discounts. ORION VAN GEAR PRODUCTS ARE PROUDLY MADE IN THE USA.
- Page 10 Troubleshooting My panels are not working. ● You may have blown the fuse. Check the 40 amp fuse that Winnebago stuffed above the sliding door, some customers have mentioned their fuse is in the ceiling I can’t get the plug to seat fully in my zamp box. ●...
- Page 11 OR REPLACEMENT PARTS CONTACT US: support@orionvangear.com (971) 267-2552 STOKED WITH YOUR NEW ORION PRODUCTS? Help us spread the word about by tagging us in your photos and videos (@OrionVanGear) on Instagram, Facebook, and TikTok! We can’t wait to see your adventures and hear your stories! instagram.com/orionvangear...
