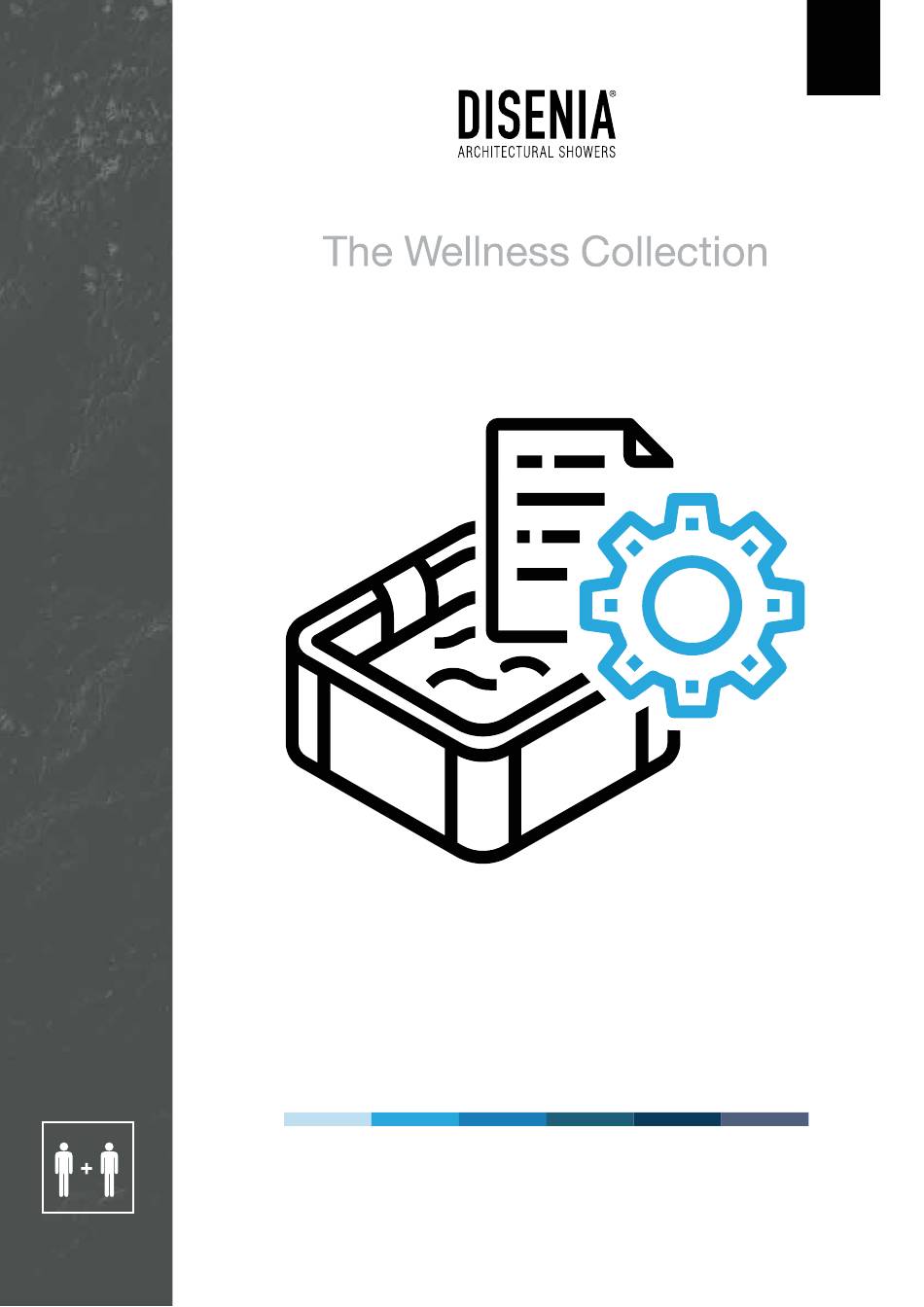

Page 1 M I N I S P A USE AND MAINTENANCE MANUAL Warranty valid only if the manual is followed.
Page 2 M I N I S P A...
Page 3 INDEX SAFETY MEASURES PAG. 1 KEYPAD MANUAL PAG. 3 REGULAR MAINTENANCE PAG. 14 EXTRAORDINARY MAINTENANCE PAG. 15 FIRST START-UP PAG. 15 WATER CHARACTERISTICS AND QUALITY PAG. 17...
Page 4: Safety Measures
SAFETY MEASURES For personal and product safety, follow the precautions below: The system must be installed by quali ed personnel, respecting the instructions in the installation manual. Improper installation or operation will invalidate the warranty. Disenia declines all responsibility for failure to follow the instructions, which may cause serious injury and/or property damage.
Page 5 Be cautious when entering and exiting the minispa, as surfaces may be very slippery. Do not use a spa or hot tub immediately after intense physical exercise. Do not add bath oil, bath salts, or bubble bath. Do not use the spa when it is raining or during thunderstorms. Prolonged bathing in hot water can cause hyperthermia (heat stroke), characterized by a signi cant increase in body temperature, inability to recognize danger, insensitivity to heat, dif culty exiting the minispa, and loss of consciousness with a risk of drowning.
Page 6: Control Panel
KEYPAD MANUAL CONTROL PANEL Hydromassage WHIRLPOOL Temperature Adjustment Water level in the tub: insufﬁcient or absent Menu Scrolling WHIRLPOOL WHIRLPOOL Technical Menu Display Hydromassage AIRPOOL Water level in the tub: insufﬁcient or absent CHROMOTHERAPY WHIRLPOOL Chromotherapy off WHIRLPOOL Chromotherapy on Display: Clock Date...
Page 7 MEANING OF NOTIFICATION ICONS The noti cation icons show the activity of functions that are not directly activated from the keypad’s main screen. ICON DESCRIPTION Filtration in operation. The system is programmed with two ﬁltration cycles. The schedule and duration of ﬁltration are programmable. First ﬁltration phase active.
Page 8 Standby If all functions (WHIRLPOOL and AIRPOOL) are off, after 30 seconds of inactivity the keypad enters Standby mode. Standby is not activated from the Technical Menu. In this mode, the display shows the DISENIA logo and the keypad LEDs remain off. To exit Standby mode An icon...
Page 9: Technical Menu
Temperature Adjustment To access the water temperature setting screen, press the appropriate button. Water temperature in the tub Set temperature adjustment Set temperature If the adjustment buttons are not pressed for 3 seconds, the keypad returns to the main screen. If the adjustment buttons are not pressed for 3 seconds, the keypad returns to the main screen.
Page 10 TECHNICAL MENU – Limited Access CLOCK SETTING P. 8 DATE SETTING P. 8 FILTRATION SETTING (TIME SLOT F1) P. 8 P. 8 FILTRATION SETTING (TIME SLOT F2) P. 9 NIGHT SLOT (FN) PERIMETER LIGHT TIME SLOT (LP) P. 10 (in case of a minipiscina with perimeter ﬂoor lighting) WATER FILL ACTIVATION P.
Page 11: Setting Parameters
SETTING PARAMETERS Press the arrow keys ( ashing in blue) to select parameters. To con rm the chosen parameter, press the green button. To con rm or exit the parameter settings, press the yellow button. CLOCK SETTING Select the screen and press the designated button to change the time.
Page 12 Start Start Stop Stop To exit the ltration time slot settings and return to the menu, press the yellow button. Operation: At the START time, ltration begins with a startup phase during which all WHIRLPOOL and AIRPOOL functions are alternated. Additional Filtration Additional ltration occurs upon shutdown (automatic or manual) of the WHIRLPOOL and/or AIRPOOL functions.
Page 13 Operation: The Night Slot (or Night Silence) is a time slot during which the following functions are disabled: Heater Filtration (F1 and F2) Additional Filtration User functions (WHIRLPOOL/AIRPOOL) can still be activated even if the Night Slot is enabled. PERIMETER LIGHT TIME SLOT (LP) Select the PERIMETER LIGHT TIME SLOT screen and press the designated button to set or modify the time slot for activating the perimeter LED light, which consists of 2 times:...
Page 14 Icon Description WHITE FILLING OFF BLUE FILLING ON ALARM Water level status: Icon Description The electronics also manage automatic reﬁlling in case of water loss LEVEL ABSENT (e.g., during daily use, evaporation, etc.). LEVEL PRESENT The Fill Alarm is indicated on the WATER FILL ACTIVATION screen by an alarm symbol at the top right and by the button LED in red.
Page 15: Eco Mode
ECO MODE Select the ECO MODE screen and press the designated button to enable or disable the mode. With ECO mode active, there is a limitation on load activation to reduce instantaneous electrical power consumption. PIN ACCESS SETTING Select the ACCESS PIN SETTING screen and press the designated button to change the 4-digit PIN: To change an individual digit, press the arrow keys ( ashing in blue).
Page 16: Software Version
SOFTWARE VERSION Select the SOFTWARE VERSION screen to view the keypad’s software versions. FACTORY RESET Selec the appropriate screen and press the designated button to perform a factory reset. RESET To avoid accidental resets, conﬁrmation is requested. = YES = NO EXIT USER/TECHNICAL MENU Select the appropriate screen to exit the menu.
Page 17: Regular Maintenance
REGULAR MAINTENANCE FILTER MAINTENANCE Weekly (or according to minispa usage), check the lters. Ensure that the ltration system is off, then gently remove the cartridge(s) from the skimmer well (located under the headrest(s)) and remove all debris. It is essential to keep the lter cartridge clean and free of particles to ensure proper water ow. This maintenance is important to allow the hydromassage system to function correctly and to improve the ef ciency of the ltration cycle.
Page 18: Extraordinary Maintenance
DRAINING THE MINISPA The concentration of pollutants such as oils, creams, sweat, and dirt in the minispa can be high. For this reason, the water must be replaced according to use. Even if the minispa is not used for a long period, we recommend draining it, as long periods without water treatment can be harmful to the minispa.
Page 19 Thoroughly clean the interior of the minispa. Fill the minispa with water until the nozzles are covered. Bleed the air from the pipes and pumps; otherwise, air may remain trapped, preventing the pumps from circulating water. Verify that the lters are installed correctly. Open the inspection panel and check that all pump ttings are properly tightened, as they may loosen during transport and handling.
Page 20 WATER CHARACTERISTICS AND QUALITY The minispa is a place of relaxation and well-being. For this reason, it is particularly important that the water is clear, fresh, and disinfected so that you can enjoy the hydromassage minispa worry-free. The quality of the water used to ll the minispa is essential both for hygienic safety and for the longevity of the minispa.
Page 21: Proposed Solution
THE MOST COMMON WATER PROBLEMS AND THEIR SOLUTIONS If a problem arises regarding water quality, generally check: Is the pH value correct? Ideal pH: 7.2 to 7.8 Is there sufﬁcient disinfection in the water? Ideal chlorine value: 1.0 – 1.5 mg/L Ideal bromine value: 3.0 –...
Page 24 Disenia srl CUSTOMER SERVICE ITALY via A. Carpenè, 21 Tel. + 39 0434 1822603 33070 Fax. + 39 0434 020013 Brugnera (PN) e-mail:info@disenia.it Italy www.disenia.it...
