NewLine NewPie NP-S2201 Instruction Manual

2
70mm
NewPie
NP-S2201Conference Speakerphone
Instruction Manual
100mm
Please carefully read this manual before using the product, and keep it for future reference!
Be advised that the actual product may differ slightly from the instructions.
On/Off
1. When the speakerphone is connected through a USB data cable to a computer, it
will automatically switch to USB connection mode.
2. Upon press-holding the power button for 2 seconds, if the unit is not connected to
a computer via USB, the speakerphone will turn on, and can then be connected via
Bluetooth.
3. After turning on, if there is no Bluetooth connection within 5 minutes, the speakerp
-hone will automatically turn off.
4. In the Bluetooth connection mode, press-hold the power button for 2 seconds to tu
-rn off the speakerphone.
Status Indicators
The speakerphone is connected to a
Status ring light is solid blue
computer via USB
The speakerphone is connected to a
Bluetooth light is solid blue
computer or mobile device via Bluetooth
Bluetooth light is blinking red
Bluetooth pairing mode
and blue
Bluetooth is blinking blue Ready for Bluetooth connection
Bluetooth light is solid Bluetooth connected
Incoming call to Bluetooth-connected
Status ring light is blinking blue
mobile phone
Status ring light blinks
Volume increase or decrease
clockwise/counterclockwise
Status ring light is solid red Microphone array muted
Status ring light is solid red Press the power button to check the
(According to battery percentage) battery charge level
Status ring light blinking red Low battery reminder
Status ring light is solid red
Charging
(According to battery percentage)

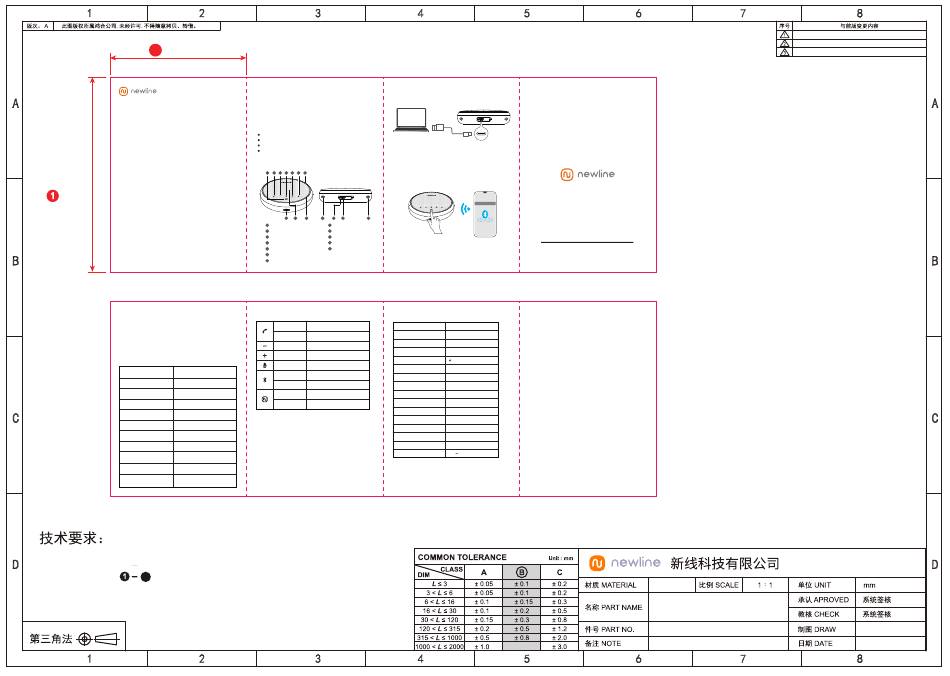

1，280(70x4)x100 mm, 128g铜版纸,双面彩色印刷, 3折 页 ,
红色实线（裁切线）和红色虚线（折叠线）都不印
2，重点尺寸为 ；
2
3，印刷密着性须符合鸿合规 范；
4，印刷清晰无飞边,毛刺,扭曲等现 象 ；
5，须满足RoHS要求,并按鸿合要求提供相关资料 。
Introduction Connecting
Thank you for choosing our omnidirectional conference speakerphone. This is a high-quality
1. Connect to your computer via a USB-C cable.
speakerphone with professional noise reduction function, 3-microphone array pickup,
compatible with multi-media conferencing platforms, suitable for various scenarios such as
home, office, team meeting, business, online audio and video conference, etc. It can be used
as a Bluetooth speaker. The unique sound cavity design and high-power speaker unit can
provide HiFi-level high-quality music experience.
Packing List
1 x NP-S2201 omnidirectional conference speakerphone
1 x storage bag
2. Connect to your computer or mobile device via Bluetooth.
1 x instruction manual
1 x USB-C cable (1 meter) a. Long-press the power button to turn on the speakerphone, after whi
-ch it will switch to its Bluetooth pairing mode (waiting for a connect
ion).
Functionality diagram
(Note: Bluetooth ID is NewPie)
b. Turn on the Bluetooth of your mobile phone / computer / tablet / oth
1 2 3 4 5 6 7
-er device, search and find NewPie, and then tap / click to connect.
c. Every time it is restarted, the speakerphone will automatically
reconnect to the most recently connected Bluetooth device.
8 9 8 8
10 11 12
1 Power button 8 Array Microphone
2 Call / Hang up (Long Press to Reject) 9 Speakers
3 Decrease Volume 10 Bluetooth Indicator
4 Microphone Mute Switch 11 Reset Button
3. The speakerphone can stay connected via either USB or Bluetooth,
5 Increase Volume 12 USB-C Charging / Data Port
but not both at the same time.
6 Bluetooth Switch
7 Status Light Ring
Key Functions Specifications
Short press Answer / Hang up call Bluetooth version
Press-hold for
Bluetooth distance
Reject call
2 seconds
Microphone array
Short press Volume decrease
Microphone sensitivity
Short press Volume increase
Microphone Distortion
Short press Microphone Mute / Unmute
Microphone SNR
Short press Turn Bluetooth on / off
Microphone pickup distance
Press-hold for
Activate Bluetooth pairing state
Microphone Frequency Response
2 seconds
Short press Check battery charge level Bluetooth talk time
Bluetooth music playback
Short press Turn on / off
Battery capacity
Speaker specifications
Product dimensions
Product weight
Charging interface
Rated input charge
刷 ；
Bluetooth ID："NP-S2201"
For more information, please visit our website.
If you need help, feel free to contact us through our official
support channels.
Website: www.newline-work.com
Customer Service: support@newline-work.com
Hotline: (+1) 650 353 7707
