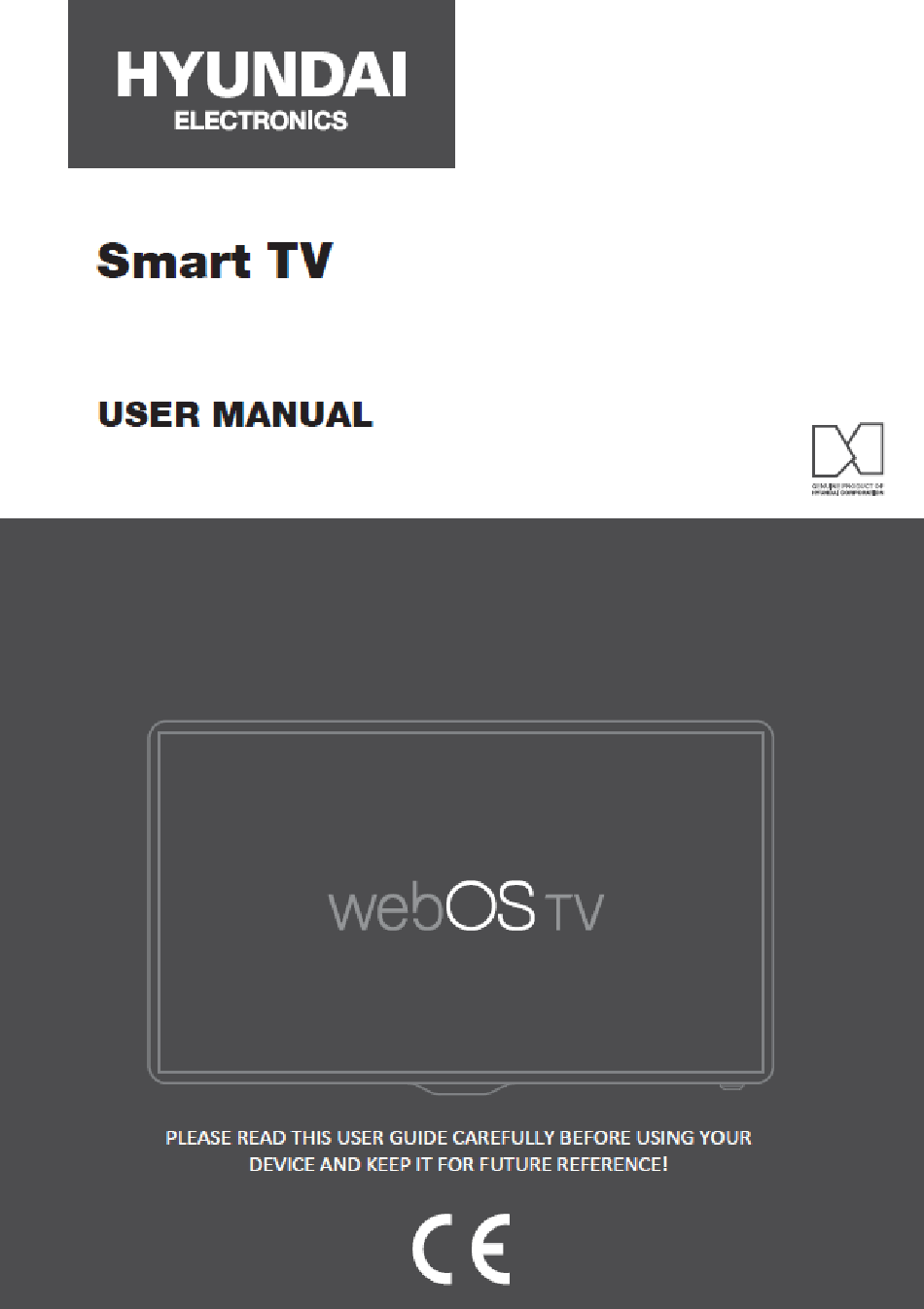

Hyundai Electronics 43HYN3203 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43HYN3203 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyundai Electronics 43HYN3203

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ------------------------------------------------------------------------------- 4 MAIN UNIT DESCRIPTION -------------------------------------------------------------------------- 11 43HYN3203/50HYN3204 / 50HYN3204 / 55HYN3205 / 65HYN3205/ 70HYN3205/75HYN3205/85HYN3205/100HYN3205 --------------------------------------- 11 BACK PANEL DIAGRAM----------------------------------------------------------------------------- 13 43HYN3203 -------------------------------------------------------------------------------------------- 13 50HYN3204 / 50HYN3205 / 55HYN3205 ------------------------------------------------------- 13 65HYN3205 -------------------------------------------------------------------------------------------- 15 70HYN3205 -------------------------------------------------------------------------------------------- 16...
  • Page 3 M55HYN2205 / M65HYN2205 ------------------------------------------------------------------- 26 REMOTE CONTROL ---------------------------------------------------------------------------------- 27 HOMEPAGE -------------------------------------------------------------------------------------------- 29 --------------------------------------------------------------------------- 30 SING ASHBOARD TV SETTINGS ------------------------------------------------------------------------------------------ 32 -------------------------------------------------------------------------------------- 32 UICK ETTINGS ----------------------------------------------------------------------------------------------- 33 ICTURE --------------------------------------------------------------------------------------- 33 ICTURE ------------------------------------------------------------------------------------------------ 37 OUND ---------------------------------------------------------------------------------------- 38 OUND -------------------------------------------------------------------------------------------- 41 ROGRAM ----------------------------------------------------------------------------------------- 45 ONNECTION ---------------------------------------------------------------------------------------------- 48 ENERAL...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING Risk of electric shock Please do not open the device cover. This device contains high voltage electricity. To avoid the risk of electric shock, please do not remove the device cover. If you encounter a problem, please contact one of our authorized service centers. Any change or incorrect setting of the LED Display can result in electric shock.
  • Page 5 Please read this user guide carefully before using the LED Display and keep it for future reference. If the device is given to another person, give the operating instructions along with the device. Unpack the device and check that there is no damage to the device, its accessories, or the cable.
  • Page 6 network is suitable for the values specified on the device (AC 100-240V- 50/60HZ) and that the line is protected with a suitable fuse. Even if the power switch, if any, is turned off, the device must not be disconnected from the power supply unless the power plug is removed from the socket. Insert the power plug into a socket located at the back of the device so that the cord is not stepped on and is easily accessible when needed.
  • Page 7 Make sure that no part of the device, particularly the screen, has been hit or broken. Impact to the device or the screen may cause malfunction of the device and serious injury. Be careful not to scratch the screen. Hard or sharp objects can easily damage the screen.
  • Page 8 The following are some general rules to follow when using any electrical device. Never touch the device and the power cord with wet or damp hands. Never leave the device out in the rain, near water, in extremely humid environments, or in direct sunlight. Inspect the device and the power cable for damage on a regular basis.
  • Page 9 When using the device with headphones, make sure that the volume is not too high. High levels of noise can result in temporary or permanent hearing loss. Watching a screen in darkness or low light can cause eye strain. It is recommended that the screen be watched at an appropriate light level.
  • Page 10 open the device cover, attempt to repair the device yourself, or allow unauthorized persons to intervene with the device without contacting an authorized service center. Do not allow small children to play with the remote control and remote control batteries, and keep the remote control out of the reach of children. Swallowing remote control batteries or accessories can be life-threatening.

  • Page 11: Main Unit Description

    When you use a USB with an external device, if the current is too large, the external equipment will need an external power supply (such as a mobile hard disk or mobile drive). Main unit description 43HYN3203/50HYN3204 / 50HYN3204 / 55HYN3205 / 65HYN3205/ 70HYN3205/75HYN3205/85HYN3205/100HYN3205 a: Press 1 key to achieve Functional operation.
  • Page 12 ITEM BUTTON FUNCTION DESCRIPTION NAME Switch on the TV when in standby mode or vice versa. Press to bring up the main menu to the screen. Press to select the input source and menu submenu confirm button. Press to scan through channels and move up and down.

  • Page 13: Back Panel Diagram

    BACK PANEL DIAGRAM 43HYN3203 INPUT/OUTPUT RJ45 AV INPUT Digital Audio Output RF,C/T2 Antenna Input HDMI Input USB 1 / USB2 CI Module Input Headphone Input 50HYN3204 / 50HYN3205 / 55HYN3205...
  • Page 14 INPUT/OUTPUT RJ45 USB 1 / USB2 Digital Audio Output AV Input RF,C/T2 Antenna Input HDMI Input CI Module Input Headphone Input...

  • Page 15: 65Hyn3205

    65HYN3205 INPUT/OUTPUT RJ45 USB 1 / USB2 Digital Audio Output AV Input RF,C/T2 Antenna Input HDMI Input CI Module Input Headphone Input...

  • Page 16: 70Hyn3205

    70HYN3205 INPUT/OUTPUT RJ45 AV Input Digital Audio Output RF,C/T2 Antenna Input HDMI Input USB1/USB2 CI Module Input Headphone Input 75HYN3205/85HYN3205...

  • Page 17: 100Hyn3205

    INPUT/OUTPUT RJ45 AV Input Digital Audio Output RF,C/T2 Antenna Input HDMI Input USB1/USB2 CI Module Input Headphone Input 100HYN3205...

  • Page 18: Main Unit Description

    Main INPUT/OUTPUT unit RJ45 AV Input Digital Audio Output RF,C/T2 Antenna Input HDMI Input USB1/USB2 CI Module Input Headphone Input description...

  • Page 19: 43Hyn2203

    43HYN2203 Display\ hidden button menu: press the button in the pop-up menu, as shown below. The button menu will be closed automatically after the button is not operated for 5 seconds. Button function selection: press the button shortly, move the focus to the right, and select the corresponding function, such as the short press on the button for 6 times the focus position as shown in the below picture.

  • Page 20: Main Unit Description

    Main unit description 50HYN2205 / 55HYN2205 / 65HYN2205 Control Panel Button Function Display\ hidden button menu: press the button in the pop-up menu, as shown below. The button menu will be closed automatically after the button is not operated for 5 seconds. Button function selection: press the button shortly, move the focus to the right, and select the corresponding function, such as the short press on the button for 6 times the focus position as shown in the below picture.

  • Page 21: 43Hyn2203

    43HYN2203 INPUT / OUTPUT INPUT / OUTPUT HDMI Input RJ45 HDMI Input Optic Digital Audio Output Video Input HDMI Input Audio Input (L) USB 1 Audio Input (R) USB 2 Input Headphone Input RF,C/T2 Antenna Input CI Module Input...

  • Page 22: 50Hyn2205 / 55Hyn2205 / 65Hyn2205

    50HYN2205 / 55HYN2205 / 65HYN2205 INPUT / OUTPUT INPUT / OUTPUT RF,C/T2 Antenna Input RJ45 HDMI Input USB 2 Coaxial Digital Audio Output HDMI Input Video Input HDMI Input Audio Input (L) USB 1 Audio Input (R) Headphone Input Input CI Module Input...

  • Page 23: Main Unit Description

    Main unit description Q50HYN2205 / Q55HYN2205 / Q65HYN2205 Control Panel Button Function Display\ hidden button menu: press the button in the pop-up menu, as shown below. The button menu will be closed automatically after the button is not operated for 5 seconds. Button function selection: press the button shortly, move the focus to the right, and select the corresponding function, such as the short press on the button for 6 times the focus position as shown in the below picture.

  • Page 24: Back Panel Diagram

    BACK PANEL DIAGRAM Q50HYN2205 / Q55HYN2205 / Q65HYN2205 INPUT / OUTPUT INPUT / OUTPUT RF, C/T2 Antenna Input RJ45 HDMI Input USB 2 Coaxial Digital Audio Output HDMI Input Video Input HDMI Input Audio Input (L) USB 1 Audio Input (R) Headphone Input Input...

  • Page 25: M55Hyn2205 / M65Hyn2205

    M55HYN2205 / M65HYN2205 Control Panel Button Function Display\ hidden button menu: press the button in the pop-up menu, as shown below. The button menu will be closed automatically after the button is not operated for 5 seconds. Button function selection: press the button shortly, move the focus to the right, and select the corresponding function, such as the short press on the button for 6 times the focus position as shown in the below picture.

  • Page 26: M55Hyn2205 / M65Hyn2205

    M55HYN2205 / M65HYN2205 INPUT / OUTPUT INPUT / OUTPUT RF, C/T2 Antenna Input RJ45 HDMI Input USB 2 Coaxial Digital Audio Output HDMI Input Video Input HDMI Input Audio Input (L) USB 1 Audio Input (R) Headphone Input Input CI Module Input...

  • Page 27: Remote Control

    REMOTE CONTROL #: To use the button' Press and hold more than 1 second Need to register this Magic Remote first. POWER( ): Turns the TV on or off. : You can turn on/off the power of the set-top box by adding the box to universal remote in TV.
  • Page 28 Enters the All Settings menu. Move to the previous step. Closes the menu. GUIDE: Check the program schedule. Selects an input source. Entering into the Home Dashboard. Wheel (ok): press the center button to select, Turn up or down to scroll channels. Navigation buttons:(Up/Down/Left/Right Navigate the menu.

  • Page 29: Homepage

    HOMEPAGE Enter the Home page after First Time install Search You can search for channels, programmers, movie titles and apps from Smart Hub. Home Dashboard You can select or control a device (mobile, external device, Home loT Devices, etc.) connected to the TV. For more information, see Connecting External Devices Using Home Dashboard in User Guide.

  • Page 30: Using Home Dashboard

    Using Home Dashboard You can select or control a device (mobile, external device, Home loT Devices, etc.) connected to the TV. Press button to select. You can check and select the smart device connected with the LG ThinQ app. Please refer to Connecting External Devices →...
  • Page 31 You can check and control the device connected via the Home loT. Please refer to Connecting External Devices → Connecting Home loT Devices in User Guide for more information on the action. You can easily control your device by presetting the desired operations.

  • Page 32: Tv Settings

    TV Settings Press MENU button to enter the TV Setting. Press button to highlight the desired menu icon, and press OK button to select. Quick Settings You can set Picture Mode. You can set Sound Mode. You can choose Sound Out. You can set Sleep Timer.

  • Page 33: Picture

    Picture Press MENU button to enter the main menu. Or press button to select Setting on the Home page. Press button to select the Picture. Press OK button to enter the sub-menu. Press button to select Picture Mode Settings/Aspect Ratio Settings/Energy Saving/Additional Settings.

  • Page 34: Advanced Controls

    The Energy Saver feature changer setting on the TV to reduce rower consumption. Cinema Is suitable for watching TV or movies in a dark room. Sports Suitable picture for sport games. Sharpens the image of rapid movements such as kicking or throwing a ball. Backlight / Contrast / Brightness/ Sharpness/ Colour/ Tint / Colour Temperature Press...

  • Page 35: Picture Options

    Gamma Press button to select Gamma, press OK button to select Low/Medium/High 1/High 2. Picture Options Press button to select Picture Options. (Optional: Noise Reduction/ Black Level/Real Cinema) Noise Reduction Press button to select Noise Reduction, press OK button to select Off/Low/Medium/High Auto.

  • Page 36: Energy Saving

    Reset If you want to reset the image settings to the factory defaults after configuring the image settings, select reset for each image mode. Press button to select Reset. Aspect Radio Settings You can change the screen size according to the type of content you are watching. Press button to select Aspect Radio/ Just Scan.

  • Page 37: Eye Comfort Mode

    Eye Comfort Mode The color temperature will be adjusted to reduce eye fatigue. Press button to select Off/On Sound Press MENU button to enter the main menu. Or press button to select Setting on the Home page. Press button to select the Sound. Press OK button to enter the sub-menu.

  • Page 38: Sound Mode

    Sound Mode Press button to select Standard/ Cinema/ Clear Voice III/ Sports/ Music/ Game. Standard Optimizes the sound for all types of content. Cinema Optimizes the sound for cinemas. Clear Voice III Boosts voice clarity. Sports Optimizes the sound for sports games. Music Enhance the high pitch and reduce the bass.

  • Page 39: Additional Settings

    Virtual Surround Plus Enjoy an immersive soundscape with the virtual multi-programme surround sound effect. Press button to select Virtual Surround Plus. Press OK button to select On / Off. Equalizer Press button on to select Equalizer. Press OK button to enter sub-menu then press button to adjust.

  • Page 40: Volume Mode

    TV Installation Type Press button on to select TV Installation Type. Press button to select Stand/ Wall-mounted. Volume Mode Press button on to select Volume Mode. (Optional: Auto Volume/ Volume Increase Amount) Auto Volume Press button on to select Auto Volume. Press OK button to select On/Off. Volume Increase Amount Press button on to select Volume Increase Amount.

  • Page 41: Program

    LG Sound Sync Press button on to select LG Sound Sync. Connect the LG Sound Sync device to the optical digital input port and set Sound Out to Optical. By setting this feature to On, you can adjust the volume of the connected LG Sound Sync device using a TV remote control.
  • Page 42 Mode/Program List Update/ Signal test. Auto Tuning Automatically tunes the program. Press button to select Auto Tuning. (Optional: Antenna/Cable/Satellite) Then press button to select Next button to setup and tuning. Manual Tuning This function is for manually searching and saving program. Press button to select Auto Tuning.
  • Page 43 Programme Mode Press button to select Programme Mode. (Optional: Antenna / Cable /Satellite) Programme List Update Press button to select Programme List Update. Press OK button to select On/Off. Signal Test Shows the MUX and Service information etc. Press button to select Signal Test. Note: It is only available in Antenna or Cable mode.
  • Page 44 Edit All Programmes Set the sorting option. Lock / Unlock: Lock the selected programmes or unlock the locked programmes. Skip / Restore: Set the selected programmes to be skipped when switching programmes, or disable the skipping option of the programmes previously set to be skipped.

  • Page 45: Connection

    HbbTV Press button to select HbbTV. Press OK button to enter submenu. Press button to select. CI Information/Copy Programmes Press button to select Cl Information/Copy Programmes. Press OK button to enter sub-menu. Connection Highlight the item and press OK button to enter the sub-menu. Press button to select Connection.
  • Page 46 Wi-Fi Connection Press button to select Wi-Fi Connection. Press OK button to enter sub-menu and setup. Device Connection Settings You can link the information about the devices connected to the TV and configure settings related to operations. Press button to select Device Connection Settings. Press OK button to enter sub-menu.

  • Page 47: Screen Share

    Press OK button to enter sub-menu. If you set up the universal remote control, you can control peripheral devices connected to the TV with the Magic Remote instead of their own remote controls. Mobile Connection Management You can set to use a smart device connected to the TV to control the TV or manage the connection history.

  • Page 48: General

    Press button to select TV Name. Press OK button to enter sub-menu. Network Connection Settings If you configure settings for the network, you can use various services such as online contents and applications. Press button to select Network Connection Settings. Press OK button to enter sub-menu.
  • Page 49 Voice Recognition Settings Press button to select Voice Recognition Settings. Press OK button to setup. You can apply settings for voice recognition features. AI Recommendation Press button to select Al Recommendation. Press OK button to enter sub-menu. You can apply settings for voice recognition features. Content Recommendations Press button to select Content Recommendations.
  • Page 50 Location You can change the location setting of your Smart TV. Press button to select Location. Press OK button to enter sub-menu. Broadcast Country You can set the broadcast country on your TV. Service Area Postcode This function is used to set the broadcast location of the TV by entering your postcode.
  • Page 51 Time You can check the time or configure related settings. Press button to select Time. Press OK button to enter sub-menu Set Automatically The TV time is automatically set to the time of digital broadcasting information sent from the broadcasting station or the time sent from the server. Press button to select Set Automatically.
  • Page 52 Sleep Timer Press button to select Sleep Timer. Press button to select Off/ 10min/20min /30min /60min/90min / 120min/180min/240min. Power On Timer Press button to select Power On Timer. Press OK button to enter sub- menu to setup. Power Off Timer Press button to select Power Off Timer.

  • Page 53: Accessibility

    Account Management Press button to select Account Management. Press OK button to enter sub- menu. In Account Management, you can use your email address to create a new LG account. Home Settings Press button to select Home Settings. Press OK button to enter sub- menu.

  • Page 54: Support

    Audio Description Volume Press button to select Audio Description Volume. Press OK button to select On/Off. High Contrast/Grayscale/Invert Colors/Hard of Hearing Press button to select High Contrast/Grayscale/Invert Colors/ Hard of Hearing. Press OK button to select On/Off. Subtitles Press button to select Subtitles. Press OK button to enter sub-menu. Then press button to select and setup.
  • Page 55 Allow Automatic Updates Press button to select Allow Automatic Updates. If set to On, updates will be proceeded automatically without asking when there is a new update after a version check. Check for updates Press button to select Check for updates.

  • Page 56: Media

    User Agreements Press button to select User Agreements. Press OK button to select. These are the terms and conditions for privacy for the use of Smart TV-related services. Legal Notice Press button to select Legal Notice. Press OK button to select. It’s a legal notice for services provided via TV.
  • Page 57 Viewing Photos and Video You can view photos and videos using the Photo & Video app. 1) Select your desired type of content and viewing method. 2) Select and delete the desired content. 3) Select the content you want to play. You can only select the same type of content as you first selected.
  • Page 58 Using Video Player Selecting a photo in the Photo & Video app runs the photo player. You can view your saved videos. 1) Returns to the entire content list. 2) You can select other content by displaying the playlist while watching a video. 3) You can control basic video playback functions.
  • Page 59 Playing Music You can listen to music by using the Music app. 1) Select the desired type of content list. 2) Select and delete the desired content. 3) Select content and add it to My Playlist. 4) You can copy content to a USB storage device. 5) Open the music player.
  • Page 60 Using Music Player You can play music conveniently by selecting the music files saved in the Music app or by selecting the music player icon during content playback in apps such as Photo & Video. 1) You can play music from the selected storage device. 2) You can set repeat playback and random playback.

  • Page 61: Specifications

    SPECIFICATIONS Model No 43HYN3203 Voltage AC 100-240 ~ 50/60 Hz Power Consumption Inch 43” Resolution 1920 x 1080 Speaker Output 2 x 8 W Input 1 x RJ45 Ethernet, 3 x HDMI, 2x USB, 1 x Antenna, 1 x AV, 1 x CI...
  • Page 62 Model No 55HYN3205 Voltage AC 100-240 ~ 50/60 Hz Power Consumption 150W Inch 55” Resolution 3840 x 2160 Speaker Output 2 x 8 W Input 1 x RJ45 Ethernet, 3 x HDMI, 2x USB, 1 x Antenna, 1 x AV, 1 x CI Output 1 x Headphone Output, 1x Digital Audio Output Menu OSD...
  • Page 63 Model No 70HYN3205 Voltage AC 100-240 ~ 50/60 Hz Power Consumption 260W Inch 70” Resolution 3840 x 2160 Speaker Output 2 x 8 W Input 1 x RJ45 Ethernet, 3 x HDMI, 2x USB, 1 x Antenna, 1 x AV, 1 x CI Output 1 x Headphone Output, 1x Digital Audio Output Menu OSD...
  • Page 64 Model No 85HYN3205 Voltage AC 100-240 ~ 50/60 Hz Power Consumption 400W Inch 85” Resolution 3840 x 2160 Speaker Output 2 x 8 W Input 1 x RJ45 Ethernet, 3 x HDMI, 2x USB, 1 x Antenna, 1 x AV, 1 x CI Output 1 x Headphone Output, 1x Digital Audio Output Menu OSD...
  • Page 65 Model No 43HYN2203 Voltage AC 100-240 ~ 50/60 Hz Power Consumption Inch 43” Resolution 1920 x 1080 Speaker Output 2 x 8 W Input 1 x RJ45 Ethernet, 3 x HDMI, 2x USB, 1 x Antenna, 1 x AV, 1 x CI Output 1 x Headphone Output, 1x Digital Audio Output Menu OSD...
  • Page 66 Q50HYN2205 Q55HYN2205 Q65HYN2205 Model No VOLTAGE AC 100-240V ~50/60 Hz Power Consumption 120W 140W 160W SCREEN SIZE 50” 55” 65” RESOLUTION 3840 x 2160 Speaker Output 2 x 8 W Input 1 x RJ45 Ethernet, 3 x HDMI, 2x USB, 1 x Antenna, 1 x AV, 1 x CI Output 1 x Headphone Output, 1 x Digital Audio Output...

  • Page 67: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause What to do Power connection may have been Make sure your device's power cord is plugged into made incorrectly Device Won't Turn On Remote Control Make sure the batteries in is not working your remote control are properly inserted.

  • Page 68: Information

    INFORMATION In the event that it is understood that the goods are defective, the consumer, in accordance with Article 11 of Law No. 6502 on Consumer Protection, may use one of the rights: a) Return from the contract, b) Requesting a discount from the sale price, c) Request free repair of the sold goods, d)Requesting the replacement of the sold product with a defect-free equivalent.
