V
ECTOR

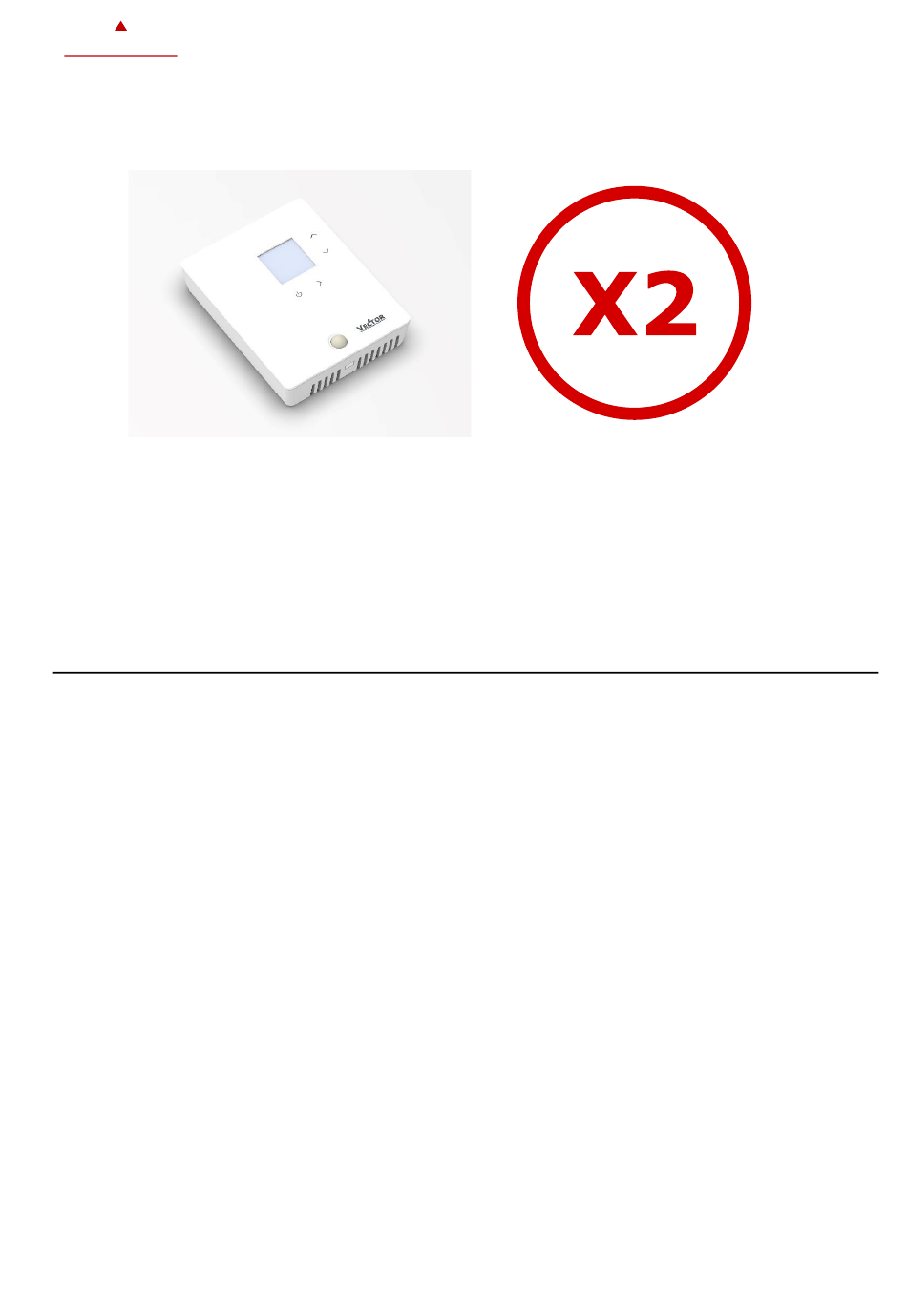

Operating instructions for SRD2-OP and
other X2 devices with touch button & TFT display
The X2 operating system was designed for universal controllers and sensors. Devices based on the X2 operating system
contain a multitude of standardized functions and application possibilities. From simple ventilation controllers for domestic
applications to HVAC system solutions for entire buildings. There is a suitable solution for almost every application. With
the EasySet program, the controllers can be conveniently configured, programmed and read out.
Content Overview
1
Overview ________________________________________________________________________ 2
2
Display and Operation ______________________________________________________________ 2
3
General Operation _________________________________________________________________ 5
4
Applicationspecific Operation _________________________________________________________ 7
5
Extended Operating Level ________________________________________ Error! Bookmark not defined.
Doc: 70-00-0994C, Serie X2, 20250114
Subjects to alteration
© Vector Controls LLC, USA
www.vectorcontrols.com
O
M
PERATIONS
ANUAL
SRD2-OP
Page 1-10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vector SRD2-OP
Summary of Contents for Vector SRD2-OP
- Page 1 SRD2-OP PERATIONS ANUAL Operating instructions for SRD2-OP and other X2 devices with touch button & TFT display The X2 operating system was designed for universal controllers and sensors. Devices based on the X2 operating system contain a multitude of standardized functions and application possibilities. From simple ventilation controllers for domestic applications to HVAC system solutions for entire buildings.
-
Page 2: Overview
Alarms: Confirm the alarm (Confirm) Long press: activate configuration menu Adjust temperature set points and control parameters Down Adjust temperature set points and control parameters Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 2-10 Subjects to alteration www.vectorcontrols.com... -
Page 3: Lcd Display
Special (temperature, CO , humidity) function See X2 engineering manual section “Display of low, medium and high level” for 21.0% AQI a detailed description. Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 3-10 Subjects to alteration www.vectorcontrols.com... -
Page 4: Alarm Messages
Most devices have a status LED. The position of the status LED is defined in the product data sheet. In normal operation, the LED flashes briefly once every 5 seconds. In an alarm or error condition, the LED flashes every second. Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 4-10 Subjects to alteration www.vectorcontrols.com... -
Page 5: General Operation
22.0 ° 22.0 ° 38.6 38.6 43.7 23.0° 736 ppm Display of air quality Display of air quality with a smiley symbol with monitoring bar Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 5-10 Subjects to alteration www.vectorcontrols.com... -
Page 6: Manual Override
All parameters and set points are memorized and do not need to be re-entered. The switch-on behavior on return of the power supply is set by the technician. Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 6-10 Subjects to alteration... -
Page 7: Applicationspecific Operation
FSP0 -> FSP1 -> FSP2 -> FSP3 -> AUTO –> FSP0 FSP0 may be disabled by settings, the number of available fan speeds may be different according to configuration. Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 7-10 Subjects to alteration www.vectorcontrols.com... -
Page 8: General Settings
For function “Fan only cooling” or “Fan only heating” see below. ↓ Unit °C Mode auto Fan only Off Press the ( ) button to go back to the start menu. Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 8-10 Subjects to alteration www.vectorcontrols.com... -
Page 9: Display Software Version
/ operation terminal are displayed. Fan only Off Base V16r2 V12r0 Press the ( ) button to go back to the start menu. Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 9-10 Subjects to alteration www.vectorcontrols.com... - Page 10 ECTOR SRD2-OP PERATIONS ANUAL Smart Sensors and Controls Made Easy! Quality - Innovation – Partnership Vector Controls GmbH Switzerland info@vectorcontrols.com www.vectorcontrols.com Doc: 70-00-0994C, Serie X2, 20250114 © Vector Controls LLC, USA Page 10-10 Subjects to alteration www.vectorcontrols.com...
