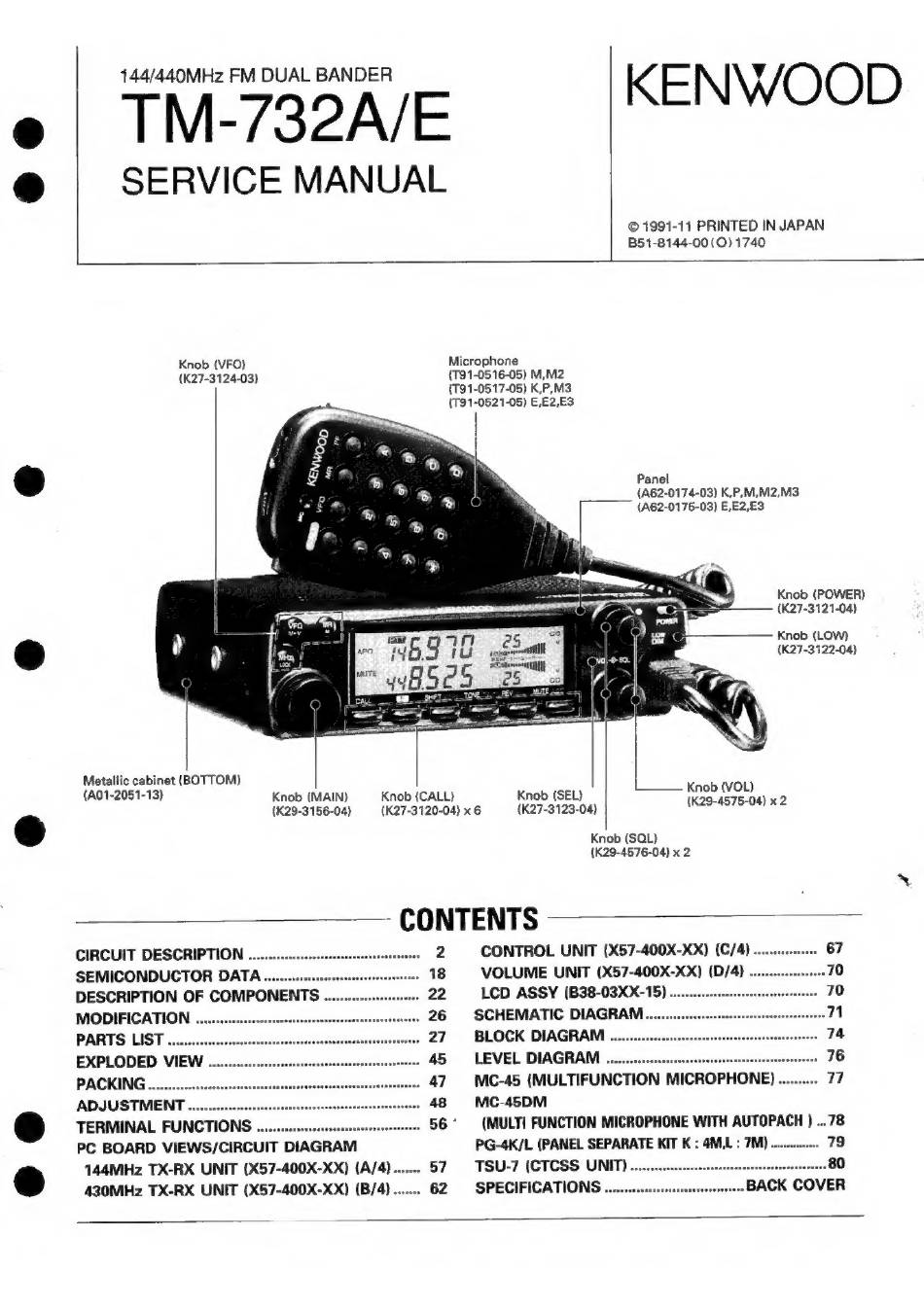

Kenwood TM-732A Service Manual

144/440MHz FM DUAL BANDER
TM-732A/E
KENWOOD
© 1991-11 PRINTED IN JAPAN
B51-8144-00(O) 1740
Knob (VFO)
(K27-3124-03)
Metallic cabinet (BOTTOM)
(A01-2051-13)
Knob (MAIN)
(K29-3156-04)
PC BOARD VIEWS/CIRCUIT DIAGRAM
144MHz TX-RX UNIT (X57-400X-XX) (A/4)....... 57
430MHz TX-RX UNIT (X57-400X-XX) (B/4) ....... 62
Knob (CALL)
(K27-3120-04) x 6
- CONTENTS
Microphone
(T91-0516-05) M,M2
(T91-0517-05) K,P,M3
{T91-0521-05) E,E2,E3
Panel
(A62-0174-03) K,P,M,M2,M3
(A62-0175-03) E,E2,E3
Knob (POWER)
(K27-3121-04)
Knob (LOW)
(K27-3122-04)
Knob (VOL)
(K27-3123-04)
Knob (SQL)
(K29-4576-04) x 2
CONTROL UNIT (X57-400X-XX) (C/4) ....
VOLUME UNIT (X57-400X-XX) (D/4) ....
LCD ASSY (B38-03XX-15) . . .
SCHEMATIC DIAGRAM
BLOCK DIAGRAM .
LEVEL DIAGRAM ..
MC-45 (MULTIFUNCTION MICROPHONE) .
Mc-45DM
