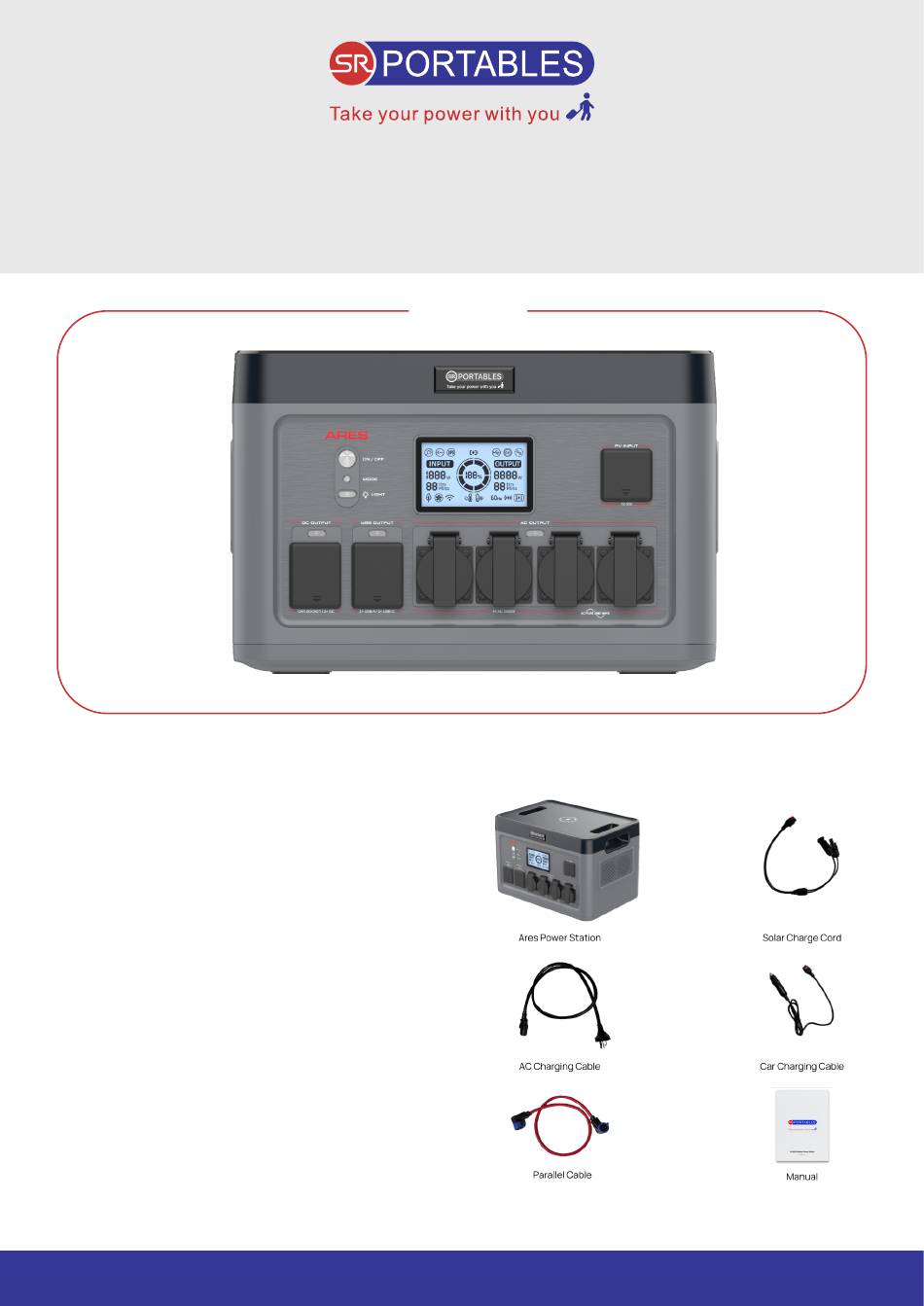

- Page 1 High Quality Power Station Instruction Manual ARES What's in the Box Packing List 1 Pcs Portable Solar Power Station 1 Pcs AC charging cable 1 Pcs Solar charge cable to MC4 1 Pcs 12 V car charging cable 1 Pcs Parallel cable (Only for Parallel Version) 1 Pcs Manual...
- Page 2 Charging Instructions Before using your new Power Station ARES Series, make sure to plug it into a suitable power outlet until it is fully charged. After that, you can start your exciting journey with it.
- Page 3 INDEX Section Page Introduction Product Introduction Parts Description Dimensions Load Capacity Label Safety Technical Specifications Installation Device Overview Moving the units Unboxing Guide Operating Environment Electric Installation Wiring Procedure Operation LCD Display Overview LCD Display Icons Setting the LCD Display Display Information Operating Mode Helios Working Modes...
-
Page 4: Product Introduction
Product Introduction ARES Series with high capacity and high safety battery pack. Suitable for emergency off-grid, such as sudden power failure, snowstorm or hurricane, outdoor operation, RV power supply etc. Delivering an impressive power output up to 2400W, fast charging, high capacity and long life cycle.v... - Page 5 Part Description Input: When the AC charging cable is inserted, this label is displayed on the LCD. Input: When the DC DC/SOLAR PV charging cable is inserted, this label is displayed on the LCD. Mode: When the device is in the AC charging state and the AC output is turned on, the UPS mode automatically starts, and this label is displayed on the LCD.
-
Page 6: Load Capacity
Dimensions Load Capacity CPAP without heated Laptops (41.4Wh) GoPro (5.9Wh) Floodlight (5W) 32" TV(60W) humidifier (15W) Around 42 Recharges Around 297 Recharges Around 350 hours Around 29 hours 116 hours +MORE Smartphone (10Wh) Switch (16Wh) Mini Fridge (40W) DJ Drone (89.2Wh) Around 175 Recharges Around 109 Recharges Around 43 hours... -
Page 7: Safety And Precautions
Safety and Precautions Safety Warning WARNING Please read the following instructions before use for safety. Improper use may result in fire, property damage or personal injury or death. DO NOT use the product with incompatible components or alter the product in any way. WARNING WARNING Improper use may result in fire, property... -
Page 8: Error Codes
Safety and Precautions Error Codes Error code Significance Solutions Battery over voltage Please disconnect the charging cable and stop charging Battery under voltage Please disconnect the output and charge the device Please disconnect the output and wait 1-2 hours before Inverter overheating operation Abnormal input voltage... - Page 9 Charging Function Description Re-charging Time From AC socket charging 1.6-2.5 hours From solar charging 800W 3-7.4 hours (Dependent on solar conditions) From car-port 12V 12.6-19.5 hours AC Charging Use the AC charging cable we provided to charge the device. It takes 1.6 to 2.5 hours to full capacity. When LCD showing battery power reached 100%, it means that battery has been full charged and input power will turn off in minutes.
-
Page 10: Car Charger
12V Car Charger Use the car charger we provided to charge. It takes 12.6 to 19.5 hours to fully charge. When the LCD shows that the battery power is 100%, it means that the battery is fully charged. Cigarette lighter plug Car charger Caution: Do not charge the product with solar PV input and car port at the same time! Solar Panel Charging... -
Page 11: Overload Condition
Operating Instructions Re-charging Use the original AC line to charge; the full charge time is about 1.6‒ 2.5 hours. When charging, the LCD screen will be lit, the LCD display will provide real-time display data of battery charging, and the device will display 100% when it is fully charged. It is recommended to fully charge the device every 3 months to maintain the life of the device . - Page 12 Avoid extreme temperature goods in accordance with local regulations The ARES Series power station meets all legal requirements for the transportation of dangerous goods. The capacity of the lithium battery pack exceeds 100Wh. According to international standards, if the power station is transported by air, it must be transported in accordance with IATA standard packaging.
-
Page 13: Troubleshooting
Maintenance 1. Check as needed. If the ARES Series power station cannot work regularly, please charge and discharge it every 3 months at normal temperature to keep its service life. Regularly check all ports and wall chargers for any debris, dirt, damage, and corrosion. -
Page 14: Technical Specifications
Technical Specifications GENERAL PARAMETERS Battery Type Lithium Ion Phosphate 4000 + cycles to 80% Rated Capacity 51.2V, 40Ah/2048Wh Net Weight ≈ 26kg Product Size 430mm*300mm*287mm Operating Temp 14 to 104°F (-10 to 40°C) Charging Temp 32 to 104°F (0 to 40°C) Storage Temp -4 to 113°F (-20 to 45°C) INPUT... -
Page 15: Warranty
Warranty We assure the original purchaser that our products are free of defects in workmanship and materials during the applicable warranty period determined in the "Warranty Period" section below, but the exclusions set below are excluded. This warranty statement sets our total and exclusive obligations. We will not assume, or authorize any person to assume for us any other liability related to the sale of our products. - Page 16 Due to constant technology updates, product specifications, and configuration changes, please refer to the actual product. H2400ProIIWV1.0.02...
