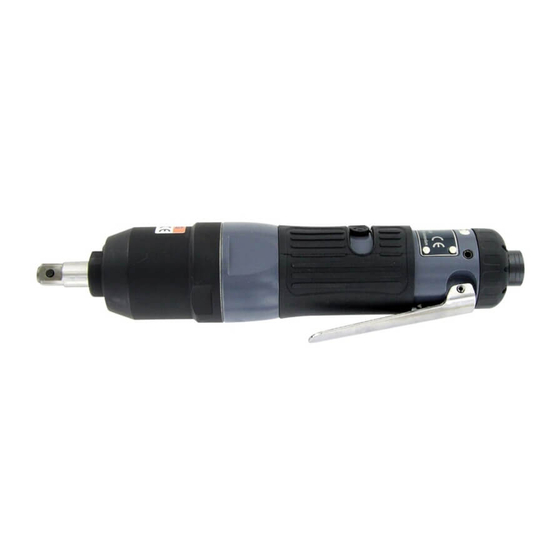

- Page 1 RRI-70S Manual www.rami-yokota.com...
-
Page 4: Before Taking Into Use
Please fill some droplets of resin and acid free oil into the air inlet and let the tool run free for a couple of seconds. (E.g. Red Rooster air tool oil: Order no. Atlub) Before connecting the hose to the tool please check, whether the hose and the quick coupler are clean. Do this by letting air run freely through hose and quick coupler, It is absolutely necessary, that quick coupler and hose have a sufficient diameter. - Page 5 The quality of the compressed air must be good, which means clean, dry and this is best assured by means of an air filter. We advise the use of a complete FRL (filter, regulator, lubricator) unit. The oiler has to be adjusted to approx. 3 to 6 droplets per minute.
- Page 6 Keep the work place clean and organized, you may stumble and fall over a hose on the floor. Slippery floors and objects on the floor are major causes of injuries. This tool is not intended for use in potential expolosive hazardous areas and is not insulated from coming into contact with electric power.
-
Page 7: Using The Tool
Assemble the hex head plug. During testing this hex head screw must be mounted. For Red rooster angle head models: disassemble the angle head first. Remove the hex head plug from the front housing, this is placed next the shaft. -
Page 8: Maintenance
On soft joints, longer impulsing time per cycle, the oil must be changed earlier. For Red Rooster Impulse wrenches the advice is to replace the oil after 250.000 cycles on hard joint, one cycle is 0,5 – 1 second impulsing. On soft joints, longer impulsing time per cycle, the oil must be changed earlier. -
Page 9: Intended Use
Warranty covers material or construction mistakes of the manufacturer, which are clearly definable. Replacement of parts or repair by an official Yokota/Red Rooster service workshop is free of charge, when the tool is covered by warranty. Freight or postage is for the account of the buyer. Damage attributable to a normal wear, overloading or incorrect use is excluded from warranty. -
Page 10: Declaration Of Conformity
Declaration of Conformity Brand: RedRoosterIndustrial Product: Impulse Wrenches Type: RRI-70S Capacity: 31 - 47 2014.11015GC WE, RAMI YOKOTA B.V., hereby declare that this product is conform the European Directive 2006/42/EG and, the standard EN ISO 11148-6 Technical file available from Rami Yokota BV:... - Page 11 www.rami-yokota.com...
