Summary of Contents for The t.mix xmix 1202 FX USB

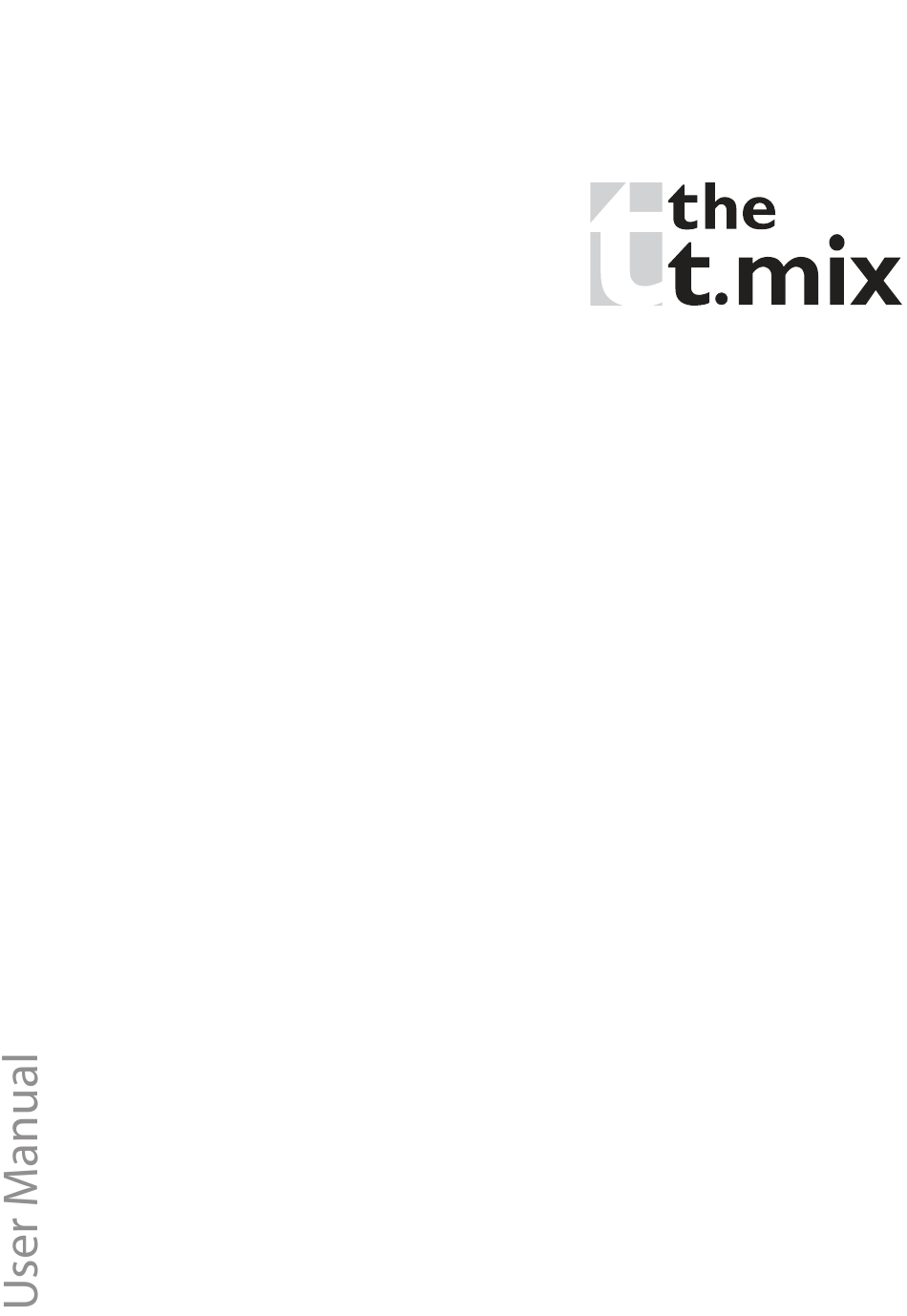

Page 1 1202 FX USB Mixer...
Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.02.2024, ID: 422794 (V2)
Page 3: Table Of Contents
General information......................5 1.1 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................8 Installation and starting up....................9 Connections and controls....................10 Technical specifications....................16 Plug and connection assignment................. 18 Protecting the environment................... 20 xmix 1202 FX USB Mixer...
Page 4 1202 FX USB Mixer...
Page 5: General Information
This combination of symbol and signal word indicates a possible dangerous situation that can result in mate‐ rial and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. xmix 1202 FX USB Mixer...
Page 6: Safety Instructions
Only operate the device from professionally installed mains sockets that are protected by a residual current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device will not be used for a longer period. xmix 1202 FX USB Mixer...
Page 7 The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the floor. xmix 1202 FX USB Mixer...
Page 8: Features
Master output L/R via 2 × XLR and 2 × 1/4" phone socket Separately controllable headphones output (1/4" phone socket, stereo) Headphones output, adjustable together with CTRL room output USB port 48 V phantom power, globally switchable Built-in power supply xmix 1202 FX USB Mixer...
Page 9: Installation And Starting Up
Before connecting the supply voltage and before connecting or disconnecting audio cables, set all volume controls of the unit to zero to avoid damage to the connected speakers and devices. xmix 1202 FX USB Mixer...
Page 10: Connections And Controls
12 [PEAK] | This LED lights up in case of channel overload. If this happens, turn the [GAIN] control to the left until this LED goes out. POST 13 The channel fader sets the strength of the channel signal in the overall signal. PEAK xmix 1202 FX USB Mixer...
Page 11 STEREO IN channel press the [PAD] switch. When overload occurs in the PEAK REC-OUT channel, reduce the output level of the signal source connected here. 33 The channel fader sets the strength of the channel signal in the overall signal. xmix 1202 FX USB Mixer...
Page 12 [CR OUT R] | Control room output for connecting amplifiers or active speakers. [FOOT SWITCH EFFECT] | Socket for connecting a foot switch (not supplied), which can be used to switch the internal effects section on and off. xmix 1202 FX USB Mixer...
Page 13 [CR & PHONES] | Rotary control for adjusting the level on the outputs [CR OUT] and [PHONES]. [L MIX R] | Master fader for adjusting the sum level on the outputs [MAIN OUTPUT], [CR OUT] and [PHONES]. xmix 1202 FX USB Mixer...
Page 14 58.59 [MAIN OUTPUTS] | Balanced XLR outputs for connecting power amplifiers, effects devices or recording devices. 60 [POWER] | Main switch for turning the device on and off. 61 Rubber panel plug for mains connection with fuse holder. Connection example – club gig xmix 1202 FX USB Mixer...
Page 15 Connections and controls Connection example – PC home recording xmix 1202 FX USB Mixer...
Page 16: Technical Specifications
150 mW ± 5 mW @ 32 Ω Treble +/- 10 dB, ± 1.5 dB @ 12 kHz shelving Mids +/- 10 dB, ± 1.5 dB @ 1 kHz shelving Bass +/- 10 dB ± 1.5 dB @ 80 Hz shelving xmix 1202 FX USB Mixer...
Page 17 5 mm × 20 mm, 1.6 A, 250 V, slow blow Dimensions (W × H × D) 315 mm × 100 mm × 340 mm Weight 4.35 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80%, non-condensing xmix 1202 FX USB Mixer...
Page 18: Plug And Connection Assignment
1/4" TS phone plug (mono, unbal‐ anced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground 1/4" TRS phone plug (stereo, unbal‐ anced) Signal (left) Signal (right) Ground xmix 1202 FX USB Mixer...
Page 19 Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding xmix 1202 FX USB Mixer...
Page 20: Protecting The Environment
You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it. xmix 1202 FX USB Mixer...
Page 21 Notes xmix 1202 FX USB Mixer...
Page 22 Notes xmix 1202 FX USB Mixer...
Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
