Page 2

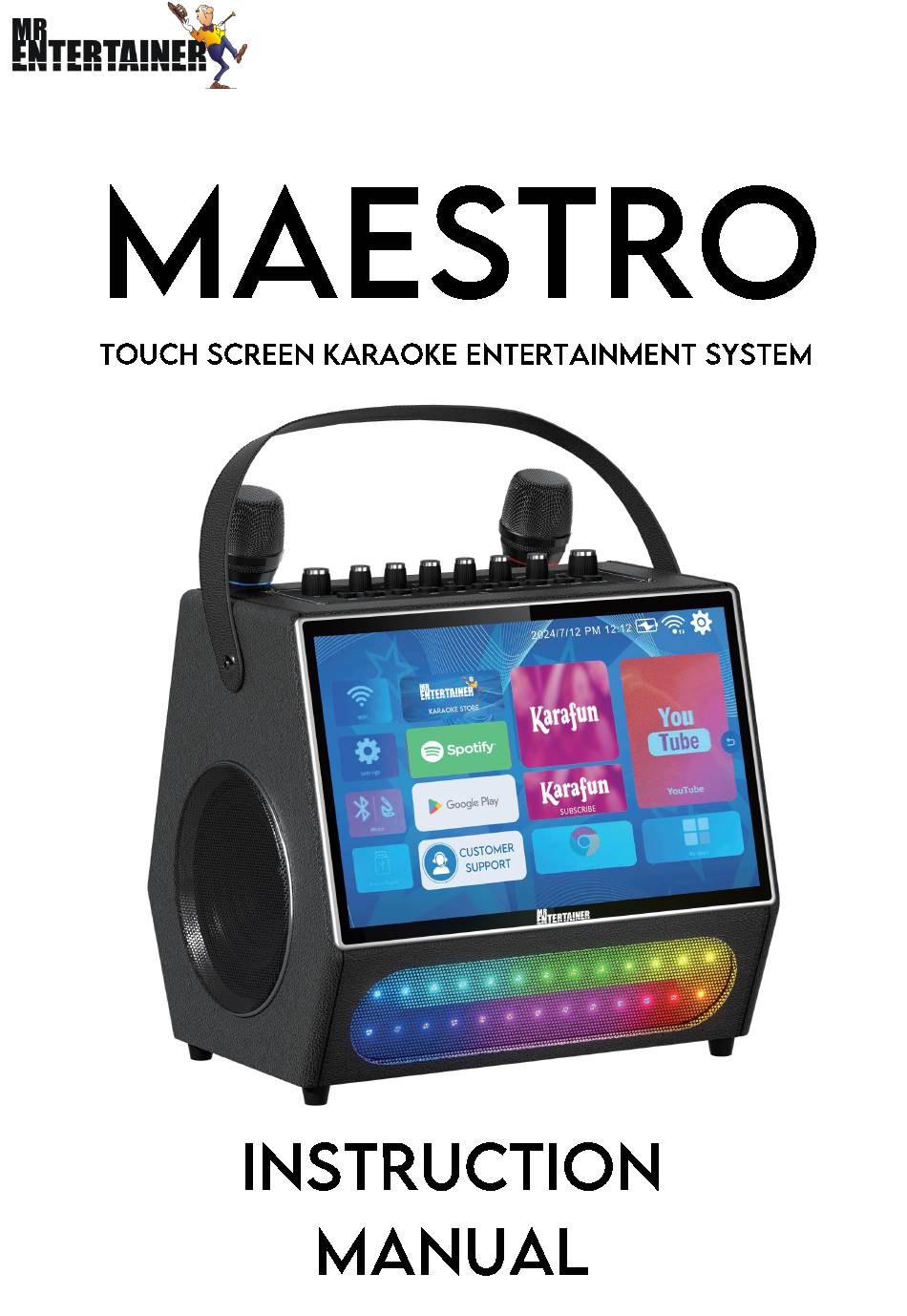

Controls and Functions (Remote) What’s In The Box? / Basic Operation The MAESTRO is a unique device that combines the technology of a touchscreen tablet with Basic Operation the convenience of an all-in-one PA speaker and wireless microphones. The integrated...
Page 3
REC: Record your performance, Press to START/STOP. Use the EXPLORER App (under My Apps) to find and play your recordings, they are stored in the folder INTERNAL MEMORY > MAESTRO MIC.PRI: Microphone Priority reduces music volume when singing, giving priority to the mic.
Page 4
POWER: Main Power switch to turn power Off/On LED SW: Turns LED light Off/On GIT IN: Connect Guitar, Instrument or Wired Microphone using 6.35mm Jack Plug MIC IN: Connect Wired Microphone using 6.35mm Jack Plug HDMI: Connect to your TV using HDMI cable. Mirrors image from built in screen (no audio) TF: Play Media Files from TF Card, such as MP3, MP4 &...
Page 5
(actual home screen may vary depending on date & model purchased) The HOMEPAGE is where you will find the main functions of the device and access the pre- installed Apps, which include… WIFI: Connect to Wi-Fi allows you to stream content via the internet & download new apps SETTINGS: Access the main settings of the Tablet, such as Date/Time, Factory reset etc MODE: Switch between Bluetooth &...
Page 6
4. If successfully connected the Bluetooth screen will show the chosen songs being played and you can use your external device to play your favourite songs/videos. If your device cannot connect or find MAESTRO, please ensure there are no other devices are already connected to the unit.
Page 7
& on again. If that still doesn't work try doing a factory reset on the MAESTRO via the settings. Also it might be worth trying a different wifi to see if the results are the same, maybe from a phone hotspot. F you keep having connection issues try turning the power off &...
TECHNICAL SPECIFICATIONS Mic Frequency UHF 863-865Mhz Speaker:5.25" woofer x 2+2" tweeter x 2 Screen Size: 13.3 inch touch screen LED: 6 modes multicolour lights System: Android version 12.0, 2G RAM+32G ROM Battery: 11.1V/7.2AH lithium battery Power: 40W RMS / 350W PEAK POWER WARRANTY All products and parts come with a standard 12 month warranty from date of purchase.
