Summary of Contents for HOLM & HOLM BEADex

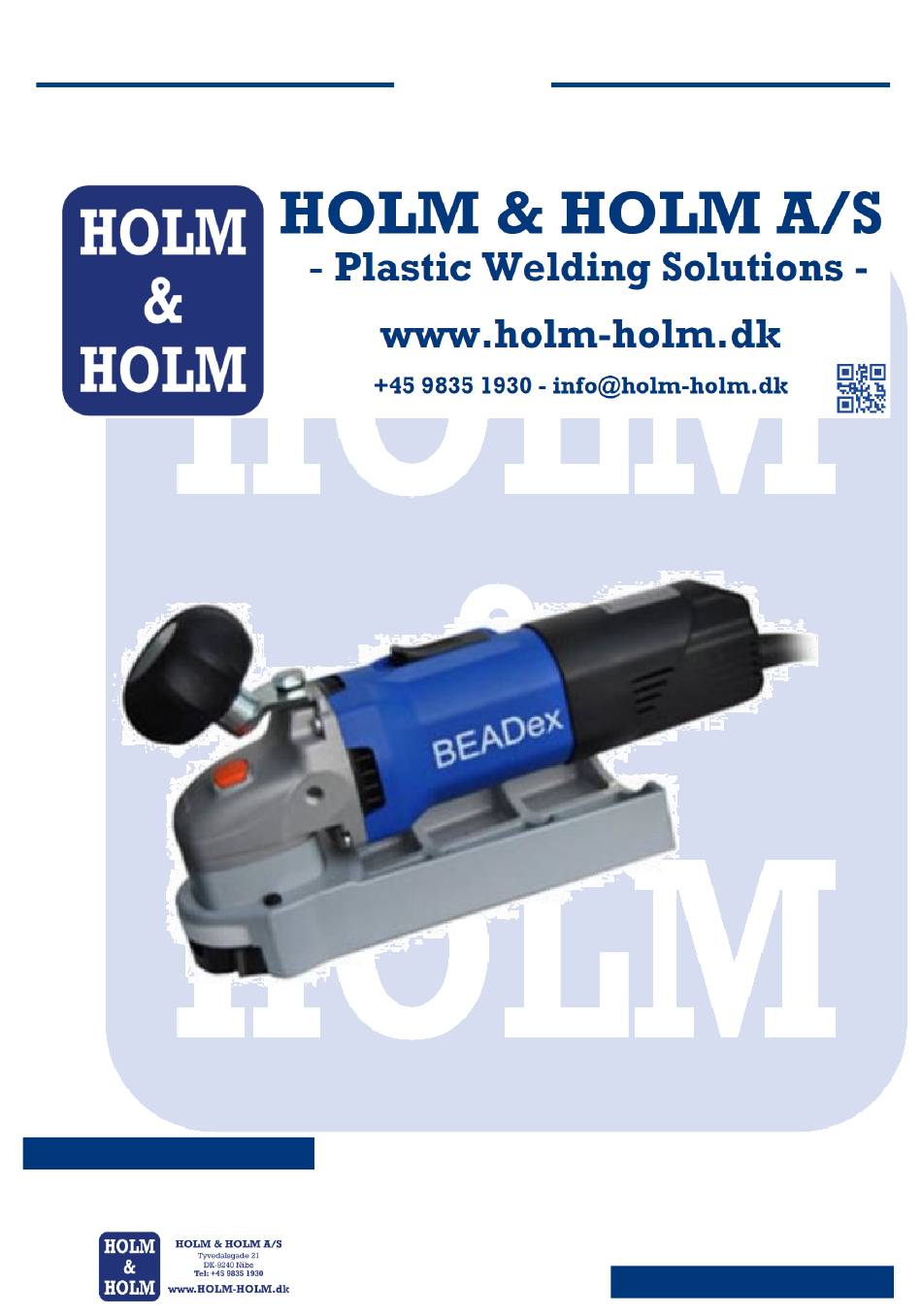

  • Page 1 BEADex BEADex...
  • Page 2 BEADex User manual and machine-accompanying documentation for the welding bead remover Beadex...

  • Page 3: Table Of Contents

    BEADex Indhold 1 Explanations ....................... 5 2 Product information ....................5 2.1 Information about the manufactor ..............5 2.2 Marking the machine ..................5 2.4 Information on noise emission ............... 6 2.5 Details of the vibration ................... 6 2.6 Delivery ......................6 2.7 Safety equipment ...................

  • Page 4: Explanations

    BEADex 1 Explanations This symbol is everywhere, where you can find information about your safety. Failure to do so may result in serious injury. This symbol indicates user tips and other useful information. 2 Product information to the machine with item no. 987302 2.1 Information about the manufactor...

  • Page 5: Technical Specifications

    2.5 Details of the vibration The typical hand-arm vibration is 6.9 m / s 2.6 Delivery Welding milling machine BEADex complete with: 1 milling head 1 suction nozzle 2 operating tools 1 transport box 1 operating manual 1 booklet "Safety instructions"...

  • Page 6: Intended Use

    BEADex 2.8 Intended use The WEGENER Welding Machine BEADex is exclusively used for the removal of thermo- plastic weld beads from butt welds, 90 ° welds and right-angled parts produced by weld- ing/bybending processes. Any other use than described above is not permitted.
  • Page 7 BEADex • Notes on the use of personal protective equipment: • The sound pressure level at the ear exceeds 85 dB (A). Wear ear protection when working. • Wear safety glasses when working. • To prevent damage to health, wear a dust mask.

  • Page 8: Setup / Adjust

    Before making the adjustment, disconnect the device from the mains. For safety reasons, the dimension for the milling depth is set to the minimum. Press and hold the orange button on the top of the BEADex to lock the cutter.

  • Page 9: Cutter Changes

    BEADex Use a hexagon socket screwdriver to loosen the cylinder head bolt. After the cutter has been removed, the mill- ing depth can be changed via spacers. Add- ing spacers increases the depth of cut and removes spacers to reduce the depth of cut. The cutter is fixed again with the cylinder head bolt.

  • Page 10: Blade Change And Adjustment

    BEADex 4.6 Blade change and adjustment Danger Before changing the blades or adjusting the blades, be sure to unplug the power plug. Remove cutter as described in chapter 4.4. Take the cutter in your hand and loosen the grub screw from the knife so that it loosens.
  • Page 11 BEADex By pushing back and forth, pull out the knife with deflector to the front. Here you can see that a locking nipple holds knife and deflector in position. On the left is the back of the knife and on the right is the deflector with a locking nipple to- wards the knife.
  • Page 12 BEADex So you put both parts together to mount them in the cutter body. Insert the knife with deflector from the front into the cutter body.
  • Page 13 BEADex Pay attention to the correct seat of the unit! Now tighten the grub screw again. Doing so, let the knife overlap evenly above and below. If more knives are to be exchanged, repeat the step accordingly.
  • Page 14 BEADex After the replacement of the blades, they must be adjusted. To do this, loosen all screws of the blades so that they can be moved easily. Then place the milling head on a flat plate. Press the milling head against the plate. By pressing the knives align.
  • Page 15 BEADex When pressed, tighten the grub screws, do not turn the cutter, but tighten all screws in the current position of the cutter. Refit the adjusted cutter in the machine, observing the setting of the cutting depth (see corresponding chapter). After completing the installation, test again if the cutter is scratch- ing.

  • Page 16: Mains Connection

    BEADex 4.7 Vacuum up chips For all work involving a significant amount of chips, connect the machine to a suitable ex- ternal extraction device. velocity must least / s. The inside diameter of the extraction nozzle is 35 mm. 4.8 Mains connection Before commissioning, make sure that the mains voltage is in accordance with the operating voltage stated on the rating plate of the machine.

  • Page 17: Operation

    BEADex 5 Operation 5.1 Commissioning • These operating instructions must be given to all persons responsible for operating the machine, especially the chapter "Safety instructions". • Make sure the cutter is correctly fastened. 5.2 Switch on and off • These operating instructions must be given to all persons responsible for operating the machine, especially the chapter "Safety instructions".

  • Page 18: Storage

    BEADex 6.3 Storage If the machine is not used for a long time, it must be thoroughly cleaned (see chapter 6.1). Spray bare metal parts with a rust inhibitor. Store the machine only in dry rooms and protect it from the weather.

  • Page 19: Spare Part List

    Below you will find a graphical overview of the available spare parts. The most needed spare part is: Drawing Article Execution Carbide metal profil plate for BEADex debeading system 15x15x2,0 mm R3 25097 Note: 4 plates are required for a full exchange of worn plates.
  • Page 20 BEADex Technical changes reserved.
