MOBILUS S-WL User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

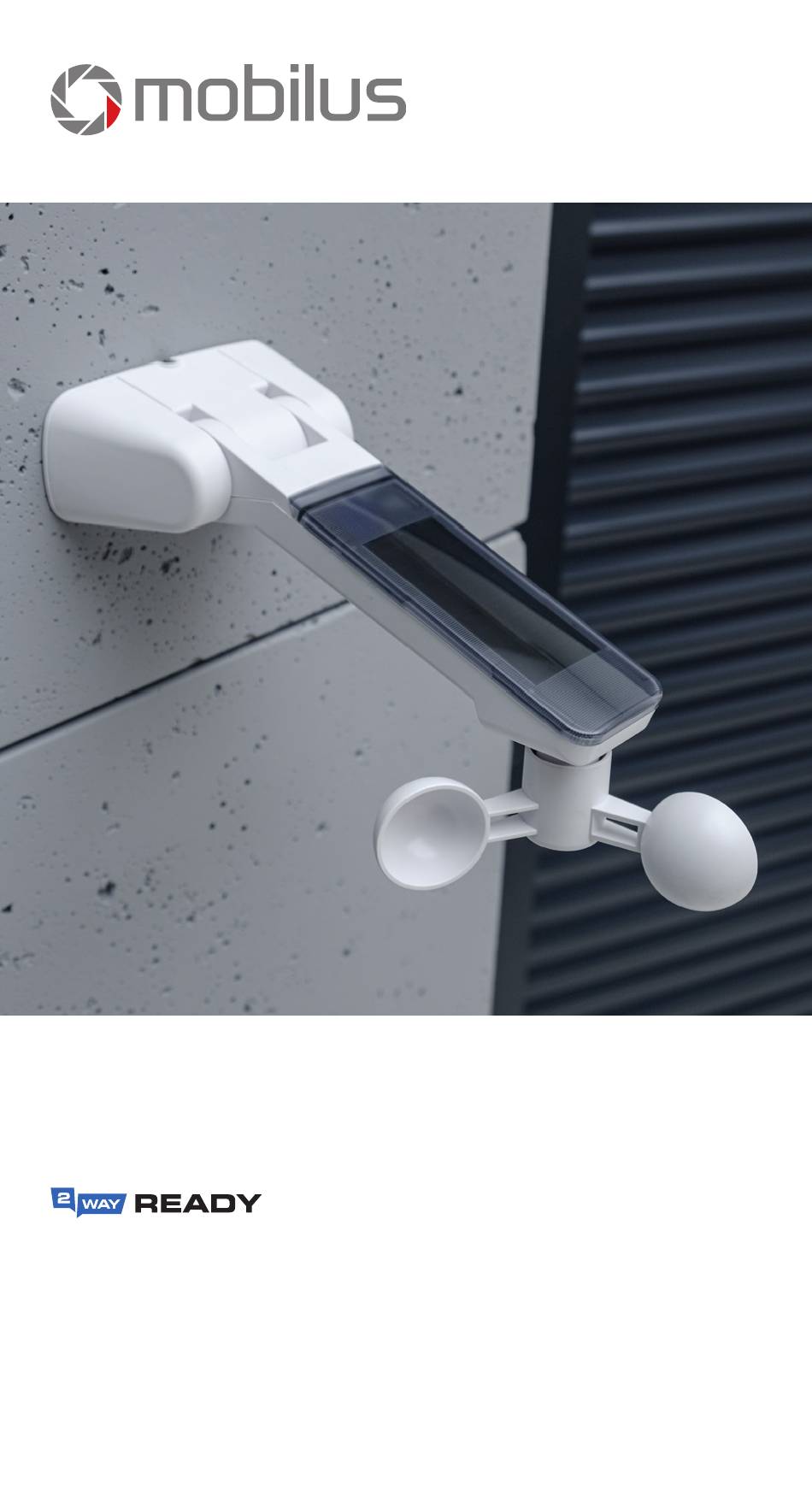

User manual wind and sun
sensor MOBILUS S-WL
MOBILUS MOTOR Spółka z o.o.
ul. Miętowa 37, 61-680 Poznań, PL
tel. +48 61 825 81 11, fax +48 61 825 80 52
VAT NO. PL9721078008
www.mobilus.pl
Wersja 1.1ENG, 220222

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-WL and is the answer not in the manual?

Questions and answers

Summary of Contents for MOBILUS S-WL

  • Page 1 User manual wind and sun sensor MOBILUS S-WL MOBILUS MOTOR Spółka z o.o. ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 VAT NO. PL9721078008 www.mobilus.pl Wersja 1.1ENG, 220222...

  • Page 2: General Information

    1. GENERAL INFORMATION The MOBILUS S-WL sensor is used to monitor wind strength and sunlight. Every gust of wind and light intensity level is recorded, thanks to which you will gain additional automation of your covers (e.g. awning, façade blinds).

  • Page 3: Package Contents

    2. DESCRIPTION OF SENSOR COMPONENTS 3. PACKAGE CONTENTS The package contains the following items: • MOBILUS S-WL sensor. • User manual. 4. TECHNICAL PARAMETERS • Detection of wind speed and light intensity. • One-way communication COSMO | 2WAY READY. • Degree of protection: IP44.

  • Page 4: Installation

    5. DIMENSIONS 6. INSTALLATION Make sure that after attaching the sensor to the surface, the wind cups are parallel to the horizontal surface as shown in the installation drawing. Incorrect installation may affect the accuracy of the recorded wind speed. 7.
  • Page 5 8. CURRENT DEVICE SETTINGS 1. In the factory configuration, the device has sensors wind light disabled - the screen displays the status 00. 2. To change the setting, activate the screen, then hold down one of the K1 or K2 keys until the appropriate fields start flashing - for K1, the area on the left, for K2, on the right.
  • Page 6 8. CURRENT DEVICE SETTINGS Setting 100k After exceeding the set value: A leave command is sent to the device connected to the light sensor. 9. PROGRAMMING - CONNECTING WITH THE RECEIVER To connect the WIND or LIGHT SENSOR to the receiver (blind, roller shutter, power switch), follow these steps.
  • Page 7 NOTES...

  • Page 8: Maintenance Of The Device

    14 business days from the date of acceptance of the device for repair. Warranty repairs are performed by the manufacturer MOBILUS MOTOR Sp. z o. o. If you have any questions, please contact the seller (please provide the following information: description of the event, error, conditions in which the failure occurred).
