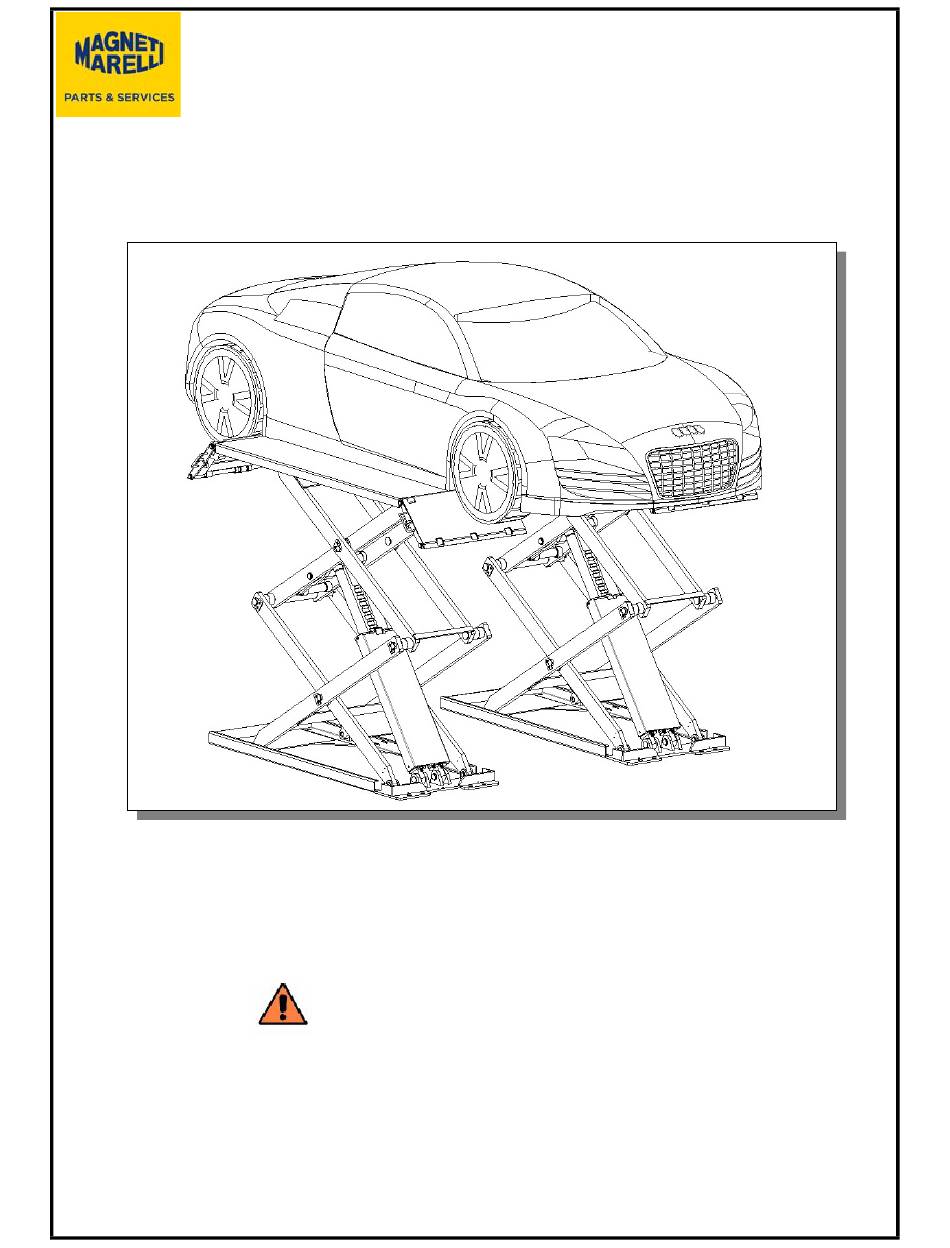

SMALL PLATFORM LOW PROFILE

SCISSOR LIFT

INSTRUCTION & MAINTENANCE

MANUAL

Read this entire manual carefully and completely

before installation or operation of the lift

- 1 -

Table of Contents

Need help?

Do you have a question about the MMUB30Y and is the answer not in the manual?

Questions and answers

Summary of Contents for Magneti Marelli MMUB30Y

Page 1 SMALL PLATFORM LOW PROFILE SCISSOR LIFT INSTRUCTION & MAINTENANCE MANUAL Read this entire manual carefully and completely before installation or operation of the lift - 1 -...
Page 2: Table Of Contents
SCISSOR LIFT INSTRUCTION MANUAL INDEX PAGE 1.Packing, transport and storage .......................... - 3 - 1.1.Packing: ..............................- 3 - 1.2.Transport: ............................... - 3 - 1.3.Storage ..............................- 4 - 2.Manual introduction ............................- 4 - 3.Description of the machine ..........................- 5 - 3.1.Machine Application ..........................
Page 3: Packing, Transport And Storage
1 set(details are in the accessories packing list) Table 1 Packing dimension picture 1610 MMUB30Y:1610X650X23 Picture 1 1.2. Transport: Packing can be lifted or moved by lift trucks, cranes or bridge cranes. In case of slinging, a second person must always take care of the load, in order to avoid dangerous oscillations.
Page 4: Storage
cartons according to <<Accessories Packing List>> to verify the condition of damaged goods and missing parts, also the person in charge or the carrier must be immediately informed. The machine is heavy goods! Don’t take manpower load and unload and transporting way into consideration, the safety of working is important.
Page 5: Description Of The Machine
3. Description of the machine 3.1. Machine Application MMUB30Y small platform low profile scissor lift can lift each kind of vehicle whose weight is less than 3000kg, suitable for use in vehicle tests, maintenance and caring for automobiles, which is particularly suitable for use in the basement or on the floor, without construction and hole.
Page 6: Equipment
One-way valve Control the one-way flow of hydraulic oil. Ball valve Debugging and control the returned oil. Table 2 4. Specifications 4.1 Main technical parameter Machine type MMUB30Y Drive Electrical hydraulic Lifting capacity 3000kg Machine lift height 1850mm Platform initial height...
Page 7 Platform width 660mm Lifting time ≤55s Descent time ≤55s Whole machine length 2020mm Whole machine width 2045mm Power supply 3/N/PE~380V, 50Hz,10A Whole machine power 2.2kw Hydraulic oil 16L corresponds to wearable hydraulic oil Gas pressure 6-8kg/cm Working temperature 5-40℃ Working humidity 30-95% Noisy <...
Page 8: External Dimension Drawing
4.3. Types of vehicles suitable for This lift is suitable for virtually all vehicles with total weight and with dimensions not exceeding the below data. MMUB30Y Maximum weight not exceed than 3000kg. The max dimension of vehicle: The following diagrams illustrate criteria used to define the operating limits of the lift.
Page 9: Safety Notes
Picture 5 MMUB30Y Max. 2000 4000 1900 The lower parts of the vehicle under-body could interfere with structural parts of the lift. Take particular parts of the sports-car. The lift will also handle customized or non-standard vehicles provided they are within the maximum specified carrying capacity.
Page 10 Risk of electric shock: a specific safety notice placed on the lift in areas where the risk of electric shock is particularly high. Risk and protection devices For optimal personal safety and safety of vehicles, observe the following regulations: -Do not enter the safety and safety of vehicles is being lifted. (Picture 7) -Be sure to lift only approved vehicles, never exceed the specified carrying capacity, maximum height, and projection (vehicle length and width);...
Page 11 Picture 11 Risk of impact Before the operator begins up and down movements, make sure that there are no personnel inside the danger zone. When, due to operational reasons, the lift is stopped at relatively low elevations (lower than 1.75m above the ground) personnel must be careful to avoid impact with parts of the machine not marked with special colors.
Page 12: Installation
Risk of electric shock in areas of insulated and shattered electric equipments Do not use jets of water, steam solvents or paint next to the lift, and take special care to keep such substances clear of the electrical control panel. Risks related to appropriate lighting The operator and the maintenance fitter must be able to assure that all the areas of the lift are properly and uniformly illuminate compliance with the laws in force in the place of installation.
Page 13 Picture 15 Note: The foundation of the end of the lift platformP1, P2 is the structure of concrete. When the thickness of inside level ground is less than 150mm, the end of P1, P2 should be irrigated the acreage: 6000×2500mm and thickness of concrete≥150mm The basic thickness of concrete and leveling are keys, shouldn’t egregiously expect the ability of level adjustment of machine-self.
Page 14 Installation scheme for scissor lift Equipment basic picture Picture 16 (The control box can be placed on the left or right) - 14...
Page 15: Platform Installation
Platform Installation: -Place two lift platforms on the position of the location -The bottom of oil cylinder is located in the frontage of machine (the direction of getting on the vehicle) -Use fork car or other lifting equipments to lift the platform (Picture17) and make sure that the safety equipment of machine is both turned on and locked.
Page 16 Level adjustment -By using a level bar and the horizontal pipe and adjusting the adjustment screws at two sides of the base plate. -If platform unevenness is resulted from basic unevenness, use iron block to fill up the low place.(Picture -After level adjustment, insert the central expanded nail of ground bolts and use heavy hammer to hammer it.(Picture 19) -Screw down the ground bolts cap(Picture 20)
Page 17 Only skilled special person is allowed to perform the operations. - open the control box’ front cover -connection of power supply: the 400VAC three-phase and four-line connection wires (4×2.5mm2 cable wire) for power supply are connected to L1,L2,L3, and PE labeled entering-wire terminal in control box. The PE ground wire is connected under the bolt marked ground firstly (Picture 22) and then connected under the bolt marked ground of two platforms.
Page 18: Adjustment
In the process of windpipe installation, the windpipe cannot be folded or tied to avoid that the gas loop is not smooth or it is jammed. Before leading the compressed air supply pipe to the air supply jaws of pneumatic electromagnetic valve inside the control box, should extra install grease separator to separate compressed air, avoiding the failure of pneumatic cell action.
Page 19 at the same level. Then close the valve I OR the valve H .Open the valve G. Check: whether the locations of two safety-pawl equipments are agile and reliable, no leakage of the hydraulic system and the air system. When conducting oil make-up operation, the platforms must not be load. Picture 26 No load of main machine test: -Turn on the power QS.
Page 20: Operation
8. Operation Only skilled and having been trained personnel is allowed to perform the operations. Check proceedings as following. Text before operation: -Clear obstacles around the lift before operation. -Pay attention to the synchronization and placidity of the lifting. -Check whether the safety claw is flexible and reliable. -Check whether the lift will stop automatically when it lift to the highest position -No air leakage in the solenoid valve,air cylinder,air hose and union.
Page 21 Raising Lowering Locking Turn on the power switch Turn on the power switch Turn on the power switch Press UP button Press DOWN button Press the LOCK button Motor drives the gear pump work The platforms will first raise a little The lift is locked Cylinder piston drives the platform move up Then the platforms begin to lower...
Page 22: Maintenance And Care
9. Maintenance and care Skilled personnel only is allowed to perform the operations Daily checking items The user must perform daily check. Daily check of safety system is very important – the discovery of device failure before action could save your time and prevent you from great loss, injury or casualty. ·Always wipe clean, keep the machine clean.
Page 23: Trouble Shooting Table
10. Trouble shooting table Skilled personnel only is allowed to perform the operations Failure Phenomena Cause and Phenomena Resolutions The motor does not run ①Connection of power supply wires is not Check and correct wire connection in lifting operation. correct. If the motor operates when forcing the contactor down ②The AC contactor in the circuit of the with an isolation rod, check the control circuit.
Page 24: Hydraulic Pressure Elements Diagram
11. Hydraulic pressure elements diagram 1. Main machine sub cylinder 2. Main machine main cylinder 3. Sub machine sub cylinder 4. Sub machine main cylinder 5. Stop valve 6. One-way valve 7. Overflowing valve 8. Descent valve 9.Gear pump 10. Throttling valve 11.
Page 25: Hose Connection Diagram
12. Oil hose connection diagram 1. 142#~147# High pressure pipe 2. A: Descent valve; B: Descent coil; C: One-way valve; D: Motor; E: Plug ; F: Overflow valve; G: Working valve; H/I: The oil make-up stop valve - 25...
Page 26: Circuit Diagram
13. Circuit diagram - 26...
Page 27 - 27...
Page 28 14. Gas loop diagram - 28...
Page 29: Explosion Drawing
15. Explosion drawing - 29...
Page 30 XG-3B2-020500-0 loading dock board roller XZ-3B2-020100-0 loading dock board support assembly 1 B-055-200001-0 shaft snap ring Ø20 XZ-3B2-020000-Z loading dock board 1 XX-3B2-000800-0 loading dock board shaft XZ-3B2-010000-Z top plate XZ-3B2-020000-Z loading dock board 2 XZ-3B2-020100-0 loading dock board support assembly 2 - 30...
Page 31 XZ-3B1-100000-Z insurance strip XZ-3B1-090000-Z starting rod XX-3B1-001600-0 oil cylinder upper spacer sleeve（thick） XX-3B1-001700-0 oil cylinder upper spacer sleeve（thin） B-055-300001-0 shaft snap ring Ø30 XZ-3B1-000600-0 piston rod stationary shaft XX-3B1-000500-0 starting rod stationary shaft XX-3B1-001300-0 starting rod sliding sleeve XX-3B1-001400-0 starting rod spacer sleeve SG-3B1-000800-0 insurance block XX-3B1-001500-0...
Page 32 XG-3B1-000900-0 upper sliding block XZ-3B1-040000-Z connecting rod(up&outer) XZ-3B1-040000-Z connecting rod(up&inner) XX-3B1-000400-0 inner scissor stationary shaft(up&down) XX-3B1-001100-0 stop plate key B-010-080161-0 hex socket cap screw M8×16 XZ-3B1-030000-Z connecting rod(down&inner) XZ-3B1-020000-Z connecting rod(down&outer) XG-3B1-001000-0 lower sliding block XX-3B1-000200-0 center shaft B-055-250001-0 shaft snap ring Ø25 XX-3B1-000100-0 inner scissor stationary shaft(up&down) XX-3B1-000300-0...
Page 33 B-007-080121-0 hex socket set screws with cone point M8×12 XZ-3B1-110400-0 oil cylinder support block S-005-053065-0 dust-proof ring Ø45×53×6.5 S-045-008025-0 wear ring Ø45×8×2.5 S-006-055006-0 U-ring Ø45×55×6 XZ-3B1-110300-0 main oil cylinder cover S-000-075004-0 O-ring Ø75×4 XG-3B1-110200-0 piston rod S-007-055224-0 combined seal ring Ø75×55×22.4 XZ-3B1-110100-0 main cylinder piston XZ-3B1-110200-Z...
Page 34 B-007-080121-0 hex socket set screws with cone point M8×12 S-040-003048-0 shaft steel sleeve 343048 XZ-3B1-110400-0 oil cylinder support block S-005-053065-0 dust-proof ring Ø45×53×6.5 S-045-008025-0 wear ring Ø45×8×2.5 XZ-3B1-120200-0 sub oil cylinder cover S-000-060004-0 O-ring Ø60×4 XG-3B1-110200-0 piston rod S-040-003025-0 shaft steel sleeve 343025 S-007-044184-0 combined seal ring Ø60×44×18.4 XZ-3B1-120100-0...
Page 35 XZ-3B1-010000-Z base B-055-300001-0 shaft snap ring Ø30 XX-3B1-000700-1 oil cylinder stationary shaft S-060-008122-0 upper limit switch 8122 XX-3B1-002700-0 lower limit switch block B-024-040161-0 cross pan head screw M4×16 hex socket cap screw M5×12 - 35...
Page 36 - 36...
Page 37 S-060-130020-0 locking button switch 2NO S-060-150011-0 down button switch 3NO1NC D-102-038022-0 buzzer D-090-024022-0 signal S-060-262004-1 power switch S-060-130021-1 lift button switch 2NO1NC control box cover B-024-040101-0 cross pan head screw M4×10 B-050-040000-0 spring washer Ø4 B-040-040908-1 flat washer Ø4 B-004-040001-1 hex nut M4 cover board hinge B-024-040251-0...
Page 38 B-021-040010-0 cross pan head screw M4×10 B-050-040000-0 spring washer Ø4 B-040-040908-1 flat washer Ø4 D-101-091000-0 lead rail S-052-110220-2 transformer D-073-UK25B0-D fixed terminal D-073-UK25B0-0 phoenix terminal D-073-SV1250-5 earth terminal H-030-010030-0 intermediate relay H-030-010020-1 time relay H-030-010030-0 relay socket H-030-010020-2 relay socket H-030-010030-0 circuit breaker H-030-050011-2...
Page 39 B-040-051010-1 flat washer Ø5 wiring duct wiring duct cover wiring duct B-004-040001-1 hex nut M4 DX-00K-000300-0 power panel B-004-050001-1 hex nut M5 - 39...
Page 40 S-048-380503-2 3ph motor S-048-220501-2 1ph motor I1(optional) S-048-000013-G valve block anchor ear B-004-060001-1 hex nut M6 S-048-000004-G overflow valve plug M20 S-047-000250-0 pressure-compensated valve S-048-000002-G normally closed lowing electromagnetic valve spool S-048-000003-G lowing valve coil S-048-000005-G one-way valve combined seal ring Ø20 combined seal ring Ø14 S-011-010400-10 oil pipe straight union end face G1/4--R1/4...
Page 41 B-014-050101-1 outer hex socket bolt M5×10 hex socket cap screw M5×16 B-042-120001-0 combined seal ring Ø12 B-014-120201-1 outer hex socket bolt M12×20 oil tank rectangle seal ring 9.5×1.7 S-048-000022-G plug G1/4 Q-001-000470-0 high-pressure oil pipe 600mm Q-001-001100-0 high-pressure oil pipe 1100mm Q-001-000800-1 high-pressure oil pipe 800mm Q-001-000800-1...
Page 42 16. Accessories Packing List Of MMUB30Y Name Spec. Rubber mat(filmy) 160mm*120mm*35mm High pressure oil 3.75m (145#) hose 3.95m (146#) 4.25m (147#) Air Cylinder union φ6*4 Air hose T-union φ6*4 Foundation bolt 12set Foundation bolt 24set Air hose φ6*4 1700mm φ6*4 3500mm Φ8*5...
