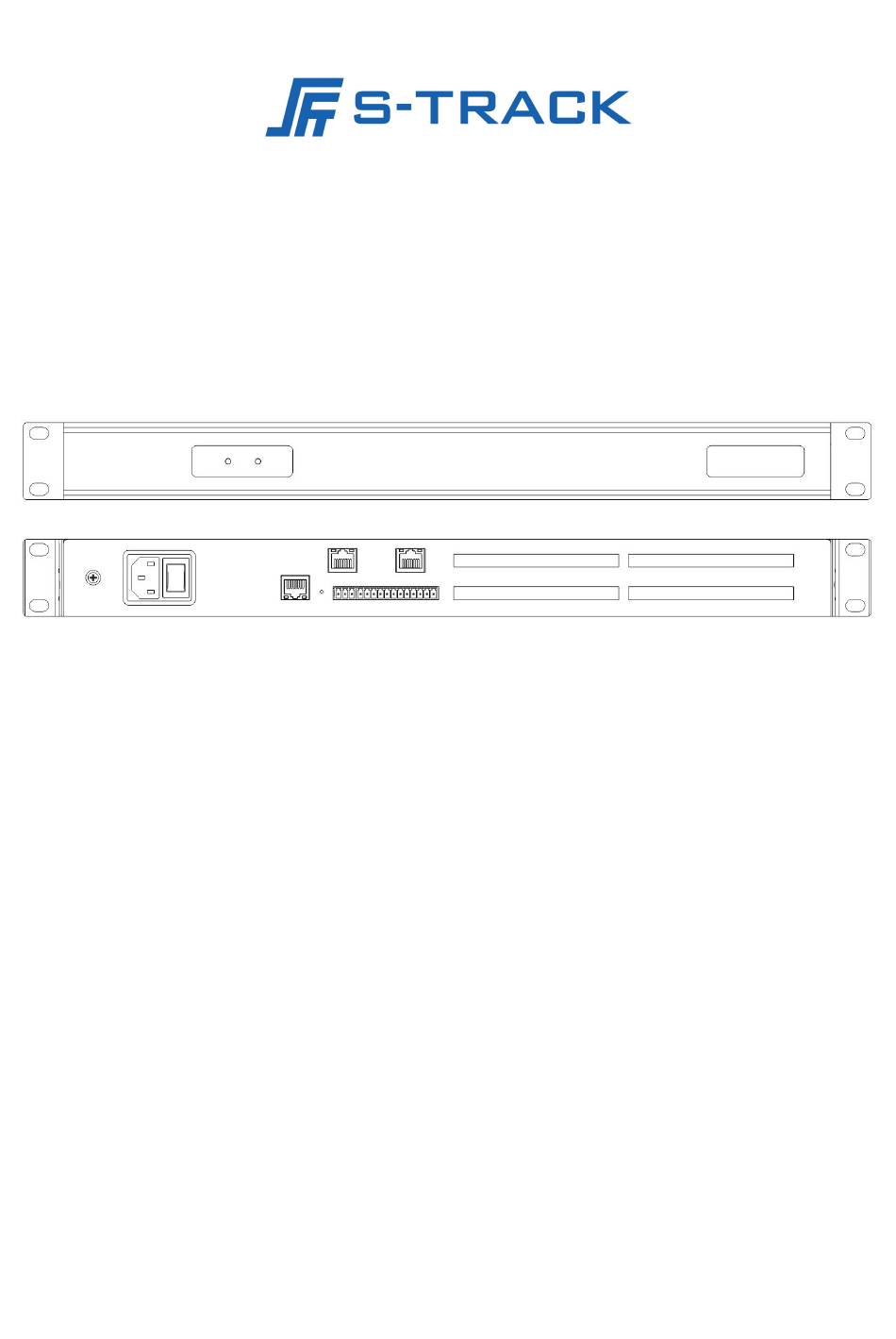

Page 1 DCORE 6464 Digital Audio Server User Manual...
Page 2: Symbol Conventions
DCORE 6464 Digital Audio Server Preface The purpose of this section is to ensure that the user is able to use the product correctly through this manual in order to avoid danger in operation or property damage. Before using this product, please read the product manual carefully and keep it for future reference.
Page 3 DCORE 6464 Digital Audio Server  Always unplug the unit's power adapter from the AC power outlet before: A. Removing or reinstalling any part of the equipment; B. Disconnecting or reconnecting any electrical plug or connection of the equipment. Do not operate with electricity.
Page 4 DCORE 6464 Digital Audio Server − Basic knowledge and skills in low voltage cabling and wiring of low voltage electronics. − Basic audio and networking knowledge and skills and the ability to read and understand the contents of this manual.
Page 5: Table Of Contents
DCORE 6464 Digital Audio Server TABLE OF CONTENTS Chapter 1 Product Introduction ......................1 1.1 Introduction ........................1 1.2 Product Features ........................ 1 Chapter 2 Specification ........................1 Chapter 3 Interface Description ......................2 3.1 Front Panel ......................... 2 3.2 Rear Panel .......................... 2 Chapter 4 Instructions for Use ......................
Page 6 DCORE 6464 Digital Audio Server 4.6.4 Limiter ........................25 4.6.5 Output Setting ......................26 4.7 Other Functions ....................... 27 4.7.1 Channel Control ...................... 27 4.8 Dante Network Audio Routing ..................28 Chapter 5 Packing List ........................29...
Page 7: Chapter 1 Product Introduction
DCORE 6464 Digital Audio Server Chapter 1 Product Introduction 1.1 Introduction This equipment supports a maximum of Dante channel 64 in 64 out, high-quality 21-stage preamplification circuit, DSP processing bus structure, restore high-quality sound, mainly used in a variety of large-scale venues, can meet the theater, concert halls, remote video conferencing, sports stadiums, churches, conference centers, theme parks, public sound reinforcement systems, and other aspects of the application of the needs.
Page 8: Chapter 3 Interface Description
DCORE 6464 Digital Audio Server Number of GPIO 8, freely configurable inputs and outputs Number of RJ45 DANTE Network Primary + Secondary DANTE Network Delay <1ms Delay storage Power Consumption <40W Operating Power AC110V-220V,50Hz/60Hz Operating Temperature 0-40℃ Size (WxDxH) 486*258*44mm Chapter 3 Interface Description 3.1 Front Panel...
Page 9: Chapter 4 Instructions For Use
DCORE 6464 Digital Audio Server Dante: Dante network audio transmission interface, equipped with primary and secondary dual network interface, can be used for redundant backup of Dante network signals; RESET: Reset button, long press to restore factory settings and restart the processor;...
Page 10: Pc Software Login Connection
DCORE 6464 Digital Audio Server Software download screen: 4.2 PC Software Login Connection 4.2.1 Login Click the [Search] button, when the device list is refreshed, the online device [Model Name] will be displayed in the list column, double-click the corresponding device [Model Name] in the list...
Page 11: Ip Address Modification
DCORE 6464 Digital Audio Server 4.2.2 IP Address Modification When the IP information of the device is not in the same network segment as the client, an 'exclamation mark' will appear in front of the model name of the device in the list of settings, at this time, you only need to double-click on the [model name] to bring up the IP information modification [dialogue box] and then you can modify the IP address.
Page 12: File
DCORE 6464 Digital Audio Server Button：Interface lock button: locks the current interface, which must be unlocked with the administrator password. 4.3.2 File New: Create a new scene, the parameters are factory configured and only available offline. Open: Open the locally saved scene.
Page 13 DCORE 6464 Digital Audio Server Modify user: first select the user you want to modify in the user list, the user name and password edit box will display the information of the currently selected user, enter the new information and click the "Modify" button.
Page 14 DCORE 6464 Digital Audio Server III. Serial Setting Serial window can view or modify the RS232/RS485 serial port number baud rate, check bit, data bit, stop bit settings are complete, click on the [Apply] button to modify the current device's serial port information, such as the need to restore to the initial default value, click on the [Reset] button, you can restore the settings of the parameter can not be empty.
Page 15 DCORE 6464 Digital Audio Server IV. Scene Setting Load Scene: Enable the currently selected scene, usually used for scene replacement; Save As: Save the selected scene locally; Save: Save the currently running parameters to the selected scene; Upload: Upload the scene from PC and overwrite the selected scene;...
Page 16 DCORE 6464 Digital Audio Server Tracking type: There are camera tracking and custom commands. Camera tracking is used to control camera rotation by channel input signal; custom command sending is used to send corresponding custom commands to the corresponding port by channel input signal.
Page 17 DCORE 6464 Digital Audio Server The microphone number generally corresponds to the input channel of the device, i.e. it is the channel number to which the microphone is connected. The microphone number with # is a virtual number, which can only be used to set the default microphone.
Page 18 DCORE 6464 Digital Audio Server Camera Setting is a camera debugging interface, generally debug the camera position before tracking starts, and finally the parameters of this part will be saved on the camera. Firstly, serial port setting, there are 2 serial ports (232, 485), which correspond to the back panel port that the PTZ is connected to;...
Page 19 DCORE 6464 Digital Audio Server used to trigger another GPIO or other devices. Output Connection 2： Driver relays (control type): Relays can be used to control alarm devices, etc., with built-in current-continuing diodes. Trigger Type: Rising edge input: The IO port is held high when there is no input;...
Page 20: Viewing
DCORE 6464 Digital Audio Server Display], trigger type [Output Low, No Output High], parameter setting [Inputs] channel selection [Input 2], and clicks the [Apply] button at the bottom of the window. When the device input IN2 channel is muted, the corresponding GPIO-2 pin output is '1', and when the IN2 channel is unmuted the output is '0'.
Page 21: Pre-Processing
DCORE 6464 Digital Audio Server Upgrade: for updating the system software version; About: display software version information. 4.4 Pre-processing 4.4.1 Input Setting Model type: Analog input or test signal; Sensitivity: Analog signals can be adjusted by adjusting the sensitivity of the input can be selected, from 24 ~ -27dBu, step 3dBu a grade;...
Page 22: Parametric Equalizer
DCORE 6464 Digital Audio Server to the set "ratio", the output level = Threshold - (Threshold - Input Level)/Ratio; when the input signal is greater than the "threshold", it will be output at 1:1, the output level = Input Level. When the input signal is greater than the "Threshold", the output is 1:1 and the output level = input level.
Page 23: Compressor
DCORE 6464 Digital Audio Server Reset: all band filter parameters are restored to the default state; Enable/Pass-through: enable or disable all band filters; Band Pass-Through/Enable: whether the band equalizer is valid or not; Centre Frequency: the centre frequency that needs to be equalized;...
Page 24: Auto Gain
DCORE 6464 Digital Audio Server Valve: The signal level above this valve starts to reduce the gain. This point is at the inflection point in the input/output curve. For Peak Stop, the threshold to be stopped is set just below the peak level;...
Page 25: Automixer
DCORE 6464 Digital Audio Server the speech is intermittent. Auto Gain is to set the threshold value for the input signal below the threshold in accordance with the ratio of 1:1 output, for the level above the threshold is in accordance with the ratio of direct enhancement, set the target level, the sound signal can be stable output.
Page 26 DCORE 6464 Digital Audio Server Each channel of the Automixer has an input, gain level meter and an auto gain, channel fader, priority, and channel mute. Channel Controls Each channel has an "Auto" button that is pressed to add the channel to the Automixer. Channel Mute and Fader are both Auto Gain types. To mute a signal and prevent it from going into the Automixer, turn Mute on and off.
Page 27: Matrix Mixer
DCORE 6464 Digital Audio Server 4.5 Matrix Mixer Matrix both signal routing and mixing double multiplexing function, the control logic is horizontal for the input channel, vertical for the output channel, the matrix initialization state is (as shown in the figure above: one-to-one) input and output.
Page 28: Post-Processing
DCORE 6464 Digital Audio Server 4.6 Post-processing 4.6.1 Delay The time interval between the input of a signal to this processor and the output of this processor is generally used to produce other effects such as reverberation or echo, and can equally be used to act as a treatment for auxiliary loudspeakers in larger rendition situations.
Page 29: Xover
DCORE 6464 Digital Audio Server 4.6.2 XOVER Filter Type: Butterworth/Bessel/Linkwitz-Riley Slope: 6/12/18/24/30/36/42/48 High-pass frequency: Cut-off frequency of high-pass filtering; Low-pass frequency: cut-off frequency point of low-pass filtering; High frequency pass-through/enable: enable and disable the high pass filter; Low frequency pass-through/enable: enable and disable the low-pass filter;...
Page 30: Graphic Equalizer
DCORE 6464 Digital Audio Server 4.6.3 Graphic Equalizer Narrowband: narrowband equalization filter; Normal: regular equalization filter; Wideband: wideband equalization filter; Centre frequency: centre frequency indication of the current equalization filter; Gain: Gain indication or control of the current equalization filter;...
Page 31: Limiter
DCORE 6464 Digital Audio Server 4.6.4 Limiter Enable/Pass-through: enable or disable the limiter for the current channel; Threshold: the starting level of the limiter, when the signal is higher than this limit value, the limiter processing module will be activated;...
Page 32: Output Setting
DCORE 6464 Digital Audio Server 4.6.5 Output Setting Mute: Control the output channel mute; Invert: set the output channel signal 180°inverted.
Page 33: Other Functions
DCORE 6464 Digital Audio Server 4.7 Other Functions 4.7.1 Channel Control Input Channel Control and Shortcut...
Page 34: Dante Network Audio Routing
DCORE 6464 Digital Audio Server Output Channel Control and Shortcut 4.8 Dante Network Audio Routing In a Dante audio network, the Dante Controller software is required to set up the routing of the various signals accessing the processor. It can realize 1-to-1, 1-to-N mapping operation from input to output within Dante network.
Page 35: Chapter 5 Packing List
DCORE 6464 Digital Audio Server Chapter 5 Packing List Device Power Quick 12pin 3pin Small Cable Guide Phoenix Phoenix Screwdriver Connector Connector 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS...
Page 36: Warranty Regulations
Warranty Regulations The warranty period for this product is 1 year. During the warranty period,non-man-made damage or performance failures can enjoy a Three Guarantees Service(Repair, Replacement, and Refund Service) . The warranty card is effective only after being stamped by the sales unit. Alterations will invalidate The following conditions (including, but not limited to) are not covered by the Three Guarantees Service : 1.
Page 37 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
