orfit iBEAM 32132 Instructions For Use

HIGH PRECISION iBEAM® EVO
HEAD (& NECK) EXTENSION
BASIC MODULE
Article No. : 32132 & 32133
A. GENERAL PRODUCT INFORMATION
The products referred to in these instructions are medical
devices used for patient positioning and immobilisation in
radiation therapy. These products may only be used in
combination with immobilisation masks produced by Orfit. Orfit
prohibits the use of unauthorised third-party products in
conjunction with its own products.
B. PRODUCT DESCRIPTION

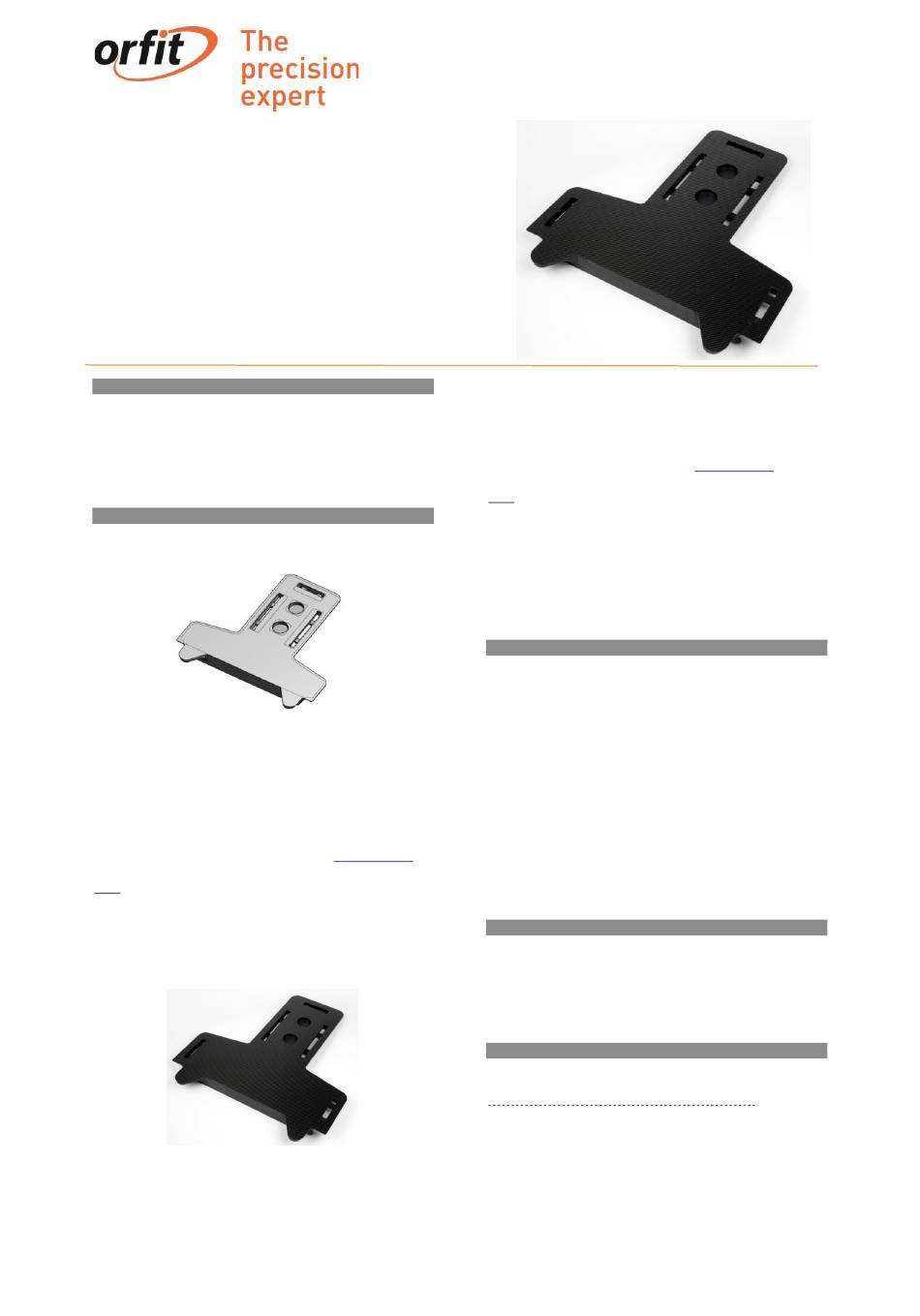

32132 – High Precision iBEAM® evo Head Extension
The High Precision iBEAM® evo Head Extension in Carbon Fibre
Laminate (CFL) is suitable for use in combination with the range
of Efficast® and Nanor® thermoplastic head & neck masks,
Raycast® High Precision Head Supports, Blocks and Wedges to
form a reproducible patient positioning and immobilisation
device in the field of radiotherapy. Information on these other
parts and instructions on how to make the masks can be found
in the respective 'instructions for use' and on www.orfit.com.
Note: The High Precision iBEAM® evo Head Extension can only
be used for cranial fields and is only compatible with 3-points
immobilisation masks. The base plate doesn't allow the use of
5-points immobilisation masks.
32133 – High Precision iBEAM® evo Head & Neck Extension
The High Precision iBEAM® evo Head & Neck Extension in
Carbon Fibre Laminate (CFL) is suitable for use in combination
with the range of Efficast® and Nanor® thermoplastic head &
INSTRUCTIONS FOR USE
neck masks, head, neck & shoulders masks, Raycast® High
Precision Head Supports, Blocks and Wedges to form a
reproducible patient positioning and immobilisation device in
the field of radiotherapy. Information on these other parts and
instructions on how to make the masks can be found in the
respective 'instructions for use' and on www.orfit.com.
Note: The High Precision iBEAM® evo Head & Neck Extension
can only be used for lower head & Neck fields (10cm caudal
from the patient's skull).
The High Precision iBEAM® evo Head (& Neck) extensions attach
to the end of the iBEAM® evo couchtop, Connexion™,
HexaPOD™ evo RT Couchtop and iBEAM® evo CT Overaly as the
base end of the boards mate precisely with the end piece of
these couches.
C. PRECAUTIONS FOR USE
Always make sure the base plates are firmly attached to the
iBEAM® evo couch before positioning a patient.
The maximum allowed load distributed evenly on both
extensions is 40k g/ 88.18 Ibs.
The CFL base plates are constructed to be light in weight and to
have superb dosimetric properties. When handled roughly, they
may get damaged and fibres may come off. When this happens,
stop using the base plates to prevent fibres from getting into
contact with the patient's or user's skin. Periodic checks of the
products should be done to insure the parts are not worn and
require repair or replacement. Do not attempt to make repairs
yourself, but contact your distributor if there are any questions
or concerns.
D. STORAGE
Always store the products in a safe place to prevent them from
getting damaged or falling onto other objects. Take care not to
damage the edges of the plates when storing them in an upright
position. Prevent hard objects from falling onto the plates.
Store the base plates between +10°C (50°F) and 40°C (122°F).
E. PROPERTIES
E.1. Physical Properties
32132 – High Precision iBEAM® evo Head Extension
Dimensions: L 45.0 cm x W 53.0 cm x H 5 cm
L 17.72" x W 20.87" x H 1.97"
Weight: 1.2 kg / 2.65 lbs
