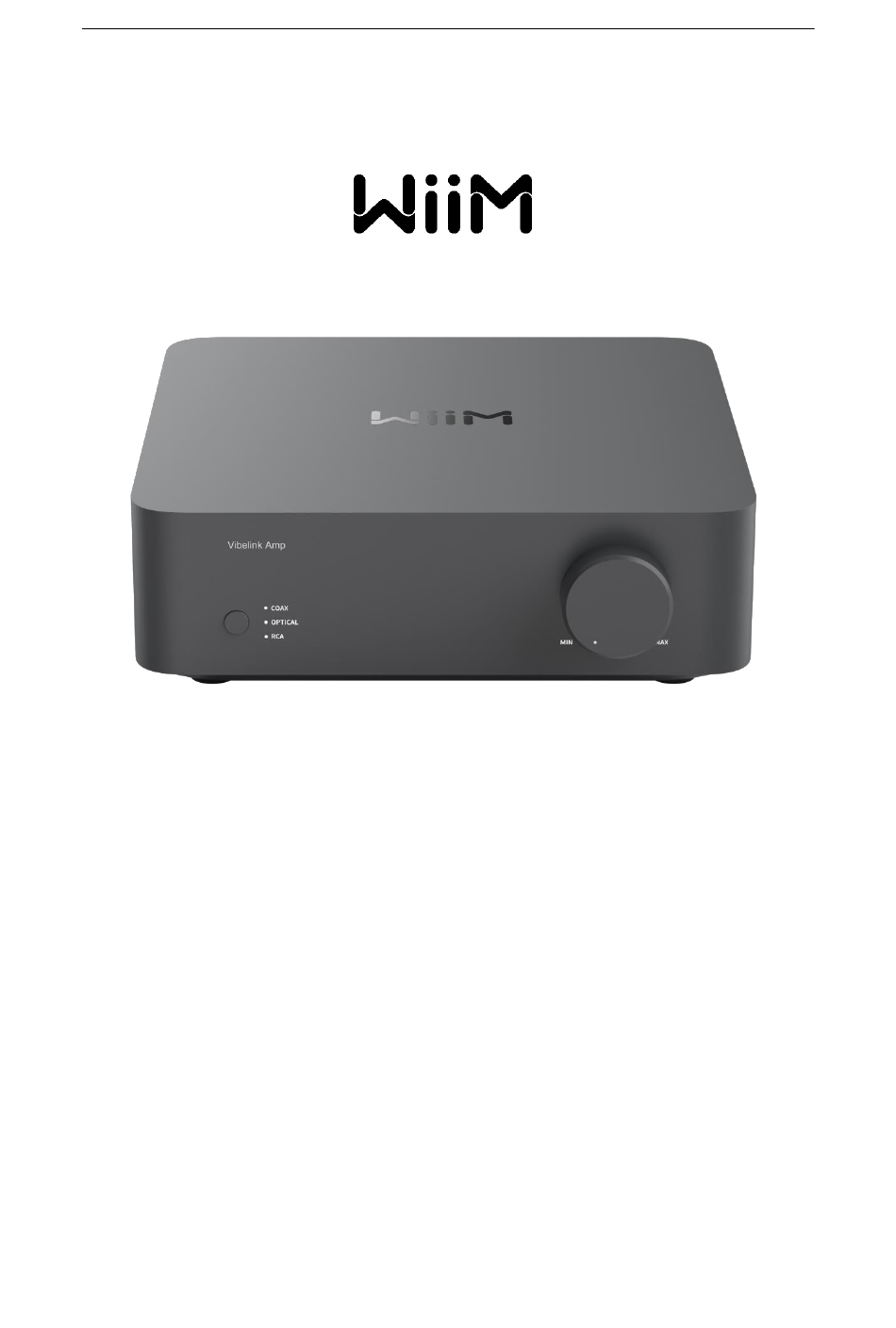

- Page 1 WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 WiiM Vibelink Amp: Stereo Amplifier Unleash the Power of Pure Sound...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................ 2 Typical Use Cases ....................3 Other Devices Needed to Use the WiiM Vibelink Amp ........... 4 Audio Devices Work with the WiiM Vibelink Amp ........... 5 What's in the Box ....................... 6 Technical Specifications ................... 7 WiiM Vibelink Amp Controls, Interfaces, and Lights .......... -
Page 3: Introduction
Additionally, the WiiM Vibelink Amp offers seamless integration with the entire WiiM system. Simply connect the WiiM Vibelink Amp to a WiiM streamer (e.g., WiiM Mini, WiiM Pro, WiiM Pro Plus, and WiiM Ultra) to unlock flawless streaming. -
Page 4: Typical Use Cases
Version 1.0.1 3/31/2025 Typical Use Cases The WiiM Vibelink Amp is designed to enhance your existing audio setup with the powerful amplification capabilities and superior sound quality. Here are a few common use cases for the WiiM Vibelink Amp: ⚫ Power Your Favorite Passive Speakers: Connect and power your traditional wired passive speakers, including bookshelf, floor-standing, in-wall, in-ceiling or outdoor speakers. -
Page 5: Other Devices Needed To Use The Wiim Vibelink Amp
3/31/2025 Other Devices Needed to Use the WiiM Vibelink Amp To use the WiiM Vibelink Amp, you will need a few essential devices and components. Here's a list of what you'll need: ⚫ Passive Speakers: The WiiM Vibelink Amp is designed to connect to your passive speakers such as bookshelf, floor-standing, in-wall, in-ceiling or outdoor speakers. -
Page 6: Audio Devices Work With The Wiim Vibelink Amp
The WiiM Vibelink Amp can work with your passive speakers, including bookshelf, floor- standing, in-wall, in-ceiling or outdoor speakers. It can play audio from a WiiM streamer— such as the WiiM Mini, WiiM Pro, WiiM Pro Plus, or WiiM Ultra—as well as from other sources like a TV or CD player. -
Page 7: What's In The Box
WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 2. What's in the Box WiiM Vibelink Amp 2． Quick start guide 100~240V AC power cable RCA audio cable Optical cable 12V trigger cable Speaker banana plugs... -
Page 8: Technical Specifications
WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 3. Technical Specifications Category Specification TI TPA3255 Audio Amplification Class-D with PFFB (Post-Filter Feedback) technology DAC IC ESS ES9039Q2M Analog Out SNR 120 dB THD+N (Analog Out) -105 dB (0.0005%) RCA In: ⚫... -
Page 9: Wiim Vibelink Amp Controls, Interfaces, And Lights
WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 4. WiiM Vibelink Amp Controls, Interfaces, and Lights Front Panel Controls and Lights Each numbered control or interface on the front panel is explained below: Press to switch the input mode between Coax, Mode Switch Optical, and RCA. -
Page 10: Back Panel Controls And Interfaces
Allows external devices (e.g., a WiiM Ultra) to 12V Trigger In control the power on/standby of the WiiM VibeLink Amp. For connecting digital audio sources (e.g., a Optical In WiiM Mini, WiiM Pro, WiiM Ultra, or TV) using an optical cable. - Page 11 Version 1.0.1 3/31/2025 For connecting digital audio sources (e.g., a COAX In WiiM Pro or WiiM Ultra) using a coaxial cable. Two RCA jacks (red and black) for connecting RCA In analog audio sources (e.g., a WiiM Pro, WiiM Ultra, or CD player) with an RCA cable.
-
Page 12: Led Status Light
WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 LED Status Light LED Color/Pattern State Slow Flashing White on Coax Mode Boot-up Solid Light Green RCA-in mode Solid Orange Optical-in mode Solid Purple Coax-in mode Slow Flashing White and Green on Current... -
Page 13: How To Get Started
3. Power on the WiiM Vibelink Amp. 4. Set input mode on the WiiM Vibelink Amp. By completing these steps, your WiiM Vibelink Amp will be ready for use. The following sub-chapters will provide detailed instructions for each step. Connect the WiiM Vibelink Amp's Audio Output The WiiM Vibelink Amp features the Speaker Out interface, which is designed to connect to passive speakers. - Page 14 WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 Note: Ensure that the connector colors (red and black) match the corresponding terminals on the WiiM Vibelink Amp and the speakers.
-
Page 15: Connect The Wiim Vibelink Amp's Audio Input
Note: The Optical In and COAX In interfaces on the WiiM Vibelink Amp support PCM audio format only. Please ensure that the audio source device connected to the WiiM Vibelink Amp is set to output audio in PCM format. Otherwise, you may not hear sound. - Page 16 Scenario 1: Analog RCA In Audio Source Input (WiiM Streamer, CD Player, Turntable with Preamp) The RCA In interface on the WiiM Vibelink Amp is typically used to connect to a WiiM streamer (e.g., WiiM Pro Plus, WiiM Ultra), CD Player, turntable with a preamp to receive analog audio input.
- Page 17 WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 source.
- Page 18 Scenario 2: Optical In Audio Source Input (WiiM Streamer, TV, CD Player) The Optical In interface on the WiiM Vibelink Amp is typically used to connect to a WiiM streamer (e.g., WiiM Mini, WiiM Pro, WiiM Ultra), TV, CD player to receive digital audio input.
- Page 19 Note: The Optical In interface on the WiiM Vibelink Amp supports PCM audio format only. Please ensure that the audio source device connected to the WiiM Vibelink Amp is set to output audio in PCM format. Otherwise, you may not hear sound.
- Page 20 Scenario 3: COAX In Audio Source Input (WiiM Streamer, CD Player, DAC) The COAX In interface on the WiiM Vibelink Amp is typically used to connect to a WiiM streamer (e.g., WiiM Pro, WiiM Pro Plus, WiiM Ultra), CD player, or DAC to receive digital audio input.
-
Page 21: Use 12V Trigger In
When put into standby via the 12V trigger input, the WiiM Vibelink Amp will automatically enter sleep mode after 30 minutes, reducing power consumption to just 0.5W. While in sleep mode, the WiiM Vibelink Amp can be awakened in any of the following ways: ⚫... -
Page 22: Power On The Wiim Vibelink Amp
WiiM Vibelink Amp. Use the supplied AC power cable to connect the WiiM Vibelink Amp to a power outlet. This cable is specifically designed to support a wide range of voltages, accommodating 100- 240V AC, 50/60 Hz with a maximum current of 3A. -
Page 23: Set Input On The Wiim Vibelink Amp
Version 1.0.1 3/31/2025 Set Input on the WiiM Vibelink Amp Press the Mode Switch button on the WiiM Vibelink Amp to select the input mode corresponding to the interface used to connect your audio source. For details, see Front Panel Controls and Lights. -
Page 24: Play And Enjoy Music At Home
Once the above connections and settings are complete, it's time to immerse your space in rich, high-quality audio. Simply play music from your favorite audio sources, such as a TV, WiiM streamer, amplified turntable, CD player and enjoy crisp, immersive sound that elevates your home listening... -
Page 25: Faq And Support
WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 6. FAQ and Support If you experience problems with the WiiM Vibelink Amp, try these solutions first: ⚫ What can I do if my device has no sound? Please check the following: Input Selection: Ensure the correct input source is selected on the WiiM Vibelink Amp. -
Page 26: Support
If you are unable to resolve your issue, please follow one of the methods below to reach out to us for assistance: ⚫ WiiM Home app: Go to More > Feedback or More > FAQ to submit a ticket. You will receive email response from WiiM Support in the next 24 hours. ⚫... -
Page 27: Important Safety Instructions
WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 7. Important Safety Instructions IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. - Page 28 WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 21. Contains small parts which may be a choking hazard. Not suitable for children under age 3. 22. This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.
-
Page 29: Ce/Fcc/Ic Statements
WiiM Vibelink Amp User Manual Version 1.0.1 3/31/2025 8. CE/FCC/IC Statements FCC/IC Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
