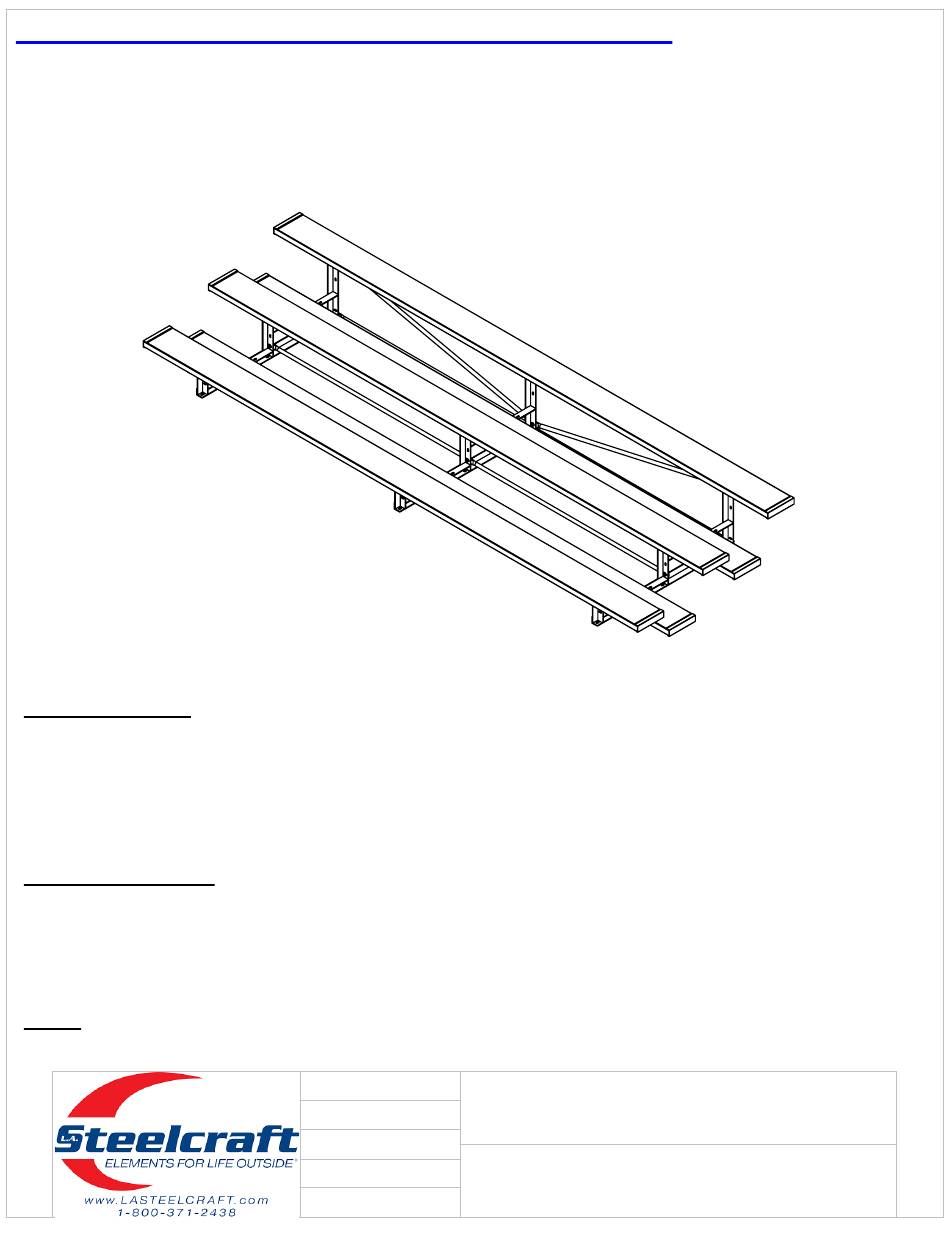

STANDARD SERIES 3-ROW 15' BLEACHER
MODEL LA-BL0315SG
MODEL LA-BL0315SA
Standard Series designed for dependability and trouble-free maintenance. Featuring 6"
rise from row to row with nominal 10" aluminum planks and optional 2" x 6" ground sills
SPECIFICATIONS:
Bleacher Frames are fabricated from 2" x 2" x 3/16" steel or aluminum angle. Frames are welded
into a single unit. Frames may have optional 2" x 6" ground sills at every point where frames are
in contact with the ground.
Standard Series Bleachers conform to the requirements of ICC 300-2012.
Seat and Foot Planks: Nominal 2" x 10" x 15' extruded, ribbed aluminum. The edges and tops of
planks shall be ribbed. The ribbed pattern, non-slip surface, is designed for safety and comfort.
All exposed ends shall have aluminum caps fastened to the underside of the plank. Planks secure
to each frame with two friction-type aluminum mounting clips capable of securing the plank
against movement under a horizontal force of 400 lbs. All hardware is provided.
Finish: All fasteners shall be zinc plated.
3-ROW 15' STEEL
3-ROW 15' ALUMINUM
Date: 4/6/2021
Rev:
A
Drawn: JBN
Sheet:
1 of 11
PRODUCT NAME
3 ROW STANDARD 15FT
MODEL NO.
LA-BL0315
Advertisement
Summary of Contents for Steelcraft LA-BL0315
- Page 1 400 lbs. All hardware is provided. Finish: All fasteners shall be zinc plated. PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 1 of 11...
- Page 2 3/8 NYLOK NUT ZINC HWTEX1034 #10 x 3/4" SELF TAPPING SCREW PRODUCT NAME PRODUCT NAME Date: Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Rev: Drawn: Drawn: JBN MODEL NO. MODEL NO. LA-BL0315 Sheet: Sheet: 2 of 11 2 of 11...
-
Page 3: Installation Instructions
Secure using #10 x 3/4" Item 13 self-tapping screw in two locations on the underside of the clip/plank. FASTNERS NEEDED ITEM 13 20 QTY. PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 3 of 11... - Page 4 INSTALLATION INSTRUCTIONS: 3) Locate the three Bleacher 3-Row Standard Frame Item 1 and set on a level surface on 73" centers. 73" (TYP) PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 4 of 11...
- Page 5 NOTE: Two washers are provided to use at every hex bolt location. DETAIL-Z SHOWN ON SHEET #6 PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 5 of 11...
- Page 6 DETAIL-Z ENLARGED FROM SHEET #5 PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 6 of 11...
- Page 7 Item 7 , washer Item 8 , and lock nuts 9 on top of the seat and foot board supports. Give nuts about 3/4 turn (just enough to secure). Turn Bolt Clips Item 6 perpendicular to the frames. DETAIL-Y SHOWN ON SHEET #8 PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 7 of 11...
- Page 8 DETAIL-Y ENLARGED FROM SHEET #7 PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 8 of 11...
-
Page 9: Front View
90 so they engage the planks. To Secure Planks to Frames center planks on frames Item 1 Tighten all hardware on frames and planks securely. SHOWN ON SHEET #10 FRONT VIEW PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 9 of 11... - Page 10 " 23" SECTION A-A BLOT CLIPS TURNED 90 TO ENGAGE PLANKS DETAIL X ENLARGED PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 10 of 11...
- Page 11 57" 2" TOP VIEW 180" 23" 73" 73" 15-3/4" PLAN VIEW PRODUCT NAME Date: 4/6/2021 3 ROW STANDARD 15FT Rev: Drawn: JBN MODEL NO. LA-BL0315 Sheet: 11 of 11...
