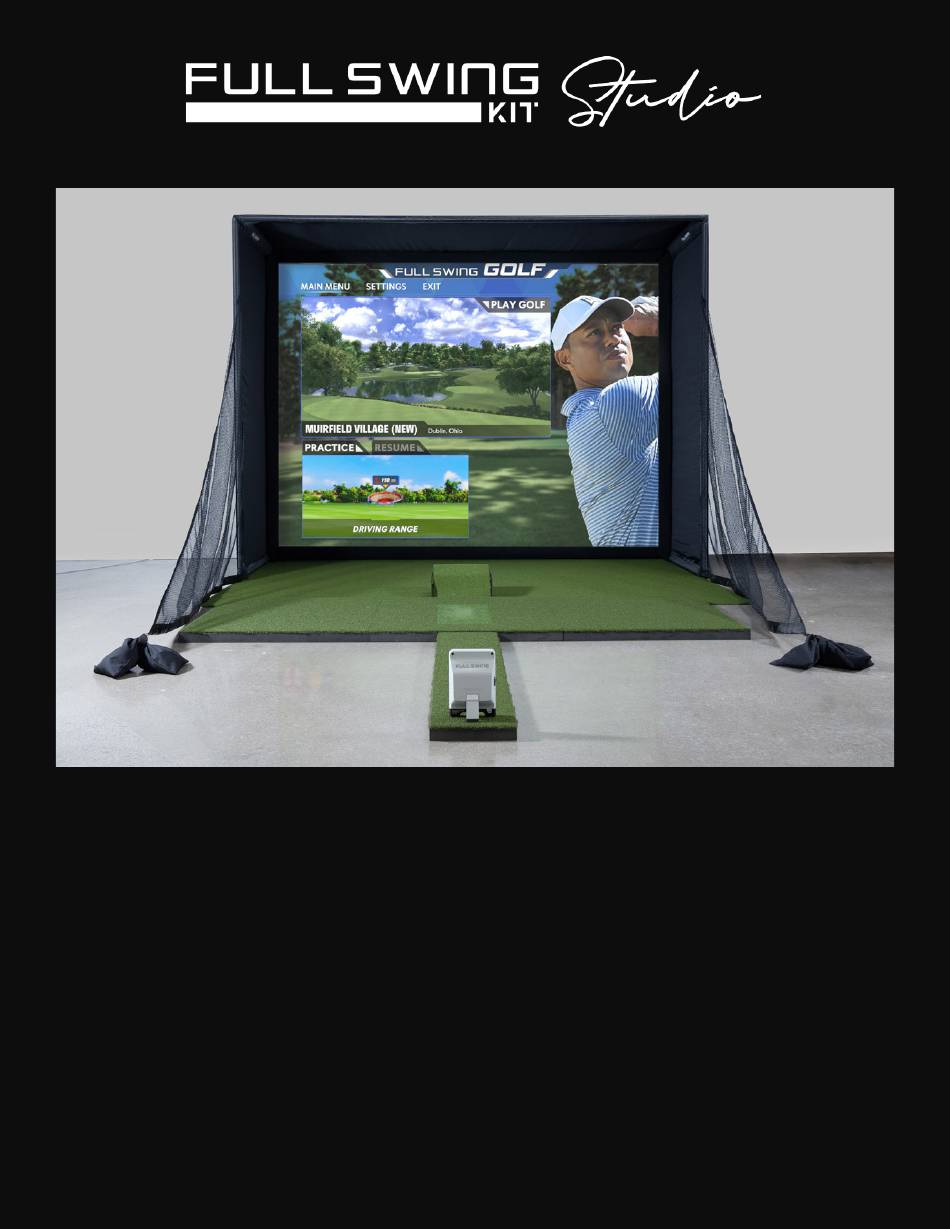

ASSEMBLY & START GUIDE
1
WWW.FULLSWINGGOLF.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIT Studio and is the answer not in the manual?

Questions and answers

Related Manuals for Full Swing KIT Studio

Summary of Contents for Full Swing KIT Studio

  • Page 1 ASSEMBLY & START GUIDE WWW.FULLSWINGGOLF.COM...

  • Page 2: Table Of Contents

    HOW TO SET UP THE PROJECTOR WITH THE FLOOR ENCLOSURE - 21 HOW TO CONNECT THE PROJECTOR TO THE FULL SWING LAPTOP - 24 HOW TO ADJUST THE IMAGE SETTINGS FOR A PROJECTOR ON THE FLOOR IN THE CENTER - 24...

  • Page 3: First Time Setup Guides

    FIRST TIME SETUP GUIDES This document will walk you through the first-time setup for all the Full Swing KIT Studio offerings. Please follow the instructions below to ensure you connect your devices correctly for the best simulated golf experience. Full Swing is not responsible for any damage or bodily injury while constructing...

  • Page 4: Assembling The 10' Screen Enclosure

    Optimal KIT Video Capture) SAFETY INSTRUCTIONS • Full Swing is not responsible for any damage to property and/or any personal injury. • Please pay close attention and make sure children, pets, and others are at a safe distance when swinging a golf club inside the enclosure.

  • Page 5: Materials Included With The 10' Screen Enclosure

    MATERIALS INCLUDED WITH THE 10’ SCREEN ENCLOSURE Color Coded Snap-Button Poles Premium Impact Screen Black Nylon Surround Carpeted Padding Panels L-Shaped Connectors 3-Way Connectors Side Barriers Nets Ball Bungees Sandbags FRAME ASSEMBLY STEPS 1) Lay out all poles and connectors. Organize by color. (6) 3-Way Connectors (2) L-Connectors (4) PURPLE poles with a single stripe on one end and double stripe on the opposite end.
  • Page 6 (4) BLUE poles with singles stripes on both ends. (3) YELLOW poles with single stripes on one end and double stripes on the opposite end. (4) GREEN poles with single stripes on both ends. (3) ORANGE poles with single stripes on both ends.
  • Page 7 2) Assemble the back lower poles first. Attach the double-stripe side of the YELLOW pole to a single stripe of the ORANGE pole. After, attach a 3-Way Connector to each end. 3) Assemble the entire lower section by attaching (2) GREEN poles to the 3-Way Connectors. Then attach the (2) L-Shaped Connectors to the ends of the GREEN poles.
  • Page 8 TIP: At this point in the assembly, make sure all button snaps are fully engaged in each fitting. Also, this would be a time to place the structure near its final location due to the added weight of the screen and surround in future steps.

  • Page 9: Enclosure Assembly Steps

    ENCLOSURE ASSEMBLY STEPS In this section, you will attach the black Full Swing surround to the frame, along with the impact screen. You will need a ladder and it is recommended to have additional people to assist with the following steps 1) Unfold the black surround and position it where the Velcro strips will be facing the inside of the frame, and the grommet holes are positioned along the back of the frame.
  • Page 10 2) Using the ladder/step stool, start on the left side of the frame. Unfurl the black surround and take it up and over the top of the GREEN pole and drape it to the ground. Unhook the Velcro Full Swing logo patches and wrap them around the GREEN poles.
  • Page 11 4) Remove the strip covering the hook Velcro that runs along the two front sides of the surround. There will be two strips running down the sides. Wrap the surround around the frame and attach the Velcro strip to the hook Velcro closest to the pole. The second strip of Velcro on the inside will be used for the side netting in a later step.
  • Page 12 7) Attach the surround to the back frame using the provided 6” bungee balls. Make sure that the balls are positioned on the exterior of the frame.

  • Page 13: Assembling The Impact Screen

    ASSEMBLING THE IMPACT SCREEN TIP: Before handling the impact screen, wash your hands thoroughly to avoid blemishes or stains on the white material. Also, make sure the floor is clean. Same steps for both the 10’ SCREEN and 12’ models. 1) Attach the Impact Screen to the frame ensuring the hook Velcro faces towards the golfer when swinging and the loop Velcro is in the back.
  • Page 14 4) Attach the protective carpet panels to the screen and the surround. This will protect the pipe and create a picture box frame of the screen for the optimal golf gameplay projection. To complete the enclosure and to protect the walls, windows, and others from errant golf shots, add the side barrier netting to the sides of the enclosure.

  • Page 15: Assembling The 12' Screen Enclosure

    Optimal KIT Video Capture) SAFETY INSTRUCTIONS • Full Swing is not responsible for any damage to property and/or any personal injury. • Please pay close attention and make sure children, pets, and others are at a safe distance when swinging a golf club inside the enclosure.

  • Page 16: Materials Included With The 12' Screen Enclosure

    MATERIALS INCLUDED WITH THE 12’ SCREEN ENCLOSURE Color Coded Snap-Button Poles Premium Impact Screen Black Nylon Surround Carpeted Padding Panels L-Shaped Connectors 3-Way Connectors Side Barriers Nets Ball Bungees Sandbags FRAME ASSEMBLY STEPS 1) Lay out all poles and connectors. Organize by color. (6) 3-Way Connectors (2) L-Connectors (4) WHITE poles with a single stripe on both ends.
  • Page 17 (4) BLUE poles with singles stripes on one end and double stripes on the opposite end. (3) BROWN poles with single stripes on both ends. (4) GREEN poles with single stripes on both ends. (3) RED poles with single stripes on one end and double stripes on the opposite end. 2) Assemble the back lower poles first.
  • Page 18 3) Assemble the entire lower section by attaching (2) GREEN poles to the 3-Way Connectors Then attach the (2) L-Shaped Connectors to the ends of the GREEN poles. 4) Connect the (4) WHITE poles to the four corner connectors. These will act as the bottom uprights for the structure.

  • Page 19: 12' Screen Enclosure Assembly Steps

    7) Just like the back lower section, attach (1) BROWN pole to the back right 3-Way Connector. Now, attach the double-stripe side of (1) RED pole to that BROWN pole in the middle. Next, attach the single stripe side of the RED pole to the other 3-Way Connector. •...

  • Page 20: Laying The Turf Landing Pads And Hitting Mats

    LAYING THE TURF LANDING PADS AND HITTING MATS These steps are the same for both the 10’ SCREEN and 12’ SCREEN structures. • (2) Pieces of Turf Landing Pads • (3) Puzzle Piece Hitting Mat • (1) Turf Extension for KIT Launch Monitor 1) Once the enclosure is complete and in its final location, lay down the (2) Pieces of Turf Landing Pads to enclose the structure.

  • Page 21: How To Set Up The Projector With The Floor Enclosure

    3) Next, connect the middle piece of the KIT Turf Extension and place it coming off the center of the hitting mat. See images below. HOW TO SET UP THE PROJECTOR WITH THE FLOOR ENCLOSURE Materials Included with the Floor Enclosure Projector 25’...
  • Page 22 1) First lay out all the materials on the turf in front of the hitting mat. Place the Floor Enclosure in the center of the turf, pushed back up against the hitting mat. The enclosure should sit snug up against the hitting mat for the image to fill the entire screen. You can offset the projector right or left 16”...
  • Page 23 4) Take the HDMI and Power Supply cables and run these under the back slit so they are not visible or exposed. Next, connect the 270° Elbow Connector provided to the HDMI cable. Connect the HDMI 270° Elbow and Power Supply cable to the of the Projector. 5) Now, slide the small plastic cover over the back of the enclosure, covering the cables.

  • Page 24: How To Connect The Projector To The Full Swing Laptop

    HOW TO CONNECT THE PROJECTOR TO THE FULL SWING LAPTOP 1) First, power on the laptop. The laptop should be plugged into a power supply during gameplay. 2) Plug the projector into a power supply using the provided battery. 3) Once both are plugged into a power supply, plug the HDMI cable running from the back of the projector into the HDMI port on the side of the laptop.
  • Page 25 Note: This part may take some time, so be patient and review the Optoma Projector user manual for any further adjustments. 8) Now that the image is displaying clean and filling the whole screen, see the section on how to connect the KIT to the Full Swing laptop.

  • Page 26: How To Offset The Projector Enclosure Right Or Left And Adjust The Image Settings

    HOW TO OFFSET THE PROJECTOR ENCLOSURE RIGHT OR LEFT AND ADJUST THE IMAGE SETTINGS The projector can be offset to the LEFT or RIGHT of the center, so the enclosure is not directly in front of the hitting mat. The Offset can be up to 16” inches either way. •...
  • Page 27 7) Now that the image is displaying clean and filling the whole screen, adjust the focus ring on the projector itself. 8) Once the image is focused and good to go, see the section on how to connect the KIT to the Full Swing laptop.

  • Page 28: How To Install The Projector Using A Ceiling Mount

    HOW TO INSTALL THE PROJECTOR USING A CEILING MOUNT Note – These instructions and measurements below are a recommendation based on Full Swings testing’s and are subject to change based on your environmental settings. Full Swing is not responsible for any damage to property and/or any personal injury...
  • Page 29 4) Plug the projector’s power supply and HDMI cable into the back of the projector. Run the cables to a power supply and the Full Swing laptop to display the image on the screen. 5) While on the ladder, adjust the focus and physical projector so the image fills the entire screen. The image will most likely be upside down until we adjust the display settings with the remote.

  • Page 30: How To Adjust The Image Settings For A Ceiling Mounted Projector

    HOW TO ADJUST THE IMAGE SETTINGS FOR A CEILING MOUNTED PROJECTOR Note – The focus ring is on the Projector itself, you will want to adjust that prior to adjusting the display settings. • Connect the laptop to your local Wi-Fi network. A recommended internet speed of 50 Mbps and a signal strength of three bars or more are generally suitable for a smooth and reliable online experience.
  • Page 31 7) Once the top left corner is fully clean on the screen, click the enter button between the arrows. Move to the top right corner and repeat the same process. Do this process for all four corners until the image fills the entire screen and does not expand on to the walls or ceiling/floor. Note - This part may take some time, so be patient and review the Optoma Projector user manual for any further adjustments.
  • Page 32 FIRST TIME SETUP | QUICK START GUIDE...

  • Page 33: Contents

    • Apple Watch (3 or higher), running iOS 7 or higher • Apple AirPods or most any Bluetooth headphones • Full Swing KIT Studio Laptop issued by Full Swing SAFETY & USER GUIDES For detailed information and the full user guide, please scan the QR code below with your camera:...

  • Page 34: Charge It Up

    • Remove the charger and cable from the inside pocket of the carrying case. • Gently open the rubber charging port cover on the left side of your Full Swing KIT, attach the charging cable, then attach the charger to the wall.

  • Page 35: Check For Updates

    CHECK FOR UPDATES Your KIT will automatically download and install updates while it is charging and connected to Wi-Fi. For the best experience, please allow any updates to finish before using your KIT. NOTE: Do not power the unit on at this time. Updates will only be installed while the unit is in charging mode. POWER IT UP After your KIT is completely charged and updated, it is ready to use.

  • Page 36: Start A Session - Kit Only

    START A SESSION - KIT ONLY • Open the Full Swing app and tap Start Practice Session. • Select your Environment, Tee to Screen/Net Distance, and Location (optional). • Launch Monitor Device - Tap the Connect button, then tap Join when prompted.
  • Page 37 • Select a Club, then tap Use Selected Club & Set Target. • Position your KIT so that the white line is pointed at your target, and your ball is within the tee area, then tap Set Target Line. • Hit 2-5 practice balls and make sure the KIT is tracking correctly. Once confirmed KIT is tracking, close the practice session on your mobile device.

  • Page 38: Connecting The Kit To The Full Swing Laptop

    DO NOT UPDATE TO WINDOWS 11. This laptop and FS Golf run on Windows 10. 4) Once the windows updates are complete, upon restart, this is the time to call Full Swing Support so they can configure your laptop and apply your license.

  • Page 39: Setting Up The Net Package With A Kit

    • Read all the warnings before you assemble and use the sports net. • Be sure that you orient your net properly. The Full Swing logo always faces the golfer. • Avoid exposing your net to prolonged ultraviolet light as this may fade and/or degrade the sleeve fabric.
  • Page 40 1) Lay out the 14 tubes in the area you plan to assemble. You can place on the turf to keep organized. 2) Find the 4 tubes labeled BASE and connect them to each other by matching the color stripes and numbers together.
  • Page 41 If you put the frame onto its back for assembly, stand your net back up to make this step easier. 8) Now take the turf and roll it out in front of the net if not already done, making sure the Full Swing logo on the net is facing the golfer.
  • Page 42 9) Next measure at least 8’ feet from the NET PACKAGE so you know where to hit the ball from for the KIT to track. You can mark the floor if you please. Next, measure 8-10’ feet from the hitting location to place the KIT.

  • Page 43: Connecting The Kit To The Laptop With No Projector

    DO NOT UPDATE TO WINDOWS 11. This laptop and FS Golf run on Windows 10. 4) Once the windows updates are complete, upon restart, this is the time to call Full Swing Support so they can configure your laptop and apply your license.
