Sunricher SR-MT2835RAC(UK) Quick Start Manual

Push Compatible Matter + Zigbee Knob Smart Dimmer
Important: Read All Instructions Prior to Installation

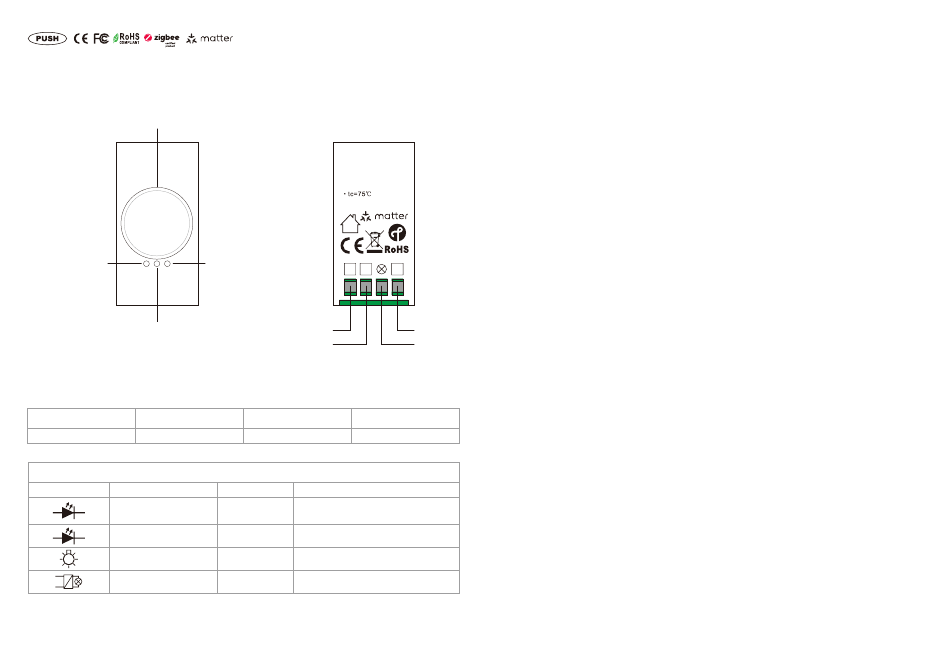

Function introduction
Rotary knob, short press to turn on/off, rotate
clockwise to increase brightness, rotate
counterclockwise to decrease brightness
"Min. Set" Key: for
minimum brightness
and startup
Min. Set Reset
brightness setting
LED indicator, stays off when power on the
dimmer, turns on after added to a Matter hub,
indicates (same status as connected load)
when program the dimmer (network pairing,
factory reset)
Product Data
Input Voltage Output Voltage
230VAC 230VAC
Compatible Load Types
Load Symbol Load Type
Dimmable LED lamps
Dimmable LED drivers
Incandescent lighting,
HV Halogen lamps
Low voltage halogen lighting
with electronic transformers
Knob Smart Dimmer
SR-MT2835RAC(UK)
Ratings:230V~,50Hz,
MAX:350W
ta=-20℃-+50℃
"Reset" Key: factory
reset of the dimmer, turn
N S
on/off the load
Neutral input
Push switch input
Output Current
Size(LxWxH)
1.5A max 25.0x50.0x20.0mm
Maximum Load
Due to variety of LED lamp designs, maximum
175W @ 230V
number of LED lamps is further dependent on
power factor result when connected to dimmer.
Maximum permitted number of drivers is 175W
175W @ 230V
divided by driver nameplate power rating.
350W @ 230V
175W @ 230V
• Matter + Zigbee knob smart dimmer
• 230VAC input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
• Supports resistive loads, capacitive loads or inductive loads
• Enables to set minimum brightness and startup brightness
• 1 channel output, up to 350W
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• App control + touchlink remote control + green power kinetic switch control
• App control through Matter (e.g. Apple Home, Amazon Alexa, Google Home)
• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa
• With push switch input, can be controlled by universal AC push switches
• Standard size, can be compatible with existing UK standard frames, and installed into standard size wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
Main Features:
• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting functions
• The Bypass is an extension unit
As a dimmer it operates under the following loads:
• Conventional incandescent and HV halogen light sources
L
• ELV halogen lamps and dimmable LED bulbs (with electronic transformers)
• MLV halogen lamps (with ferromagnetic transformers)
• Dimmable LED bulbs
• Dimmable compact fluorescent CFL tube lamps
• Supported dimmable light sources (power factor > 0.5) with minimal power of 3VA using the Bypass (depending on the
type of load)
Live input
Trailing edge or leading edge dimming mode can be preset by factory setting to control following types of loads:
Load output • "Trailing edge" for resistive loads
• "Trailing edge" for capacitive loads
• "Leading edge" for inductive loads
Note: factory default version is trailing edge.
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
1. Do wiring according to connection diagram correctly.
Remarks 2. This Matter thread device is a wireless receiver that communicates with a variety of Matter compatible
systems. This receiver receives and is controlled by wireless radio signals from the compatible Matter system.
3. Add to a Matter platform and control through the platform:
Note: An Apple HomePod mini is used as a Matter border router for adding and controlling the device. For other
Matter border routers, please refer to their user manuals to learn how to add and control Matter devices.
Step 1: Prepare an iPhone (iOS 16.2 or later) or iPad (iPadOS 16.2 or later) with the latest version firmware, and
prepare an Apple HomePod mini with the latest version firmware.
Step 2: Connect the iPhone or iPad to your home WLAN network. Run the Apple Home app and set up the HomePod
mini as instructed by Apple (as shown in Figure 1 to Figure 7).
