ATTE ETH10-2wire-SET Instruction Manual

ETH10-2wire-SET
2-wire transmission set LAN + PoE
10Mbps up to 1000m
ETH10-2WIRE-SET is a set of active converters for data transmission from the Ethernet network
and PoE power supply via 2 wires, e.g. one pair of UTP twisted pair. The devices allow the installation
of PoE IP cameras in places where replacement of the existing cabling is impossible or unprofitable.
The ETH10-2WIRE-TX module is powered from any PoE switch (RJ45 port) and via 2 wire cable, it
enables two-way network communication and powering the ETH10-2WIRE-RX module. The
maximum length of cable is 1000m. The camera or other PoE receiver can be connected to the RJ45
port of the ETH10-2WIRE-RX module at the end of the line.
The devices can be optionally powered from the POWER screw terminals.
The maximum distance of data transmission and PoE supply depends on the type, length and
connections of the cables used. The presence of other cables in the cable route and additional
indirect connections have a great impact on the transmission stability. The best parameters and the
largest transmission range can be obtained by using 2 single, twisted cables, e.g. one pair of UTP
twisted-pair cables.
The polycarbonate housing is a well-thought-out solution that ensures insulation and the small
dimensions of the device. The small size gives a wide range of options for selecting the installation
site.
ul. 3 Maja 5, 32-400 Myślenice, tel: +48 12 378 94 02, e-mail: support@atte.pl
INSTRUCTION MANUAL

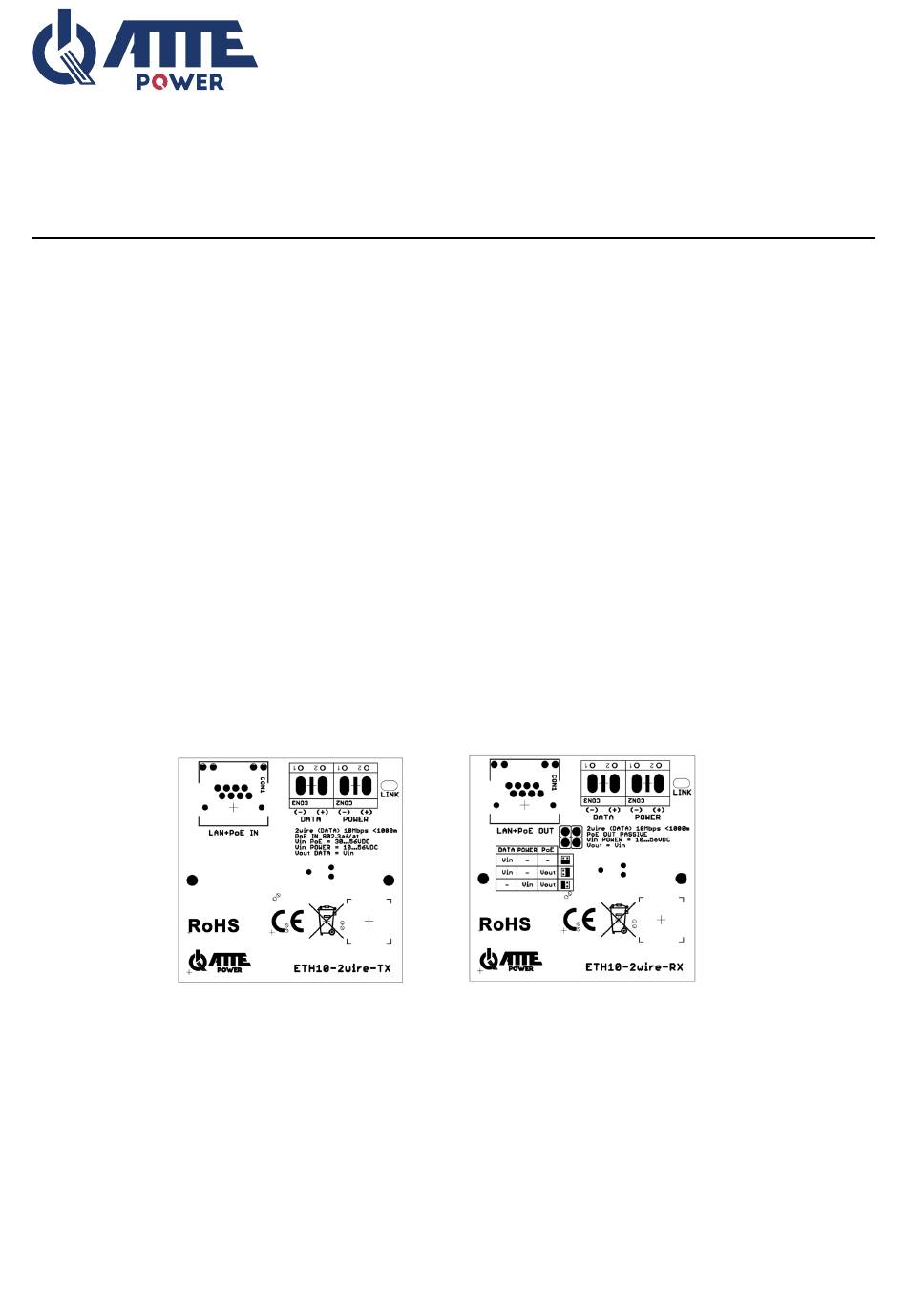

General view of the device
