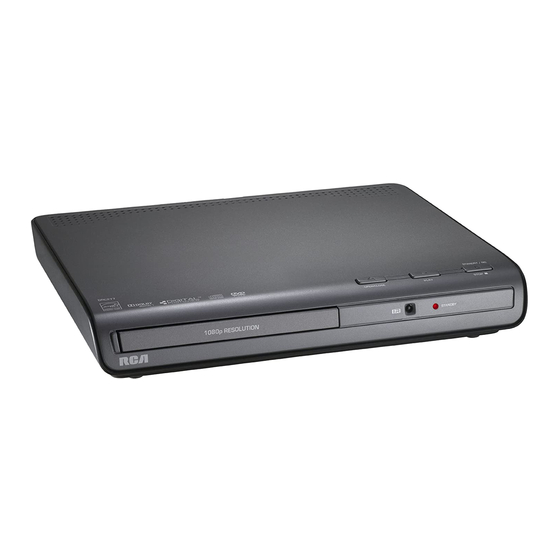

RCA DRC277A User Manual

B. CONNECTING TO A DISPLAY (Using a • When using HDMI cable, set the HDMI Audio
HDMI cable) to PCM.
• Press the HDMI button on the remote control in
For TVs that support it, HDMI can provide the
stop mode to change output signals as below:
best quality audio and video output (depending on
media source), and so is the preferred connection 480p (progressive)
type. The HDMI cable incorporates both audio 720p (progressive)
and video signals, so you will have just one cable 1080i (interlace)
running from the unit to your TV. Using a HDMI 1080p (progressive)
cable (not included), connect the HDMI OUT jack Notes:
on your unit to the HDMI IN jack on your TV or • Refer to your owner's manual to the connected
HDMI-compatible display. TV as well.
• When you connect the DVD player to your TV,
be sure to turn off the power and unplug both
units from the wall outlet before making any
connections.
• When using a HDMI cable, do not connect to • If you have a HDMI (with HDCP) equipped
other analog video outputs. monitor or display, you can connect it to this
• Set an output signal from the HDMI terminal of player using a HDMI cable.
the DVD player in accordance with your TV's
HDMI, the HDMI logo and High-Definition
input signal.
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
CONNECTING TO OPTIONAL EQUIPMENT (AMPLIFIER)
A. ANALOG CONNECTION B. DIGITAL CONNECTIONS (preferred)
Using an audio/video cable, connect the left/right This unit has two digital audio outputs – a
AUDIO OUT jack on your unit to the AUDIO IN COAXIAL digital audio output, and an OPTICAL
jack on your other source. digital audio output. Either will provide multi-
channel ("surround sound") audio if the DVD
ANALoG CoNNECTIoN being played contains multi-channel content.
Simply connect a coaxial (not included) or optical
Amplifier of stereo
(not included) cable from the coaxial or optical
system, etc.
output of your unit to the coaxial or optical input
of your Audio or Home Theater system.
DIGITAL CoNNECTIoNS (preferred)
Audio equipment with optical digital
in jack or digital audio input jack
Audio Cable
(Red and White)
OPTICAL
DIGITAL IN
White
Optical Digital
Or
Audio Cable
Red
Notes:
• When you connect the unit to other equipment, be sure to turn off the power and unplug all of the
equipment from the wall outlet before making any connections.
• If the external equipment is television and this audio system is close to it, you may experience the
interference if the tuner function is selected while the television is working.
• Refer to the instruction manual of the connected equipment as well.
PLAYING A DISC
This user manual explains the basic instructions instructions accompanying the specific DVD in
for operating this unit. Some DVDs are produced question for more information about the options
in a manner that allows specific or limited available on that DVD.
operation during playback. Therefore, this unit may appear on the screen during operation.
may not respond to all operating commands. It means that the desired operation is not
THIS IS NOT A DEFECT. Please refer to the permitted by the unit or disc.
Playing a Disc • While an image is zoomed in, you can use the
, , or CURSOR button to shift the
1. Press the STANDBY / ON button to turn
on the unit. view and display the part you want.
See CUSTOMIZING THE FUNCTION • To return to normal view, press the ZOOM
button until the ZOOM: OFF
SETTINGS before proceeding to step 2.
2. Press the OPEN/CLOSE button to open screen will return to normal.
the disc tray. • When you reach the edge of the image, the
display will not shift anymore in that direction.
3. Place a disc onto the disc tray with the label
side up.
Skipping (Forward / Reverse)
4. Press the OPEN/CLOSE button to close
• Press the PREV button to go back to
the disc tray. It takes a short while for your unit
current or previous chapters/tracks.
to load the disc. After loading, for most DVDs,
• Press the NEXT button to advance
the unit will automatically take you main menu
chapters/tracks.
or start playing.
• For audio CDs, use the number buttons on
5. If the unit does not automatically start playing
the remote control to jump immediately to the
the DVD, press the PLAY button.
desired track number.
Pausing Playback (Still Mode)
Fast Forward / Fast Reverse
Press the PAUSE button on the remote. To
resume normal playback, press the PLAY 1. Press the SEARCH
button. button when a disc is playing. Each time
you press the SEARCH
Frame Advance
button, the playback speed changes in the
1. Each time you press STEP button, the
following sequence:
picture advances one frame.
FORWARD x 2 FORWARD x 8
2. Press PLAY to resume normal playback.
FORWARD x 30 FORWARD x 100
PLAY
Stopping Playback
• Press the STOP button at the location
BACKWARD x 2 BACKWARD x 8
where you want to interrupt playback. To BACKWARD x 30 BACKWARD x 100
resume playback at the position where PLAY
the disc was stopped, press the PLAY
2. Press the PLAY button when you reach
button.
the desired point to resume normal playback.
• If you press the STOP button twice, the
Notes:
unit's memory will be cleared and pressing
• The unit mutes sound and subtitles during
PLAY button will reset the disc to the
the
reverse and forward scan of DVDs.
beginning.
• The fast playback speed may differ depending
Zooming into an image on the disc.
While a disc is playing, press the ZOOM button • To return to normal playback speed, you can
also press the or
to enlarge the image in several levels.
until PLAY displays on the screen.
ZOOM 2 ZOOM 3 ZOOM 4
ZOOM: OFF
- 5 -
SVP7277AS ENG IB-Sunplus.indd 1
Slow-motion Play • Some DVDs allow you to change subtitles
1. Press the SLOW button on the remote in play only via the disc menu. If this is the case,
mode. press the MENU button and choose the
• Each time the SLOW button is pressed, the appropriate subtitle on the disc menu.
speed of slow-motion playback changes in
the following sequence: Angle Selection
SF 1/2 SF 1/4 SF 1/8 PLAY Some DVDs contain scenes which have been
2. Press the PLAY button to return to normal shot from a number of different angles. For these
playback speed.
discs, the same scene can be viewed from each
Note: To return to normal playback speed, you
of these different angles.
can also press SLOW button repeatedly until
1. While you are playing a DVD with different
PLAY displays on the screen.
angles recorded, press the ANGLE button to
view the number of current angles available.
Audio Selection
2. Press the ANGLE button repeatedly to
On some DVDs, the sound is recorded in two
change the scene to the next recorded angle.
or more formats. Follow the directions below
e.g.
to select the preferred language and sound
system.
1. While a disc is playing, press the AUDIO
button to show the current audio format
number. e.g.
2. Press the AUDIO button repeatedly to select
• After approx. two seconds, playback will
the desired audio format.
continue from the new angle you selected.
Notes:
• If no button is pressed within 10 seconds,
• If only one audio format is recorded on the
playback continues without changing the
DVD, the number does not change.
current angle.
• Some DVDs allow you to change audio
Notes:
selections only via the disc menu. If this is the
• This function can only be used for discs on
case, press the MENU button and choose the
which scenes shot from multiple angles have
appropriate language on the disc menu.
been recorded.
• You can select different audio channels
• If only one angle is recorded,
(STEREO, MONO L, MONO R or MIX
displayed.
MONO) on an Audio CD by pressing the
AUDIO button repeatedly.
Display Function
While the disc is playing, press the DISPLAY
Subtitle Selection
button on the remote control repeatedly to
DIGITAL
1. While a DVD is playing, press the SUBTITLE
AUDIO IN display information on operation status.
button to display the current language
setting, as shown in the example.
Elapsed Time: Elapsed time from the beginning
Coaxial Digital
of the chapter/title which is currently playing.
[1 ENGLISH ]
Audio Cable
2. Press the SUBTITLE button repeatedly Remaining Time: Remaining time of the
to select the desired subtitle language. chapter/title which is currently playing.
You can turn subtitles off by pressing the
SUBTITLE button repeatedly until the
[ OFF ]
is
displayed.
Notes:
• Some DVDs are set to display subtitles
automatically, and you cannot turn them off
even if you set the subtitle function to off.
• During some scenes, the subtitles may not
appear immediately after you select your
desired scene.
• The number of subtitle languages recorded
differs depending on the disc. If only one
language is recorded, the language does not
change.
• This function can only be used for discs
on which subtitles have been recorded in
multiple languages.
LoCATING A DESIRED SECTIoN
Locating a Specific Chapter / Track / Title / Time
If you know the chapter / track / title / time number you want to play, you can locate a specific chapter
shows. The
/ track / title / time by directly selecting a chapter / track / title / time number.
1. Press the GOTO button to search your desired chapter / track / title / time.
2. Press , , or button to highlight a chapter / track / title / time and press the corresponding
number button(s) for the chapter / track / title / time you want.
or SEARCH
or SEARCH
3. Press the OK button to confirm. The unit will start playback about 3 seconds later.
Notes :
• Some discs may not respond to this process.
• Some scenes may not be located as precisely as you specified.
• This method for accessing specific locations is available only within the current title of the DVD
disc.
button repeatedly
- 6 -
PLAYING PICTURE FILE DISC
This unit can display picture files recorded on CD-R and CD-RW discs.
Playing a Picture File Disc
1. Open the disc door.
2. Place a picture file disc onto the tray with label side up.
3. Close the disc door.
4. The unit will load the disc and automatically display
the contents of the disc on the screen, while playing the
beginning of the first picture file. These files will then be
played back one by one. If the unit does not automatically
PLAY button.
start playing, press the
5. Press STOP or RETURN button to enter the contents of
the disc. Then press the , , or
to select a picture that you want to view, and press the OK
button to confirm.
: [ 2 / 3 ]
6. Now the picture slideshow begins with the selected picture.
Sequence of angle shots (Example)
Notes:
• You can press the PAUSE button to interrupt playback, and press the
playback.
• You can use the GOTO function or use the numbered buttons to enter the number of a picture file
to quickly select the image.
• During playback, press the ZOOM button to enlarge the picture in 3 levels (2, 3 and 4 times) only
while HDMI resolution is set to 480p.
• During playback, press to rotate picture anti-clockwise by 90°, press
by 90°; press to flip picture vertically, press
REPEAT PLAYbACK
You can play a specific title or chapter repeatedly.
(Title repeat, chapter repeat, all repeat, A-B
repeat)
is
Repeating a chapter
You can play the same chapter repeatedly.
1. While the disc is playing, press the REPEAT
DISC button until the
REPEAT: [CHAPTER]
indicator displays
on the screen. The current chapter is played
repeatedly.
Repeating a title
You can play the same title repeatedly.
2. While the disc is playing, press
the REPEAT DISC button until
Chapter Elapsed Time REPEAT: [TITLE] indicator displays
on the screen. The current title is played
repeatedly.
Repeating a whole disc
3. While the disc is playing, press
the REPEAT DISC button until
Chapter Remaining Time
REPEAT: [ALL REPEAT] indicator
-
C 00:12:03
displays on the screen. The whole disc is
played repeatedly.
Title Elapsed Time
To resume normal playback
4. While the disc is playing, press
T 00:30:15
the REPEAT DISC button until
Title Remaining Time
REPEAT: [OFF] indicator displays on
-
the screen.
T 02:01:22
You can play a single track and whole disc
repeatedly.
Repeating a single track
You can play the same track repeatedly.
1. While the disc is playing, press
the REPEAT DISC button until
REPEAT: [REP 1] indicator displays
on the screen. The current track is played
repeatedly.
PRoGRAmmAbLE mEmoRY
Playing Titles/Chapters/Tracks in a Favorite Order
You can combine your favorite titles/chapters/tracks and play them in the order you determine.
Track
1. Press the MEMORY button and the following display appears.
2. Select the items in the order you want by pressing the number
Chapter
buttons. Each time you press the Cursor buttons ( ,
the space is highlighted. Highlight where you want to enter, then
press the corresponding number buttons.
Title
3. Press the Cursor buttons ( , , , ) to move the highlighted
bar to "PLAY", then press the OK button. The DVD player starts
Time
memory playback.
4. To resume normal playback from memory playback
a) Press the MEMORY button.
b) Press the Cursor buttons ( , , , ) to move the highlighted
bar to "CLEAR", then press the OK button to clear all the input
programs. Alternatively, you can press the
clear all the input programs.
c) Press the PLAY button to resume normal playback.
Notes:
• If the title, chapter or track numbers you entered is not permitted
by the disc, after you press the OK button, it will restore to
(title, chapter) or (track). You should re-enter correct
numbers.
• Some discs may not permit memory playback operation.
• If you select repeat during memory playback, the DVD player repeats the current memory
playback.
• If you press the MEMORY button while the display appears on the TV screen, the display
disappears.
• The programmed selections will be cleared when you open the disc tray or turn off the DVD
player.
CUSTomIZING THE FUNCTIoN SETTINGS
System
HDMI RESOLUTION
TV SHAPE
DEFAULT
HDMI Resolution
Folder(s) Files within the
CURSOR button 1. Press the SETUP button.
current folder
2. Press the / button to select HDMI
RESOLUTION.
3. Press the OK button, then the
select the options (480p, 720p, 1080i or 1080p).
4. Press the OK button.
PLAY button to resume
5. Press the SETUP or RETURN button to exit
the menu.
Note: Select the resolution according to the
performance of the connected TV.
TV Shape
1. Press the SETUP button.
to rotate picture clockwise
2. Press the / button to select TV SHAPE.
to flip picture horizontally.
3. Press the OK button, then the
to select the options (4:3PS, 4:3LB or 16:9).
4. Press the OK button.
5. Press the SETUP or RETURN button to exit
Repeating a whole disc
the menu.
2. While the disc is playing, press
4:3 PS (Pan Scan)
the REPEAT DISC button until the
• When wide-screen
REPEAT: [ALL REPEAT] indicator
video is played, this
displays on the screen. The whole disc is
mode clips the right and
played repeatedly. left sides of the image so
To resume normal playback that it can be viewed on
a conventional screen.
3. Press the REPEAT DISC button until the
• Some wide-screen
REPEAT: [OFF] indicator displays on
DVDs that do not
the screen.
permit Pan Scan
mode playback are
You can play a specific section repeatedly.
automatically played in
Letter Box mode (black
Repeating a specific section
bands top and bottom).
1. While the disc is playing, press the REPEAT
the 4:3 LB (Letter Box)
A-B button at the beginning of the section (
• When wide-screen
REPEAT A- is displayed) you want to play
video is played in this
repeatedly.
mode on a conventional
2. Press the REPEAT A-B button again at screen, black bands
appear at the top and
the end of the section ( REPEAT A-B is
bottom of the screen.
displayed).
the
16:9 (Wide Screen)
3. The unit will immediately begin replaying your
• This is the correct
selection.
mode for playing
To resume normal playback
widescreen videos on
4. While the disc is playing, press the REPEAT
a wide-screen.
A-B button until the
REPEAT A-B OFF
Notes:
indicator displays on the screen.
• The displayable picture size is preset on the
the
Notes:
DVD. Therefore, the playback picture of some
• Some discs may not permit A-B repeat
DVDs may not conform to the picture size you
operation.
select.
• A-B repeat can only be used within the same • When you play DVDs recorded in the 4:3
title. If the start and end of the section to be picture size only, the playback picture always
appears in the 4:3 picture size regardless of
repeated are in different titles, A-B repeat is
the TV shape setting.
cancelled.
• Always be sure that your TV shape conforms
• You can specify a segment only within the
to the actual TV in use if you connect the unit
current title or track.
to a TV.
• The A-B repeat function does not operate in
the
Default
scenes where different camera angles are
1. Press the SETUP button.
recorded.
2. Press the / button to select DEFAULT.
3. Press the OK button, then the
to select "YES".
4. Press OK button to confirm, the RESTORE
WARNING dialogue window displays.
RESTORE WARNING
factory default?
Title Chapter
, , ),
YES
5. Press the / button to select "YES" and
press the OK button,
will be restored. The unit will exit the default
setting menu automatically and re-load the
PLAY CLEAR disc in the disc tray.
PROGRAM
Note: It will take 3-5 seconds to reset the DVD
player to the factory default.
Language
Track
STOP button to
OSD LANGUAGE
AUDIO LANG
SUBTITLE LANG
PROGRAM PLAY CLEAR
MENU LANG
OSD Language
1. Press the SETUP button.
2. Press the /
(language).
3. Press the /
LANGUAGE.
- 7 -
4. Press the OK button, then the / button
to shift and change the Language.
5. Press the OK button.
6. Press the SETUP or RETURN button to exit
the menu.
Audio Language
1. Press the SETUP button.
2. Press the / button to select
(language).
3. Press the / button to select AUDIO
LANG.
4. Press the OK button, then the / button
to shift and change the Language.
5. Press the OK button.
6. Press the SETUP or RETURN button to exit
the menu.
/ button to
Note: Some DVDs may not be played in the
language you selected. A prior language may be
programmed on the disc.
Subtitle Language
1. Press the SETUP button.
2. Press the / button to select
(language).
3. Press the / button to select SUBTITLE
LANG.
4. Press the OK button, then the
/ button
/ button
to shift and change the Language.
5. Press the OK button.
6. Press the SETUP or RETURN button to exit
the menu.
Notes:
• Some DVDs may be set to display subtitles
Cut off when a wide-
in a different language other than the ones
screen video image
you selected. A prior subtitle language may
is played.
be programmed on the disc.
• Some DVDs allow you to change subtitle
selections using the disc menu only. If this is
the case, press the MENU button and choose
the appropriate subtitle language from the
selection on the disc menu.
Menu Language
4:3 PS
1. Press the SETUP button.
2. Press the / button to select
(language).
3. Press the / button to select MENU
LANG.
4. Press the OK button, then the / button
to shift and change the Language.
4:3 LB
5. Press the OK button.
6. Press the SETUP or RETURN button to exit
the menu.
Note:
• Some DVDs may not include your pre-selected
language. In this case, the DVD player
16:9 automatically displays disc menus consistent
with the disc's initial language setting.
Audio
AUDIO OUT
Audio Output
1. Press the SETUP button.
2. Press the / button to select (audio).
3. Press the / button to select AUDIO
OUT.
4. Press the OK button, then press the /
/ button
button to select the output sound format (OFF,
RAW or PCM).
5. Press the OK button.
6. Press the SETUP or RETURN button to exit
the menu.
RAW Disc audio raw data will be output.
Reset to
Select this when connected to a multi-
channel (eg home theater) "surround
10 SECS sound" amplifier.
PCM Select this when connected to a stereo
NO
amplifier.
OFF
To disable Digital Output.
Note: If you connected to a TV using HDMI, and
the original setting
you are using the TV's speakers for your audio
source, then make sure to select "PCM".
Video
BRIGHTNESS
CONTRAST
1. Press the SETUP button.
2. Press the / button to select (video).
3. Press the / button to select the option
(BRIGHTNESS or CONTRAST), then press
the OK button.
4. Press the / button to select a preferred
button to select value, then press the OK button. (The screen
will change to your selected setting).
button to select OSD 5. Press the SETUP or RETURN button to exit
the menu.
- 8 - 811-727791W042
2009-06-30 14:47:12
